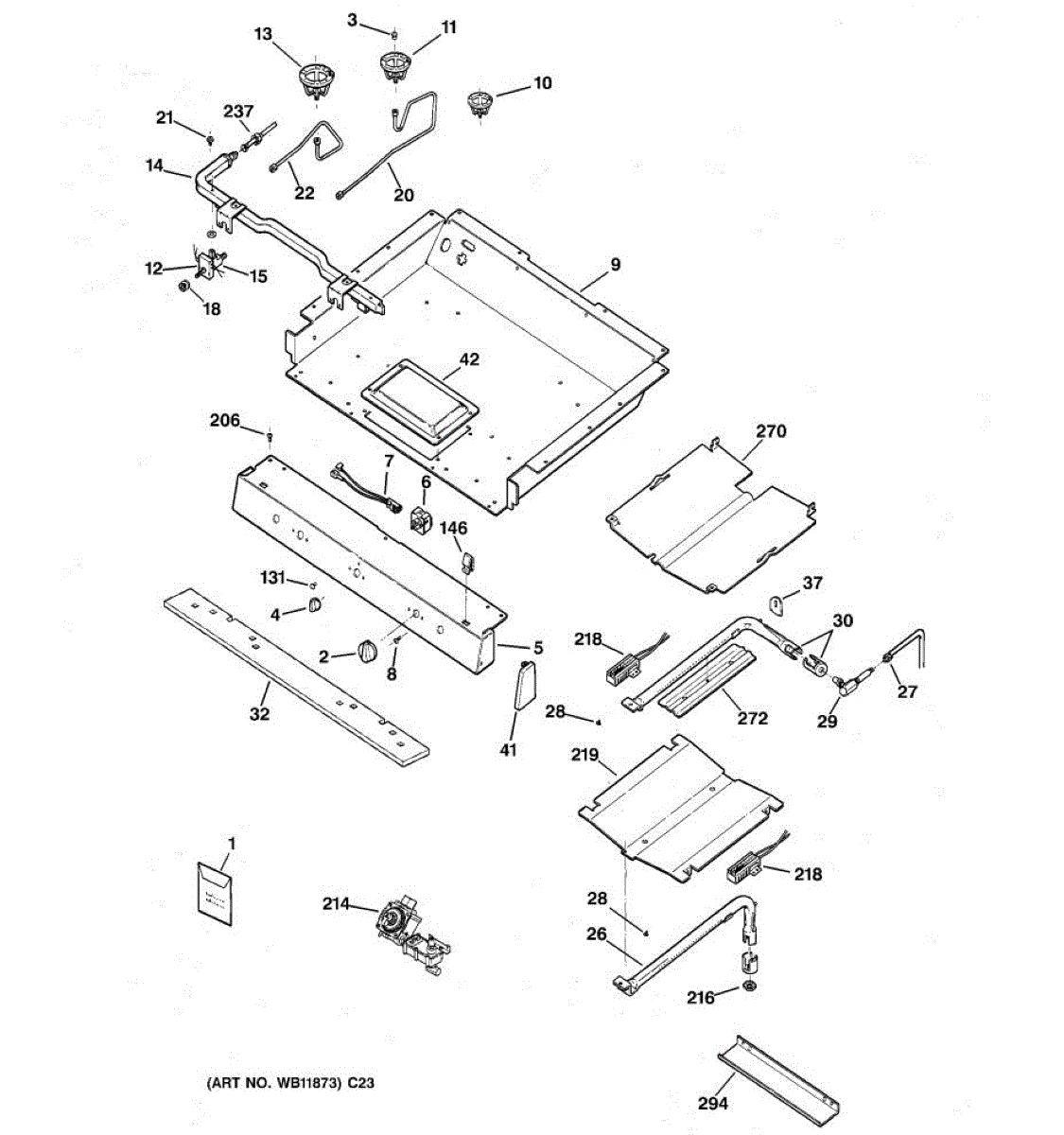

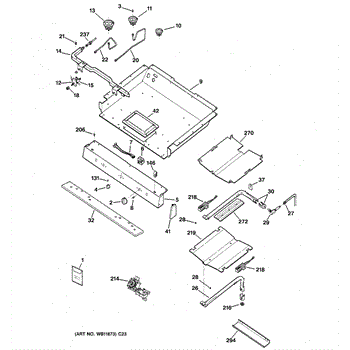

Parts for Ge JGBP99SEH1SS: 01 - Gas & Burner Parts

This knob kit replaces worn or broken range/cooktop control knobs, restoring a secure fit and clear control of your burner or oven settings while refreshing the appliance's factory look.

• Replaces damaged or missing control knobs for surface burners or oven controls
• Restores accurate selection of heat/flame and positive "Off" alignment
• Common symptoms: cracked or stripped knob, loose/slipping knob, faded/illegible indicators, knob falls off
• Press-fit design provides smooth operation when turning the control shaft

• Disconnect power or shut off gas and allow the appliance to cool before servicing
• Pull the old knob straight off the control shaft; avoid prying against the control panel
• Align the new knob with the stem orientation and press straight on until fully seated
• Match each knob to its original location and verify smooth operation

Natural gas. Med 1.50mm

Natural gas. SM 1.07mm

Natural gas. LG 1.68mm

LP Gas. LG .99mm

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

LP gas. SM .63mm

Size: 8 - 32 inch.

Small

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

Rear Burner Tube

Left rear

This is the screw that secures the burner valve to the appliance, keeping the valve and associated controls fastened for reliable operation. Replaces a worn or missing mounting fastener to restore proper valve alignment and support. What it does:

• Secures the burner valve assembly to the appliance frame or manifold
• Keeps valve position stable to help maintain reliable burner operation
• Helps prevent movement that can cause loose connections or intermittent function
• Used when original screw is stripped, missing, or corroded

• One burner valve mounting screw

• Turn off power and gas supply to the appliance before starting any repair
• Use the correct size driver and avoid over-tightening to prevent stripping the screw or damaging the valve
• Confirm valve and surrounding components are properly aligned before final tightening

The Left Front Burner Tube is an OEM part for GE ranges and cooktops, specifically engineered to ensure the efficient and safe delivery of gas to the left front burner. This component plays a pivotal role in the appliance's cooking performance, allowing for precise flame control and even heat distribution. Designed to fit perfectly with GE models, this burner tube is crucial for maintaining optimal functionality and safety during cooking.

The causes of these issues can vary, including blockages within the tube, wear and tear over time, or damage that can occur from cleaning or accidental impacts. Regular inspection and cleaning can help prevent blockages, but if wear or damage is evident, replacement of the burner tube is necessary to maintain the range's performance and safety.

Symptoms of a malfunctioning Left Front Burner Tube include:

• Inconsistent flame size or strength on the left front burner
• Difficulty lighting the burner or it failing to light at all
• A noticeable gas odor when attempting to use the burner, indicating potential leaks

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Right Front Burner Tube is an OEM part for GE ranges and cooktops, specifically designed to deliver gas to the right front burner, ensuring efficient and even cooking. This component is essential for the proper operation of the gas burner, facilitating the precise control of flame size and temperature. The burner tube's role is crucial for achieving the desired cooking results, whether you're simmering, boiling, or frying.

The causes for these issues often include clogs from food spills or debris, corrosion over time, or physical damage to the tube that can affect gas flow. Regular cleaning and maintenance of the burner and its components can help prevent some of these issues, but wear and tear over time may necessitate the replacement of the burner tube.

Symptoms of a malfunctioning Right Front Burner Tube include:

• The right front burner producing a weak or uneven flame
• Difficulty lighting the right front burner
• The burner flame going out unexpectedly
• A noticeable gas smell when the burner is turned on, indicating a potential leak

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Bake Burner Assembly is an OEM part for GE ovens and ranges. The bake burner assembly includes both the igniter and the burner tube. It is responsible for producing the flame that heats the air inside the oven cavity during baking and broiling.

Causes of a bad bake burner can include wear and tear from frequent use, clogging or blockage of gas ports, or damage from exposure to high temperatures and spills.

Symptoms of a bad bake burner include:

• Uneven baking or cooking results
• The oven not heating up properly or taking too long to reach the desired temperature
• Visible damage or corrosion on the burner
• The oven emitting unusual smells or noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This burner supply tube delivers gas from the range manifold to an individual surface burner, restoring proper fuel flow so burners ignite and produce an even flame. Direct replacement for the corresponding OEM supply line. What it does:

• Channels gas from the manifold to a specific surface burner for normal operation
• Helps restore ignition when a burner won't light or has a weak/uneven flame
• Replaces corroded, cracked or bent tubing that can restrict gas flow
• Designed to match the original routing and connection points for proper fit

• Turn off the appliance gas supply and electrical power before beginning any work.
• Confirm the correct tube orientation and secure fittings to the manifold and burner assembly.
• After installation, check all connections for leaks with a soapy-water solution or approved leak detector; do not use an open flame.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This igniter cover is a replacement protective shield that helps protect the oven igniter from food spills and debris, extending the igniter's service life and helping the burner ignite reliably. What it does:

• Shields the oven igniter from direct contact with spills, drips and falling debris
• Helps prevent premature igniter damage that can lead to ignition problems
• Can reduce the chance of shorting or erratic ignition caused by contamination
• Matches original shape to ensure proper fit and clearance around the igniter

• Disconnect power to the appliance (and shut off gas if applicable) before servicing
• Allow the oven to cool completely and wear gloves to avoid cuts from sheet metal
• Handle the igniter and cover carefully; avoid touching the igniter surface directly
• Test appliance operation after reinstall

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

Size: 10-32 GXTT FLP.595 S

Includes the oven safety gas valve and pressure regulator.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This manifold supply tube carries gas from the pressure regulator to the burner valve manifold on your gas range or cooktop. Replacing a damaged tube restores safe, consistent fuel flow for reliable ignition and steady flames.

• Routes regulated gas to the burner valve manifold
• Restores proper fuel flow when the original tube is kinked, cracked, or corroded
• Typical symptoms include weak or no flame, delayed ignition, or a fuel odor near the manifold
• Replace if leaking or visibly damaged

• Disconnect power and shut off the gas supply; allow the appliance to cool.
• Photograph the original routing and fittings before removal; transfer any clips or brackets.
• Route and support the new tube exactly like the original; avoid kinks or sharp bends.
• After reassembly, check all joints with an approved leak-detection solution—never with an open flame.

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available
