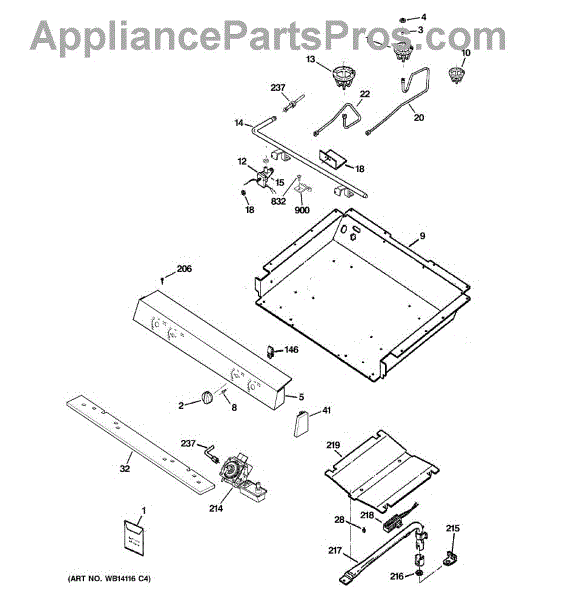

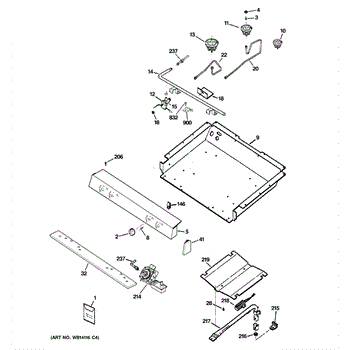

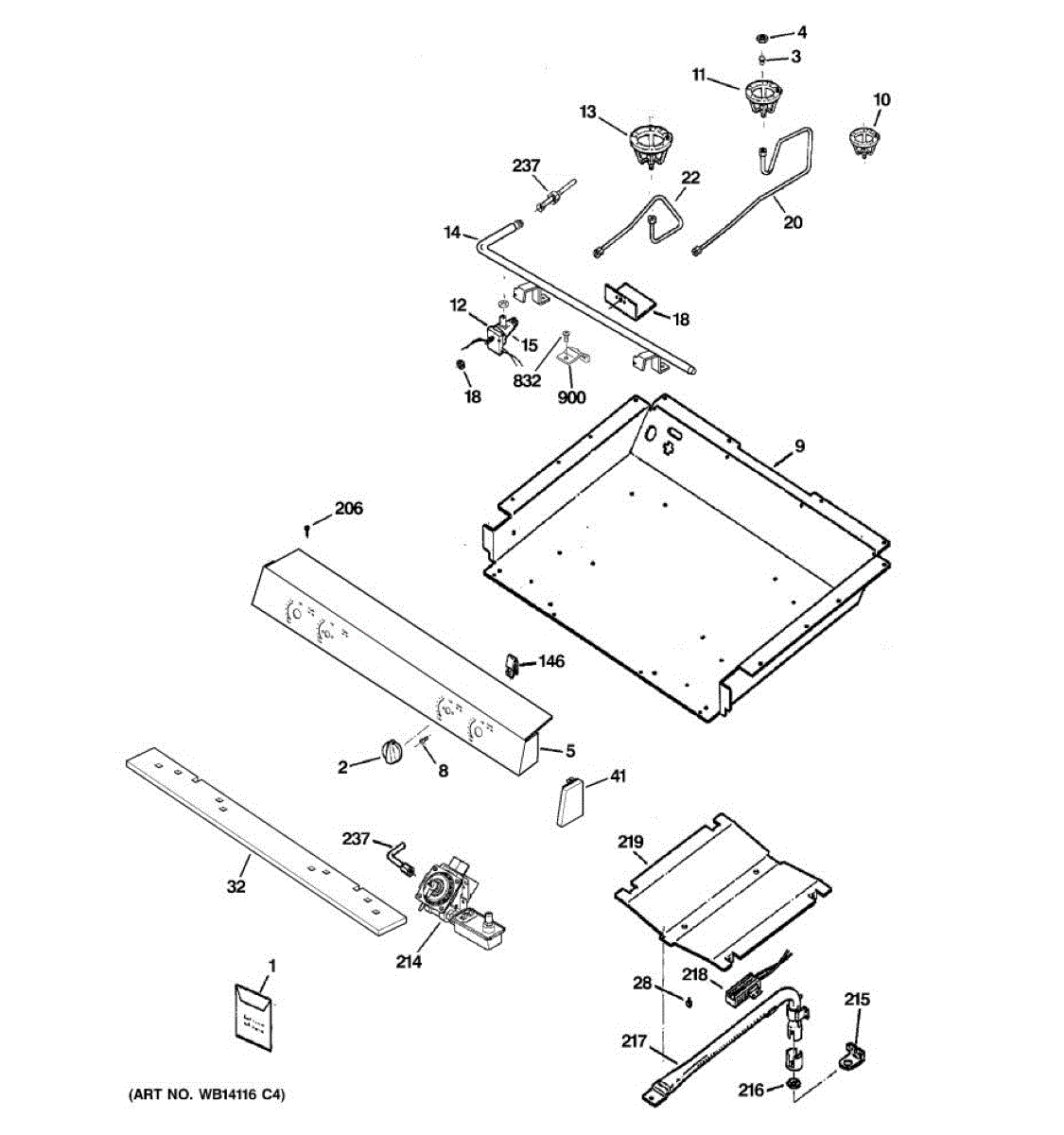

Parts for Ge JGBS23SEM2SS: 01 - Gas & Burner Parts

Replacement control knob for gas range valve stem. Installs on burner or oven controls. Needed when original knob is broken, cracked, or missing.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

Burner orifice spud for gas ranges. Controls gas flow to each burner. Replace if cracked, clogged, or when converting between LP and natural gas.

Burner orifice spud regulates gas flow to the burner on your range or cooktop. Replace if missing, damaged, or when converting between LP and natural gas.

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

Size: 8 - 32 inch.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This metal bracket mounts beneath a cooktop surface burner and holds the orifice and burner base in position. It ensures proper alignment of the burner assembly for safe and efficient gas flow. Replace this bracket if it is bent, corroded, or broken, which can cause the burner to sit unevenly or not ignite properly.

This rotary switch replaces a worn or failed control selector to restore reliable function selection. It provides a direct, mechanical interface for choosing settings so controls respond properly when the knob is turned. What it does:

• Routes user input from the control knob to the appliance's control circuits
• Restores reliable selection when a knob won't change settings or clicks without engaging
• Stops intermittent or no-response behavior caused by worn switch contacts
• Supports normal operation of the affected control bank or function

• Disconnect power (unplug or switch off breaker) before starting any work
• Label or photograph wiring before removal to ensure correct reconnection
• Access may require removing a control panel or trim; keep fasteners and small parts organized
• After installation, restore power and verify all functions operate as expected

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

Manifold pipe for gas ranges. Distributes gas from the valve to the burners. Replace if cracked, damaged, or leaking. Direct fit component.

This 270° burner valve controls gas flow to a single cooktop or range burner, restoring predictable flame adjustment and reliable ignition so you can cook safely and accurately. What it does:

• Regulates gas flow to the burner so flame height responds to the control knob
• Enables proper ignition and consistent flame during use
• Common symptoms indicating a faulty valve: burner won't light, flame stays too low or high, or burner only lights intermittently
• Stops gas flow when set to off to help prevent unintended flow

• One 270° burner valve

• Turn off gas supply and power to the appliance before replacing the valve
• Use appropriate wrenching tools and avoid torqueing valve fittings; follow OEM torque guidance if available
• After installation, check all connections for leaks (soap-and-water test) and verify correct burner operation

Burner won't ignite, flame won't adjust, or gas leaks? This top burner valve controls gas flow to your range's surface burners. Moderate DIY repair.

Fix a burner that won't turn off, has weak flame, or a stiff control knob. This gas valve controls flow to one cooktop burner. Moderate DIY repair.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Orifice holder that mounts under the cooktop to route gas to the rear burner. Replace if cracked, damaged, or when converting between natural gas and LP.

Delivers gas from the main supply line to the left rear burner on your gas range or cooktop. Located beneath the cooktop surface, connecting the gas valve to the burner assembly. Replace when the burner won't light, has uneven flames, or you smell gas near that burner.

The surface burner tube delivers gas from the control valve to the burner head on your gas range cooktop, enabling proper flame distribution. Located beneath the cooktop surface connecting to each burner, this tube needs replacement if you notice uneven flames, difficulty lighting the burner, or visible corrosion or blockages.

Holds the gas orifice in place at the front burner on gas ranges. Replace if cracked, broken, or kinked from repeated lifting of the cooktop.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Insulation pad for gas range burner box. Replaces worn, damaged, or missing heat insulation. Installs inside the burner box compartment for protection.

Replace a cracked, broken, or missing endcap on your range. This cosmetic trim piece installs on the side panel to complete the finished look.

Exterior endcap that covers and finishes exposed trim edges on your range. Replace if cracked, broken, or missing to restore appearance and protect components.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

The Control Valve Assembly is an OEM replacement part for GE ranges. It plays a key role in regulating gas flow within the oven burners to provide consistent, even heating across various temperature settings. The control valve monitors and controls gas pressure to the oven burners during baking and broiling functions.

Causes of a faulty control valve can include grime or debris deposit buildup on the valve or its components over time, wear and tear on seals from regular oven use, or damage to internal valve parts.

Symptoms of a bad control valve assembly include:

• Inaccurate or fluctuating oven temperatures
• Uneven or inconsistent baking and cooking results
• Failure or inability to ignite the oven burners
• Gas leaks near the control valve or burner areas

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Secures the gas safety valve to the chassis. Replace if worn, bent, broken, or missing to maintain proper valve alignment and stable positioning.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

Secures the thermostat assembly to your gas range or oven frame. Replace this mounting screw if it's stripped, missing, or damaged during repairs.

Secures the gas valve assembly to the frame of your range. Replace this bracket if it's bent, broken, or missing to properly mount the valve components.
