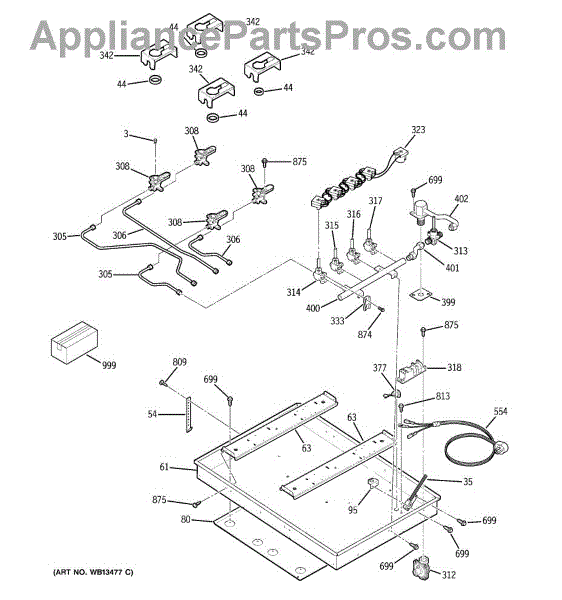

Parts for Ge JGP940BEK2BB: 01 - Gas & Burner Parts

Liquid propane

Natural gas

Natural gas

Natural gas

Natural gas

Liquid propane

Liquid propane

Liquid propane

This 120V appliance buzzer provides the audible alert for cycle completion and user notifications, restoring clear beeps when your appliance's buzzer has failed or gone silent. Ideal for ovens, ranges, and similar appliances that use a 120V signal. What it does:

• Produces audible alerts for cycle end, error notifications, and timer signals
• Commonly replaces units that are silent, intermittently loud, or emit distorted/weak tones
• Matches the OEM electrical rating to ensure proper signalling at 120 volts
• Designed for direct replacement of the original buzzer assembly

• Disconnect power to the appliance before servicing to avoid shock hazard
• Minimal tools typically required; handle the part and wiring carefully to avoid damage

This burner grommet sits beneath the gas burner head on the cooktop surface, providing a snug seat and spill barrier. Replacing a worn grommet helps keep the burner level and helps prevent spills and debris from entering the burner box.

• Seats and centers the burner head on the cooktop
• Helps seal around the burner opening to limit spill intrusion
• Maintains proper burner height and stability
• Replaces grommets that are cracked, shrunken, or deformed
• Common signs: burner wobbles or sits unevenly, visible wear, or liquids leaking under the top

• Disconnect power and shut off gas supply before servicing
• Remove grates and burner caps; lift off the burner head carefully to avoid damaging the igniter
• Remove the old grommet and clean the recess; press the new grommet fully and evenly into place
• Reassemble and verify burner alignment and ignition before restoring gas and power

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

Includes the natural gas orifice

Includes the natural gas orifice

Natural gas

The Pressure Regulator is an OEM part for GE ranges. This part controls and maintains the appropriate gas pressure flowing to the burners, ensuring consistent and safe operation of the stove.

Causes of a bad pressure regulator can include wear and tear over time, exposure to high temperatures, or contamination from dirt and debris.

Symptoms of a bad pressure regulator include:

• Inconsistent or fluctuating burner flames
• Burners not igniting
• The smell of gas around the range
• Reduced cooking efficiency

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This spark module controls ignition for your range's surface burners. When you turn a burner knob, it generates the high-voltage spark the electrodes need to ignite the gas quickly and consistently.

• Generates high-voltage pulses to the surface igniters to light the burner flame
• Activates when a burner switch/knob calls for ignition
• Routes spark output to the cooktop electrodes for reliable lighting
• Common failure signs: no spark on one or more burners, intermittent/weak spark, or continuous clicking

• Unplug the appliance and shut off the gas supply; allow the cooktop to cool
• Access the module per your model (often under the cooktop or behind a rear panel)
• Label and transfer wires one at a time from the old module to the new; ensure a solid ground and secure mounting
• Reassemble, restore power and gas, and test each burner for proper ignition

This switch harness assembly links the cooktop burner knob switches to the ignition circuit so the burners spark when you turn a knob. Replacing a damaged harness restores consistent lighting and can stop intermittent or continuous clicking during use.

• Routes electrical signals from the surface burner switches to the spark module
• Triggers igniters to click when a knob is turned to Lite
• Typical symptoms: no spark on any burner, constant clicking, or sporadic ignition
• Physical clues: heat-damaged insulation, broken connectors, or moisture intrusion

• Disconnect electrical power and shut off gas before servicing.
• Access location varies by model; remove knobs and lift the cooktop or front panel to reach the harness.
• Label or photograph wire routing; transfer connectors one at a time to avoid miswiring.
• Route wires away from sharp edges and hot surfaces; reassemble, restore power, and test each burner.

Right angle

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This is a replacement mounting screw used to secure panels and components on compatible appliances. It restores proper fit and prevents rattling or loose parts for a safe, stable appliance. What it does:

• Secures panels, trim, brackets or small components in place
• Replaces missing or stripped fasteners that cause rattling or loose parts
• Helps maintain appliance alignment and safe operation when installed properly
• Small fastener for interior or exterior appliance assemblies

• Disconnect power (and gas if applicable) before servicing the appliance
• Use the correct screwdriver and hand-start threads to avoid cross-threading
• Do not overtighten; snug until secure to prevent stripping or damaging parts

Black. 8-18 AB HXW 3/8

Replacement burner wire harness that restores the ignition wiring connection for a gas range surface burner, helping re-establish consistent sparking and reliable burner ignition for safe cooking operation. What it does:

• Provides the electrical connections between the burner igniter/spark electrode and the range's ignition module/control.
• Replaces damaged, cut, or frayed wiring that can cause no-spark, intermittent ignition, or continuous clicking at the burner.
• Routes and secures ignition wires to keep connections stable and reduce heat/rub-related failures.
• Helps the ignition system deliver consistent sparks so burners light reliably.

• Disconnect electrical power and shut off the gas supply before beginning any service.
• Compare the new harness to the original; transfer and reconnect terminals one-to-one and secure any routing clips or fasteners.
• Route wires away from hot surfaces and sharp edges; avoid stretching or pinching the harness.

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
