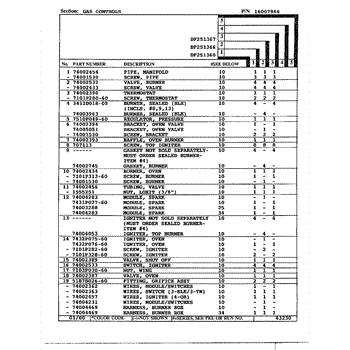

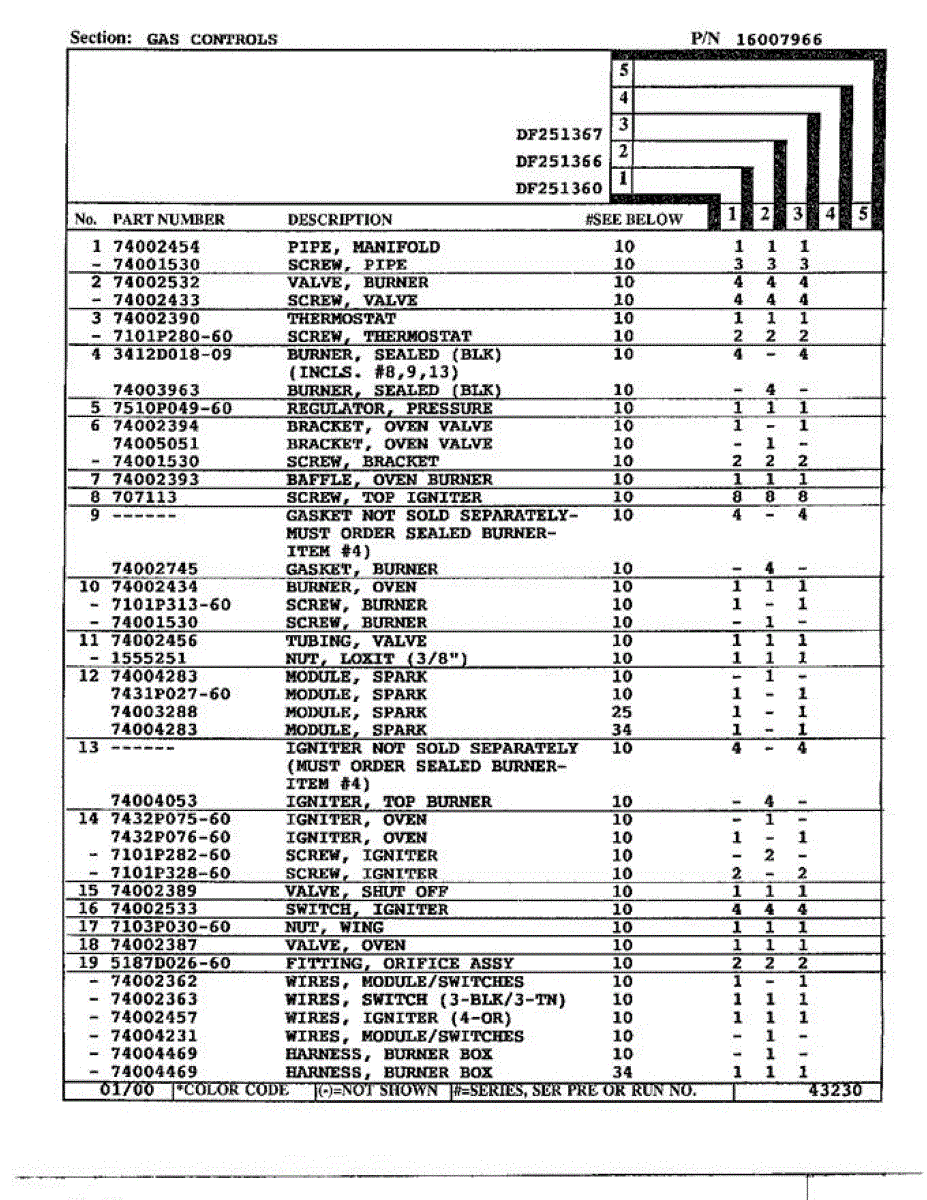

Parts for Magic Chef DF251366: Gas Controls Page 2 Parts

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This thermostat monitors temperature in the appliance's heating circuit and opens or closes the electrical contacts to control heat and protect against overheating. Replacing a failed thermostat restores consistent heating performance and reliable safety shutoff. What it does:

• Senses temperature and cycles the heating circuit on and off to maintain target heat
• Provides over-temperature protection by opening the circuit if conditions exceed safe limits
• Helps prevent nuisance shutdowns caused by erratic temperature readings
• Common failure symptoms include no heat, inaccurate temperatures, short-cycling, or shutdown during high heat

• 1 thermostat

• Disconnect power (and gas supply if applicable) before servicing; allow all components to cool completely
• Access the thermostat per your service manual; document wire locations and transfer one at a time
• Mount the thermostat securely so the sensing surface/bulb is correctly positioned; avoid kinking or pinching any leads
• After installation, verify proper operation and temperature performance

The Sealed Gas Burner Head is an OEM part for Whirlpool gas ranges. It directs the gas flow to the burner, ensuring an even flame for cooking. This component is crucial for efficient heat distribution and precise cooking control.

Causes of a bad sealed gas burner head can include clogging from food debris or grease, corrosion due to exposure to moisture, or physical damage from impact or excessive heat. Over time, these factors can affect the burner's performance, leading to uneven cooking or failure to ignite.

Symptoms of a bad sealed gas burner head include:

• Uneven flame or no flame at all
• Difficulty in igniting the burner
• Yellow or irregularly shaped flames
• Burner not heating evenly or adequately

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This part has been discontinued and is no longer available. This gasket is no longer needed.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This spark module generates high-voltage pulses to ignite the surface burners on your gas cooktop or range. Replacing a failed module helps restore fast, reliable ignition when you turn a burner knob.

• Converts line voltage into high-voltage pulses for the surface igniters to light gas
• Sends spark when a burner switch calls for ignition; multiple electrodes may spark together by design
• May help address: no spark on all burners, intermittent or weak spark, burners that click but won't light
• Continuous rapid clicking can also occur with a failed module or wet/stuck burner switches

• Disconnect electrical power and shut off gas before servicing
• Access the module under the cooktop/top panel or behind the control area; label or photograph wiring and move leads one at a time to the new module
• Mount the new module securely in the original location; ensure all connectors are clean, dry, and fully seated
• Restore power and test each burner for proper spark and ignition

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 10-24X5/16-NI

The Oven Igniter is an OEM part for Whirlpool ovens, designed to ignite the gas in the oven burner, allowing it to heat. This crucial component is responsible for creating the spark that starts the combustion process, enabling your oven to reach the desired temperature for baking or broiling.

Causes of a bad oven igniter include wear and tear from regular use, a buildup of residue that can inhibit the igniter's ability to heat properly, or electrical issues that prevent the igniter from drawing enough current.

Symptoms of a bad Oven Igniter include:

• Oven not heating up at all
• Oven takes longer than usual to heat up
• Gas smell when the oven is turned on, indicating gas is not igniting

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

Replace a worn or clogged gas burner orifice with this orifice fitting assembly to restore clean, controlled flame. It meters gas to the burner for reliable ignition and accurate flame size.

• Meters gas flow from the valve/manifold to the burner
• Supports reliable ignition and a stable, properly sized flame
• Common symptoms of a clogged or damaged orifice: weak or uneven flame, yellow tips, delayed ignition, or burner not lighting
• Replace if the fitting/orifice is stripped, deformed, or otherwise damaged

• Shut off the gas supply and disconnect power before servicing; allow the appliance to cool
• Access the orifice per your model's service instructions; remove burner components as needed
• Use the correct wrench; avoid cross-threading and do not overtighten
• After reassembly, restore gas and check all joints for leaks with a bubble solution; perform fuel-type conversions only with the proper kit and instructions
