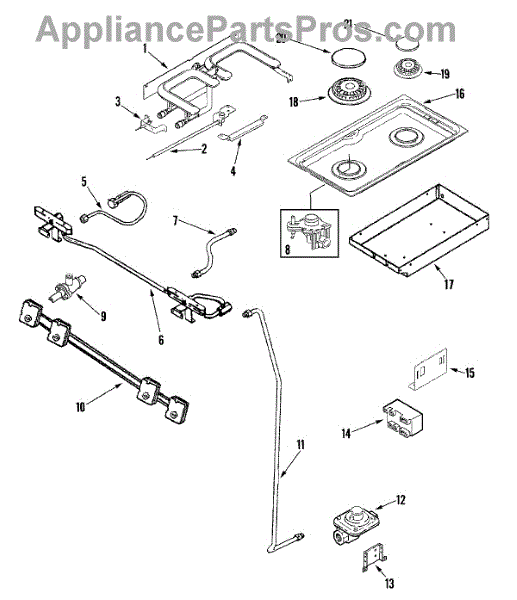

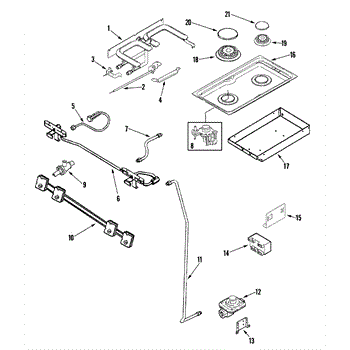

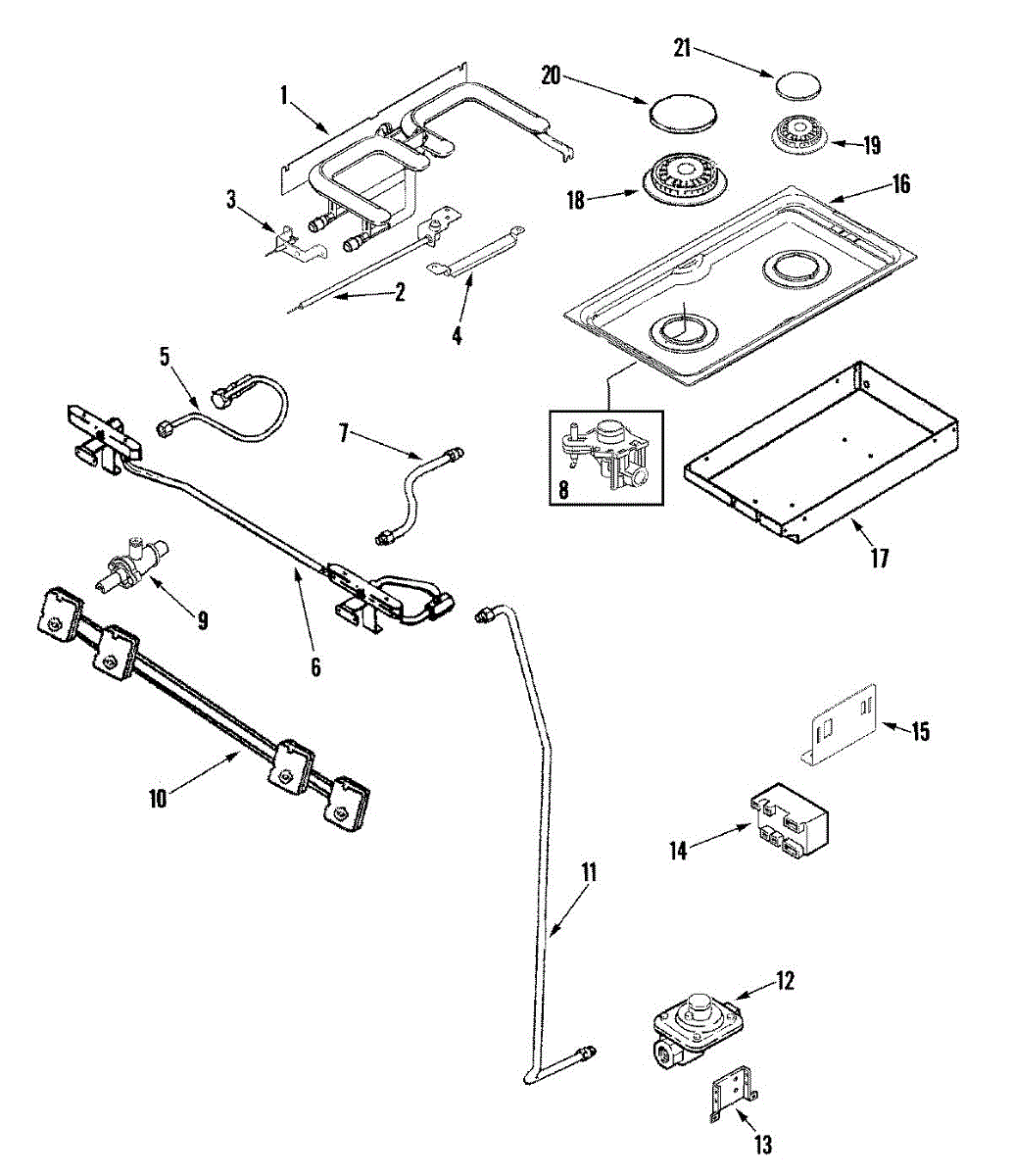

Parts for Jenn-Air JDS9865BDP: 06 - Gas Controls Parts

This is a durable complete top E-burner assembly that is used on ranges and cooktops. This is located in the oven and ensures that food is properly cooked when a user chooses a temperature. If this part is damaged or no longer working, it should be replaced.First, make sure the appliance is unplugged or the circuit breaker is turned off. Open the oven door and remove racks so there is extra room for the replacement process. Next, remove the bottom of the oven. There may be a screw or a nut that needs to be removed. Lift up the bottom and slide it toward the rear before lifting up. Remove the burner baffle and take off the igniter. Remove the screw that holds the top E-burner assembly and lift it out. Replace it with the new part and reassemble the oven.The complete top E-burner assembly is made for cooktops and ranges manufactured by Jenn Air. It is an authentic OEM replacement part that is sold as a single part. It is sourced directly from the manufacturer.

This burner spark igniter produces the electrical arc that lights the gas flame on your range or cooktop. Replacing a worn electrode restores quick, dependable ignition and helps stop continuous clicking when a burner won't light.

• Generates the high-voltage spark that ignites the gas at the burner
• Works with the ignition module to light the burner when the knob is turned
• Common symptoms of a failing igniter: clicking but no flame, no visible spark, burner lights only with a match, intermittent or delayed ignition
• Restores fast, reliable lighting performance at the burner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Access the electrode at its burner location; note its position and gap relative to the burner before removal
• Handle the ceramic insulator carefully and reuse original mounting hardware if applicable
• Reconnect the spark wire securely, reassemble, and test for proper spark and ignition

This spark ignitor ground assembly creates the spark and grounded path needed to light a gas burner. Replacing a worn electrode restores consistent ignition and helps reduce continuous clicking or burners that fail to ignite.

• Generates a high-voltage spark at the electrode tip to ignite the gas at the burner
• Integral ground bracket completes the circuit and sets the proper spark gap near the flame source
• Common symptoms: no spark at one position, intermittent ignition, continuous clicking, or cracked/corroded electrode or ground
• Intended for a single burner location; match mounting style and connector to your original

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Note the original electrode position and wire routing; remove the old assembly
• Install the new assembly with clean, tight metal-to-metal ground contact and correct gap to the burner per service instructions
• Reconnect the lead and test for a strong, consistent spark before reassembly

G4 orifice holder secures the gas orifice to the burner tube, keeping the orifice aligned for reliable ignition and a consistent flame. Replaces a damaged or worn holder to help restore proper burner flame behavior. What it does:

• Holds and positions the gas orifice in the burner tube for correct flame pattern and stability.
• Ensures consistent ignition and steady flame when the burner is operating normally.
• Common symptom indicators: burner won't light reliably, flame is weak or uneven, or burner performance is inconsistent.

• Turn off the appliance power and shut off the gas supply before beginning work.
• Inspect the orifice and burner tube for debris and proper alignment during installation.
• Tighten fasteners snugly but avoid overtightening; ensure the orifice is properly seated and oriented.
• After installation, check for correct ignition and perform a gas-leak check.

This orifice holder secures and positions the gas orifice at the burner, helping restore correct gas flow and consistent flame performance for compatible gas cooktop/range burners. Use it to replace cracked, warped, or missing holders. What it does:

• Holds the burner orifice in the proper position for accurate gas metering
• Helps maintain a steady burner flame and reliable ignition
• Replaces damaged or worn holders that can cause weak or inconsistent flames
• Works with surface burners and orifice assemblies where this holder is specified

• Turn off gas supply and unplug the appliance before servicing.
• Remove burner components and replace the holder with the matching OEM part.
• Inspect the orifice and surrounding tubing for damage; tighten fittings per manufacturer guidance.

This surface burner spark igniter creates the electric arc that lights the gas flame on your cooktop or range. Replacing a worn or cracked electrode restores reliable ignition and helps resolve hard-to-light burners and intermittent sparking.

• Provides a high-voltage spark at the surface burner to ignite gas
• Mounts to the orifice holder beneath the burner head
• Failure symptoms include burner not lighting, needing a match, or intermittent/weak spark
• Common issues: chipped/cracked ceramic insulator or damaged terminal/lead

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; remove grates, burner caps, and heads to access the orifice holder
• Transfer the ignition lead, install the new electrode, and route the wire away from heat and sharp edges
• Ensure the tip is positioned near the burner as designed; verify spark and ignition before reassembly

5K. Mueller

A set of four valve mounting screws used to secure the water/ice valve or valve bracket in place. These OEM-style screws restore proper valve alignment and fasten valve assemblies for reliable operation. What it does:

• Secures the valve or valve bracket to the appliance chassis to prevent movement during operation
• Helps maintain a tight seal at valve mounting points to reduce risk of leaks
• Replaces missing, stripped, or corroded valve mounting fasteners
• Restores stable valve positioning that can prevent rattling or vibration

• Disconnect power and shut off the water supply before beginning any work
• Use the correct screwdriver or bit to avoid stripping the screw heads
• Thread screws in by hand first, then tighten snugly—do not overtighten to avoid damaging the valve or mounting threads
• If existing threads are damaged, inspect the mounting boss and replace as needed

5K. Mueller

16K. Mueller.

This valve switch cover protects the appliance's valve switch assembly and wiring, keeping components secure and shielding them from moisture, dust, and accidental contact. Replacing a damaged cover helps restore proper fit and reduces the risk of electrical or valve issues. What it does:

• Shields the valve switch and connector from moisture, dirt, and physical damage
• Secures the electrical connector and switch in the correct position
• Helps prevent intermittent valve operation caused by loose or exposed connections
• Reduces the chance of wiring abrasion or shorting near the valve area

• Disconnect power to the appliance before starting any work
• Turn off the water supply if working near water valves
• Handle electrical connectors and wiring gently; avoid pulling on wires
• Use basic hand tools and follow OEM diagram for correct reassembly

This wire harness connects key components so your appliance controls and sensors communicate reliably. Replaces a damaged or frayed harness to restore normal electrical connections and help resolve intermittent power or control issues. What it does:

• Routes power and signal connections between the control board, switches, and sensors
• Restores missing or intermittent electrical continuity caused by broken or burned wires
• Helps stop erratic operation, control failures, or no-power conditions linked to damaged wiring
• Matches OEM connector and terminal locations for a direct replacement

• Disconnect power at the breaker or unplug the appliance before starting any work
• Handle connectors gently; match keyed plugs and secure all wire routing away from moving parts and sharp edges
• If terminals are corroded or connectors are damaged, replace connectors

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Spark Module Kit is an OEM part for Whirlpool ranges. It is responsible for generating the spark needed to ignite the gas burners on the cooktop. The spark module sends electrical signals to the igniters, creating the spark that lights the gas for cooking.

Over time, the spark module can fail due to electrical issues, exposure to moisture, or normal wear and tear. When the spark module becomes faulty, it can lead to various problems with igniting the burners.

Symptoms of a bad spark module include:

• Burners not lighting or taking a long time to light
• No clicking sound when turning the burner knob
• Burners only lighting intermittently
• Visible sparks or arcing from the module

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

NOTE: This part is only compatible with serial numbers starting with 21 and up on model 8351VV.

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

Color: Black. Size: Large.

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.
