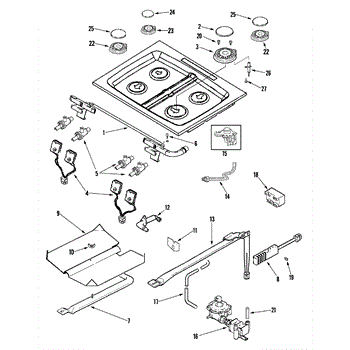

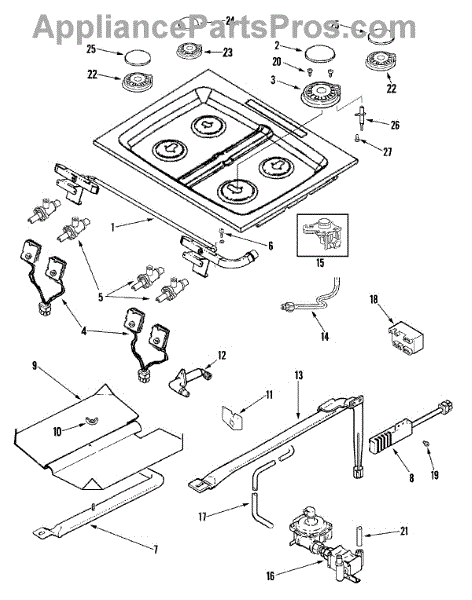

Parts for Jenn-Air JGS8750BDB: 05 - Gas Controls Parts

Color: Black. Size: Large.

This surface burner head is a genuine Whirlpool part, sold individually. It can be used as a replacement part for a gas range. This surface burner head provides structure and support for the surface burner cap and the ignition, which all work in conjunction to ignite the spark plugs and power on the burner.Signs of damage to this part will include a gas ignition that glows but will not ignite, a gas range that will not start at all, or a heating element that will not heat up the appliance. If any of these signs of damage occur and are directly attributable to the surface burner head, the component should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This surface burner head is compatible with the following appliance brands: Whirlpool, Jenn Air, and KitchenAid.

This switch harness assembly routes signals from a left-side switch to the appliance control so the machine detects door/lid or control inputs and operates correctly. It restores reliable electrical connection between the switch and main wiring. What it does:

• Provides the factory-style wiring connection between a left-side switch and the main control board
• Carries switch signals so the appliance recognizes door/lid position or user inputs
• Commonly replaced when an appliance won't start, doesn't register switch actions, or has intermittent control behavior
• Maintains correct wire routing and secure terminal connections to prevent loose or shorted circuits

• Disconnect power (unplug or shut off breaker) before starting any repair
• Inspect connectors and match terminals to factory routing before final assembly
• May require access by removing a control panel or cabinet trim; keep small fasteners and clips organized

This switch harness assembly connects control panel switches to the appliance's main wiring, restoring reliable switch-to-board communication and control. It's a direct-fit electrical harness used to replace damaged or worn wiring for normal operation. What it does:

• Routes electrical signals from control switches to the appliance control board or connector block
• Replaces frayed, burned, or broken harness wiring that can cause intermittent or failed controls
• Helps resolve symptoms like unresponsive buttons, intermittent operation, or visible wiring damage
• Maintains factory wire lengths and connector locations for correct fit and function

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock or injury
• Inspect connectors and routing before installation; match connector shapes and wire colors for proper connection
• Secure harness away from moving parts, sharp edges, and heat sources to prevent future wear

5K. Mueller

9K. Mueller.

16K. Mueller.

A set of four valve mounting screws used to secure the water/ice valve or valve bracket in place. These OEM-style screws restore proper valve alignment and fasten valve assemblies for reliable operation. What it does:

• Secures the valve or valve bracket to the appliance chassis to prevent movement during operation
• Helps maintain a tight seal at valve mounting points to reduce risk of leaks
• Replaces missing, stripped, or corroded valve mounting fasteners
• Restores stable valve positioning that can prevent rattling or vibration

• Disconnect power and shut off the water supply before beginning any work
• Use the correct screwdriver or bit to avoid stripping the screw heads
• Thread screws in by hand first, then tighten snugly—do not overtighten to avoid damaging the valve or mounting threads
• If existing threads are damaged, inspect the mounting boss and replace as needed

The Oven Igniter is an OEM part for Whirlpool ovens, designed to ignite the gas in the oven burner, allowing it to heat. This crucial component is responsible for creating the spark that starts the combustion process, enabling your oven to reach the desired temperature for baking or broiling.

Causes of a bad oven igniter include wear and tear from regular use, a buildup of residue that can inhibit the igniter's ability to heat properly, or electrical issues that prevent the igniter from drawing enough current.

Symptoms of a bad Oven Igniter include:

• Oven not heating up at all
• Oven takes longer than usual to heat up
• Gas smell when the oven is turned on, indicating gas is not igniting

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

This orifice holder secures the gas orifice in a burner assembly to ensure proper alignment and gas flow for reliable ignition and flame performance. It fits the specified burner configuration and replaces a damaged or missing holder. What it does:

• Holds the burner orifice in place so the burner can ignite correctly
• Maintains correct orifice alignment for consistent flame shape and heat output
• Common symptom fix: burner won't light or produces a weak/uneven flame
• Works with the matching orifice sized for the listed burner application

• Turn off gas supply and electrical power before servicing the appliance
• Handle small parts carefully and confirm correct orientation during reassembly
• Check surrounding gaskets and seals and replace if deteriorated

This gas surface-burner orifice holder serves the 15K burner position on many cooktops/ranges. It routes gas from the valve to the burner orifice and keeps the burner properly aligned for consistent ignition and flame.

• Channels gas from the surface valve to the orifice for the 15K burner
• Rigidly locates the burner base and orifice for correct flame pattern and ignition
• Common symptoms of a failed holder include: burner clicking but not lighting, weak/small or uneven flame, or intermittent ignition on that burner
• Replacement restores proper alignment and gas flow at the affected burner

• Shut off gas supply and disconnect power; allow the appliance to cool
• Remove grates, caps, and burner heads; lift/open the top to access the holder
• Note orientation, disconnect tubing, remove mounting screws, and install the new holder in the same position; transfer any fittings as needed
• After reassembly, perform a soap-and-water leak check at all serviced connections before use

This valve/regulator assembly controls gas flow to the burner, restoring correct gas pressure and ignition response in compatible gas appliances. Use it to address heating issues and unstable or inconsistent burner operation. What it does:

• Regulates and meters gas pressure delivered to the burner for proper combustion.
• Opens and closes gas flow during the ignition cycle to maintain a steady flame.
• Common symptoms it can address: no heat, weak or uneven flame, or burners that fail to light.
• Designed as a direct replacement assembly—matches OEM function and form for affected gas systems.

• Shut off gas supply and disconnect electrical power before attempting replacement.
• Replace gaskets/seals as needed and tighten gas fittings per manufacturer torque specs; check all connections for leaks with soapy water (do not use an open flame).
• Follow model-specific instructions and diagram for correct routing and mounting.

This spark module controls ignition for four surface burners and provides automatic reignition if a flame goes out. It generates the high-voltage spark and monitors flame for dependable lighting and consistent cooktop performance.

• Generates high-voltage pulses to ignite up to four surface burners
• Senses flame presence and automatically re-sparks if a flame is lost
• Helps stop sparking once flame is detected to reduce clicking
• Symptoms this part is involved with include: no spark on any burner, intermittent or weak spark, or continuous clicking after lighting

• Disconnect power and shut off gas before servicing
• Access is typically under the cooktop or behind a panel; mount the module securely away from heat and moisture
• Transfer wires one at a time to matching terminals; ensure ground/neutral connections are secure for proper flame sensing
• After reassembly, restore power and test each burner for ignition and that clicking stops when flame is present

Size: 10-24X5/16-NI

The Large Burner Head is an OEM part for Whirlpool gas ranges and cooktops. It is designed to fit over the burner base and distribute the gas evenly for efficient and consistent heating.

Causes of a bad burner head can include blockages from food debris or residue buildup, warping or damage from high heat exposure, or general wear and tear over time.

Symptoms of a bad Large Burner Head include:

• Uneven heating or hot spots on the burner
• Yellow or irregular flame patterns
• Difficulty igniting the burner or keeping it lit
• Loud popping or hissing noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small surface burner assembly replaces a worn or damaged top burner on your gas range or cooktop, restoring quick ignition and an even flame so the small burner heats predictably for simmering and everyday cooking.

• Distributes gas through the burner ports to create a steady, controllable flame at the small-burner position
• Works with the igniter/orifice holder to light reliably
• Common symptoms: burner won't light or only clicks, weak or uneven flame, yellow tips, delayed ignition, or flame that sputters out
• Visible cracks, warping, or heavy corrosion on the burner head

• Shut off gas supply and power; allow the cooktop to cool completely before servicing
• Remove grate and cap, then take out the old burner assembly; retain any screws or brackets as required by your model
• Align the new assembly over the orifice and igniter; seat fully and secure per the manufacturer's instructions
• Restore gas and power, then check for proper ignition and flame; verify there are no gas leaks

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.

The Top Burner Igniter is an OEM part for Whirlpool gas cooktops and ranges. This thin metal coil provides the spark to light the burner flames during startup. It is a spark electrode with a male spade connection.

Causes involve cracking of fragile ceramic insulator casings allowing moisture ingress, compromised electrical connections cutting off sparking ability, or general wear reducing spark output strength.

Symptoms of failure consist of:

• Inability to light one or more front gas burners
• Click sounds but no flame present when turning burner knob
• Safety issues arising from unlit gas accumulating

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.
