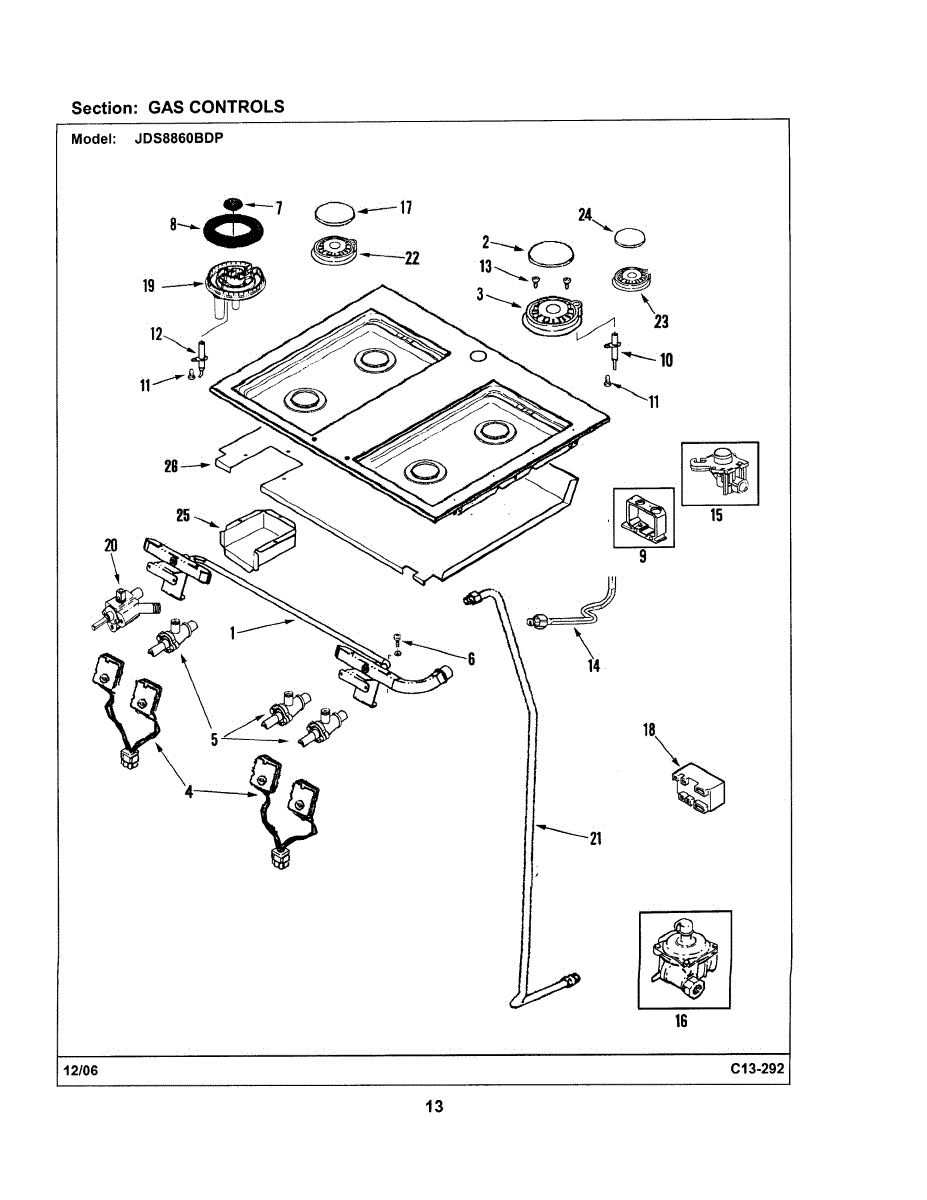

Parts for Maytag JDS8860BDP: 07 - Gas Controls Parts

Color: Black. Size: Large.

This surface burner head is a genuine Whirlpool part, sold individually. It can be used as a replacement part for a gas range. This surface burner head provides structure and support for the surface burner cap and the ignition, which all work in conjunction to ignite the spark plugs and power on the burner.Signs of damage to this part will include a gas ignition that glows but will not ignite, a gas range that will not start at all, or a heating element that will not heat up the appliance. If any of these signs of damage occur and are directly attributable to the surface burner head, the component should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This surface burner head is compatible with the following appliance brands: Whirlpool, Jenn Air, and KitchenAid.

This igniter switch controls spark generation for gas range burners, restoring reliable ignition so burners light when you turn the control knob. It replaces a worn or failed burner ignition switch to help regain consistent starting. What it does

• Sends the electrical signal that triggers the spark for gas burner ignition.
• Commonly replaces switches that fail to spark, intermittently spark, or require excessive pressure to activate.
• Helps resolve ignition-related symptoms where burners won't light or only light sporadically.
• Matches OEM function for safe, direct replacement in compatible gas ranges.

• Disconnect power and shut off gas supply before starting any repair.
• Basic hand tools are typically required; avoid forcing connectors or terminals.

This ignitor switch controls spark generation to a gas burner so the burner lights when the control is operated. It replaces a failed switch to help restore reliable ignition and normal burner operation. What it does:

• Sends the spark signal to the burner ignition system when the control is activated.
• Helps restore ignition when burners fail to spark or do not light.
• Resolves symptoms such as no clicking/sparking, intermittent sparking, or a burner that won't ignite.
• Works as the electrical switch interface between the user control and the ignitor assembly.

• Turn off electrical power to the appliance (unplug or shut off breaker) before installation.
• If applicable, shut off the gas supply and follow all appliance and local safety rules.
• Handle wiring and terminals carefully; note wire locations before disconnecting.
• After installation, restore power/gas and test ignition operation; follow OEM instructions for detailed procedures.

This switch harness assembly routes signals from a left-side switch to the appliance control so the machine detects door/lid or control inputs and operates correctly. It restores reliable electrical connection between the switch and main wiring. What it does:

• Provides the factory-style wiring connection between a left-side switch and the main control board
• Carries switch signals so the appliance recognizes door/lid position or user inputs
• Commonly replaced when an appliance won't start, doesn't register switch actions, or has intermittent control behavior
• Maintains correct wire routing and secure terminal connections to prevent loose or shorted circuits

• Disconnect power (unplug or shut off breaker) before starting any repair
• Inspect connectors and match terminals to factory routing before final assembly
• May require access by removing a control panel or cabinet trim; keep small fasteners and clips organized

This switch harness assembly connects control panel switches to the appliance's main wiring, restoring reliable switch-to-board communication and control. It's a direct-fit electrical harness used to replace damaged or worn wiring for normal operation. What it does:

• Routes electrical signals from control switches to the appliance control board or connector block
• Replaces frayed, burned, or broken harness wiring that can cause intermittent or failed controls
• Helps resolve symptoms like unresponsive buttons, intermittent operation, or visible wiring damage
• Maintains factory wire lengths and connector locations for correct fit and function

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock or injury
• Inspect connectors and routing before installation; match connector shapes and wire colors for proper connection
• Secure harness away from moving parts, sharp edges, and heat sources to prevent future wear

5K. Mueller

5K. Mueller

A set of four valve mounting screws used to secure the water/ice valve or valve bracket in place. These OEM-style screws restore proper valve alignment and fasten valve assemblies for reliable operation. What it does:

• Secures the valve or valve bracket to the appliance chassis to prevent movement during operation
• Helps maintain a tight seal at valve mounting points to reduce risk of leaks
• Replaces missing, stripped, or corroded valve mounting fasteners
• Restores stable valve positioning that can prevent rattling or vibration

• Disconnect power and shut off the water supply before beginning any work
• Use the correct screwdriver or bit to avoid stripping the screw heads
• Thread screws in by hand first, then tighten snugly—do not overtighten to avoid damaging the valve or mounting threads
• If existing threads are damaged, inspect the mounting boss and replace as needed

This dual orifice holder secures two burner orifices in gas ranges, keeping the burner orifices aligned for proper gas flow and stable flames. It helps restore consistent ignition and even heat across affected burners. What it does:

• Holds and positions two burner orifices in the manifold or burner assembly
• Keeps orifices aligned to ensure proper gas flow to each burner
• Can resolve symptoms like weak, uneven, or inconsistent burner flames and ignition problems
• Works as a replacement for damaged, corroded, or bent orifice mounting hardware

• One dual orifice holder

• Turn off gas supply and electrical power before servicing; follow local codes
• Remove burner caps and access the orifice area per your model's service instructions
• Retain correct orientation when installing; avoid bending or stressing the orifice

The Top Burner Igniter is an OEM part for Whirlpool gas cooktops and ranges. This thin metal coil provides the spark to light the burner flames during startup. It is a spark electrode with a male spade connection.

Causes involve cracking of fragile ceramic insulator casings allowing moisture ingress, compromised electrical connections cutting off sparking ability, or general wear reducing spark output strength.

Symptoms of failure consist of:

• Inability to light one or more front gas burners
• Click sounds but no flame present when turning burner knob
• Safety issues arising from unlit gas accumulating

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

This dual-burner surface spark igniter lights two adjacent gas burners on your range or cooktop. Replacing a worn or cracked igniter restores quick, reliable ignition and consistent lighting across the pair, reducing long clicking or failed starts.

• Generates a high-voltage spark at two electrodes to ignite gas at both burners in the pair
• Helps resolve: surface burner won't light, only one of the two lights, intermittent/weak spark, or excessive clicking before ignition
• Often needed when ceramic insulators are cracked, tips are damaged, or the igniter is shorting to ground
• Designed for units that use a shared dual-burner igniter assembly

• Disconnect electrical power and shut off gas before servicing
• Remove grates, burner caps, and bases to access; lift the cooktop or burner deck as required
• Transfer any mounting hardware and align electrodes with burner ports; avoid stressing the ceramic
• Reconnect leads securely, reassemble, and test burner ignition

This orifice holder secures the gas orifice in a burner assembly to ensure proper alignment and gas flow for reliable ignition and flame performance. It fits the specified burner configuration and replaces a damaged or missing holder. What it does:

• Holds the burner orifice in place so the burner can ignite correctly
• Maintains correct orifice alignment for consistent flame shape and heat output
• Common symptom fix: burner won't light or produces a weak/uneven flame
• Works with the matching orifice sized for the listed burner application

• Turn off gas supply and electrical power before servicing the appliance
• Handle small parts carefully and confirm correct orientation during reassembly
• Check surrounding gaskets and seals and replace if deteriorated

This spark module controls ignition for four surface burners and provides automatic reignition if a flame goes out. It generates the high-voltage spark and monitors flame for dependable lighting and consistent cooktop performance.

• Generates high-voltage pulses to ignite up to four surface burners
• Senses flame presence and automatically re-sparks if a flame is lost
• Helps stop sparking once flame is detected to reduce clicking
• Symptoms this part is involved with include: no spark on any burner, intermittent or weak spark, or continuous clicking after lighting

• Disconnect power and shut off gas before servicing
• Access is typically under the cooktop or behind a panel; mount the module securely away from heat and moisture
• Transfer wires one at a time to matching terminals; ensure ground/neutral connections are secure for proper flame sensing
• After reassembly, restore power and test each burner for ignition and that clicking stops when flame is present

This dual burner valve controls gas flow to two cooktop burners, restoring proper ignition and heat control for gas ranges. Replacing a faulty valve returns safe, adjustable flames and consistent cooking performance. What it does

• Regulates gas flow to two burners so flame size responds to the control knob
• Commonly replaced when burners won't light or won't hold a steady flame
• Helps stop uneven or no heat from affected cooktop burners
• Works as the direct gas-control component for the burner assembly

• Turn off the gas supply and unplug the appliance before starting work
• Tighten fittings to the manufacturer's torque specs and check all connections for leaks with a leak detector solution

The Large Burner Head is an OEM part for Whirlpool gas ranges and cooktops. It is designed to fit over the burner base and distribute the gas evenly for efficient and consistent heating.

Causes of a bad burner head can include blockages from food debris or residue buildup, warping or damage from high heat exposure, or general wear and tear over time.

Symptoms of a bad Large Burner Head include:

• Uneven heating or hot spots on the burner
• Yellow or irregular flame patterns
• Difficulty igniting the burner or keeping it lit
• Loud popping or hissing noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small surface burner assembly replaces a worn or damaged top burner on your gas range or cooktop, restoring quick ignition and an even flame so the small burner heats predictably for simmering and everyday cooking.

• Distributes gas through the burner ports to create a steady, controllable flame at the small-burner position
• Works with the igniter/orifice holder to light reliably
• Common symptoms: burner won't light or only clicks, weak or uneven flame, yellow tips, delayed ignition, or flame that sputters out
• Visible cracks, warping, or heavy corrosion on the burner head

• Shut off gas supply and power; allow the cooktop to cool completely before servicing
• Remove grate and cap, then take out the old burner assembly; retain any screws or brackets as required by your model
• Align the new assembly over the orifice and igniter; seat fully and secure per the manufacturer's instructions
• Restore gas and power, then check for proper ignition and flame; verify there are no gas leaks

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.

This dual burner surface element cover replaces a damaged or worn cover to restore a flat, finished cooking surface and help stabilize cookware. It fits over a paired/dual heating element on the cooktop. What it does

• Covers and protects the dual (paired) surface element assembly from spills and debris.
• Provides a stable surface for cookware to sit on and keeps the cooktop looking finished.
• Replaces cracked, warped or heavily scratched covers that can interfere with cookware placement.
• Helps make cleaning easier by providing a removable barrier over the element area.

• One dual burner surface element cover.

• Disconnect power to the appliance before beginning any service to avoid shock or injury.
• Allow the cooktop and element to cool completely before removing or installing the cover.
• Typically installs by fitting into the element mounting area after removing grates or knobs as needed; no special tools usually required.

9K. Mueller.

This igniter switch controls spark generation for gas range burners, restoring reliable ignition so burners light when you turn the control knob. It replaces a worn or failed burner ignition switch to help regain consistent starting. What it does

• Sends the electrical signal that triggers the spark for gas burner ignition.
• Commonly replaces switches that fail to spark, intermittently spark, or require excessive pressure to activate.
• Helps resolve ignition-related symptoms where burners won't light or only light sporadically.
• Matches OEM function for safe, direct replacement in compatible gas ranges.

• Disconnect power and shut off gas supply before starting any repair.
• Basic hand tools are typically required; avoid forcing connectors or terminals.

This switch harness assembly connects control panel switches to the appliance's main wiring, restoring reliable switch-to-board communication and control. It's a direct-fit electrical harness used to replace damaged or worn wiring for normal operation. What it does:

• Routes electrical signals from control switches to the appliance control board or connector block
• Replaces frayed, burned, or broken harness wiring that can cause intermittent or failed controls
• Helps resolve symptoms like unresponsive buttons, intermittent operation, or visible wiring damage
• Maintains factory wire lengths and connector locations for correct fit and function

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock or injury
• Inspect connectors and routing before installation; match connector shapes and wire colors for proper connection
• Secure harness away from moving parts, sharp edges, and heat sources to prevent future wear

This gas surface-burner orifice holder serves the 15K burner position on many cooktops/ranges. It routes gas from the valve to the burner orifice and keeps the burner properly aligned for consistent ignition and flame.

• Channels gas from the surface valve to the orifice for the 15K burner
• Rigidly locates the burner base and orifice for correct flame pattern and ignition
• Common symptoms of a failed holder include: burner clicking but not lighting, weak/small or uneven flame, or intermittent ignition on that burner
• Replacement restores proper alignment and gas flow at the affected burner

• Shut off gas supply and disconnect power; allow the appliance to cool
• Remove grates, caps, and burner heads; lift/open the top to access the holder
• Note orientation, disconnect tubing, remove mounting screws, and install the new holder in the same position; transfer any fittings as needed
• After reassembly, perform a soap-and-water leak check at all serviced connections before use
