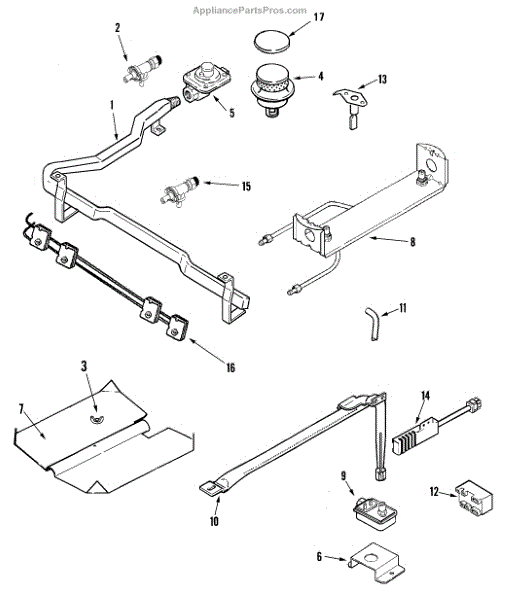

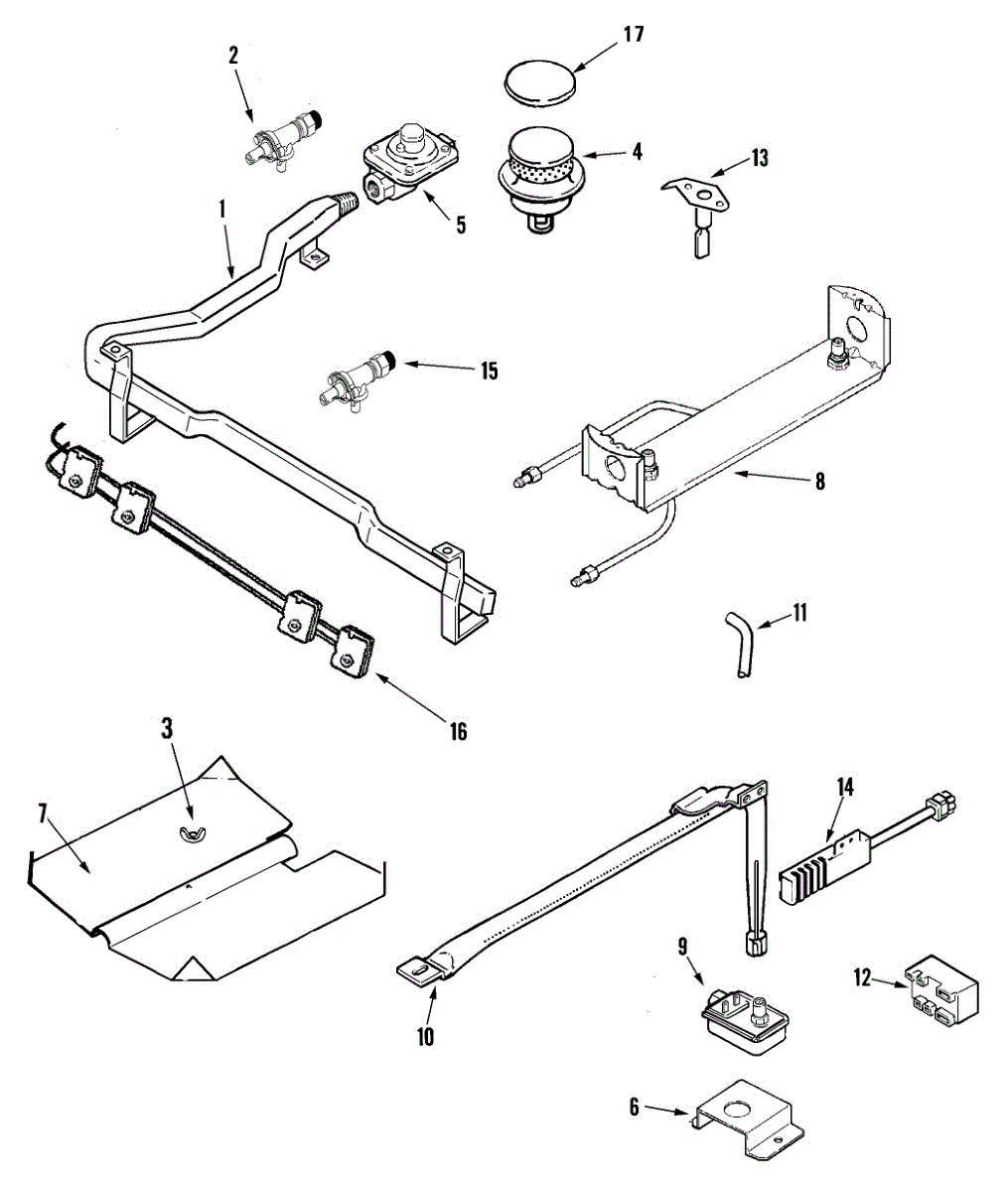

Parts for Maytag MGRH451BDQ: Gas Controls Parts

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

A set of four valve mounting screws used to secure the water/ice valve or valve bracket in place. These OEM-style screws restore proper valve alignment and fasten valve assemblies for reliable operation. What it does:

• Secures the valve or valve bracket to the appliance chassis to prevent movement during operation
• Helps maintain a tight seal at valve mounting points to reduce risk of leaks
• Replaces missing, stripped, or corroded valve mounting fasteners
• Restores stable valve positioning that can prevent rattling or vibration

• Disconnect power and shut off the water supply before beginning any work
• Use the correct screwdriver or bit to avoid stripping the screw heads
• Thread screws in by hand first, then tighten snugly—do not overtighten to avoid damaging the valve or mounting threads
• If existing threads are damaged, inspect the mounting boss and replace as needed

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

This burner seal assembly replaces the gasket-like ring that sits around a cooktop surface burner, helping keep spills and debris out of the burner area for easier cleaning and consistent ignition. What it does:

• Seals the gap between the cooktop and surface burner to reduce debris and liquid intrusion
• Helps prevent food and grease from falling into the burner cavity
• Supports stable burner placement for reliable ignition and flame performance
• Can reduce the need for frequent deep cleaning under burners

• One burner seal assembly

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop and burners to cool completely before attempting removal/installation
• Remove burner heads and lift out the old seal, then seat the new seal evenly around the burner opening

This burner seal assembly replaces the cooktop burner gasket that sits between the burner and the cooktop surface to help keep spills and debris out of the burner opening and keep the burner seated correctly. What it does:

• Seals the gap around a surface burner to help prevent food and liquid from getting under the cooktop
• Helps the burner sit flush and stable on the cooktop surface
• Reduces the need to lift burners when cleaning by containing spills at the cooktop level
• Can help prevent ignition issues caused by debris buildup around the burner area

• Disconnect power and turn off the gas supply before starting any service
• Remove the burner head and clean the mounting area before installing the new seal to ensure a proper fit
• Press the seal into place around the burner opening so it sits flat and even; avoid stretching or twisting the gasket

Replacement burner seal assembly that creates a sealed barrier between a sealed gas cooktop burner and the cooktop surface, helping keep spills and debris out of the burner area and restoring stable burner seating. What it does:

• Forms a gasketed seal around the burner to limit spills, crumbs, and moisture from entering the burner box.
• Helps maintain proper burner seating for consistent flame shape and heat distribution.
• Replace if the seal is torn, flattened, warped, or shows heavy discoloration from spills or heat.
• Can reduce burner ignition or flame irregularities caused by debris or a damaged seal.

• Disconnect power and shut off gas supply before servicing; allow the cooktop to fully cool.
• Remove burner cap and head per your model's service instructions before replacing the seal.
• Clean the surrounding area of grease and debris, then press the new seal into place so it seats evenly.

Replacement burner seal assembly that creates a sealed barrier between a sealed gas cooktop burner and the cooktop surface, helping keep spills and debris out of the burner area and restoring stable burner seating. What it does:

• Forms a gasketed seal around the burner to limit spills, crumbs, and moisture from entering the burner box.
• Helps maintain proper burner seating for consistent flame shape and heat distribution.
• Replace if the seal is torn, flattened, warped, or shows heavy discoloration from spills or heat.
• Can reduce burner ignition or flame irregularities caused by debris or a damaged seal.

• Disconnect power and shut off gas supply before servicing; allow the cooktop to fully cool.
• Remove burner cap and head per your model's service instructions before replacing the seal.
• Clean the surrounding area of grease and debris, then press the new seal into place so it seats evenly.

This is a replacement sealed burner cap. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a broken, misplaced, or defective burner cap in various models of gas ranges and stoves. Electrodes are included.This sealed burner cap protects the surface burner and allows the cooktop to light properly. If the gas igniter is glowing but does not ignite, the stove won't start up, or there will be a gas smell. Proper tools may be required to replace this part. Always ensure the appropriate safety precautions are adhered to when attempting to fix any appliances. Make sure that the stove is entirely disconnected from gas and power before starting the repair work. For more accurate information on how and where to install this sealed burner cap, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this burner cap is suitable for use on several different models of gas stoves, ranges, and cooktops manufactured by Whirlpool, Maytag, KitchenAid, Amana, and other Whirlpool brands. This is a genuine part made of high-quality, durable materials and is sold individually.

The Sealed Gas Burner Head is an OEM part for Whirlpool gas ranges. It directs the gas flow to the burner, ensuring an even flame for cooking. This component is crucial for efficient heat distribution and precise cooking control.

Causes of a bad sealed gas burner head can include clogging from food debris or grease, corrosion due to exposure to moisture, or physical damage from impact or excessive heat. Over time, these factors can affect the burner's performance, leading to uneven cooking or failure to ignite.

Symptoms of a bad sealed gas burner head include:

• Uneven flame or no flame at all
• Difficulty in igniting the burner
• Yellow or irregularly shaped flames
• Burner not heating evenly or adequately

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the right hand assembly.

This is the left hand assembly.

This spark module generates high-voltage pulses to ignite the surface burners on your gas cooktop or range. Replacing a failed module helps restore fast, reliable ignition when you turn a burner knob.

• Converts line voltage into high-voltage pulses for the surface igniters to light gas
• Sends spark when a burner switch calls for ignition; multiple electrodes may spark together by design
• May help address: no spark on all burners, intermittent or weak spark, burners that click but won't light
• Continuous rapid clicking can also occur with a failed module or wet/stuck burner switches

• Disconnect electrical power and shut off gas before servicing
• Access the module under the cooktop/top panel or behind the control area; label or photograph wiring and move leads one at a time to the new module
• Mount the new module securely in the original location; ensure all connectors are clean, dry, and fully seated
• Restore power and test each burner for proper spark and ignition

This sealed burner igniter is the spark electrode for a gas cooktop burner. It creates the ignition spark at the burner head so your surface burner lights reliably when you turn the control knob.

• Produces the high-voltage spark that ignites gas at a sealed surface burner
• Helps resolve a single burner that won't light or lights intermittently
• Common signs: no visible spark at that burner, continuous clicking without ignition, or a cracked/chipped ceramic insulator
• A shorted or misaligned electrode can cause the spark to jump to ground instead of the burner

• Disconnect power and shut off gas supply before servicing
• Remove the burner cap and head; lift the cooktop if needed to access the electrode
• Handle the ceramic insulator carefully; disconnect/reconnect the wire lead and reuse mounting hardware
• Align the tip toward the burner port and secure; verify a strong, consistent spark before reassembly

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 10-24X5/16-NI

The Oven Igniter is an OEM part for Whirlpool ovens, designed to ignite the gas in the oven burner, allowing it to heat. This crucial component is responsible for creating the spark that starts the combustion process, enabling your oven to reach the desired temperature for baking or broiling.

Causes of a bad oven igniter include wear and tear from regular use, a buildup of residue that can inhibit the igniter's ability to heat properly, or electrical issues that prevent the igniter from drawing enough current.

Symptoms of a bad Oven Igniter include:

• Oven not heating up at all
• Oven takes longer than usual to heat up
• Gas smell when the oven is turned on, indicating gas is not igniting

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This valve kit repairs the appliance's water/control valve assembly and provides the small mounting screw needed for secure installation. It replaces a worn or damaged valve kit so the appliance can restore proper valve function. What it does:

• Replaces the valve assembly components that control water flow or internal fluid routing
• Helps stop issues caused by a damaged valve kit, such as inconsistent water delivery or valve leakage
• Restores secure mounting with the included screw to prevent loose fittings
• Works as the direct replacement kit specified for the original valve location

• Disconnect power and shut off water supply before starting any repair
• Handle valve components carefully to avoid damaging seals and fittings
• Use basic hand tools; avoid overtightening the mounting screw to prevent stripping

This valve kit repairs the appliance's water/control valve assembly and provides the small mounting screw needed for secure installation. It replaces a worn or damaged valve kit so the appliance can restore proper valve function. What it does:

• Replaces the valve assembly components that control water flow or internal fluid routing
• Helps stop issues caused by a damaged valve kit, such as inconsistent water delivery or valve leakage
• Restores secure mounting with the included screw to prevent loose fittings
• Works as the direct replacement kit specified for the original valve location

• Disconnect power and shut off water supply before starting any repair
• Handle valve components carefully to avoid damaging seals and fittings
• Use basic hand tools; avoid overtightening the mounting screw to prevent stripping

This conversion kit provides the orifices and instructions needed to convert a compatible gas range/oven from natural gas to liquid propane, restoring proper fuel flow and safe burner operation after a fuel-type change. What it does:

• Replaces factory natural-gas orifices with LP orifices sized for propane fuel
• Helps restore correct flame height and even heating when switching to LP
• Addresses weak or irregular flames that occur after changing fuel types
• Ensures burners receive the proper fuel jetting for safe LP operation

• Installation should follow OEM instructions exactly
• Turn off gas supply and electrical power before beginning work
• Use proper leak testing after installation and before returning the appliance to service
• Regulator adjustment or replacement may be required per OEM service instructions

This switch spark harness routes the spark signal from the range/oven control to the burner igniters so burners spark reliably when attempting to light. It restores proper spark routing and helps resolve ignition-related issues. What it does:

• Carries ignition switch signals to the spark modules/igniters so burners spark during lighting cycles
• Commonly replaced when burners fail to spark or sparks are intermittent
• Helps stop clicking or sparking at the wrong burner if wiring is damaged or shorted
• Maintains correct connection and routing between the control switch and ignition components

• Disconnect power and turn off gas supply before inspecting or replacing harness
• Replace only if wiring, connectors, or insulation are damaged; handle connectors by the body, not the wires
• Confirm connector orientation and secure all connections; route wiring clear of heat sources and moving parts

A removable burner cap that covers the burner head to help direct flame and promote even heating on gas cooktops. Replaces a damaged or missing cap to restore proper burner performance and appearance. What it does:

• Sits on top of the burner head to shape and protect the flame for consistent heat distribution
• Helps prevent uneven cooking, weak or erratic flames, and flame lifting from the burner head
• Protects the burner head from spills and debris that can interfere with ignition
• Restores a secure seating surface so the burner ignites and burns as intended

• Turn off the gas supply and ensure the cooktop is completely cool before servicing
• Lift off the old cap, clean the burner head and surrounding area of debris, then set the new cap in place so it seats flat
• No tools typically required; seat by hand and test burner operation before regular use
