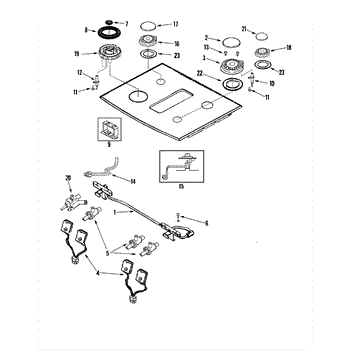

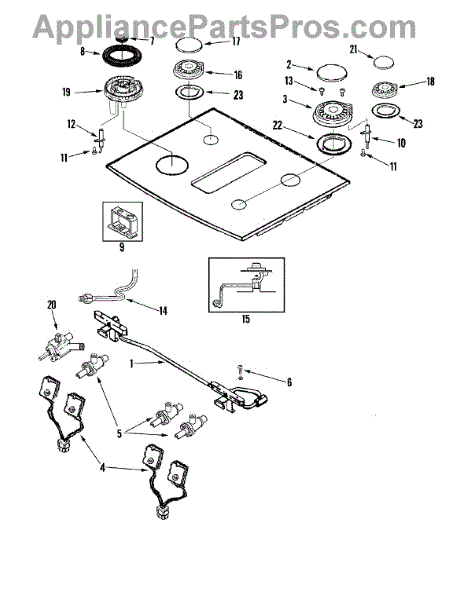

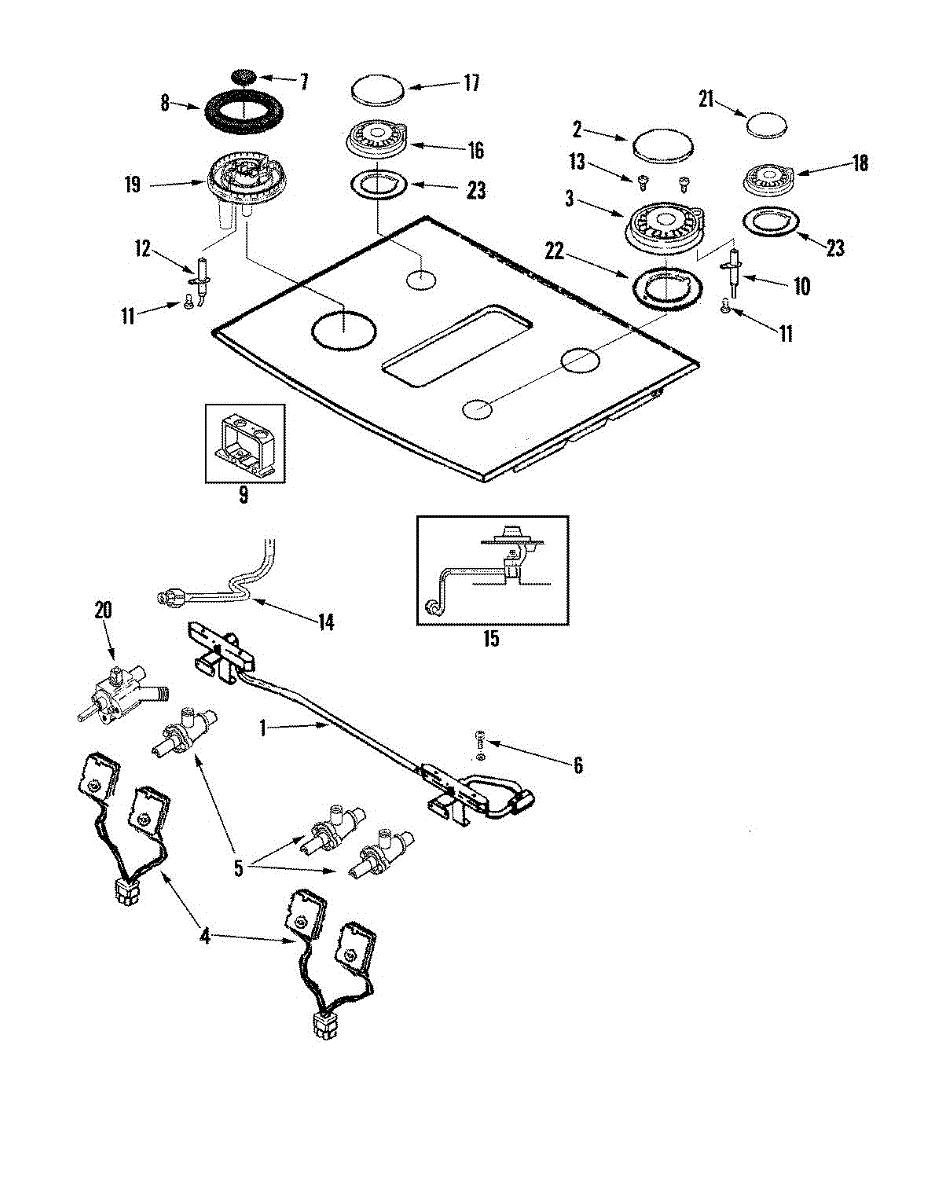

Parts for Jenn-Air JGS9900BDB: 06 - Gas Controls / Surface Burners Parts

Color: Black. Size: Large.

This surface burner head is a genuine Whirlpool part, sold individually. It can be used as a replacement part for a gas range. This surface burner head provides structure and support for the surface burner cap and the ignition, which all work in conjunction to ignite the spark plugs and power on the burner.Signs of damage to this part will include a gas ignition that glows but will not ignite, a gas range that will not start at all, or a heating element that will not heat up the appliance. If any of these signs of damage occur and are directly attributable to the surface burner head, the component should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This surface burner head is compatible with the following appliance brands: Whirlpool, Jenn Air, and KitchenAid.

This switch harness assembly routes signals from a left-side switch to the appliance control so the machine detects door/lid or control inputs and operates correctly. It restores reliable electrical connection between the switch and main wiring. What it does:

• Provides the factory-style wiring connection between a left-side switch and the main control board
• Carries switch signals so the appliance recognizes door/lid position or user inputs
• Commonly replaced when an appliance won't start, doesn't register switch actions, or has intermittent control behavior
• Maintains correct wire routing and secure terminal connections to prevent loose or shorted circuits

• Disconnect power (unplug or shut off breaker) before starting any repair
• Inspect connectors and match terminals to factory routing before final assembly
• May require access by removing a control panel or cabinet trim; keep small fasteners and clips organized

This switch harness assembly connects control panel switches to the appliance's main wiring, restoring reliable switch-to-board communication and control. It's a direct-fit electrical harness used to replace damaged or worn wiring for normal operation. What it does:

• Routes electrical signals from control switches to the appliance control board or connector block
• Replaces frayed, burned, or broken harness wiring that can cause intermittent or failed controls
• Helps resolve symptoms like unresponsive buttons, intermittent operation, or visible wiring damage
• Maintains factory wire lengths and connector locations for correct fit and function

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock or injury
• Inspect connectors and routing before installation; match connector shapes and wire colors for proper connection
• Secure harness away from moving parts, sharp edges, and heat sources to prevent future wear

5K. Mueller

9K. Mueller.

16K. Mueller.

A set of four valve mounting screws used to secure the water/ice valve or valve bracket in place. These OEM-style screws restore proper valve alignment and fasten valve assemblies for reliable operation. What it does:

• Secures the valve or valve bracket to the appliance chassis to prevent movement during operation
• Helps maintain a tight seal at valve mounting points to reduce risk of leaks
• Replaces missing, stripped, or corroded valve mounting fasteners
• Restores stable valve positioning that can prevent rattling or vibration

• Disconnect power and shut off the water supply before beginning any work
• Use the correct screwdriver or bit to avoid stripping the screw heads
• Thread screws in by hand first, then tighten snugly—do not overtighten to avoid damaging the valve or mounting threads
• If existing threads are damaged, inspect the mounting boss and replace as needed

This dual orifice holder secures two burner orifices in gas ranges, keeping the burner orifices aligned for proper gas flow and stable flames. It helps restore consistent ignition and even heat across affected burners. What it does:

• Holds and positions two burner orifices in the manifold or burner assembly
• Keeps orifices aligned to ensure proper gas flow to each burner
• Can resolve symptoms like weak, uneven, or inconsistent burner flames and ignition problems
• Works as a replacement for damaged, corroded, or bent orifice mounting hardware

• One dual orifice holder

• Turn off gas supply and electrical power before servicing; follow local codes
• Remove burner caps and access the orifice area per your model's service instructions
• Retain correct orientation when installing; avoid bending or stressing the orifice

The Top Burner Igniter is an OEM part for Whirlpool gas cooktops and ranges. This thin metal coil provides the spark to light the burner flames during startup. It is a spark electrode with a male spade connection.

Causes involve cracking of fragile ceramic insulator casings allowing moisture ingress, compromised electrical connections cutting off sparking ability, or general wear reducing spark output strength.

Symptoms of failure consist of:

• Inability to light one or more front gas burners
• Click sounds but no flame present when turning burner knob
• Safety issues arising from unlit gas accumulating

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

This dual-burner surface spark igniter lights two adjacent gas burners on your range or cooktop. Replacing a worn or cracked igniter restores quick, reliable ignition and consistent lighting across the pair, reducing long clicking or failed starts.

• Generates a high-voltage spark at two electrodes to ignite gas at both burners in the pair
• Helps resolve: surface burner won't light, only one of the two lights, intermittent/weak spark, or excessive clicking before ignition
• Often needed when ceramic insulators are cracked, tips are damaged, or the igniter is shorting to ground
• Designed for units that use a shared dual-burner igniter assembly

• Disconnect electrical power and shut off gas before servicing
• Remove grates, burner caps, and bases to access; lift the cooktop or burner deck as required
• Transfer any mounting hardware and align electrodes with burner ports; avoid stressing the ceramic
• Reconnect leads securely, reassemble, and test burner ignition

This small holder secures a local assembly inside compatible Whirlpool appliances to keep components aligned and stable during operation. Replacing a damaged holder restores proper fit and reduces noise or loose parts. What it does:

• Clips or seats a nearby component so it stays in the correct position during use
• Prevents rubbing, vibration, or misalignment that can cause noise or premature wear
• A cracked or missing holder can allow parts to shift, rattle, or come loose
• Simple, low-profile part used where a secure fit is required

• One holder ORF retainer

• Turn power off and unplug the appliance before servicing
• Access may require removing panels or trim—keep fasteners organized
• Inspect surrounding clips and mounts; replace any damaged hardware for a secure fit

This orifice holder secures the 5K gas orifice in place on compatible gas burners, keeping the orifice aligned for consistent flame performance and safe operation. It's a small but essential mounting component. What it does:

• Holds the 5K orifice firmly at the burner connection to maintain correct alignment
• Helps ensure consistent gas flow to the burner for steady, even flames
• A damaged or loose holder can cause a weak, uneven, or intermittent flame
• Works with the burner assembly to support reliable ignition and heat output

• One orifice holder (5K) as shown

• Turn off gas supply and power to the appliance before servicing
• Access may require removing the burner cap and grates or front panels
• Handle small components carefully; keep track of fasteners and orientation

This ORF holder is a small retainer that secures an ORF assembly in place, helping maintain proper alignment and reliable operation. Replaces a worn or broken holder to restore secure mounting and reduce rattling. What it does:

• Secures the ORF assembly or related component to prevent movement or misalignment
• Prevents rattling, vibration noise, and intermittent contact caused by a loose or damaged retainer
• Helps maintain proper fit so the related part can operate as designed
• Commonly replaced when the original holder is cracked, broken, or missing

• One ORF holder

• Disconnect power before servicing to avoid shock or injury
• Remove surrounding trim or panels carefully to access the holder without damaging adjacent parts
• Inspect mating surfaces and hardware; replace any damaged clips or screws as needed

The Large Burner Head is an OEM part for Whirlpool gas ranges and cooktops. It is designed to fit over the burner base and distribute the gas evenly for efficient and consistent heating.

Causes of a bad burner head can include blockages from food debris or residue buildup, warping or damage from high heat exposure, or general wear and tear over time.

Symptoms of a bad Large Burner Head include:

• Uneven heating or hot spots on the burner
• Yellow or irregular flame patterns
• Difficulty igniting the burner or keeping it lit
• Loud popping or hissing noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This surface burner cap sits atop the burner head to shape the flame and protect the burner from spills. Replacing a chipped, warped, or missing cap restores proper ignition and even, efficient heating.

• Directs and evens the flame for consistent cooking
• Shields the burner head and igniter from spills and debris
• Common symptoms of a bad cap include uneven or yellow flames, delayed ignition or repeated clicking, weak heat, or flames that lift/sputter
• Replace if the cap is cracked, chipped, warped, or heavily coated with residue

• Allow the cooktop to cool; remove the grate and lift off the old cap
• Clean the burner head ports and seating surface; ensure the igniter is clean and intact
• Center the new cap on the burner head so it sits level and fully seated
• Restore power/gas and test burner; reseat the cap if the flame is uneven

This dual burner valve controls gas flow to two cooktop burners, restoring proper ignition and heat control for gas ranges. Replacing a faulty valve returns safe, adjustable flames and consistent cooking performance. What it does

• Regulates gas flow to two burners so flame size responds to the control knob
• Commonly replaced when burners won't light or won't hold a steady flame
• Helps stop uneven or no heat from affected cooktop burners
• Works as the direct gas-control component for the burner assembly

• Turn off the gas supply and unplug the appliance before starting work
• Tighten fittings to the manufacturer's torque specs and check all connections for leaks with a leak detector solution

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.

This large fiberglass burner gasket seals the gap between the cooktop and burner to help keep heat, spills, and debris away from internal components. Fits where a durable, heat-resistant edge seal is needed. What it does:

• Provides a heat-resistant seal around a large cooktop burner to help protect internal components.
• Helps reduce burner wobble and keeps the burner assembly properly seated.
• Limits spills and food debris from falling under the cooktop, simplifying cleanup.
• Can reduce heat and steam exposure to adjacent parts that may cause premature wear.

• Disconnect power and allow the cooktop to cool fully before attempting service.
• Remove the burner and old gasket per the range manufacturer's instructions; clean mating surfaces before installing the new gasket.
• Press the gasket into place so it sits evenly around the burner opening; avoid stretching or twisting the gasket.

This heat-resistant fiberglass gasket is used in ranges and wall ovens to seal between glass and metal panels. Replacing a worn gasket restores a tight thermal barrier to keep heat contained and support consistent cooking performance.

• Provides a high-temperature seal between mating oven components
• Helps maintain proper cavity temperature and efficient operation
• Cushions glass/metal interfaces to reduce vibration and wear
• Common symptoms: fraying, flattening, brittleness, gaps, hot air felt at seams, or discoloration near the joint

• Disconnect power and allow the appliance to cool completely before servicing
• Access the gasket path per your model; remove panels or the door if required
• Remove the old gasket and clean channels/surfaces of debris and residue
• Install the new gasket in the same orientation without stretching; seat fully in any clips/retainers as designed
