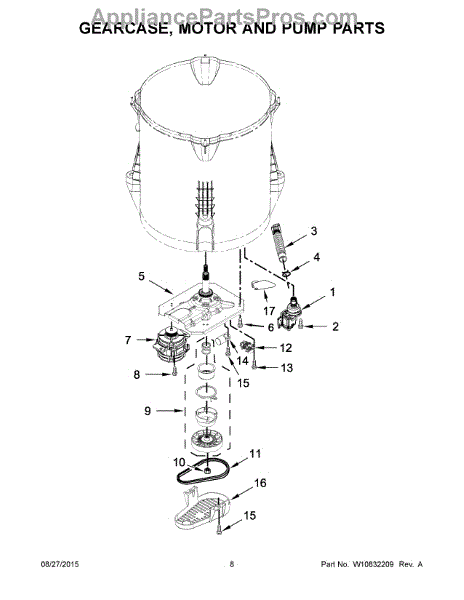

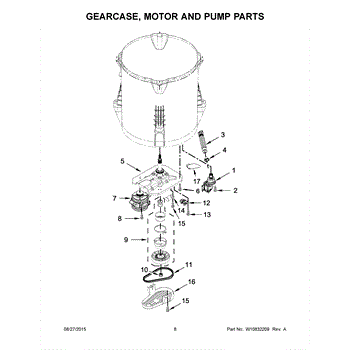

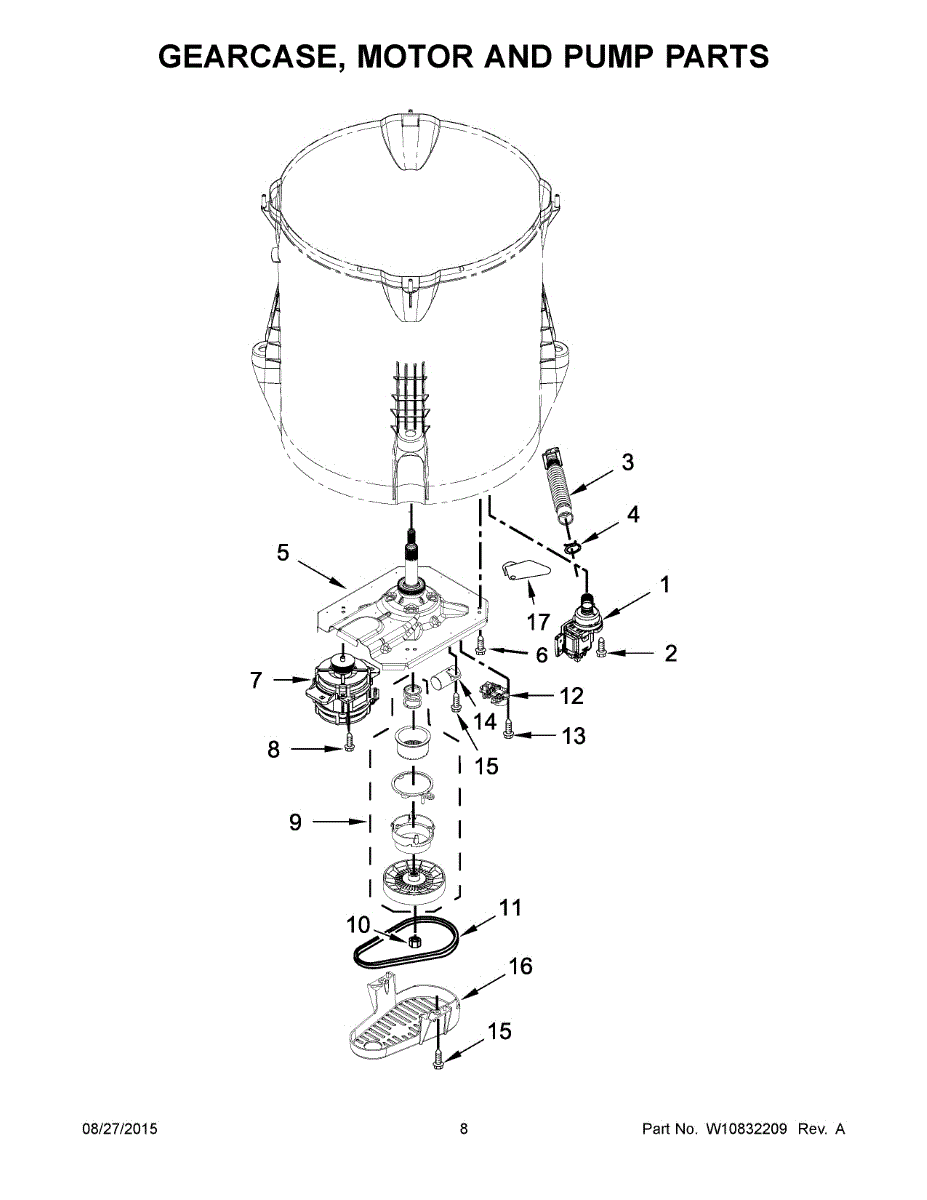

Parts for Whirlpool WTW5000DW1: 05 - Gearcase, Motor And Pump Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This washer drain pump moves water out of the washer during drain and spin. Replacing a worn or failed pump restores proper draining so cycles finish on time and the basket can reach full spin speed.

What it does

• Pumps water from the tub to the household drain during the drain cycle
• Helps resolve standing water, slow draining, or humming from a seized pump
• Reduces long/aborted cycles caused by incomplete draining
• Can stop leaks at the pump body when the housing is cracked

What’s included
One drain pump assembly.

Install notes

• Unplug power and turn off water; bail out remaining water before service
• Clamp/remove hoses and keep towels handy; transfer any mounting bracket as needed
• Inspect and clear the drain hose and tub-to-pump hose before reassembly
• Run a drain/spin test to verify proper flow and check for leaks

This OEM drain pump is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener secures appliance panels and components for a tight, rattle-free fit. Replace a missing, stripped, or corroded screw to keep assemblies aligned and performing as intended.

• Fastens panels, brackets, or assemblies in place
• Helps reduce vibration and rattling caused by loose hardware
• Maintains proper alignment of parts to prevent premature wear
• Common signs you need it: missing screw, loose panel, vibration/buzzing noises, or hardware that won't tighten

• Disconnect power; for gas or water-connected appliances, shut off supply lines before service
• Match the screw to the original; verify size, length, and thread before installation
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug only—do not overtighten, especially into plastic or thin sheet metal

The Tub to Pump Hose is an OEM replacement part for Whirlpool washing machines. It serves as the connecting pipe linking the washing machine tub to the pump.

Common causes of hose damage relate to extended use, exposure to harsh chemicals within machine drain water, and physical stress from years of frequent bending during operation.

Symptoms of a failed tub-to-pump hose include:

• Water leaks developing beneath or behind the machine
• Straining noises and reduced water pressure during cycles
• Deterioration of hose material exposing cracks or leaks

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Washer Gear Case is an OEM part for Whirlpool washing machines. It plays a crucial role in the washer's transmission system, managing the agitation and spin cycles by regulating the drum's movement. This ensures that the washing machine operates effectively, providing thorough cleaning and efficient water extraction.

Common causes of a bad gear case include mechanical wear from extended use, damage from overloading the washer, or internal failures within the gear mechanism. Such issues can disrupt the washer's ability to perform its cycles correctly.

Symptoms of a bad gear case include:

• The washer failing to agitate or spin
• Loud grinding or clicking noises during operation
• The washer leaking oil or grease
• Incomplete wash or spin cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement 7-2-1 screw secures components in compatible Whirlpool appliances, providing a dependable fastener for panels and assemblies. Use it to restore proper fitment and reduce rattling or loose parts. What it does

• Fastens trim, panels, brackets, or internal assemblies to keep parts secure
• Helps stop vibration-related noise from loose components
• Restores correct mounting where the original screw is missing or damaged
• Matches the form and fit of the OEM fastener for intended attachment points

• One replacement 7-2-1 screw

• Use the correct driver to avoid stripping the screw head
• Hand-start threads before tightening to prevent cross-threading
• Tighten until snug—do not over-tighten to avoid damaging plastic or sheet-metal parts
• Disconnect power to the appliance before accessing internal areas

This washer drive motor is the main component that powers the spin cycle of the appliance. When a washing machine stops spinning or washing, there could be several issues. If the buttons on the control panel are still responsive, most likely it is the drive motor. There could also be a burning smell coming from the washer when the drive motor malfunctions. Using a voltage meter is the only way to show where the problem lies. Unplug the washer and turn off the water supply before starting repairs. Drain all the water from the drain hose into a bucket. Remove the two screws at the base of the front panel, then remove the two screws at the top of the back panel. The top console should be removable at this point, and removing the two screws at the bottom outside corners of the back panel should allow the base to be separated. There are two metal clips attaching the pump to the motor. Unplug the connections from the motor and capacitor. Unscrew the two screws that fasten the motor in, and it should slide out. Reverse these instructions for installation of the new component.This Whirlpool washer drive motor is a genuine OEM replacement part sourced directly from Whirlpool. There are no other parts included with this listing. This part is compatible with Whirlpool and Kenmore appliances.

The Drive Clutch Kit is an OEM replacement part for Whirlpool washing machines. As an integral transmission component, it includes the clutch that engages the drive motor to rotate the central agitator or impeller.

Causes of a bad clutch kit include worn parts that have aged from repeated use. Signs include slipping, grinding, or clicking noises from the transmission area.

Symptoms of a faulty clutch kit are:

• The washer tub failing to turn or agitate clothes during wash cycles
• Delayed starts or intermittent rotation
• Vibration or shaking sensed from the frontloader or toploader

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This replacement nut is a small hardware fastener used to secure components inside your appliance. It helps keep parts tight and properly aligned so assemblies don't loosen from vibration or normal operation.

• Threads onto a mating bolt, stud, or shaft to clamp parts together
• Maintains alignment and reduces movement and rattling
• Replaces a stripped, missing, or damaged nut to restore a secure fit
• Common signs of failure: loose panels or components, unusual vibration/noise, hardware missing

• Disconnect power; shut off gas and/or water if applicable before servicing
• Note the original hardware stack-up (washers/spacers) and orientation for reassembly
• Start by hand to avoid cross-threading; tighten to manufacturer guidance—do not overtighten
• Replace any damaged washers or locking devices

The washer drive belt transfers motor power to the washer’s drive system so the basket spins and agitates. Replacing a stretched or broken belt helps stop squealing and slipping so cycles finish at proper spin speed.

What it does

• Links the drive motor to the washer’s drive/pulley system
• Restores spin and agitation when the belt is worn, glazed, or broken
• Can reduce squeal or burning-rubber smells from belt slip
• Helps prevent intermittent or no-spin conditions

What’s included
One drive belt.

Install notes

• Unplug power; turn off water
• Tip the washer back; remove the bottom shield/cover if present
• Route the belt over the motor and drive pulleys; rotate by hand to seat fully
• Inspect pulleys/drive parts for wear; run a spin or calibration test after install

This OEM Whirlpool belt is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

The Actuator is an OEM part for Whirlpool washing machines. This part shifts the washer between different cycles and functions, such as agitation and spinning. It ensures that the washing machine transitions smoothly and operates effectively throughout each cycle.

Common causes of a bad actuator include electrical malfunctions, wear and tear over time, or mechanical damage.

Symptoms of a bad actuator include:

• The washer not agitating or spinning
• Loud clicking or grinding noises during cycles
• Error codes related to cycle shifting issues
• The washer not completing cycles

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Capacitor is an OEM part for Whirlpool washing machines. This part helps regulate power supply and voltage levels. It smooths out voltage fluctuations to ensure consistent operation of the motor and internal components.

Causes of a bad capacitor can include faulty wiring connections, or simply wear and tear over time. Capacitors have a limited lifespan based on usage and wear.

Symptoms of a bad capacitor include:

• The washer failing to start or not completing cycles
• Unusual noises coming from the motor area
• Fluctuating water levels and inconsistent filling
• Lights dimming when the washer is running

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures appliance panels and components, keeping them properly aligned and quiet during operation. Replace a stripped, corroded, or missing fastener to restore a snug fit and dependable performance in the original mounting location. What it does:

• Fastens brackets, panels, trim, or internal hardware to the cabinet/frame as specified by the manufacturer
• Helps maintain proper alignment and reduce rattling or vibration when a screw is worn or missing
• Direct replacement for damaged, stripped, or rusted hardware
• Used in various locations per the service diagram; match to the original position

• 1 screw

• Disconnect power (and shut off water or gas, if applicable) before servicing.
• Compare length and thread style to the original; install in the same location.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• Reinstall any brackets or panels in the correct order.

This pulley cover encloses the drive belt and motor pulley at the base of the appliance. It protects moving parts from debris and contact, helping reduce noise and wear when the original cover is cracked, warped, or missing.

• Covers the drive belt and motor pulley to keep out dust and debris
• Helps prevent foreign objects from contacting moving parts
• Restores proper clearance to reduce rubbing or scraping noises
• Common signs it's needed: cracked/missing cover, rattling from the base, visible rub marks on the cover or belt

• Disconnect power and, if applicable, shut off water supply before servicing
• Access the underside per your service manual; support the unit securely if tilting
• Reuse existing mounting screws; do not overtighten to avoid damaging the plastic
• Rotate the belt/pulley by hand after installation to confirm free movement and no contact
