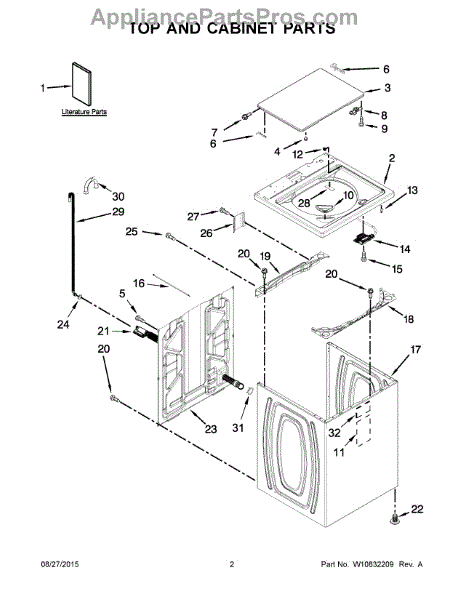

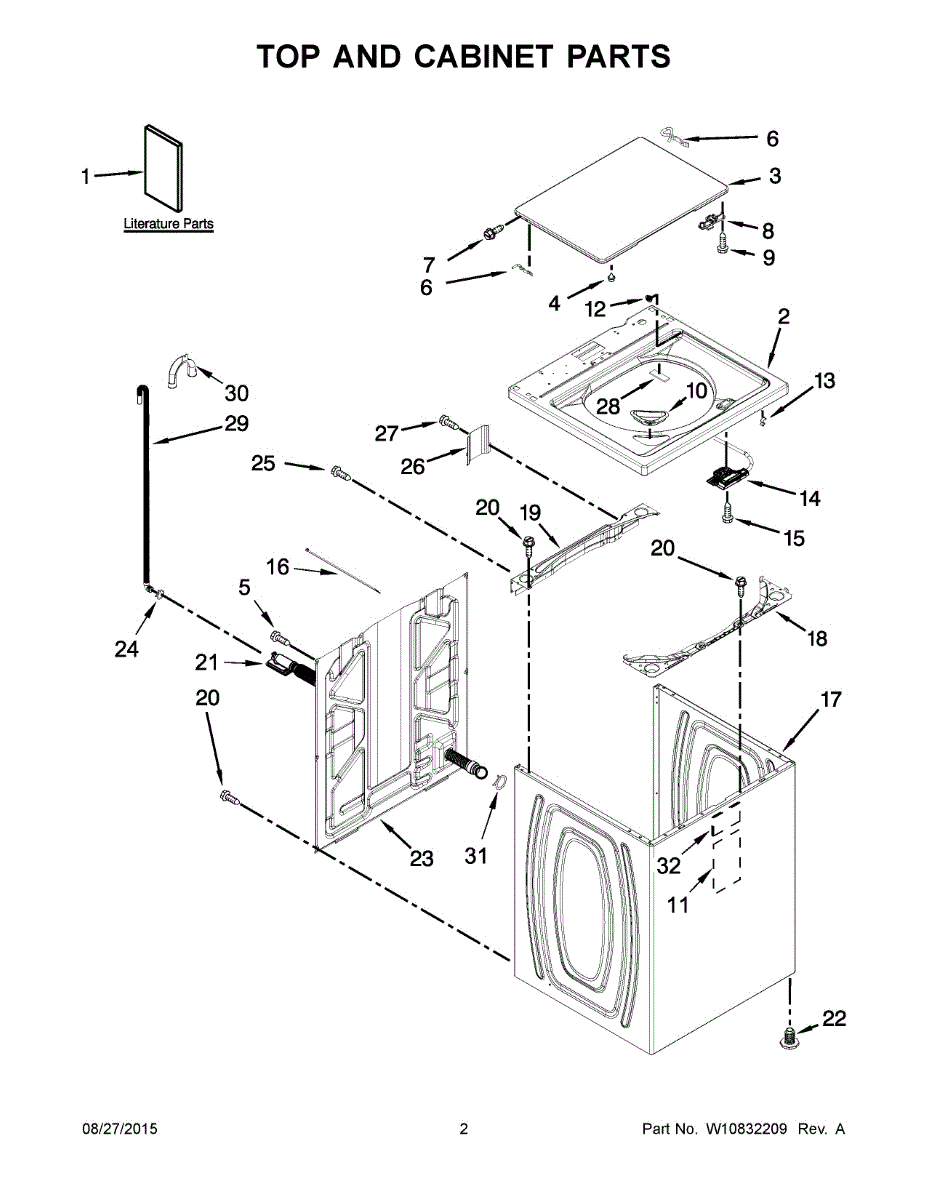

Parts for Whirlpool WTW5000DW1: 02 - Top And Cabinet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This replacement top is the outer cabinet top panel that restores the dryer's finished appearance and provides a stable surface above the drum. It replaces damaged, dented or rusted tops to improve looks and protect internal components. What it does

• Covers and protects the top of the appliance cabinet from dents, spills and debris.
• Restores the appliance's finished appearance when the original top is scratched, dented or corroded.
• Helps maintain alignment of control and console assemblies that mount to the cabinet top.
• Prevents exposure of internal parts that can collect dust and lint.

• Disconnect power (and gas, if applicable) before starting any repair.
• Use proper tools to remove the control console and mounting screws; support the top panel while removing fasteners.
• Watch for sharp edges and wear gloves; follow OEM instructions for reassembly to ensure proper fit.

The Lid is an OEM replacement part for Whirlpool washing machines. It is the top cover of the washer that provides access to the interior drum and tub, allowing you to load and unload laundry. The lid is designed to be durable and secure, ensuring safe and proper operation of the washing machine.

Symptoms of a bad Lid include:

• Difficulty opening or closing the lid
• Lid not closing or latching properly
• Visible cracks or damage to the lid material
• Lid becoming detached or falling off

Causes of a bad lid can range from physical damage due to impact or mishandling, to wear and tear over time from repeated use. Exposure to excessive moisture or humidity can also contribute to the degradation of the lid material or mounting mechanisms.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

These lid bumpers are sold individually.

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Right hand side

Right hand side. For screws use WPW10119828.

The Washer Lid Screw is an OEM part for Whirlpool washing machines. This 6-32 x .340 screw secures the washer lid to the hinge assembly, ensuring the lid opens and closes smoothly and stays securely in place during operation.

Causes of a bad washer lid screw can include wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or mishandling. A compromised screw can lead to issues with the lid's stability and functionality.

Symptoms of a bad washer lid screw include:

• The washer lid feeling loose or wobbling
• Difficulty in opening or closing the lid
• Visible rust or corrosion on the screw
• The lid not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Lid Lock Strike is an OEM part for Whirlpool washing machines. It is designed to interact with the lid lock mechanism, ensuring that the washing machine lid is securely locked during operation. This safety feature prevents the lid from being opened while the machine is running, which is essential for avoiding spills and ensuring the safety of users.

Symptoms of a failing Lid Lock Strike include:

• The washing machine lid failing to lock properly
• The washer not starting cycles or pausing mid-cycle due to a sensed open lid
• Error messages or indicator lights signaling locking issues
• Audible clicks without the lid locking

Causes of a bad lid lock strike often involve physical damage from frequent use, misalignment, or wear and tear that prevents the strike from properly engaging with the lock mechanism.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures panels, brackets, and other components in your appliance. Replace a missing, stripped, or corroded fastener to restore a tight fit and keep parts properly aligned and rattle-free.

• Secures appliance components and panels in their mounting points
• Replaces damaged, stripped, or missing hardware
• Helps reduce rattling or vibration from loose parts

• Disconnect power; shut off water or gas supplies if applicable
• Match location with the original screw; start threads by hand to avoid cross-threading
• Tighten until snug; do not over-torque, especially into plastic or thin metal
• Reinstall any covers or panels and test for secure fit

This bleach dispenser for a washing machine holds liquid bleach and releases it into the tub at the appropriate point in the cycle, helping dilute bleach and protect fabrics from contact with undiluted solution. What it does:

• Holds and meters liquid bleach until the machine calls for dispensing
• Helps ensure bleach mixes with water for even, diluted distribution
• Replace if cracked, clogged, or leaking
• Common symptoms include bleach not dispensing, bleach left in the cup, leaks around the dispenser area, or bleach spots on fabrics

• 1 bleach dispenser

• Disconnect power and turn off water before servicing
• Access and mounting vary by model; follow your service manual to reach the dispenser
• Detach hoses/clamps or fasteners, transfer any reusable hardware, and seat the new dispenser fully
• Reconnect, then run a test fill/rinse to check for proper dispensing and leaks

The Sound Shield is an OEM replacement part for Whirlpool washers. It is a sheet metal panel installed behind the tub that helps reduce noise and vibration during spin cycles. With absorptive insulation, the sound shield dampens noise produced internally.

Symptoms of a damaged sound shield include:

• Excessively loud operation, especially during high-speed spins
• Rattles, clanks, or resonant noises from inside the washer
• Potentially weakened structure allowing tub movement
• Causes of a damaged sound shield can include tears or dents sustained over many high-speed spin cycles. Constant vibration may cause stress cracks or loose rivets.

 It is also compatible with some  Whirlpool, Maytag, Amana, and Kenmore brands.

The lid hinge bearing is used for the lid hinges on washers and dryers. When functioning properly, it allows the lid to open and close properly. If this is a problem with the bearing, it could make the lid difficult to move. In some cases, when the lid will not close, it means that the machine will not function correctly. Damaged lid hinge bearings should be replaced as soon as possible.The lid hinge bearings see a lot of work since they are in use whenever the lid of the washer or dryer opens and closes. They could become cracked and broken over time. Replacing the bearings is a relatively simple repair that owners can make on their own.This lid hinge bearing is for use with many models of washers and dryers from Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Admiral, Amana, Crosley, and Magic Chef. This is a genuine OEM replacement part that has been sourced from the manufacturer. The piece is sold individually, so if owners need to replace more than one hinge, they will need to buy multiples.

Used from harness to top.

The lid lock is an OEM replacement part for Whirlpool washers. It is designed to keep the door securely closed during operation.

Symptoms of a faulty lid lock:

• Washer will not start
• Washer stopping randomly during operation
• Lid will not lock

By replacing the latch, you can restore door closure and prevent interruptions in your washer's operation. Improve your washer's safety and efficiency with this durable Lid Lock Assembly.

This latch can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Please note:  The part might arrive in the locked position. Install the lid lock and power up your washing machine to reset the lock to the open position.

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

This cabinet is the outer housing that protects and supports the appliance's internal components, restoring the unit's structural integrity and appearance. Replaces a bent, dented, or rusted outer shell to reduce vibration and air leaks. What it does:

• Provides the main exterior enclosure and mounting surface for internal parts.
• Restores proper panel alignment to stop rubbing, rattling, or uneven gaps.
• Helps maintain correct airflow by sealing the appliance body.
• Protects wiring and controls from damage and debris.

• Disconnect power and any fuel supply before starting work.
• Installation may require removing panels and transferring brackets or trim; keep original fasteners if reinstalling.
• Cabinet replacements often require two people for safe positioning and alignment.
• Refer to the appliance's service manual or OEM instructions for specific disassembly and reassembly steps.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This replacement hose routes liquid or air between internal components, maintaining a secure, leak-resistant path. Replace a brittle, cracked, or clogged hose to prevent leaks and restore proper flow and sensing performance.

• Provides a sealed pathway between components such as the pump, tub, valve, drain path, or pressure system
• Helps maintain correct water flow or pressure/level sensing
• Common symptoms: leaks, kinks/cracks, standing water, slow/failed drain or fill, related error codes
• Restores reliable connections when used with properly seated clamps

• Disconnect power and shut off water supply before servicing; allow hot parts to cool
• Place towels or a shallow pan to catch residual water
• Note routing and clamp locations; transfer or replace clamps as needed and seat the hose fully on fittings
• Test for leaks with a short cycle and re-check all connections

This leveling foot threads into the base of your appliance to support and stabilize it. Adjusting the foot helps level the cabinet, reduce wobble and vibration, and keep doors aligned for smooth, reliable operation. Also called a leveling leg. What it does:

• Provides an adjustable contact point to stabilize the unit on the floor
• Helps level the cabinet so doors align and seal properly
• Reduces rocking, rattling, or excessive vibration on uneven surfaces
• Replaces a cracked, stripped, or missing leveling leg

• 1 leveling foot

• Unplug the appliance and turn off water supply if applicable
• Use a helper to carefully move or tilt the unit; support it securely
• Unthread the damaged foot; thread in the new foot by hand, then fine-adjust with a wrench
• Level side-to-side and front-to-back; ensure all feet make firm floor contact

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Screw: 8-16 x 3/8 inch.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rubber pad cushions and protects appliance components from vibration and abrasion, reducing noise and wear. It's a small replacement part that restores proper contact and dampening where original pads have worn or fallen off. What it does

• Cushions panels or components to reduce vibration and rattling
• Prevents direct metal-to-metal contact that can cause scratching or wear
• Helps stabilize parts that have shifted due to a missing or damaged pad
• Commonly replaced when noisy operation or visible pad deterioration occurs

• One replacement pad

• Disconnect power before accessing interior panels or components
• Remove any retaining clips or panels that block the pad's location; pad typically presses into place
• Verify orientation and seating against the mating surface; replace any worn fasteners or retainers
• If adhesive was used on the original, use an OEM-recommended adhesive only.

The Hose is an OEM replacement part for Whirlpool washing machines. It is a flexible tube responsible for draining and expelling the used water from the washer tub after each wash cycle.

Symptoms of a faulty drain hose include:

• Water leaks around the hose connections or along its length
• Slow draining or improper drainage of the tub
• Visible cracks, bulges, or damage to the hose material

Causes of a bad washer drain hose can include normal wear and tear over time, exposure to high water pressure or temperatures, physical damage from kinks or pinches, or improper installation or connections.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

A U-bend retainer designed to secure a U-shaped heating element or tubing in place, preventing movement and vibration for reliable operation. Fits as the replacement hold-down clip used on compatible Whirlpool HVAC and appliance assemblies. What it does:

• Secures U-shaped element or tubing to the appliance frame or mounting bracket
• Prevents rubbing or vibration that can lead to wear or noisy operation
• Helps maintain proper spacing and alignment of the element for consistent performance
• Used where a compact, U-shaped clamp is required to hold components safely

• One U-bend retainer clip as shown

• Inspect the surrounding area and replaced part for damage before installing
• Use basic hand tools; align clip over the U-bend and fasten to the designated mounting point
• Disconnect power and allow components to cool before attempting repair
• Replace with the exact OEM fasteners

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Absorber is an OEM part for Whirlpool washing machines. It plays a role in minimizing vibrations and noise during operation by damping the mechanical movements within the machine.

Causes of a bad Absorber can include the natural wear and tear from continuous use, degradation due to exposure to harsh chemicals or extreme temperatures, and mechanical failure from excessive loads or unbalanced cycles.

Symptoms of a bad Absorber include:

• Increased vibration or shaking during operation.
• Unusual noises like thumping or banging during the spin cycle.
• The washing machine moving excessively or "walking" across the floor.
• Uneven wear and tear on other washing machine components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
