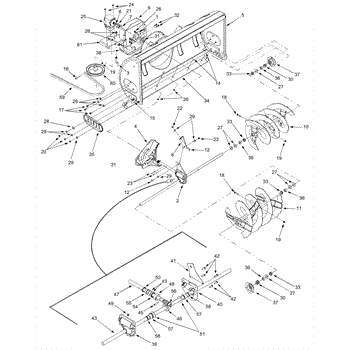

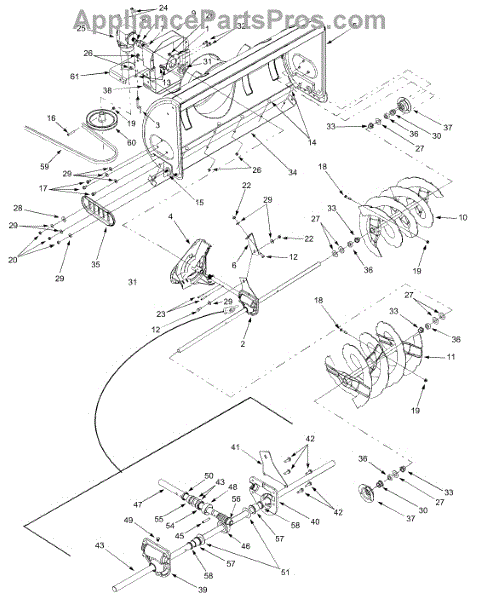

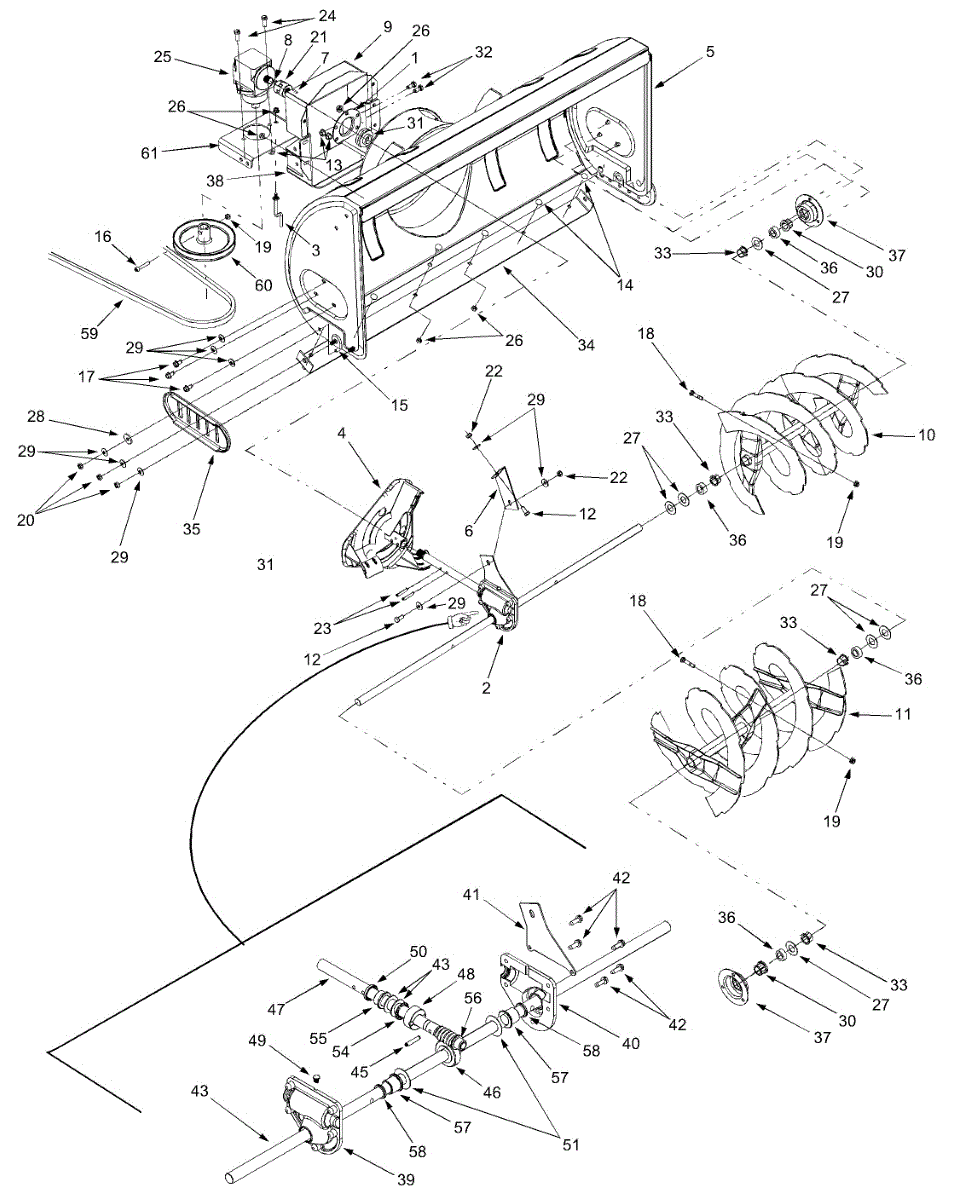

Parts for Oem-Attachments OEM-190-823 / 2003: General Assembly Parts

Replace a worn auger shaft bearing housing causing excessive noise or wobbling auger movement. Fits most single and two-stage snow blowers.

Auger won't turn or makes grinding noise? This gear case assembly protects internal gears that drive the auger. Replaces damaged or cracked gearbox.

This carriage bolt is a self-locking fastener made for use in round or square holes to attach metal to metal in outdoor equipment. These bolts provide an added safety feature because they can only be removed from one side. Carriage bolts can carry a large amount of weight, which makes them ideal for use in outdoor yard equipment. Carriage bolts may be used to attach a lawn mower's arm to the side support and other similar applications. If the bolt needs to be replaced, removal and installation are simple. Use a wrench to loosen the nut holding the washer and bolt in place. Once the nut is loose, the bolt can be unthreaded by hand and pulled out of the hole. To install, push the bolt back through the hole. If the fit is too tight to install by hand, use a hammer to tap it in place. Reinstall the washer and nut and tighten with a wrench.This carriage bolt is designed for use in lawnmowers, snowblowers, and lawn tractors manufactured by Craftsman, Bolens, Yard Machines, Yard-Man, and MTD. This is a genuine OEM product that comes directly from the manufacturer. Note: It does not come with a nut or washer.

Carriage bolt fastener for lawn and garden equipment. Replaces worn, stripped, or missing bolts that secure deck components and attachments.

Cap screw for snowblower attachments. Secures components in place for proper operation. Replace when missing, stripped, or damaged to restore assembly.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.

Auger won't turn or broke after hitting debris? This shear bolt connects your snow blower's auger to the shaft. Quick 10-minute fix for most models.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

Flat washer for lawn mowers and tractors. Spreads load from bolts and screws to prevent damage. Replace if worn, cracked, or missing hardware.

Bell washer adds spacing on shafts in lawn tractors, tillers, mowers, and chipper shredders. Replace if washer is missing, worn, or damaged during maintenance.

Hex screw for lawn mowers and outdoor power equipment. Secures components and panels. Replace if stripped, rusted, or missing for proper assembly.

Flange bushing for snow throwers and lawn equipment. Replace when worn to maintain smooth operation and prevent part damage. Verify fit with your model.

Replacement spacer for outdoor power equipment. Installs between components to minimize vibration, friction, and heat. Replace if cracked or missing.

This self-tapping screw is used to attach various parts to the engine housing of medium sized gasoline powered engines, in particular yard tools such as tillers, snow blowers, yard tractors, riding mowers, power vacuums, shredders, and chippers. It is used in over 150 different gasoline powered engines. Screws such as these are used particularly when a device is going to receive a great amount of vibration and stress while the engine is running and rotating tools are engaged. Such devices sustain a great deal of wear over time and the parts subject to replacement will eventually fail and need to be replaced. In such cases, it is wisest to replace the attaching hardware such as housing screws as well, because it is a self-tapping screw. Screws of this type are designed to forge a tight bond between the metal pieces they are securing together, but once loosened, they should ideally be replaced with new hardware. Make sure when replacing these screws to use genuine OEM parts like these screws. These replacement parts are manufactured to be identical to the original pieces. This hex screw is compatible with the following brands: MasterCut, Yard-Man, Yard Machine, Montgomery Wards, MTC, Murray, Bolens, Craftsman, Turf King, Troy Bilt, Cub Cadet, Huskee, Toro, and Ryobi.

Fix a snowblower that won't throw snow properly with this auger spiral axle. Enables the auger to rotate and dig into snow for effective clearing.

This worm shaft is a genuine MTD part, sold individually. This worm shaft can be used as a replacement part for a lawnmower, a lawn tractor, or a snowblower. This worm shaft provides a mounting on which the impeller can rotate within a centrifugal pump mechanism.The worm shaft might have to be replaced within the standard lifespan of such an outdoor appliance if it suffers damage that renders the component beyond functionality. This damage could take the form of punctures, scrapes, tears, or erosion to the metal material of which the worm shaft is compromised. If this occurs, the worm shaft should be removed and replaced with this genuine OEM replacement part. Remember to wear work gloves as a safety precaution while repairing or replacing parts within an outdoor appliance. This is an OEM part sourced directly from the manufacturer. It is sold individually. This worm shaft is compatible with the following outdoor appliance brands: MTD, Yard Man, and Troy-Bilt.

Fix loose or wobbling parts with this snowblower attachment thrust collar. Secures components together for proper operation. Direct fit replacement.

This grease plug is a genuine OEM replacement part sourced directly from the manufacturer. It is found on snowblowers and other outdoor yard machines on the gearcase assembly, which houses the auger gear. The grease plug seals the oil port on the gearbox. This keeps lubrication inside the gearbox and is the access point for adding more when needed. If this plug is lost, the gearbox's oil could leak out, and contaminants could get into the gearbox.Lubricate the contents of the gearbox before installing the new grease plug. Locate and remove the two screws on the side to drain the gearbox. Install the grease plug in the bottom. Refill the oil using the vent hole. Continue filling until oil is coming out the top side screw. Close everything back up, and the machine is ready for use. To prepare the equipment for long storage, remove the grease plug and check the oil level. If it is not to the top, add more lubricant before sealing the grease plug.This grease plug is made of durable black molded plastic and is sold as an individual unit. It is compatible with snowblowers and snow throwers manufactured by Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, and Husky.

Oil seal prevents leaks on snowblower worm shaft and bearing flange. Replace when you notice oil leaking from the engine area. Verify fit with your model.

Flange bearing enables smooth rotation of internal components in your snowblower. Replace when you notice grinding noise or reduced performance.

This drive pulley is a genuine Husqvarna part, sold individually. This drive pulley can be used as a replacement part for a snowblower. This drive pulley secures the drive belt so that it can rotate and drive the snowblower engine.The drive pulley might have to be replaced if it cannot maintain the placement and positioning of the drive belt. Always remember to wear work gloves as a safety precaution while repairing or replacing parts within an outdoor appliance. This is an OEM part sourced directly from the manufacturer. It is sold individually. This drive pulley is compatible with the following outdoor appliance brands: MTD, Troy-Bilt, and Yard Man.
