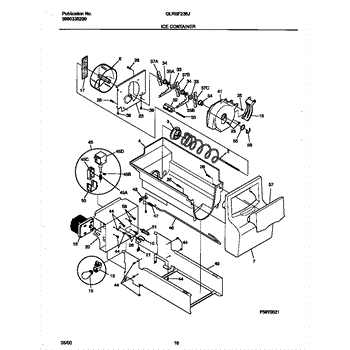

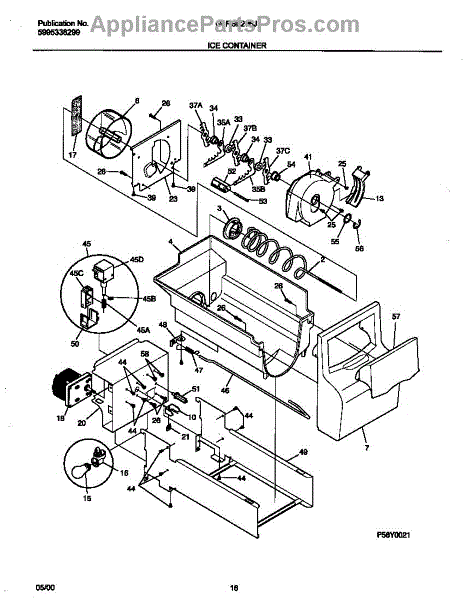

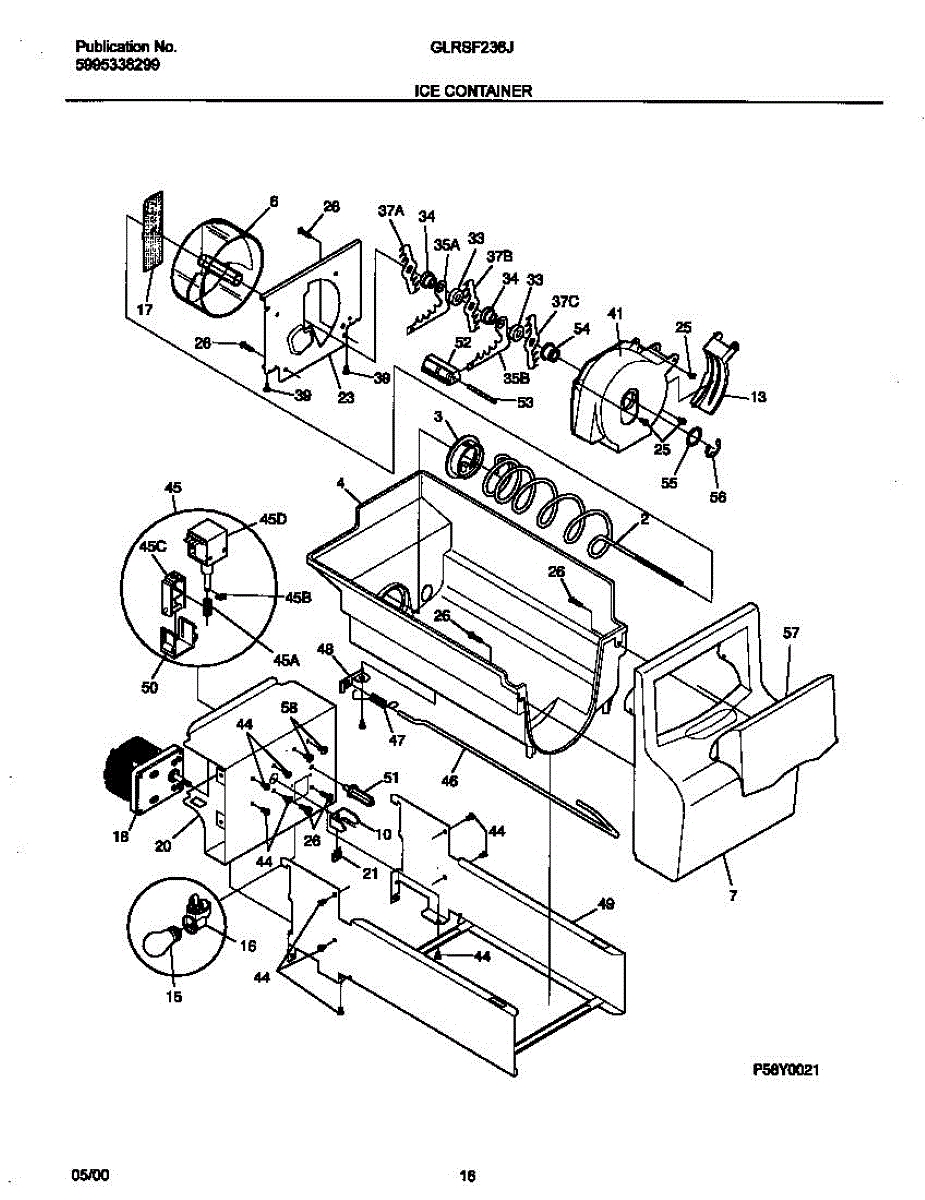

Parts for Frigidaire GLRSF236JD0: 09 - Ice Container Parts

Ice not dispensing or jamming? A worn auger can't move cubes from bin to chute. This rotating shaft restores smooth dispensing. Moderate DIY repair.

Ice dispenser not dispensing or crushing properly? The drive cam transfers motor rotation to advance the ice dispensing cycle. DIY repair in 30-45 minutes.

The Ice Bucket Housing is an OEM part for Frigidaire refrigerators. This component serves as the main enclosure for the ice bucket, supporting and protecting the ice maker's storage bin. It is designed to fit securely within the freezer compartment, helping to maintain the ice in a solid state by insulating it from varying freezer temperatures and ensuring that ice production is efficient and consistent.

Symptoms of a failing Ice Bucket Housing include:

• Ice melting or clumping together due to poor insulation
• Difficulty in removing or replacing the ice bucket because of misalignment or damage to the housing
• Cracks or damage in the housing that can lead to frost buildup or leakage
• Unusual noises from the ice dispenser if the housing obstructs the dispensing mechanism

Causes of a bad ice bucket housing often involve physical impacts from handling, thermal stress from fluctuating freezer temperatures, or degradation of materials over time, leading to brittleness and breakage.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models

Note: For the complete ice container assembly with auger and moving parts, order part number 241860803.

Ice dispenser not working or auger spinning but no ice comes out? The dispenser drum often cracks or wears out. Moderately easy DIY fix with video guide.

Front cover for your refrigerator's ice bucket. Replaces cracked, broken, or missing covers to keep ice contained and ensure proper dispenser seating.

Ice not dispensing or auger won't turn? The drive bar transfers motor rotation to crush and dispense ice. Moderate DIY repair with video guide.

Dispenser only producing cubed ice? A cracked or broken crusher housing prevents crushed ice delivery. Moderate DIY repair in 30-60 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Refrigerator light won't turn on or flickers? A faulty light socket is often the cause. This snap-in replacement restores interior lighting in 10 minutes.

Ice won't crush or dispenses poorly? A worn drive blade often causes ice crusher problems. This blade crushes and pushes ice through the dispenser chute.

Protective cover that shields the refrigerator motor assembly. Replace if your cover is cracked, broken, or missing to protect internal components.

Ice not dispensing or auger won't turn? The drive bar transfers motor rotation to crush and dispense ice. Moderate DIY repair with video guide.

Replaces the refrigerator's outer front plate when cracked, dented, rusted, or worn. Restores finished appearance and covers internal components.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Specs: 10-16 X 0.500

Spacer that fits between refrigerator door hinge components to maintain proper clearance and alignment. Replace if worn, cracked, or missing.

Refrigerator spacer maintains proper clearance and alignment between internal parts. Replace if worn, missing, or causing parts to rub or bind together.

If your crushed ice comes out in large chunks or clumps, this fixed blade may be worn or broken. Works with the auger to deliver consistent crushed ice.

Getting cubed ice when crushed is selected? This fixed blade restores proper ice crushing function. Common repair for ice dispensing issues in minutes.

Fix ice dispensing issues caused by bent or dull crusher blades. This blade restores smooth crushed-ice flow. Quick DIY replacement with video guide.

Ice won't dispense or jams in crushed mode? This crusher blade fixes bent or broken blades in your ice bucket assembly. Easy DIY repair with video guide.

Ice won't dispense or grinds loudly? A bent or worn crusher blade is often the culprit. This blade fits inside the ice bucket assembly. Easy DIY fix.

Replacement mounting screw for refrigerators and ice makers. Secures internal components and panels. Order a new screw if original is stripped or missing.

Dispenser only producing cubed ice? A cracked or broken crusher housing prevents crushed ice delivery. Moderate DIY repair in 30-60 minutes.

Secures panels, brackets, and trim on appliances. Replace when missing, stripped, or damaged to restore a tight, rattle-free fit and proper alignment.

Secure solenoid clip for refrigerators. Replace if damaged, loose, or missing to ensure proper solenoid function. Confirm fit with your model number.

Actuator spring for refrigerator solenoid mechanisms. Replaces broken or worn springs that cause poor movement or engagement. Restores tension.

This solenoid actuator is the electromechanical device that moves a latch or linkage when energized, restoring the appliance's intended mechanical action. It provides a direct replacement to re-enable reliable actuation. What it does:

• Converts electrical signal into a mechanical push or pull to operate a latch, door, dispenser or linkage
• Commonly used where a timed or motor-driven movement is needed during a cycle
• Symptoms this part can cause: appliance fails to actuate a door, latch, dispenser or similar mechanism when called for
• Replacing a worn or failed actuator restores proper mechanical response to control signals

• One solenoid actuator

• Disconnect power to the appliance before beginning work to avoid shock or unintended actuation
• Remove any panels or trim as needed to access the actuator; note wire and mounting locations for reassembly
• Reconnect wiring and test the function on a short cycle after installation

The Solenoid and Yoke Assembly is an OEM part for Frigidaire refrigerators. It is used in the ice dispensing system to control the movement of the ice chute, allowing ice to be dispensed from the refrigerator door.

Causes of a bad solenoid and yoke assembly can include electrical issues such as a burnt-out solenoid, wear and tear from regular use, or physical damage due to mishandling or impact.

Symptoms of a bad solenoid and yoke assembly include:

• Ice not dispensing or dispensing intermittently
• Strange noises when attempting to dispense ice
• The ice chute not opening or closing properly
• Error codes related to the ice dispensing system

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Solenoid and Yoke Assembly is an OEM part for Frigidaire refrigerators. It is used in the ice dispensing system to control the movement of the ice chute, allowing ice to be dispensed from the refrigerator door.

Causes of a bad solenoid and yoke assembly can include electrical issues such as a burnt-out solenoid, wear and tear from regular use, or physical damage due to mishandling or impact.

Symptoms of a bad solenoid and yoke assembly include:

• Ice not dispensing or dispensing intermittently
• Strange noises when attempting to dispense ice
• The ice chute not opening or closing properly
• Error codes related to the ice dispensing system

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Mounting bracket that secures the control rod to your refrigerator. Replace if the original bracket is cracked, broken, or missing to restore linkage.

Replacement ice bin rail that supports and guides the freezer ice bin. Restores proper alignment when the original rail is cracked, broken, or worn.

Spacer that maintains proper gap between fixed crusher blades in the ice bucket. Replace if broken, cracked, or missing to restore correct alignment.

Secures ice crusher components in place. Replace if pin is worn, missing, or broken to restore proper alignment and operation of crusher assembly.

Fastens the auger shaft in your refrigerator's ice maker assembly. Replace if cracked, broken, or missing to secure the auger and prevent rubbing.

Metal flat washer for refrigerator ice maker auger and other assemblies. Replaces worn, missing, or damaged washers during repairs and reassembly.

This E-ring is a small retaining clip used in Frigidaire refrigerators to hold components on a grooved shaft or pin. It keeps assemblies secure and operating smoothly by preventing parts from sliding off during normal use. What it does:

• Retains parts on a grooved shaft or pin to prevent axial movement
• Helps keep mechanisms aligned and reduces wobble or separation
• Common symptoms when missing or damaged: loose or fallen-off parts, scraping/rattling noises, or poor operation of the affected assembly

• 1 E-ring

• Unplug the refrigerator before servicing; wear eye protection (spring clips can snap)
• Use needle-nose pliers or an E-clip tool to compress and seat the ring in the groove
• Verify the ring is fully seated and flush in the groove before reassembly
• Keep any spacers/washers in the original order during removal and reinstallation

Covers the service opening on your refrigerator. Replace if cracked, broken, or missing to protect internal components and maintain a clean appearance.

Wiring harness that connects the auger motor to the refrigerator's electrical system. Replace if wires are frayed, damaged, or connections are loose.

Ice won't dispense through the door? A broken auger or cracked ice bin causes this. This complete ice container assembly is a simple slide-in fix in 5 minutes.

Pan head mounting screw for refrigerator rails. Replace missing, stripped, or damaged screws during shelf or rail installation or repair work.

Plastic spacer that maintains proper distance between refrigerator shelves. Replace if cracked, broken, or missing to restore correct shelf positioning.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

This spacer tube positions and supports a refrigerator tube or small component to keep lines aligned and reduce vibration. Replaces a worn or missing spacer to help stop rubbing, rattling, or misalignment of tubing or nearby parts. What it does:

• Holds and centers a tube or small assembly to maintain proper clearance
• Prevents tubing from rubbing against cabinet walls or other components
• Reduces vibration and noise caused by loose or misaligned lines
• Helps maintain correct routing to lower risk of chafing or wear

• Disconnect power and shut off water supply before starting
• Typically installs by sliding or snapping onto the tube or mounting boss; minimal tools needed
• Inspect surrounding tubing and clips; replace any damaged fasteners to ensure secure routing

Refrigerator foam tape seals gaps and reduces vibration. Replace if worn, compressed, or causing air leaks. Verify fit with your model number.

Wiring harness that connects the auger motor to the refrigerator's electrical system. Replace if wires are frayed, damaged, or connections are loose.

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

Sliding damper control for refrigerator crisper drawer. Adjusts airflow and humidity to preserve fruits and vegetables. Replace if broken or missing.

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

Replacement water line tube for refrigerators. Connects water supply to dispenser or ice maker. Replace if cracked, kinked, leaking, or damaged.

#10 OD, steel

Right hand side. For left hand side use 215002301

Secures cantilever shelves to prevent shifting or slipping. Replace if cracked, broken, or missing to restore stable shelf support. Confirm fit with model.

Color: Black

Water valve cap for side-by-side refrigerators. Covers and protects the water inlet valve connection. Replace if cracked, broken, or missing.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

Replacement shelf support grommet for refrigerators and freezers. Provides stability for shelves. Replace if broken, missing, or worn to restore proper shelf support.

Nylon washer for the evaporator fan motor shaft in refrigerators. Replace if worn, cracked, or missing to ensure proper fan alignment and operation.

This complete ice maker unit produces and dispenses ice cubes in your refrigerator's freezer compartment. It includes all internal mechanisms for water filling, freezing, and ice ejection cycles. Install this assembly if your ice maker has stopped producing ice, makes unusual noises, or produces malformed ice cubes.

Ice won't dispense through the door? A broken auger or cracked ice bin causes this. This complete ice container assembly is a simple slide-in fix in 5 minutes.
