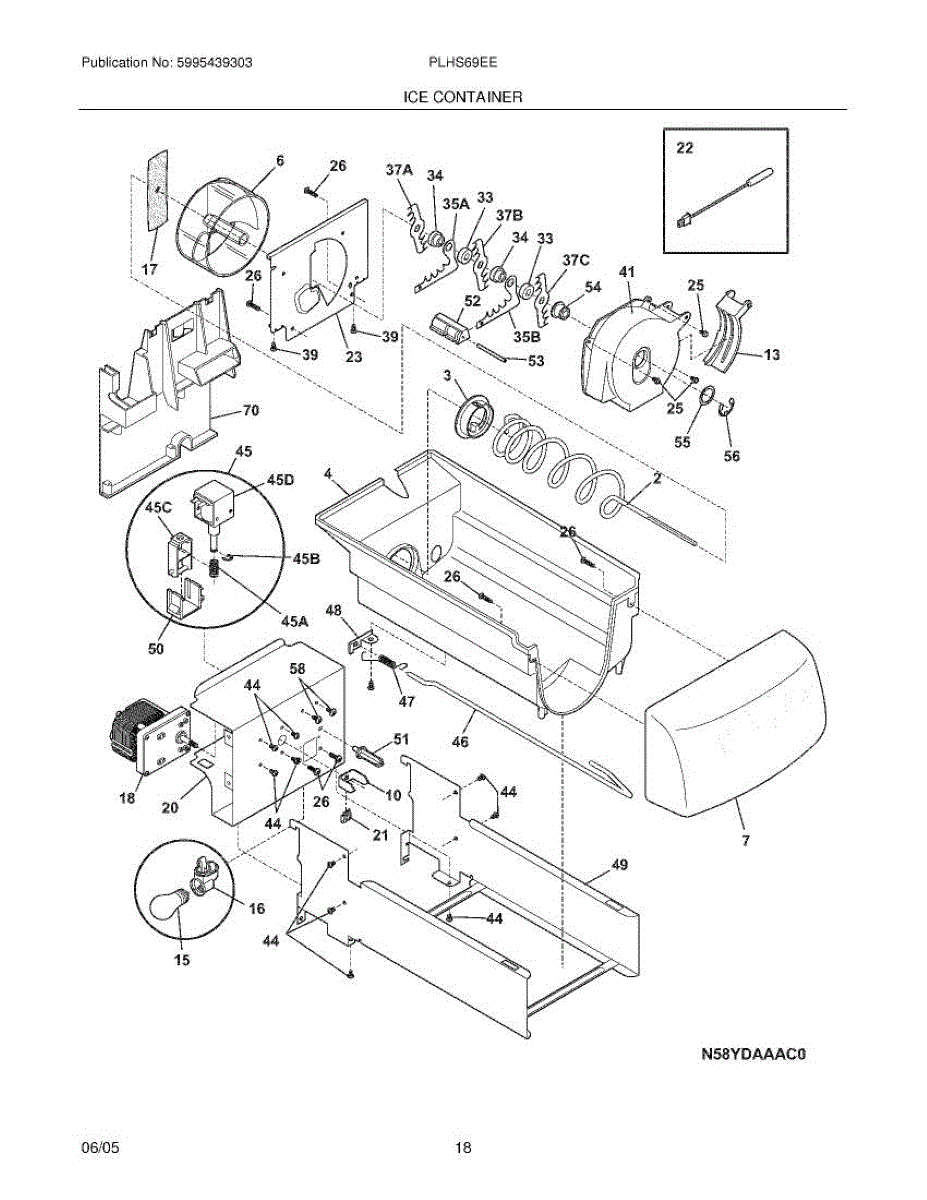

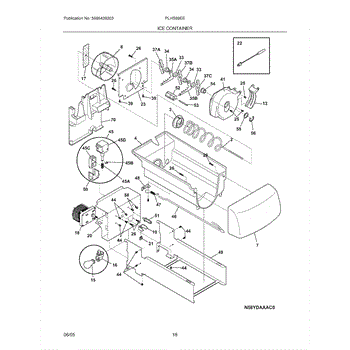

Parts for Frigidaire PLHS69EESS7: 17 - Ice Container Parts

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

An ice auger rotates inside the freezer's ice bin to move cubes to the crusher and out the dispenser chute. Replacing a worn or broken auger restores consistent dispensing and helps eliminate jams and grinding from a slipping spiral.

• Advances ice through the bin toward the crusher/dispenser chute
• Works with the crusher assembly to deliver cubed or crushed ice based on the selector
• A stripped or cracked auger may result in little/no ice dispensing while the motor runs
• Damage can cause ice jams, uneven dispensing, or grinding noises from the bin

• Unplug the refrigerator; remove and empty the ice bin, allowing any frost to thaw
• Wear cut-resistant gloves—crusher blades and sheet-metal edges are sharp
• Disassemble the crusher/blade stack and note the exact blade/spacer order
• Transfer the blade stack, bushings, and hardware to the new auger; reassemble and confirm smooth rotation before reinstalling

This drive cam is the rotating plastic cam used in the refrigerator's ice system. It transfers the motor's motion to linked parts to advance the cycle so ice can be produced and dispensed smoothly.

• Transfers rotation from the motor to move internal levers/gears in the ice assembly
• Advances the ice-making/dispensing cycle
• Wear or cracks can cause stalling, clicking/grinding, or no/weak ice dispensing
• May lead to ice not ejecting or jamming mid-cycle

• Disconnect power and shut off water before servicing
• Remove the ice bin; access the ice maker or dispenser mechanism as your model requires
• Note the cam's orientation and alignment marks; seat the new cam fully on the shaft
• Reassemble, restore power, and run a test cycle to confirm operation

This replacement refrigerator container restores a secure, functional storage compartment so items stay organized and easy to access. Replace a cracked or broken container to regain proper capacity and a snug, reliable fit.

• Provides the designated storage space within the refrigerator or freezer section
• Helps keep items organized and prevents shifting or spills when opening/closing
• Replace if cracked, warped, or if mounting tabs are broken
• Common symptoms: bin won't stay seated, items fall out, reduced usable storage, visible damage

• Disconnect power and remove items from the area before servicing
• Carefully lift/slide the old container out; transfer any reusable trim as designed
• Seat the new container fully so tabs/rails engage evenly
• Avoid forcing cold plastic; let the compartment warm slightly to reduce risk of cracking

The Ice Dispenser Drum is an OEM part for Frigidaire refrigerators. This component is essential for the proper dispensing of ice, rotating to move ice from the storage bin to the dispenser chute.

You should replace the ice dispenser drum if it becomes damaged or worn out. Causes of a bad ice dispenser drum can include physical damage from ice jams, wear and tear from regular use, or issues with the motor that drives the drum.

Symptoms of a bad ice dispenser drum include:

• The ice dispenser not dispensing ice properly
• Grinding or clicking noises from the dispenser area
• Ice getting stuck or jammed in the dispenser
•  Reduced ice flow or inconsistent dispensing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This front ice container stores and dispenses cubed ice from the freezer door, keeping ice contained and easy to access. Replaces a cracked, warped, or missing ice bucket to restore clean ice storage and pickup. What it does:

• Holds and organizes cubed ice inside the freezer door to prevent spills
• Guides ice toward the dispenser/pickup area for reliable retrieval
• Replaces damaged or broken containers that cause ice to fall or leak
• Helps keep ice separated from other freezer items for cleaner ice

• Disconnect power to the appliance before servicing to avoid electrical hazards
• Remove the old container by sliding or lifting per your freezer's rail/clip design
• Align the replacement container with the door rails or mounting tabs and slide until it seats fully
• Clean with mild soap and water; avoid abrasive cleaners or solvents that could damage plastic

The Ice Auger Drive Bar is an OEM replacement part for Frigidaire refrigerators. It plays an important role in allowing the icemaker assembly to function properly by transmitting rotational force from the motor to the ice auger. Without a properly functioning drive bar, ice cubes may not be dispensed as needed. Please Note: The nut is no longer separate. It is now part of this drive bar.

Causes of a bad ice auger drive bar can include wear and tear from frequent use, damage due to heavy ice loads, or corrosion from moisture exposure. A malfunctioning drive bar can result in inefficient ice dispensing or complete failure of the ice dispensing mechanism.

Symptoms of a bad drive bar include:

• Ice cubes not dispensing when requested
• Noise or grinding sounds coming from the icemaker area
• Stalling or failure of the icemaker assembly to rotate fully
• Inability to harvest or eject ice from the ice molding trays

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The Ice Crusher Housing is an OEM part for Frigidaire refrigerators. This housing encloses the ice crusher assembly, ensuring that ice is crushed efficiently and delivered smoothly through the dispenser. It is designed to securely hold the crusher components in place and guide the ice into the dispenser chute.

You should replace the ice crusher housing if it becomes damaged or worn out. Causes of a bad ice crusher housing can include repeated impact from ice, cracks or breaks from overloading, or wear and tear from regular use.

Symptoms of a bad ice crusher housing include:

• Ice not crushing properly
• Leaks or moisture around the ice crusher area
• Loud or unusual noises during operation
• Visible cracks or damage to the housing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This refrigerator light socket holds and powers the interior bulb so you can clearly see inside. Replace a cracked, heat-damaged, or loose socket to restore reliable illumination when the interior light won't work or flickers.

• Provides the electrical connection and mounting point for the compartment light bulb
• Fixes symptoms such as no interior light with a known-good bulb
• Addresses intermittent flickering when the door is opened or closed
• Helps resolve visible charring, melting, or broken contacts on the socket
• Corrects a loose bulb that won't stay seated or lit

• Disconnect power to the refrigerator before servicing; remove the light lens/cover and bulb
• Note wire positions; release the old socket from its mount
• Transfer wires to the new socket one lead at a time and seat the socket fully
• Reinstall the bulb and cover; restore power and test
• Use only the bulb type and wattage specified for your model

The Drive Blade is an OEM part for Frigidaire refrigerators. This component is crucial for the ice maker, as it helps to crush and dispense ice properly. The drive blade ensures that ice cubes are broken down to the desired size and pushed through the dispenser efficiently.

Over time, the drive blade can wear out or become damaged due to repeated use, ice buildup, or mechanical stress. Replacing a faulty drive blade is necessary to maintain the ice maker's functionality and ensure a continuous supply of ice.

Symptoms of a bad drive blade include:

• The ice maker not dispensing ice properly
• Unusual noises coming from the ice maker
• Ice cubes being dispensed in irregular sizes or not at all
• Visible damage or wear on the blade

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This auger motor powers the ice dispenser, rotating the ice-bin auger to feed cubes or crushed ice to the door chute. A failed motor stops dispensing, leaving ice in the bucket when the paddle or lever is pressed.

• Drives the auger that moves ice from the bin to the dispenser chute
• Restores dispensing when the original motor is seized or burned out
• Common symptoms: no ice through the door, auger doesn't turn, motor only hums or clicks
• Note: Won't resolve issues from a jammed auger, frozen ice bucket, or broken drive parts

• Disconnect power before servicing; wear cut-resistant gloves
• Remove the ice bin to access the motor area as designed on your model
• Note wire orientation; transfer any reusable brackets or hardware from the original motor
• Align the drive interface and secure; test both cube and crush functions before reassembly

The Ice Auger Drive Bar is an OEM replacement part for Frigidaire refrigerators. It plays an important role in allowing the icemaker assembly to function properly by transmitting rotational force from the motor to the ice auger. Without a properly functioning drive bar, ice cubes may not be dispensed as needed. Please Note: The nut is no longer separate. It is now part of this drive bar.

Causes of a bad ice auger drive bar can include wear and tear from frequent use, damage due to heavy ice loads, or corrosion from moisture exposure. A malfunctioning drive bar can result in inefficient ice dispensing or complete failure of the ice dispensing mechanism.

Symptoms of a bad drive bar include:

• Ice cubes not dispensing when requested
• Noise or grinding sounds coming from the icemaker area
• Stalling or failure of the icemaker assembly to rotate fully
• Inability to harvest or eject ice from the ice molding trays

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The Temperature Sensor (10K NTC) is an OEM replacement part for Frigidaire refrigerators. This sensor monitors the internal temperature of the refrigerator or freezer compartment, sending signals to the control board to regulate cooling cycles. It ensures the appliance maintains the correct temperature for optimal food preservation.

Temperature sensors can fail due to wear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can cause inaccurate temperature readings, leading to improper cooling or freezing.

Symptoms of a bad temperature sensor include:

• Fluctuating or incorrect temperatures in the refrigerator or freezer
• Food spoiling faster than expected or freezing inappropriately
• Error codes related to temperature regulation
• The refrigerator running continuously or cycling too often

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Front plate restores the appliance's front-facing cabinet, protecting internal components and improving appearance. It replaces cracked, dented or worn front trim so the appliance looks finished and covers internal parts. What it does:

• Covers and protects internal components behind the appliance's front cabinet.
• Restores cosmetic appearance when the existing front is dented, cracked, or scratched.
• Helps maintain proper fit and alignment of adjacent trim and access points.
• Reduces exposure of internal components to dust and incidental contact.

• Always disconnect power (and water, if applicable) before beginning work.
• Removal typically requires removing fasteners, clips or adjacent trim panels—keep track of all screws.
• Handle carefully; edges may be sharp and panels can be awkward to position alone.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This spacer fits the refrigerator door hinge to set proper clearance and alignment so the door swings smoothly and seals correctly. Replace a worn or missing spacer to eliminate rubbing and uneven gaps at the door.

• Maintains the specified distance between hinge components for correct door height and alignment
• Helps the door open and close without rubbing or binding
• Supports consistent gasket contact for a reliable seal
• Common signs of wear: door sagging, scraping noises, uneven gaps, or the door not closing flush

• Unplug the refrigerator; remove items from the door and support the door before working on the hinge
• Note the order of any washers, cams, and spacers during disassembly for correct reassembly
• Reinstall hardware in the same sequence; do not overtighten fasteners to avoid deforming the spacer
• After reassembly, check door alignment and gasket seal; adjust as needed

This spacer is a small positioning piece used in refrigerator assemblies to maintain proper clearance and alignment between parts. Replacing a worn or missing spacer helps restore smooth operation and prevents rubbing or binding. What it does:

• Maintains the designed gap between mating parts to prevent friction and wear
• Helps keep assemblies aligned for smooth, consistent movement
• Reduces looseness, rattling, or poor fit caused by a missing or deformed spacer
• Typical signs include visible damage or a missing spacer and misalignment or scraping noises in the area it installs

• 1 spacer

• Disconnect power; if working near water components, shut off the water supply
• Use your model's parts diagram to determine exact location and orientation
• Retain and reuse original fasteners or clips unless damaged
• Do not overtighten hardware; ensure smooth operation after installation

This fixed blade sits inside the refrigerator's ice bucket/crusher assembly. It provides a stationary cutting edge that works with the auger and rotating blades to break up cubes, helping your dispenser deliver consistent crushed ice.

• Stationary crusher blade that works with the auger and rotating blades to crush ice
• Helps prevent whole cubes from passing through on the "crushed" setting
• Worn, bent, or missing blades can cause poor crushing, jams, or uneven ice size
• May help address symptoms like dispenser jamming, irregular crushed ice, or increased grinding noises

• Unplug the refrigerator before servicing; remove and empty the ice bucket
• Note the order and orientation of blades, spacers, and fasteners; take reference photos
• Handle sharp metal edges; wear cut-resistant gloves
• Reassemble in the original sequence and tighten hardware snugly; ensure the auger turns freely before reinstalling

A replacement fixed round blade that restores the appliance's original blade function and helps reduce vibration, noise or uneven performance caused by a worn or damaged blade. Use this OEM component for a proper fit and reliable operation. What it does

• Replaces a worn, bent or damaged fixed round blade to restore intended blade performance.
• Restores balance and smooth operation to the rotating assembly.
• Can reduce noise, wobble or uneven operation associated with a damaged blade.
• Matches OEM fit and function to help ensure correct alignment.

• Disconnect power to the appliance before beginning any work.
• Handle blade edges carefully; wear cut-resistant gloves if available.
• Remove and install per the appliance service manual or OEM instructions.

This ice crusher blade (#3) fits inside the refrigerator's ice bin crusher stack. It helps break cubes into crushed ice when selected, restoring smooth, consistent crushed-ice dispensing if the original blade is bent, dull, or missing. What it does:

• Works within the ice bin's crusher assembly to fracture cubes into crushed ice
• Engages with the auger and spacers as part of the blade stack
• Worn or damaged blades can lead to only cubes dispensing, weak crushing, jams, or scraping noises
• Visible bending, chips, or rust are common signs it needs replacement

• One crusher blade (#3)

• Disconnect power and remove the ice bin before service
• Empty the bin and carefully disassemble the crusher stack; note the exact order and orientation of blades, spacers, and washers
• Wear cut-resistant gloves—blade edges are sharp
• Reassemble in the same sequence and verify the assembly turns freely before reinstalling the bin and restoring power

This ice crusher blade (#2) mounts in the freezer's ice bucket assembly. It helps break up cubes for the Crushed Ice setting and can restore smooth dispensing when the original blade becomes bent, dull, or broken.

• Mounts inside the ice bucket crusher to slice/crush cubes when Crushed Ice is selected
• Helps maintain consistent ice flow and size through the dispenser
• Wear or damage may lead to no crushed ice, only whole cubes dispensing, jamming, or grinding noises
• Visible bending, dull edges, or a missing blade are common failure signs

• Disconnect power and remove the ice bin from the freezer
• Disassemble the crusher housing to access the blades; note the order/orientation of blade #1 and blade #2 before removal
• Wear cut-resistant gloves—edges are sharp
• Reassemble in the same order, tighten fasteners, reinstall the bin, and test the dispenser

This position-specific ice crusher blade (#1) fits inside the refrigerator's ice bucket assembly. It helps break up cubes into crushed ice; replacing a bent or worn blade restores consistent crushing and reduces jams or grinding noises during dispensing.

• Works with the auger and other numbered blades to crush ice when "Crush" is selected
• A bent, dull, or corroded blade can lead to no crushed ice, only cubes, slow dispensing, or scraping/grinding noises
• Restores even crushing and smoother auger rotation
• Position- and orientation-specific within the blade stack; match to your original

• Disconnect power and switch the ice maker OFF before servicing
• Remove and empty the ice bucket; allow any frost to thaw
• Disassemble the bucket front/auger and note the exact blade order and orientation—take photos for reference
• Wear cut-resistant gloves; reassemble blades, spacers, and washers exactly as removed and verify the auger turns freely before reinstalling

The Ice Crusher Housing is an OEM part for Frigidaire refrigerators. This housing encloses the ice crusher assembly, ensuring that ice is crushed efficiently and delivered smoothly through the dispenser. It is designed to securely hold the crusher components in place and guide the ice into the dispenser chute.

You should replace the ice crusher housing if it becomes damaged or worn out. Causes of a bad ice crusher housing can include repeated impact from ice, cracks or breaks from overloading, or wear and tear from regular use.

Symptoms of a bad ice crusher housing include:

• Ice not crushing properly
• Leaks or moisture around the ice crusher area
• Loud or unusual noises during operation
• Visible cracks or damage to the housing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This factory replacement screw secures panels, brackets, or trim on your appliance so parts stay tight and aligned. Swap in a new screw when one is missing or stripped to restore a solid, rattle-free fit.

• Fastens compatible panels, brackets, handles, or internal hardware
• Helps maintain proper alignment and stability
• Common fix for loose or wobbly handles/trim, rattling noises, or missing hardware
• Replace if threads are stripped, head is damaged, or corrosion is present

• Disconnect power before servicing; wear cut-resistant gloves
• Use the correct screwdriver or nut driver to avoid stripping
• Start threads by hand to prevent cross-threading
• Tighten until snug; do not overtighten

This solenoid actuator is the electromechanical device that moves a latch or linkage when energized, restoring the appliance's intended mechanical action. It provides a direct replacement to re-enable reliable actuation. What it does:

• Converts electrical signal into a mechanical push or pull to operate a latch, door, dispenser or linkage
• Commonly used where a timed or motor-driven movement is needed during a cycle
• Symptoms this part can cause: appliance fails to actuate a door, latch, dispenser or similar mechanism when called for
• Replacing a worn or failed actuator restores proper mechanical response to control signals

• One solenoid actuator

• Disconnect power to the appliance before beginning work to avoid shock or unintended actuation
• Remove any panels or trim as needed to access the actuator; note wire and mounting locations for reassembly
• Reconnect wiring and test the function on a short cycle after installation

This spring solenoid is the actuator spring assembly that helps move and return a solenoid-driven mechanism, restoring reliable part movement and engagement in affected appliance systems. What it does:

• Provides return tension and controlled movement for a solenoid actuator
• Helps the solenoid plunger snap back after activation so linked components reset
• Commonly replaced when the actuator fails to move, sticks, or does not fully return
• Corrects symptoms such as intermittent engagement, sticking, or loss of actuator motion

• Disconnect power to the appliance before attempting service to avoid shock or injury
• Handle small components carefully; keep track of retaining clips, pins, or fasteners
• Replace with the exact part number to ensure fit and function
• Refer to OEM instructions for step-by-step removal and reassembly

The Solenoid and Yoke Assembly is an OEM part for Frigidaire refrigerators. It is used in the ice dispensing system to control the movement of the ice chute, allowing ice to be dispensed from the refrigerator door.

Causes of a bad solenoid and yoke assembly can include electrical issues such as a burnt-out solenoid, wear and tear from regular use, or physical damage due to mishandling or impact.

Symptoms of a bad solenoid and yoke assembly include:

• Ice not dispensing or dispensing intermittently
• Strange noises when attempting to dispense ice
• The ice chute not opening or closing properly
• Error codes related to the ice dispensing system

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Solenoid and Yoke Assembly is an OEM part for Frigidaire refrigerators. It is used in the ice dispensing system to control the movement of the ice chute, allowing ice to be dispensed from the refrigerator door.

Causes of a bad solenoid and yoke assembly can include electrical issues such as a burnt-out solenoid, wear and tear from regular use, or physical damage due to mishandling or impact.

Symptoms of a bad solenoid and yoke assembly include:

• Ice not dispensing or dispensing intermittently
• Strange noises when attempting to dispense ice
• The ice chute not opening or closing properly
• Error codes related to the ice dispensing system

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This control rod bracket secures the control rod to the appliance, restoring proper linkage and part alignment for reliable operation. Designed to replace a worn or broken mounting bracket and stabilize control movement. What it does:

• Holds the control rod in place so levers and linkages operate smoothly
• Restores proper alignment when the rod is loose, bent, or detached
• Helps eliminate binding or intermittent actuator movement caused by a damaged bracket
• Supports consistent mechanical operation of the connected control components

• One control rod mounting bracket

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Remove any panels or covers as needed to access the bracket; keep fasteners organized for reassembly
• Inspect adjacent linkage and fasteners; replace any damaged clips or screws for a secure fit

Replacement ice bin rail that supports and guides the freezer ice bin for smooth sliding and secure positioning. Restores proper bin alignment so the ice bin removes easily and reduces binding, rattling, and accidental drops.

• Supports and guides the ice bin so it slides in and out without sticking
• Keeps the bin properly aligned to prevent tipping or falling when removing
• Reduces noise caused by a loose or worn support rail
• Commonly replaced when the bin binds, catches, or sits unevenly

• Disconnect power to the appliance before beginning any work
• Remove the ice bin and any loose ice before removing the old rail
• Install by seating the rail into the mounting locations and securing with the original fasteners; basic hand tools may be required

This spacer fits between the fixed crusher blades inside the refrigerator's ice bucket assembly. It preserves the correct gap and alignment so the auger turns freely and crushed ice dispenses smoothly without jams or grinding.

• Maintains the correct spacing between fixed crusher blades in the ice bucket
• Keeps the blade stack and auger aligned for smooth rotation
• Helps prevent ice jams, grinding noises, and inconsistent crushed-ice output
• Replaces a worn, cracked, or missing spacer discovered during service

• Disconnect power before servicing; remove the ice bucket from the freezer door/bin
• Carefully disassemble the crusher housing, noting the exact order of blades, spacers, and washers
• Wear cut-resistant gloves; crusher blades are sharp
• Reassemble in the original sequence and verify the auger turns freely before reinstalling

This spiral pin secures components in place within the appliance assembly, providing a tight, durable fit that resists loosening under normal operation. Replacing a worn or missing pin helps restore proper alignment and dependable drive of the linked parts.

• Holds mating parts together with a press-fit connection
• Can help resolve issues like loose or slipping drive components, rattling, or intermittent operation in the affected mechanism
• Maintains correct alignment to reduce wear on adjoining parts

• Disconnect power and shut off water before servicing
• Support the assembly to relieve tension before removing the old pin
• Use the correct size punch/driver to press the pin out and in straight
• Do not force; inspect mating parts for wear and replace if damaged

This augur nut is a genuine Frigidaire part, sold individually. It can be used as a replacement part for a refrigerator. This augur nut serves as a fastening component for the augur of an ice maker located inside the refrigerator; this nut maintains the placement of components within the ice maker so that ice and water can be dispensed properly and efficiently.An augur nut might have to be replaced if it is lost, misplaced, or stripped to the point that it is rendered ineffective. The primary sign of an augur nut that is missing or stripped is an ice maker that cannot dispense ice. If this is occurring, the infrastructure of the ice maker should be inspected, and if it is revealed that the augur nut is missing or has been stripped to the point that it cannot fasten its components, this genuine OEM replacement part should be ordered.This is an OEM part sourced directly from the manufacturer. It is sold individually. This augur nut is compatible with the following appliance brands: Frigidaire, Kenmore, Electrolux, Westinghouse, Tappan, Crosley, Gibson, and Universal.

This flat metal washer provides a durable spacer and load-distributing surface for a matching fastener, helping secure assemblies and reduce wear. It's a small but essential hardware piece for routine repairs and reassembly. What it does:

• Distributes fastening load to protect softer materials and prevent pull-through
• Creates a smooth bearing surface for nuts and bolts to seat evenly
• Helps reduce vibration and loosening in moving assemblies
• Commonly used on panels, brackets, and mounting hardware where a flush fit is needed

• One flat metal washer as shown

• Disconnect power and water (if applicable) and access the assembly before replacing hardware
• Use the matching bolt/nut size and washer ID/OD for correct fit; do not force oversized fasteners
• Hand-start fasteners to avoid cross-threading, then tighten to the equipment manufacturer's spec
• Keep small parts secure during disassembly to avoid loss or damage

This E-ring is a small retaining clip used in Frigidaire refrigerators to hold components on a grooved shaft or pin. It keeps assemblies secure and operating smoothly by preventing parts from sliding off during normal use. What it does:

• Retains parts on a grooved shaft or pin to prevent axial movement
• Helps keep mechanisms aligned and reduces wobble or separation
• Common symptoms when missing or damaged: loose or fallen-off parts, scraping/rattling noises, or poor operation of the affected assembly

• 1 E-ring

• Unplug the refrigerator before servicing; wear eye protection (spring clips can snap)
• Use needle-nose pliers or an E-clip tool to compress and seat the ring in the groove
• Verify the ring is fully seated and flush in the groove before reassembly
• Keep any spacers/washers in the original order during removal and reinstallation

This is an ice bin that is used on refrigerator and freezer units. The purpose of this part is to store the ice that has already been made so that it is ready for dispensing. The auger is included with this part, which is the component that drives the ice out of the freezer for dispensing. Over time, the white plastic material that the bin is made of may begin to crack or break due to exposure to extreme temperatures over time. If this is the case, it will need to be replaced. If the auger no longer functions, it could have become damaged and this part will also replace the auger itself. Wear work gloves when replacing this part.This ice bin is compatible with refrigerator and freezer units that have been manufactured by Kenmore Elite, Kenmore Pro, Kenmore, and Frigidaire. It is sold individually. This part is sourced directly from the manufacturer.

This replacement screw secures panels, brackets, and other components in your appliance. Replace missing or stripped hardware to restore a tight, rattle-free fit and keep assemblies aligned the way the manufacturer intended.

• Fastens the designated component to the appliance cabinet or assembly
• Helps reduce looseness, vibration, and rattling
• Replaces missing, corroded, or stripped screws
• Supports proper alignment of panels, trim, and brackets

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the screw to the original location; retain any reusable clips or washers
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten into plastic or thin metal
