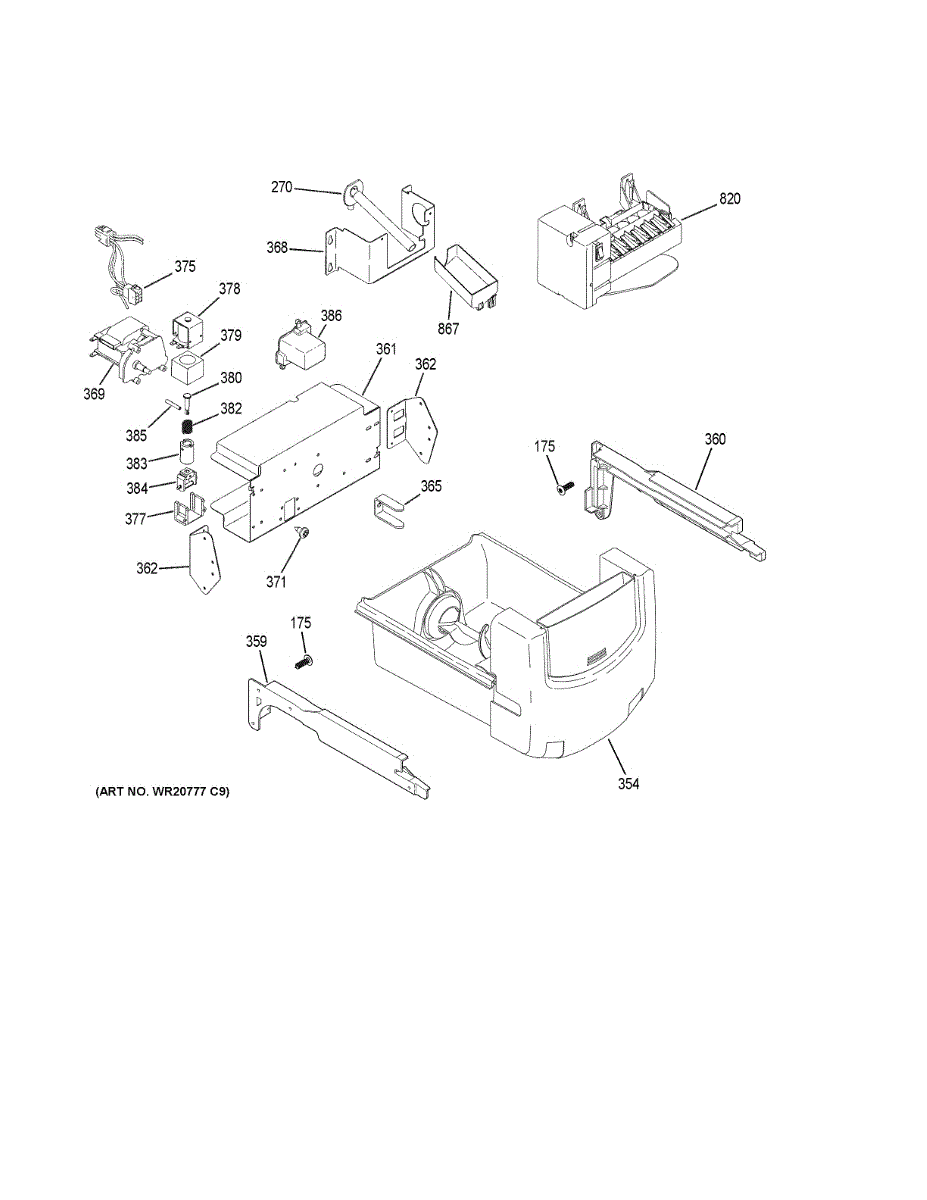

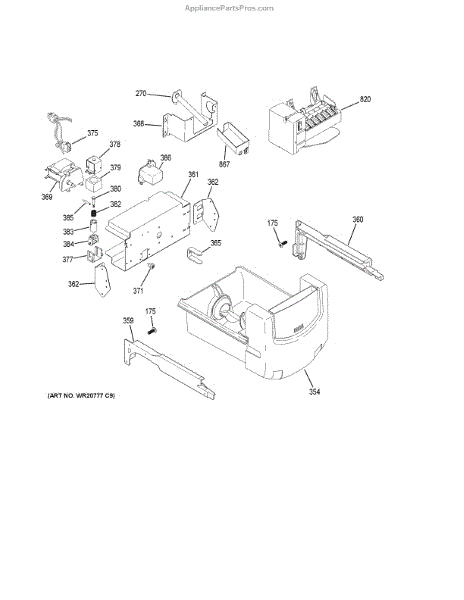

Parts for Ge GSS23HSHECSS: Ice Maker & Dispenser Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


Specs: 8-18 AB IHW 5/8 S

The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bucket and auger Assembly is an OEM part for GE refrigerators. It is located inside the freezer and contains the storage bucket for ice production along with the gear-driven auger mechanism. The auger works continuously during the freezing process, pushing ice cubes from the evaporator plate into the storage bucket for easy access through the dispensing door.

Causes of a bad bucket and auger assembly can include worn or damaged gears that impair proper rotation of the auger, cracks or leaks in the storage bucket compromising food storage, or frozen components preventing mechanical function.

Symptoms of failure include:

• Inconsistent or no ice production
• Jammed or stuck auger mechanism
• Cracked or leaking ice bucket
• Ice cubes not dispensing from the storage area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Glide Bracket is an OEM part for GE refrigerators. This left bracket supports the refrigerator drawer, allowing it to slide in and out smoothly for easy access to stored items.

Causes of a bad glide bracket can include regular wear and tear, damage from overloading the drawer, or accidental impact that causes the bracket to crack or break.

Symptoms of a bad glide bracket include:

• Difficulty sliding the drawer in and out
• The drawer not aligning properly or coming off its tracks
• Unusual noises when opening or closing the drawer
• Visible cracks or breaks in the bracket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Right side

The Ice Maker Auger Drive Coupler is an OEM replacement part for GE refrigerators. It is located inside the automatic icemaker assembly. The coupler works together with the auger motor shaft to drive the rotation of the ice transport auger.

Over time, the drive coupler can wear out or become damaged due to regular use, jamming, or improper handling. If the coupler is compromised, it can hinder the ice dispensing process.

Symptoms of a bad Auger Dispenser Drive Coupler include:

• Ice not dispensing properly
• Grinding or unusual noises from the dispenser
• The auger not rotating when the dispenser is activated
• Loose or wobbly coupler connection

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This ice maker mounting bracket secures the refrigerator ice maker in place so it stays properly aligned for reliable ice production. It replaces worn or damaged support hardware to reduce movement and prevent misalignment. What it does

• Secures the ice maker assembly to the freezer cabinet to keep it stable during operation
• Helps maintain proper alignment for the ice mold and fill valve to reduce improper fills
• Can stop excessive vibration or rattling caused by a loose ice maker
• Addresses symptoms such as a shifting or sagging ice maker, noisy operation, or intermittent ice production

• Disconnect power (and water if applicable) before beginning any service.
• Basic hand tools (screwdriver or nut driver) are typically required to remove and install the bracket.
• Inspect mounting screws and surrounding components; replace any damaged fasteners.

The Ice Auger Motor is an OEM part for GE refrigerators. It powers the auger that moves ice from the ice maker into the dispenser, allowing for smooth and efficient ice dispensing. Functioning at 115V, 60 Hz, and 3.2 Amps, it is crucial for the operation of the ice dispenser.

You should replace this ice auger motor if it fails due to wear and tear, electrical issues, or mechanical damage. A malfunctioning motor can result in the ice not dispensing properly, or the motor may make unusual noises indicating it’s struggling to function.

Symptoms of a bad ice auger motor include:

• Ice not dispensing from the refrigerator
• Grinding or buzzing noises from the ice dispenser
• Auger not turning or moving ice
• Intermittent or no ice flow

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-18 Hi/Lo hex-washer screw is a direct-use replacement fastener for appliance panels, brackets and components. It restores secure mounting and helps stop loose trim, rattling or parts that shift during use. What it does:

• Secures panels, trim pieces, mounting brackets and similar components that use a 10-18 thread with a hex-washer head
• Restores proper fit where screws are missing, stripped, or corroded
• Helps eliminate rattling, vibration noise, and misaligned parts caused by loose fasteners
• Matches OEM head and thread style for a correct mechanical fit in specified locations

• Turn power or gas to the appliance off before working on electrical or gas-equipped units; unplug when applicable
• Use the correct sized hex driver or socket to avoid rounding the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging thin sheet metal
• If replacing multiple fasteners in a load-bearing area, replace all to ensure even fit and alignment

This solenoid saddle is a small mounting bracket that secures a refrigerator solenoid in the correct position. By preventing movement and misalignment, it helps the linked mechanism engage smoothly and consistently.

• Secures the solenoid to its housing or frame to prevent shifting
• Maintains proper alignment for reliable actuation
• A worn or broken saddle can cause buzzing/chattering and intermittent operation
• Restores stable mounting to help the connected mechanism work correctly

• Disconnect power; shut off water supply if working near water lines
• Access the solenoid assembly and note the original saddle's orientation
• Transfer the solenoid into the new saddle and reuse existing fasteners/clips
• Smooth operation before reassembling panels

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This boot auger motor drives the auger inside the ice dispenser boot to move ice from the bin to the dispenser chute. Replaces a failed motor to restore normal ice dispensing and reduce jams. What it does:

• Rotates the auger inside the dispenser boot to push ice forward for dispensing
• Helps prevent ice buildup by moving packed cubes during dispense cycles
• Stops working when motor windings or gears fail, causing no ice to dispense or intermittent dispensing
• Works with the dispenser drive and auger assembly to transfer ice from the bin to the chute

• One boot auger motor

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the freezer/refrigerator door trim and dispenser housing; follow OEM service instructions
• Inspect related components (auger, coupler, wiring) and replace if damaged

The Ice Maker is an OEM part for GE refrigerators. It is a crucial component responsible for producing and dispensing fresh ice cubes, providing a convenient source of ice for your beverages and other needs. The ice maker is designed to automatically replenish the ice supply, ensuring you never run out.

Symptoms of a bad ice maker include:

• Failure to produce ice or produce an insufficient amount
• Ice cubes that are misshapen or stuck together
• Water leaks or overflow from the ice maker area

Causes of a bad ice maker can range from issues with the water supply line or freezing mechanism, to mechanical failures or blockages within the ice maker itself. Over time, mineral buildup or freezing can also impact the ice maker's ability to function properly.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Icemaker Fill Cup is an OEM replacement part for GE refrigerators. This component is specifically designed to channel water from the fill tube into the ice mold.

Symptoms of a bad Icemaker Fill Cup include:

• Water leakage inside the freezer, leading to ice accumulation
• Inadequate or irregular ice production
• The presence of unusual sounds during the ice-making process

Causes for a malfunctioning Icemaker Fill Cup can range from physical damage, such as cracks or warping due to temperature fluctuations, to blockages that impede the flow of water into the ice mold.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.
