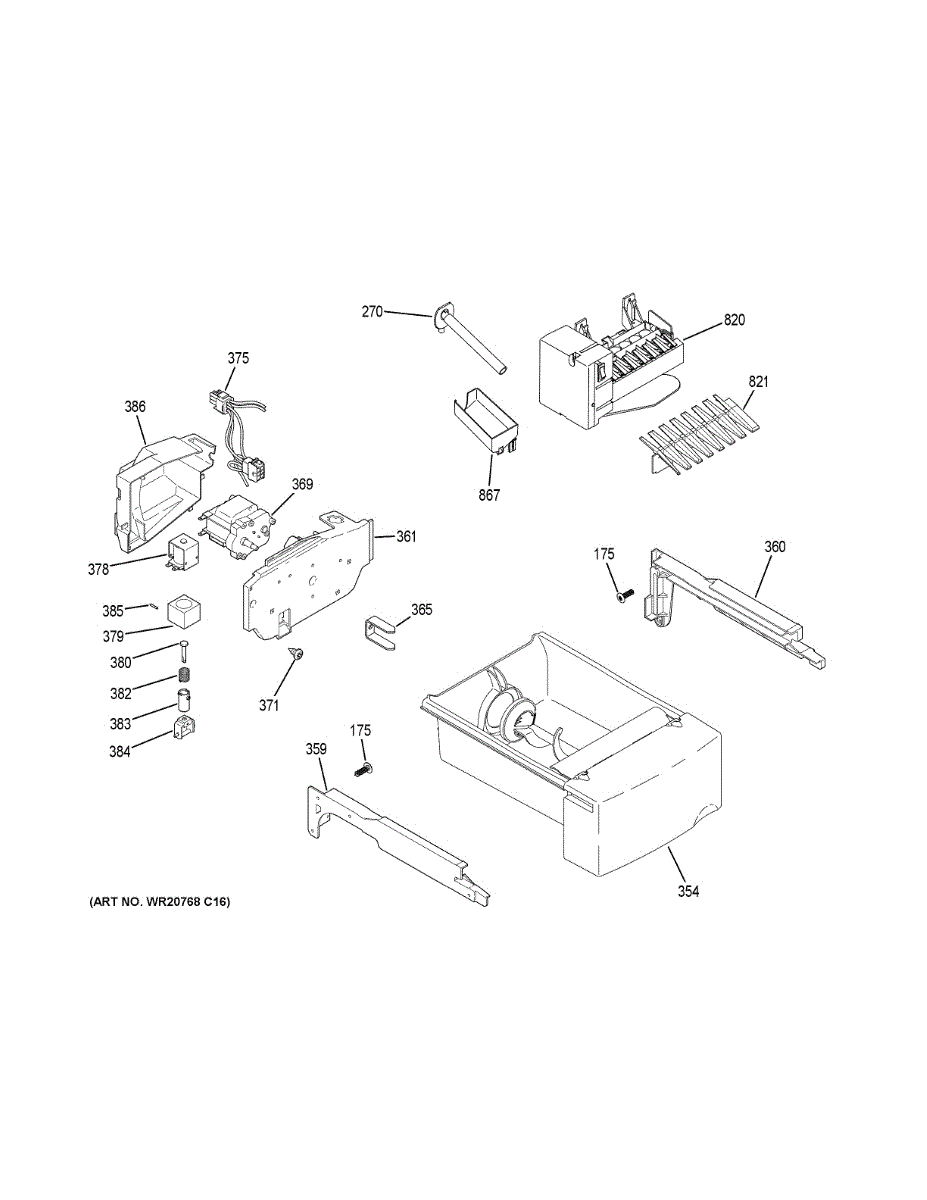

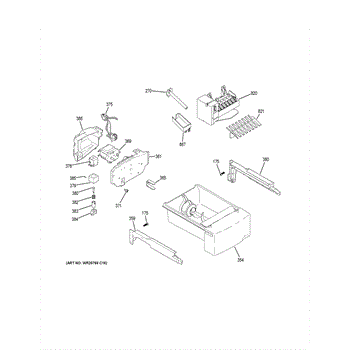

Parts for Ge GSS25LSLLCSS: Ice Maker & Dispenser Parts

The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Bucket and Auger Assembly is an OEM replacement part for GE refrigerators. It consists of an ice storage bucket and an automatic ice-making auger. Together, these parts facilitate reliable ice harvesting, storage, and dispensing.

Causes of a bad ice bucket and auger assembly can include damaged auger parts from jamming, worn gears preventing smooth rotation, or cracked ice storage infrastructure inhibiting ice retention and dispensing accuracy.

Symptoms of a bad ice bucket and auger assembly include:

• Incomplete emptying of old cubed ice or filling of new ice
• Jamming or grinding noises coming from the ice maker
• Ice cubes spilling from the bucket during operation
• Difficulty dispensing individual cubes from the dispenser door

This OEM GE part is also compatible with some Hotpoint, RCA, and select Kenmore refrigerator models.

This left-side bucket glide supports a drawer or basket and lets it slide smoothly inside your refrigerator. Replacing a worn or broken glide restores proper support, alignment, and easy open/close operation. What it does:

• Provides the left-side slide/rail for a drawer or basket
• Supports weight and guides smooth opening and closing
• Helps keep the drawer/basket level and properly aligned
• Common symptoms: hard-to-open drawer, sagging or falling off track, cracked/broken rail

• 1 left-side bucket glide

• Unplug the refrigerator and clear the affected drawer/basket
• Remove the drawer/basket; unfasten and remove the damaged glide
• Install the new glide using the existing hardware; ensure it sits flush and secure
• Reinstall the drawer/basket and test for smooth travel

• Left/right is determined when facing the appliance from the front.

This right-hand bucket glide supports a refrigerator bin/drawer and forms the track it slides on. It restores smooth, level movement and proper alignment when the original glide is cracked, worn, or missing.

• Provides side support and a smooth sliding track for the bucket/drawer
• Helps keep the bin level and aligned so it opens and closes properly
• Replaces a cracked, warped, or broken right-hand glide
• Common symptoms: drawer sticks, binds, sags, or comes off its track

• Disconnect power and remove food from the affected drawer area
• Slide out the bucket and remove any shelf/frame as needed for access
• Remove mounting screws or tabs, note the glide's orientation, and transfer any hardware
• Position and secure the new right-hand glide; reinstall components and test drawer movement

This is the rear motor cover used in select GE refrigerators. It shields the motor area at the back of the compartment, helping direct airflow and protect the fan/motor assembly for reliable cooling performance.

• Protects the motor/fan area from debris and damage
• Helps channel air correctly through the compartment
• Cracks, broken tabs, or missing cover can lead to noise, poor airflow, frost, or temperature swings
• Restores proper fit and finish inside the compartment

• Unplug the refrigerator before servicing
• Remove shelves/bins obstructing access; retain screws/clips
• Carefully release locking tabs and transfer any reusable hardware
• Ensure the cover seats fully and resecure all fasteners before powering on

The Ice Maker Auger Drive Coupler is an OEM replacement part for GE refrigerators. It is located inside the automatic icemaker assembly. The coupler works together with the auger motor shaft to drive the rotation of the ice transport auger.

Over time, the drive coupler can wear out or become damaged due to regular use, jamming, or improper handling. If the coupler is compromised, it can hinder the ice dispensing process.

Symptoms of a bad Auger Dispenser Drive Coupler include:

• Ice not dispensing properly
• Grinding or unusual noises from the dispenser
• The auger not rotating when the dispenser is activated
• Loose or wobbly coupler connection

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-18 Hi/Lo hex-washer screw is a direct-use replacement fastener for appliance panels, brackets and components. It restores secure mounting and helps stop loose trim, rattling or parts that shift during use. What it does:

• Secures panels, trim pieces, mounting brackets and similar components that use a 10-18 thread with a hex-washer head
• Restores proper fit where screws are missing, stripped, or corroded
• Helps eliminate rattling, vibration noise, and misaligned parts caused by loose fasteners
• Matches OEM head and thread style for a correct mechanical fit in specified locations

• Turn power or gas to the appliance off before working on electrical or gas-equipped units; unplug when applicable
• Use the correct sized hex driver or socket to avoid rounding the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging thin sheet metal
• If replacing multiple fasteners in a load-bearing area, replace all to ensure even fit and alignment

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This cover fits over the refrigerator auger motor to protect internal components and help guide ice through the dispenser. It keeps the motor area enclosed to reduce debris intrusion and supports smooth auger movement. What it does

• Protects the auger motor and gearbox from ice, frost, and debris
• Helps guide ice from the bin into the auger for consistent dispensing
• Common symptom: reduced or intermittent ice dispensing, unusual noises from the dispenser area

• One cover

• High-level replacement — remove power to the refrigerator before starting
• Handle components gently to avoid damaging the auger or wiring
• If the auger still doesn't turn after replacement, check the motor, wiring, and control components

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

This ice maker stripper is the front comb that helps release cubes from the ejector during harvest. It guides ice cleanly into the bin to reduce jams and keep ice production running smoothly. What it does

• Strips ice cubes off the ejector fingers as the ice maker cycles
• Directs cubes into the bucket, helping prevent jams and cube bridging
• Wear, cracks, or warping can cause cubes to stick, spill, or clump
• Symptoms include cubes piling at the front, clicking during harvest, or reduced/no ice

• 1 ice maker stripper

• Disconnect power and shut off water before servicing
• Remove the ice bin and access the ice maker front (remove cover if present)
• Release the old stripper (tabs/screws), align the new stripper with the ejector fingers, and seat it fully
• Reinstall cover and bin; restore power and allow a full cycle to verify operation

The Icemaker Fill Cup is an OEM replacement part for GE refrigerators. This component is specifically designed to channel water from the fill tube into the ice mold.

Symptoms of a bad Icemaker Fill Cup include:

• Water leakage inside the freezer, leading to ice accumulation
• Inadequate or irregular ice production
• The presence of unusual sounds during the ice-making process

Causes for a malfunctioning Icemaker Fill Cup can range from physical damage, such as cracks or warping due to temperature fluctuations, to blockages that impede the flow of water into the ice mold.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.
