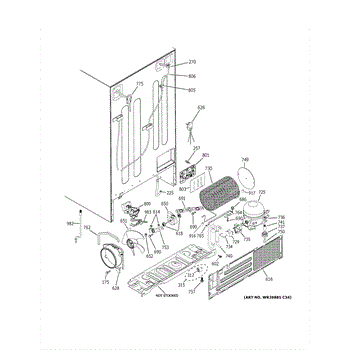

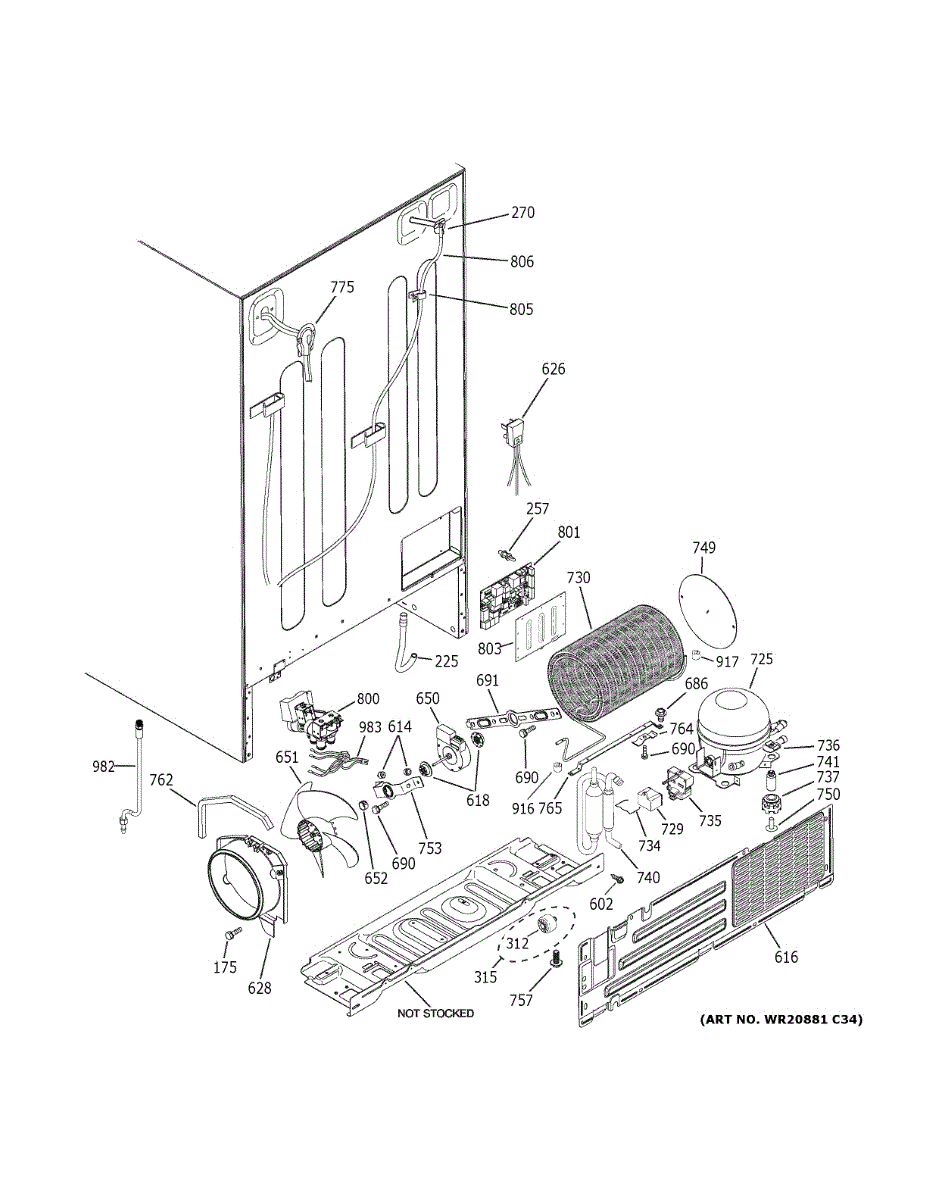

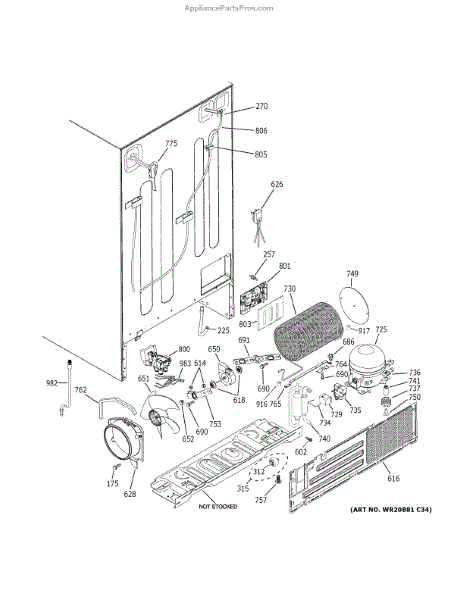

Parts for Ge GSS25LSLLCSS: Machine Compartment Parts

The Drain Tube is an OEM part for GE refrigerators. It is responsible for directing defrost water to the drain pan located beneath the appliance, where it can evaporate safely.

Causes of a bad drain tube can include blockages from debris or ice, physical damage such as cracks or splits that allow water leakage, or a disconnection from its fitting points due to improper installation or material fatigue.

Symptoms of a bad Drain Tube include:

• Water pooling at the bottom of the refrigerator compartment
• Ice accumulation in or around the freezer area
• Leakage of water onto the kitchen floor beneath the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This stand off is a small mounting spacer that secures and spaces internal components, restoring proper alignment and reducing panel movement or vibration for quieter, more reliable operation. What it does:

• Provides a solid mounting point to hold panels, brackets or wiring harnesses in place.
• Replaces broken, cracked or missing standoffs that allow components to shift or rub.
• Helps stop rattling, buzzing or misalignment caused by loose mounting points.
• Keeps proper clearance between parts to prevent wear or chafing over time.

• Disconnect power to the appliance before starting any repair.
• Remove the affected panel or access cover to reach the damaged standoff.
• Replace the old standoff with the new part; retain and reuse any existing screws or fasteners unless damaged.
• Hand-tighten mounting hardware and test the appliance; avoid overtightening plastic standoffs.

The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rear Refrigerator Wheel is an OEM replacement part for GE refrigerators. This wheel is attached to the bottom rear of the refrigerator, facilitating easy movement of the appliance for cleaning, maintenance, or repositioning. It is designed to support the weight of the refrigerator while ensuring smooth and stable mobility.

Symptoms of a bad Rear Refrigerator Wheel include:

• Difficulty moving the refrigerator
• Unusual noises, such as squeaking or grinding, when the appliance is moved
• The refrigerator not sitting level or stable
• Visible damage or wear to the wheel

Causes for a malfunctioning Rear Refrigerator Wheel can include wear and tear from regular movement, damage due to excessive weight or impact, or issues with the axle or mounting hardware that secure the wheel in place.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Mobility Wheel S Kit is an OEM part for GE refrigerators. This kit includes the necessary components to replace or install the wheels on the bottom of your refrigerator cabinet, allowing for easy movement and repositioning of the appliance.

A bad mobility wheel assembly can be caused by normal wear and tear over time, damage due to heavy loads or rough handling, or malfunctioning wheel mechanisms. If you find it difficult to move or reposition your refrigerator, or if the existing wheels are damaged, it may be time to replace the mobility wheel assembly.

Symptoms of a bad wheel assembly include:

• Difficulty in moving or sliding the refrigerator
• Uneven or unstable positioning of the appliance
• Excessive noise or scraping sounds when moving the refrigerator
• Damaged or worn-out wheels

Replace your faulty mobility wheel assembly with this genuine OEM part to restore your refrigerator.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. It is a small but essential component that helps to seal and insulate the area around the fan motor, preventing air leaks and maintaining optimal cooling efficiency.

Causes of a damaged or worn-out fan motor grommet can include prolonged use, exposure to extreme temperatures, or physical damage from improper handling or installation.

Symptoms of a bad fan motor grommet include:

• Reduced cooling performance
• Increased energy consumption
• Frost buildup in the freezer compartment
• Unusual noises coming from the fan area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Harness Cab Lower is an OEM replacement part for GE refrigerators. It sits behind the fresh food doors and contains wiring harnesses that power critical interior features.

Causes of a bad harness cab can include damaged insulation exposing wire fraying, breaks or crimps in wiring preventing power delivery, or short-circuits due to moisture over time.

Symptoms include:

• Lights, dispensers, or other interior components ceasing to operate properly
• Error codes or failure indications on control panels
• Buzzing or humming noises from wiring when functions are used

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This condenser shroud is the plastic cover that protects and channels airflow around the refrigerator condenser, helping the cooling system run efficiently and keeping components shielded from debris. What it does:

• Directs airflow over the condenser coils to help dissipate heat
• Protects condenser and nearby components from dust, pet hair, and accidental contact
• Helps maintain proper clearance and airflow paths behind the fridge
• Can reduce vibration noise by stabilizing condenser area

• One condenser shroud/cover

• Designed to mount in the condenser compartment; follow your model's service manual for correct orientation and fasteners
• Disconnect power to the appliance before accessing the condenser area to avoid electrical shock
• Inspect and clean condenser coils while the shroud is removed for best performance
• If clips or screws are damaged, replace them with OEM-recommended hardware

The Condenser Fan Blade is an OEM part for GE refrigerators. It is responsible for moving air across the condenser coils to help dissipate heat, allowing the refrigerator to maintain the proper cooling temperature. This fan blade ensures efficient operation of the cooling system by facilitating proper airflow.

You should replace this condenser fan blade if it becomes damaged, warped, or fails to move air effectively. Common causes of a bad fan blade include physical damage from debris, wear and tear over time, or warping due to prolonged exposure to heat.

Symptoms of a bad condenser fan blade include:

• Refrigerator not cooling properly
• Increased noise from the refrigerator
• Overheating of the condenser coils
• Reduced airflow around the condenser area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-32 t. Includes 12 screws.

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This condenser assembly is the condenser coil used in compatible refrigerators to release heat from the refrigerant so the appliance can cool efficiently. Replacing a damaged coil helps restore proper cooling performance and energy use. What it does:

• Circulates refrigerant through the condenser coil to dissipate heat from the refrigeration system
• Supports normal compressor cycling and helps maintain steady internal temperatures
• Common symptom fixes: reduces long run times, improves inadequate or uneven cooling, and addresses overheating or noisy compressor operation
• Works with the condenser fan and other sealed-system components to complete the heat-exchange process

• Disconnect power to the refrigerator before servicing to avoid electric shock
• Access commonly from the rear lower panel or front grille; may require removal of kick plate or back cover
• Avoid damaging the coil fins; handle carefully and use fin comb if needed

This overload/PTCR combination is the refrigerator compressor's start device. It briefly powers the start winding and protects against overheating, helping the compressor start reliably and cycle safely so your refrigerator can maintain proper temperatures.

• Provides momentary start assistance via a PTCR solid-state relay, then opens automatically
• Protects the compressor by opening the circuit if overheating or excessive current is detected
• Symptoms of a faulty device may include no cooling, compressor clicking or humming without starting, or starting then shutting off after a few seconds
• Visible heat damage or discoloration on the device or compressor terminals can indicate failure

• Disconnect power before servicing; access the compressor compartment from the rear
• Note/photograph wiring and terminal orientation; transfer wires and any run-capacitor lead to the same positions on the new device
• Push the device fully onto the compressor pins; ensure a snug fit and proper seating
• Capacitors can retain a charge; discharge and handle per manufacturer instructions

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

This 10-32 x 1/2 machine screw secures appliance components where a standard 10-32 fastener is required. It restores proper mounting and reduces vibration or loose panels for reliable, quiet operation. What it does:

• Secures panels, brackets, or components that use a 10-32 threaded hole
• Prevents rattling, misalignment, and intermittent contact caused by loose fasteners
• Maintains electrical or mechanical connections when used as the OEM-specified screw
• Helps restore fit and finish after repair or disassembly

• Use the correct 10-32 driver (Phillips or slotted depending on head) and hand-start the screw to avoid cross-threading
• Tighten until snug; avoid over-tightening to prevent stripping threads or cracking plastic parts
• Replace only with the same size and thread spec to ensure proper fit
• Disconnect power if working near energized components or wiring

This water line cover protects and conceals the refrigerator's water supply tubing behind the lower kickplate for a finished look and reduced risk of accidental snagging. Durable plastic shields tubing from contact and helps keep the area tidy. What it does:

• Covers and protects the refrigerator water supply line from accidental pulls or abrasion
• Keeps the tubing out of sight for a neater appearance
• Helps reduce noise from loose tubing contact with other components
• Supports proper routing of the water line to the ice maker/water dispenser

• One water line cover

• Disconnect power and shut off the water supply before servicing
• Remove the kickplate or access panel per the owner's manual to reach mounting points
• Align cover with the routing area and secure with existing clips or fasteners; do not force or modify

The Isolation Valve and Jumper Kit is an OEM part specifically designed for GE side-by-side refrigerators. This kit includes both an isolation valve to independently stop water flow to the refrigerator's icemaker unit as well as a jumper to bypass the valve when closed.

Symptoms of needing an isolation valve replacement include:

• Inability to independently shut off water to the icemaker
• Water leaks throughout the refrigerator interior
• Damaged plumbing connections due to loose or corroded valves

Causes necessitating a new isolation valve can stem from mineral buildup obstructing full valve closure or sealed components wearing down over extended use.

This OEM part is compatible with Hotpoint, RCA and select Kenmore GE side-by-side models as well.

The Main Control Board is an OEM replacement part for GE refrigerator models. As the central processing unit, it regulates all major refrigerator functions including cooling, temperature settings, cycles, and displays.

Symptoms of a bad main control board include:

• Inoperable or unresponsive displays and controls
• Inability to adjust cooling and cycle settings
• Refrigeration failure causes loss of cooling over time
• Repeated trips of the circuit breaker or fuse

Causes of failure can be related to liquid damage, power surges, or normal wear of electronic components over many years of use.

This OEM control board is also compatible with Hotpoint, RCA, and select Kenmore models.

This main board enclosure houses and protects the appliance's electronic control board, keeping wiring and circuitry secure and organized for reliable operation. It helps prevent contact damage and contains the control components in one location. What it does:

• Covers and protects the main electronic control board from debris and accidental contact
• Keeps wiring routed and secured around the control area to reduce strain on connectors
• Helps maintain correct positioning of the control board for consistent electrical connections
• Useful when the original housing is cracked, missing mounting points, or allowing exposed circuitry

• Disconnect power to the appliance before beginning any work to avoid shock or damage
• Handle the control board and connectors gently; avoid touching circuit traces or components
• Keep track of any mounting screws and brackets removed during disassembly for reinstallation

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

Water line from water valve up to icemaker fill tube.

This sound damper is a small vibration cushion designed to reduce noise and dampen vibration from moving components in the appliance, helping keep operation quieter and preventing parts from rattling against the cabinet. What it does:

• Cushions and isolates vibration to reduce humming, buzzing or rattling noises
• Helps stabilize small components and prevent metal-on-metal contact
• Protects surrounding parts from wear caused by excessive movement
• Supports quieter operation when installed in its intended location

• One sound damper

• Disconnect power to the appliance before accessing internal components
• Access may require removing an access panel or cover; keep fasteners organized
• Press-fit or slide into place as shown in the service diagram; avoid excessive force

This sound damper cushions the refrigerator compressor to reduce vibration and minimize noise for quieter operation. It helps protect the compressor from metal-on-metal contact and dampens normal operating sounds. What it does:

• Cushions compressor mounting to absorb vibration and reduce noise
• Prevents metal-on-metal contact that can cause rattling or buzzing
• Helps stabilize the compressor to reduce wear from vibration
• Commonly used when compressor noise, rattling, or increased vibration is noticed

• One sound damper

• Always disconnect power to the appliance before beginning any repair
• Access the compressor area (rear lower cabinet); remove any panels as needed
• Remove the old damper and press the replacement onto the compressor mounting foot until fully seated
• If mounting hardware is damaged or the compressor mount appears worn, replace mounting parts.

The Tube Lead is an OEM part for GE refrigerators. It is responsible for routing water through the unit.

Causes of a bad tube lead can include mineral accumulation restricting flow, loosened compression fittings, or cracked/split tubing exposing water to air.

Symptoms of an issue with the water line tube lead include:

• Slow or inconsistent water and ice production
• Water pressure or temperature fluctuations at the dispenser
• Leaks in the refrigerator's exterior bottom panel

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

The Diode Harness Kit is an OEM replacement part for GE refrigerators. This kit is designed to provide a solution for refrigerators that require a diode harness jumper to connect the water valve diode to the main control board. It allows for proper communication and control of the water flow to the refrigerator's dispenser and icemaker.

A bad diode harness can occur due to wear and tear, damage, or loose connections. If you notice symptoms such as no water dispensing, inconsistent water flow, or issues with the icemaker, it may indicate a need to replace the diode harness kit.

Symptoms of a bad diode harness include:

• No water dispensing
• Inconsistent water flow
• Issues with the icemaker

Ensure the proper functioning of your GE refrigerator's water valve diode by replacing the faulty diode harness kit with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
