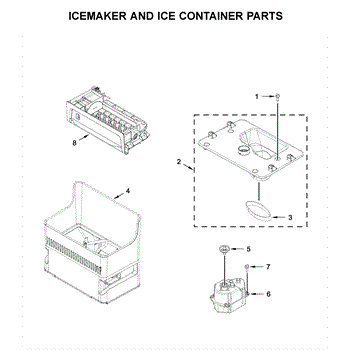

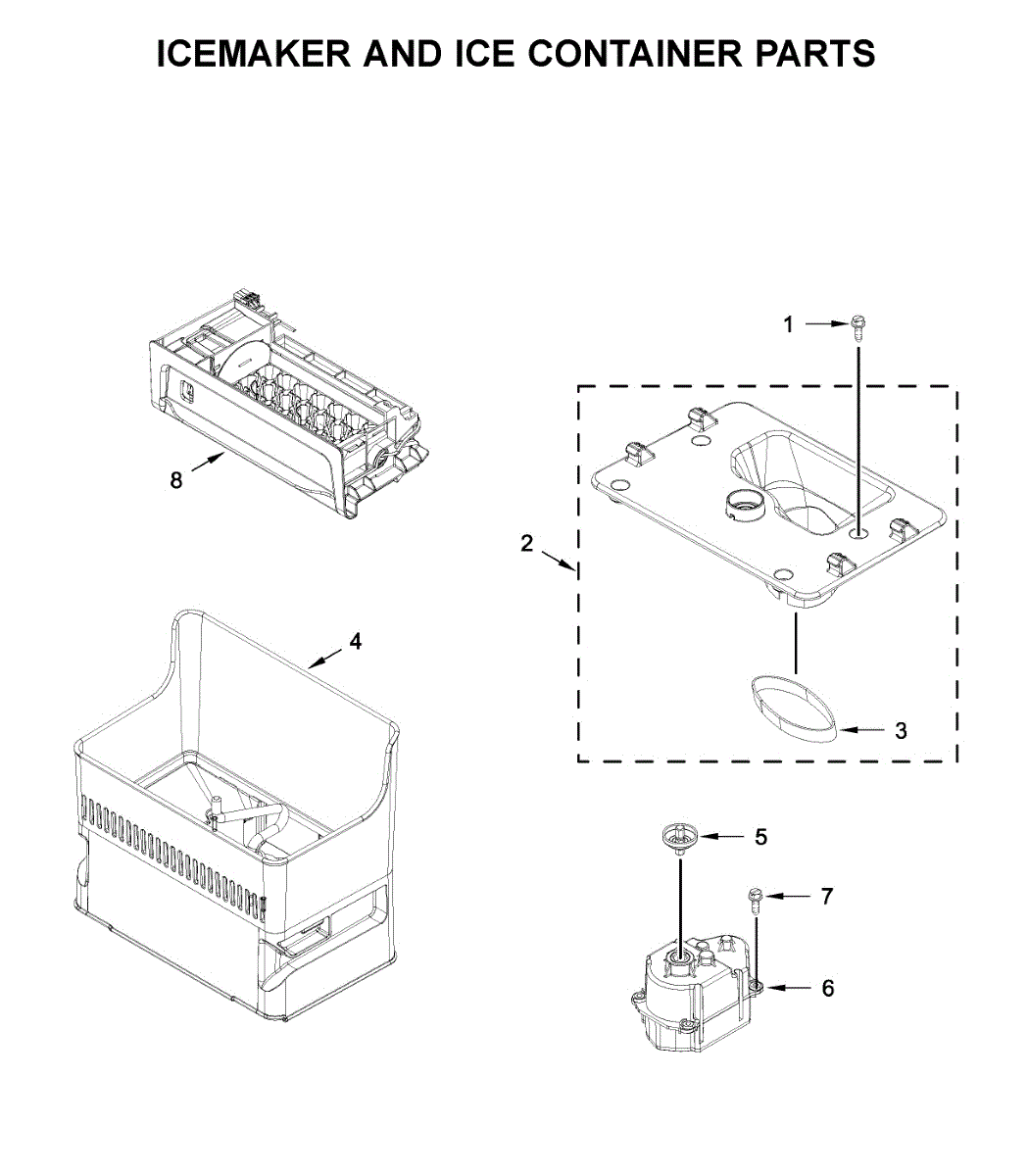

Parts for Kitchenaid KRFC604FSS03: Icemaker And Ice Container Parts

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

The Ice Chute Plate is an OEM part for Whirlpool refrigerators. It is a component located within the freezer compartment that guides ice from the icemaker through the convenient dispenser chute.

Causes of a bad ice chute plate can include cracked or broken plastic from repeated impact of ice cubes, or improper alignment affecting proper ice dispensing.

Symptoms of a bad ice chute plate include:

• Ice cubes jamming or failing to dispense smoothly
• Misaligned or off-center ice flow through the chute
• Crackling or jamming noises from the freezer area
• Noticeable gaps or openings where ice can get stuck

This OEM replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This ice chute gasket seals the dispenser funnel opening to the freezer door. A tight seal keeps warm air and moisture out of the chute, helping prevent frost buildup, condensation, and drips around the dispenser. What it does:

• Seals the ice dispenser chute/funnel to prevent air leaks
• Helps reduce frost and ice buildup in the chute area
• Minimizes condensation and water droplets at the dispenser opening
• Supports consistent ice flow by limiting clumping from warm air intrusion

• 1 ice chute gasket

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control and funnel to access the gasket
• Note orientation; press the new gasket evenly into place without stretching
• Reassemble and verify the ice door closes and seals properly

The Ice-Container is an OEM part for Whirlpool refrigerators. It is a component that stores ice from the icemaker in the freezer. The ice container is designed to fit seamlessly within the refrigerator, providing a convenient and accessible storage solution for ice.

Causes of a bad Ice-Container include wear and tear over time, or damage to the container or its components due to mishandling or impact.

Symptoms of a bad Ice-Container include:

• The container cracking or breaking which causes ice to melt prematurely
• Difficulty removing ice cubes from the container
• Ice spilling out of the container onto the freezer floor
• The container door or lid not closing securely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Auger Drive Motor is an OEM part for Whirlpool refrigerators. It is responsible for powering the auger mechanism that dispenses ice from the ice maker into the ice bucket or directly through the door dispenser. This motor ensures that ice is delivered smoothly and efficiently whenever needed.

Over time, the auger drive motor can wear out or fail due to constant use or electrical issues. Causes of a bad auger drive motor can include motor burnout, electrical malfunctions, or damage from ice buildup.

Symptoms of a bad auger drive motor include:

• The ice dispenser not dispensing ice
• Unusual noises coming from the ice maker area
• The auger not turning or moving slowly
• Intermittent operation of the ice dispenser

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

The Ice Maker is an OEM part for Whirlpool bottom freezer refrigerators. Located inside the fresh food door compartment, it is designed to automatically produce batches of ice to ensure plenty of chilled water, drinks, and snacks. This ice maker features adjustable settings to meet daily needs.

Symptoms of a failing ice maker may include:

• Reduced ice production or intermittent cubes
• Ice clumping together instead of separate pieces
• Ice maker mechanism continually running

Causes relate to normal wear of moving parts over years of use among harsh temperature fluctuations inside the fresh food door. Mineral buildup can also interfere with sensitive components.

This OEM Whirlpool replacement fits many Whirlpool, KitchenAid, and other major brand refrigerators.
