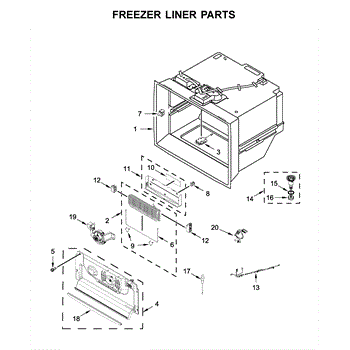

Parts for Kitchenaid KRFC604FSS03: Freezer Liner Parts

The LED Light Module Kit is an OEM part compatible with Whirlpool refrigerators and freezers. The kit contains 12 LED lights to replace all LEDs within the refrigerator. Within the interior cavity, this module evenly illuminates the compartment to visually check contents. LED technology provides a cool, energy-efficient light source.

Causes of a bad light module can include failure of individual LED bulbs over time, wires detaching from the circuit board, or damage from moisture intrusion.

Symptoms of a bad LED light module include:

• Dim, flickering, or completely non-functional lighting
• Hot spots or sections of the module not illuminating
• Audible buzzing or humming from internal electronics

This replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This heater is the dryer heating assembly that produces the hot air needed to dry clothes. Replaces a worn or failed heater so your dryer can reach operating temperatures and dry loads efficiently. What it does:

• Generates heat for the dryer drum so clothing dries during normal cycles
• Commonly replaced when the dryer runs but produces little or no heat
• Addresses long dry times or loads that remain damp after a full cycle
• Works with the dryer's thermal cutoff/thermostats to regulate temperature

• Disconnect power to the appliance before beginning service to avoid shock
• Handle the element carefully; avoid bending the heating coils or damaging terminals
• Verify related thermal fuses/thermostats and venting if the dryer still heats poorly after replacement
• Test operation after install and restore all safety panels

The Refrigerator Door Switch is an OEM part for Whirlpool refrigerators. This switch monitors the opening and closing of the refrigerator door, activating lights and functions as needed while also keeping track of door activity for diagnostics purposes.

Causes of failure may be from normal wear and tear over time, moisture damage, or impact if the door is accidentally slammed.

Symptoms of a bad door switch include:

• Lights not turning on/off with door movement
• Dispensers or ice/water not working properly
• Cooling and freezing performance affected
• Error codes related to door operation

This OEM replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models as well.

This wire harness assembly connects and routes electrical signals between components to restore proper operation of the appliance. It replaces a damaged or frayed harness to help eliminate intermittent power, control, or connection issues. What it does:

• Provides the correct wiring and factory-style connectors to restore electrical continuity between controls and components.
• Commonly used to stop intermittent operation, flickering displays, or components that fail to receive power due to broken wires or bad connections.
• Maintains proper connector fit and routing to prevent chafing or shorting against chassis parts.
• Matches OEM routing and connector types for reliable, long-term performance when installed correctly.

• Disconnect power to the appliance before starting — lock out and tag out if required.
• Verify connector orientation and routing against OEM wiring diagrams or photos taken during disassembly.
• Inspect connectors and mating posts for damage; replace if corroded or burned.

The Drain Funnel is an OEM part for Whirlpool French door refrigerators. It serves as the sloped plastic strainer that guides water from the evaporator coils s it into the drip pan below.

Causes of a faulty Drain Funnel include cracks or punctures developing from continuous use transferring water weight. Mineral deposits or food particles that gradually collect on funnel surfaces could restrict proper drainage as well over time.

Symptoms involve:

• Puddling or spilled water inside refrigerator interiors
• Uncontrolled leaks potentially damaging other components
• Restricted airflow if funnel clogs from sediment buildup
• Musty odors developing without efficient drainage management

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This main wire harness routes power and control signals between the appliance's electrical components to restore reliable connections and proper operation. Replaces a damaged or broken harness to help eliminate intermittent power and control issues. What it does:

• Connects controls, switches, motors and sensors to the appliance's electrical system
• Restores circuit continuity when original wiring is cut, burned or has failed connectors
• Helps stop intermittent power, no-starts, or erratic control behavior caused by damaged wiring
• Prevents loose or corroded connections that can lead to arcing or component malfunctions

• Disconnect power (unplug or shut off breaker) before starting any repair
• Verify harness routing and connector match before final installation
• Inspect mating connectors and terminals for damage; replace if corroded or bent
