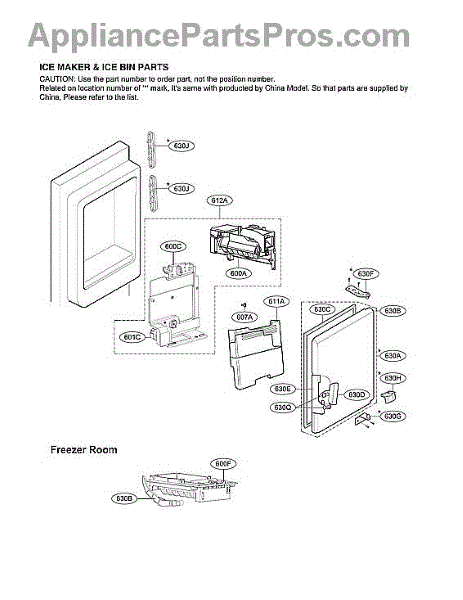

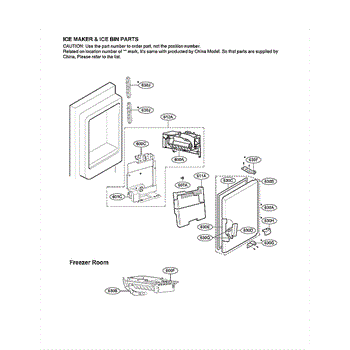

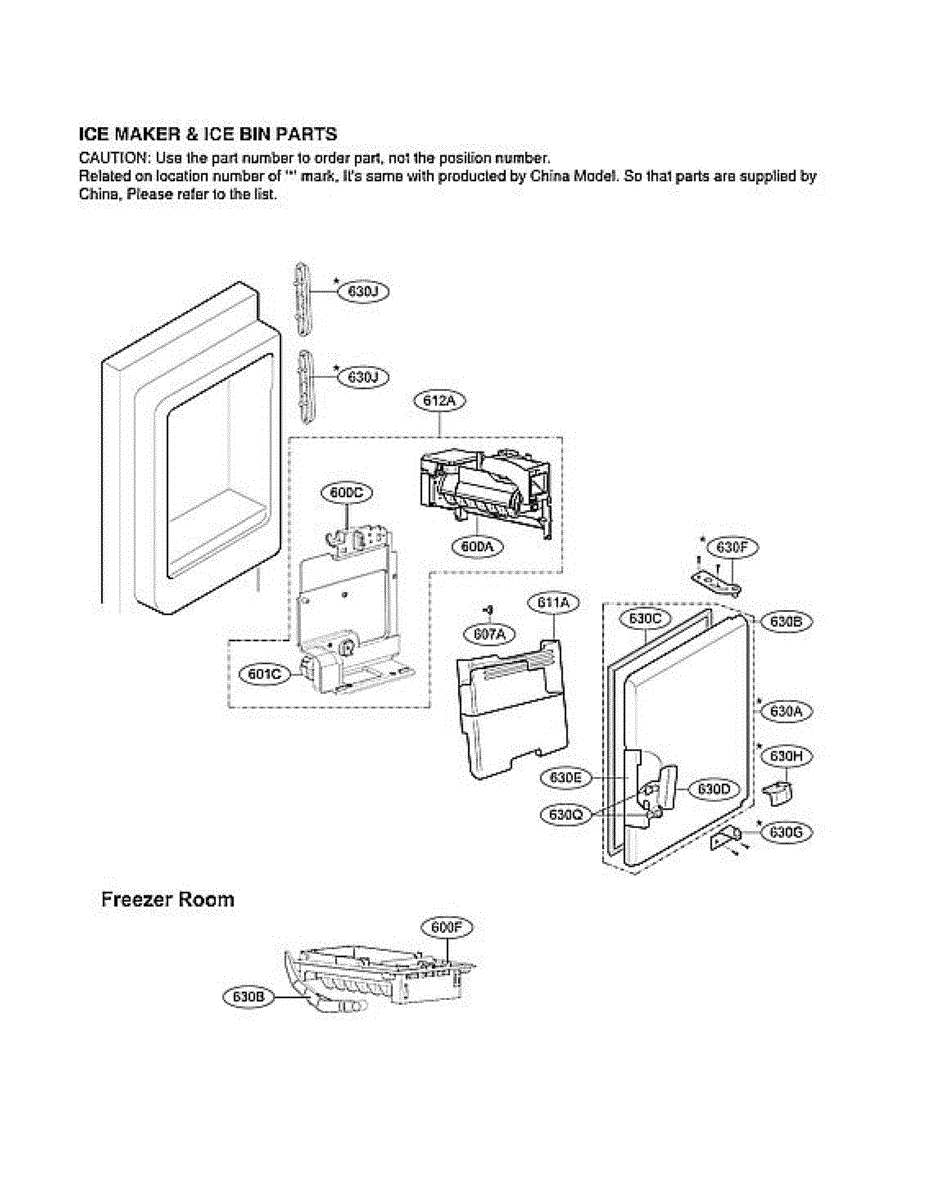

Parts for Lg LFXC22526S/04: Ice Maker & Ice Bin Parts

Replacement mounting stud for refrigerator door handles. Installs inside the door to secure handle assembly. Needed when stud is damaged or missing.

Water funnel assembly for bottom-mount refrigerators. Directs water flow in the ice and water dispenser system. Replace if cracked or damaged.

Plastic drain tube that channels defrost water from evaporator coils to drain pan. Replace if cracked, melted, broken, or causing water leaks in freezer.

Leveling leg for refrigerators. Installs at bottom corner to elevate and stabilize the appliance. Replace if broken, compressed, or no longer secure.

Ice not dispensing or spilling? This refrigerator ice storage bucket collects and holds ice from your ice maker. Simple DIY install in 10 minutes.

Small protective cap covers component connections or openings in your refrigerator. Replace when cracked, missing, or worn to protect against dirt and moisture.

Supports and guides sliding refrigerator drawers or shelves for smooth rolling. Replace if worn, cracked, or causing wobbling, sticking, or noise.

Dual roller wheel assembly that mounts to the rear wall of the freezer drawer. Replace when wheels are missing, broken, or cracked for smooth sliding.

Replacement drawer pan that supports items inside your refrigerator drawer. Install when original is cracked, warped, sagging, or broken to restore storage.

Replaces a cracked, warped, or broken drawer tray in your bottom-mount refrigerator. Restores stable storage support and smooth drawer operation.

Replaces a cracked, warped, or broken drawer tray in your bottom-mount refrigerator. Restores stable storage support and smooth drawer operation.

Replace a cracked, broken, or missing right-side refrigerator shelf. Restores safe, level storage for food containers and everyday items in your fridge.

Left-hand shelf assembly for bottom-mount refrigerators. Replaces cracked, broken, or missing shelves. Installs inside fresh food compartment.

Note: Shelf is on the LEFT side.

Replace your refrigerator's mesh shelf net when torn or stretched to restore organization and prevent items from falling through. Verify fit with your model.

Replacement door shelf net that secures small items in your refrigerator door. Installs on door shelf to replace cracked, stretched, or missing nets.

This is a cover assembly that sits on top of the vegetable crisper drawer area in the refrigerator compartment. It acts as a shelf and humidity barrier, helping maintain proper moisture levels for fruits and vegetables stored in the crisper bins below. Replace this cover if it is cracked, warped, or no longer sits flush, which can lead to poor humidity control and wilting produce.

Replacement shelf holder for bottom-mount refrigerators. Secures and supports shelves in place. Needed when original is cracked, broken, or missing.

Supports the fresh room crisper drawer area and contains spills in your refrigerator. Replace this tray if cracked, warped, or broken to restore drawer fit.

Replaces a cracked, broken, or missing tray cover in your bottom-mount refrigerator. Restores a finished appearance and protects the tray area.

Molded plastic cover that protects the internal tray area in your refrigerator. Replaces cracked, warped, or missing covers to restore containment.

This is a decorative front panel that attaches to the deli or fresh food drawer inside the refrigerator. It serves as the visible face of the drawer and provides a handle area for opening and closing it. Replace this cover if it is cracked, warped, discolored, or if the mounting tabs have broken, causing the panel to detach from the drawer.

This is a decorative cover that fits over the air filter compartment inside the refrigerator. It conceals the air filter while allowing airflow to pass through for proper circulation and odor control. Replace this cover if it is cracked, broken, or missing, which can affect the appearance of the interior and the fit of the air filter.

Replaces a cracked, broken, or missing crisper drawer tray in your bottom-mount refrigerator. Provides stable support under vegetable drawers.

Replacement vegetable crisper drawer tray for bottom-mount refrigerators. Restores proper storage when original tray is cracked, broken, or missing.

Refrigerator lamp cover protects the interior light bulb. Replace if cracked, discolored, or broken to restore proper lighting. Verify fit with model.

Dim or uneven refrigerator lighting? This lamp cover protects and diffuses your interior light. Direct-fit replacement lens, simple installation.

Replaces a cracked, broken, or missing tray cover in your bottom-mount refrigerator. Protects tray surface and prevents spills or contamination.

Replaces worn or damaged drawer slide rail in bottom-mount refrigerators. Restores smooth gliding and proper alignment when original is cracked or broken.

Supports and guides refrigerator drawers or racks for smooth sliding. Replace if your guide is cracked, broken, worn, or causing misalignment or detachment.

Restores insulated core inside freezer door to maintain cold retention and reduce frost. Replace when door loses cooling efficiency or frost builds up.

Restores insulated core inside freezer door to maintain cold retention and reduce frost. Replace when door loses cooling efficiency or frost builds up.

Fix warm fridge temps and frost buildup with this refrigerator door gasket. Creates an airtight seal to keep cool air inside. DIY-friendly install.

Left-side door handle trim for refrigerators. Restores finished appearance and edge protection. Replaces cracked, scratched, or missing trim pieces.

Exterior trim piece for refrigerator door handle. Replaces cracked, scratched, or worn decorative trim to restore original appearance and finish.

Replaces cracked, broken, or missing hinge trim on your refrigerator door. Snaps over the hinge mechanism to restore a clean, finished look.

Replaces worn or cracked hinge cover to restore a clean appearance and protect the hinge area from debris. Confirm fit with your refrigerator model number.

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

Replace your refrigerator's door foam assembly when worn, damaged, or missing. This insulation component installs inside the door panel to maintain temperature.

Complete refrigerator door assembly including inner liner and outer panel. Replaces cracked, damaged, or worn doors that compromise temperature seal.

Seals the refrigerator door to prevent cold air leaks, frost buildup, and temperature fluctuations. Replace if torn, cracked, or no longer sealing tightly.

The Refrigerator Flipper Assembly is an OEM part for LG refrigerators. This assists in the smooth opening and closing of the refrigerator door. It ensures an airtight seal when the door is closed, preventing cool air from escaping and maintaining the refrigerator's internal temperature.

Causes of a malfunctioning Refrigerator Flipper Assembly can range from physical damage, such as cracks or breakage, to wear and tear from regular use.

Symptoms of a bad Refrigerator Flipper Assembly include:

• Difficulty in opening or closing the refrigerator door
• A noticeable gap when the door is supposed to be sealed shut
• Increased energy consumption as the refrigerator works harder to maintain its temperature
• Spoilage of food items quicker than expected due to poor temperature regulation

This OEM LG part is also compatible with some Kenmore models.

Drawer guide rail for bottom-mount refrigerators. Installs on the drawer frame to ensure smooth sliding. Replace if cracked, broken, or worn out.

Replacement door basket for bottom-mount refrigerators. Restores door storage when original bin is cracked, broken, or missing. Holds bottles and condiments.

Clear plastic storage basket that mounts inside your refrigerator door. Holds condiments, spreads, and small items. Replace if cracked, broken, or missing.

Replace a cracked or broken door bin to restore secure storage. Mounts to the refrigerator door for organizing bottles, jars, and condiments.

Door stopper assembly for refrigerators. Installs on the door to limit opening angle and prevent wall damage. Replace if cracked, broken, or missing.

Door stop assembly for bottom-mount refrigerators. Mounts inside the door to control door closing and sealing. Replace if broken, cracked, or missing.

Fix clicking doors or misaligned refrigerator doors with a new hinge cam. Restores smooth open/close action and proper door alignment. DIY-friendly repair.

Hinge assembly for refrigerator doors. Installs at door pivot point to support door weight and enable smooth opening/closing. Replace if cracked or worn.

Plastic door stop that limits refrigerator door swing range. Replaces broken, cracked, or missing stoppers causing doors to swing too wide or close improperly.

This connector rail secures and routes electrical connections in the appliance, keeping wiring organized and supporting reliable connections for proper operation. It helps prevent loose harnesses and reduces strain on wiring during use. What it does:

• Provides a stable mounting point for wire harness connectors and plugs
• Maintains correct alignment and spacing of electrical connections
• Reduces stress on wiring to help prevent intermittent connections
• Commonly used when loose or damaged connector mounts cause power or control issues

• Disconnect power and unplug the appliance before starting any work
• Handle connectors and wiring gently to avoid damaging pins or insulation
• Reinstall in the original orientation and secure mounting fasteners snugly

Mounting rail that holds and aligns connector assemblies inside your refrigerator. Replace if cracked, broken, or missing to restore secure fit.

Guides and supports refrigerator drawers as they slide in and out. Replace if your rail is cracked, broken, or worn to restore smooth drawer movement.

Drawer slide rail allows refrigerator shelves and drawers to glide smoothly. Replace if drawers stick, wobble, or won't close properly. Verify fit with model.

Ice maker grinding or not ejecting cubes? This gear drives the ejector blades to push ice from the tray into the bin. Restores harvest cycles quickly.

Secures and pivots the center refrigerator door for proper alignment and sealing. Replace if your door sags, won't close fully, or pivots roughly. Verify fit by model number before ordering.

Secures and pivots the upper refrigerator door for proper alignment and smooth opening. Replace if your door sags, won't close properly, or hinge is damaged. Verify fit by model number before ordering.

Replacement ring for your refrigerator. Installs on internal components to secure or seal parts. Order a new ring if yours is cracked or missing.

The Spanner Wrench is an OEM replacement part for LG refrigerators. This tool allows you to adjust the door hinges to ensure the doors are level and aligned properly. A well-aligned door is crucial for maintaining the internal temperature and efficiency of the refrigerator, preventing energy loss and ensuring food is stored under optimal conditions.

Symptoms that you might need to adjust the door hinges and potentially need this wrench include:

• Doors not closing properly or sealing tightly
• Visible gaps between the door and the main body of the refrigerator
• The refrigerator tilting or not sitting level

This spanner wrench is also compatible with some Sears/Kenmore refrigerators.

Secures and pivots your refrigerator door at the top for proper alignment and smooth operation. Replace if door sags or seals poorly. Verify fit.

Replacement refrigerator door hinge that restores smooth pivoting and proper door alignment, helping the door open and close reliably and maintain an airtight seal to preserve cooling performance. What it does:

• Supports the refrigerator door and allows it to pivot smoothly.
• Replaces worn, bent, or damaged hinges that cause door sag or misalignment.
• Helps reduce noisy or grinding door operation when the hinge is failing.
• Promotes an even door seal to help maintain internal temperature consistency.

• Unplug the appliance and remove food from nearby shelves before starting work.
• Support the door while removing hinge fasteners to prevent dropping or damage.
• Reinstall using the original hardware; align the door and tighten fasteners securely but avoid overtightening.

Lever spring for bottom-mount refrigerators. Provides tension for internal lever mechanisms. Replace if broken, stretched, or missing to restore proper fit.

If your refrigerator lever won't return to position or feels loose, this lever return spring restores proper tension for smooth operation. Direct-fit part.

Connector link between refrigerator door and cabinet. Replace if original is broken, cracked, or worn. Essential for smooth door operation and alignment.

Fix a dispenser lever that won't activate ice or water flow. This refrigerator dispenser lever restores easy push-button operation in minutes.

Fix a refrigerator not cooling or freezing over with a new evaporator coil assembly. This part circulates refrigerant to cool your fridge compartments.

Refrigerator stopped cooling after power outage? The compressor overload protector prevents overheating damage. Easy DIY fix when compressor won't run.

Rattling or loose parts in your refrigerator? This retaining pin secures moving components and keeps them aligned for smooth, quiet operation.

Support roller that mounts to the refrigerator base, allowing the unit to roll for cleaning or service. Replace if worn, broken, or causing uneven positioning.

The Fan Motor Assembly is an OEM part for LG refrigerators. It is responsible for circulating air throughout the refrigerator and freezer compartments to maintain consistent temperatures. By ensuring proper airflow, the fan motor helps to keep your food fresh and evenly cooled.

Over time, fan motors can wear out or become damaged due to factors such as dust buildup, electrical issues, or general wear and tear from continuous use. A faulty fan motor can lead to uneven cooling, increased energy consumption, and potential spoilage of food.

Symptoms of a bad fan motor include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures in the fridge or freezer
• The refrigerator running constantly or cycling on and off frequently
• Frost buildup in the freezer section

This OEM LG part is also compatible with Sears/Kenmore.

Fix a refrigerator not cooling properly with this compressor sealing pipe. Essential sealed system component for restoring proper refrigeration.

Drain tray assembly that collects condensation beneath your refrigerator. Replace if cracked, broken, or missing to prevent water leakage issues.

Vibration-isolating grommet that mounts between the compressor and chassis. Replace if cracked, worn, or missing to restore proper cushioning.

Front cover panel for your refrigerator door. Snaps into place to restore appearance and protect controls. Replace if cracked, broken, or missing clips.

Rear machinery compartment cover assembly for bottom-mount refrigerators. Replaces cracked, broken, or missing covers that protect compressor components.

This is a small retainer clip that secures the compressor in place at the base of the refrigerator. It helps prevent the compressor from shifting or vibrating excessively during operation. Replace this clip if your refrigerator produces unusual rattling or vibrating noises from the back, or if the compressor appears loose or has shifted from its mounting position.

This restrainer is a small retaining clip that helps secure moving or removable components in place, reducing rattles and keeping parts aligned for reliable operation. It's a simple replacement for worn or broken clips. What it does:

• Holds a cover, panel, or door-related component in proper position to prevent shifting
• Reduces noise caused by loose or vibrating parts
• Restores original fit where a broken or missing clip allows movement
• Simple mechanical function — no electrical connections or calibration

• One restrainer

• Disconnect power (and water if applicable) before beginning repairs
• Inspect surrounding mounting points for damage; replace any broken tabs or fasteners
• Typically installs with basic hand tools; align clip and press or snap into place until secure

This noise damper reduces vibration and rattling sounds from refrigerant lines in your refrigerator. It cushions the copper tubing against the cabinet to prevent metal-on-metal contact that creates annoying noises. Install this damper if your refrigerator makes clicking, rattling, or vibrating sounds, especially when the compressor cycles on and off.

Drier assembly for refrigerators. Installs in the sealed refrigerant system to remove moisture and contaminants. Replace if damaged or worn during repair.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

Fix uneven cooling or warm spots in your refrigerator with a new evaporator fan blade. This part circulates cold air throughout the unit for consistent temps.

This grille assembly covers and protects the refrigerator's evaporator/condenser fan while directing airflow for proper cooling. It restores a clean look and keeps wiring and fan blades shielded from debris and accidental contact. What it does:

• Protects the fan and nearby components from dust, debris and accidental contact
• Directs airflow for consistent cooling performance in the appliance
• Helps reduce vibration and rattling noise by holding the fan area secure
• Commonly replaced when grille is cracked, broken mounting tabs fail, or airflow is obstructed

• One grille assembly (fan)

• Designed to mount with existing factory screws and clips; inspect fasteners and replace if damaged
• Power off and unplug appliance before accessing fan area to avoid electrical shock or injury
• Handle plastic tabs gently to avoid breakage during removal and installation

Fix a stuck or non-working ice/water dispenser with this micro switch. Common cause of dispensers running continuously or not activating. Easy DIY repair.

Refrigerator making loud noise or not cooling evenly? This fan assembly circulates air to eliminate hot spots and restore consistent temperatures.

This is a small DC motor that operates the dispenser door mechanism inside the refrigerator. It opens and closes the dispenser flap to allow ice or water to be dispensed and then seals the opening to maintain interior temperature. Replace this motor if the dispenser door does not open or close properly, gets stuck, or if you notice cold air leaking through the dispenser area.

Uneven cooling or noisy damper? This damper motor support bracket secures the air control assembly for proper airflow between compartments. DIY fix.

Refrigerator not cooling properly? This damper motor support secures the air damper assembly that controls airflow between compartments. Simple DIY fix.

If your refrigerator light stays on or interior won't cool properly, the door switch may have failed. This magnetic switch detects door position.

Interior light won't turn off when door closes? This refrigerator door switch cover protects and aligns the switch for proper operation. Simple DIY fix.

Fix ice buildup in your refrigerator with this defrost heater. Melts frost from the evaporator during defrost cycles to restore consistent cooling.

Fix a dim or flickering refrigerator interior with this LED light assembly. Direct replacement part restores bright, even lighting in minutes.

Illuminates your refrigerator display for clear, even brightness. Replace when you notice dark spots, dim areas, or missing segments on the screen. Verify fit with your model number before ordering.

Refrigerator not cooling or making clicking sounds? The compressor run capacitor provides electrical boost to start and run the compressor motor reliably.

Fixes unresponsive control panel and loss of cooling functions. This main power control board restores electronic controls in your bottom-mount refrigerator.

Protective cover assembly that shields the printed circuit board (PCB) in your refrigerator. Replace if cracked, broken, or missing to protect electronics.

This is the display cover and user interface assembly mounted on the front of the refrigerator's water and ice dispenser area. It houses the control panel that allows you to select water, ice, and crushed ice options, as well as adjust temperature settings. Replace this assembly if the dispenser buttons are unresponsive, the display is blank or flickering, or the dispenser fails to respond to user input despite the internal components working properly.

Fix your refrigerator when it stops making ice or produces small/hollow cubes. Complete ice maker assembly kit includes bin and mounting hardware.

Ice maker overflowing or not stopping? This shut-off arm lever controls ice production by sensing bin levels. Simple plug-and-play repair.

Ice maker stopped producing ice or cycles too slowly? This complete ice maker assembly replaces a faulty unit. DIY-friendly installation in 10-15 minutes.

Secures water tubing to prevent leaks and disconnections in your refrigerator's water line system. Replace if clip is broken, missing, or tubing moves freely. Confirm fit with your model number.

This is the motor that drives the auger inside the ice dispenser chute of a refrigerator. It rotates the auger to push ice from the storage bin through the dispenser opening when the lever or button is activated. Replace this motor if ice is not dispensing, you hear a humming sound but the auger doesn't turn, or the dispenser motor has stopped working entirely.

Fix inaccurate temperature readings or sensor errors with this refrigerator sensor control board. Restores proper sensor communication and feedback.

If your refrigerator display is dead, shows error codes, or behaves unpredictably, this sub PCB assembly processes inputs and controls specific functions.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

Ice bucket assembly collects and stores ice from your refrigerator's ice maker. Replace if cracked, broken, or not dispensing ice properly. Confirm fit with your model number.

This dispenser lever is the user-operated push arm that activates a refrigerator's water or ice dispenser. It replaces a broken or worn lever so the dispenser responds correctly when pressed. What it does:

• Acts as the push actuator for the fridge water/ice dispenser
• Transfers user pressure to the dispenser switch/valve so water or ice is released
• Restores proper alignment and feel if original lever is cracked, loose, or missing
• Fits into the dispenser housing and connects to the dispenser mechanism

• One dispenser lever

• Disconnect power to the appliance before starting any repair
• Remove the dispenser bezel or front panel per your model's service instructions to access the lever
• Inspect surrounding clips and pins; replace any damaged fasteners for a secure fit

If your refrigerator is making loud noises or not cooling properly, the AC motor may have failed. This motor powers essential cooling components.

Stores and supplies water to your refrigerator's dispenser and ice maker. Replace if cracked, leaking, or damaged from mineral buildup or freezing.

Replaces cracked or leaking water line connector tubes in refrigerators. Restores proper water flow between components. Confirm fit with your model number.

Secures and routes the water tube along the cabinet or door. Replace if cracked, broken, or missing to prevent kinks and keep tubing properly positioned.

Fix ice maker not filling or water dispenser not working with this refrigerator water inlet valve assembly. Solves leaks and no-water issues. DIY repair.

Fix no water or ice issues with this water inlet valve. Common when ice maker won't fill or dispenser trickles. Easy 10-minute DIY with video guide.

Leaking water from your refrigerator or no water/ice from dispenser? This water inlet valve controls flow to ice maker and dispenser. DIY repair in 30 min.

Plastic cover cap for bottom-mount refrigerators. Snaps over mounting screws or fasteners to conceal hardware. Replace if cracked, broken, or missing.

Secures bracket assemblies inside your refrigerator to keep components aligned and reduce vibration. Replace if cracked, bent, or missing.

This replacement cover filter secures and protects the unit's internal air filters while maintaining correct airflow. It restores the sealed fit of the filter compartment to help the appliance run as intended. What it does:

• Holds the internal filter in place so air passes through the filter media
• Prevents large debris and foreign objects from reaching internal components
• Helps maintain designed airflow path for consistent performance
• Can reduce rattling or vibration caused by a loose or damaged cover

• Unplug the appliance or disconnect power before starting
• Remove the front panel or filter access per the owner's manual to reach the cover
• Align tabs and snap or fasten the cover securely; do not force parts
• Do not operate the appliance with missing or damaged filter cover

Replace a broken or leaking water filter housing that prevents water flow to your dispenser and ice maker. Direct fit for bottom-mount refrigerators.

Removes impurities and contaminants for clean, fresh-tasting water and ice. Replace every 6 months or when water flow decreases. Verify fit with your model.

Secures and protects your refrigerator's air filter, maintaining proper airflow and filtration. Replace if cracked or loose. Verify fit with your model.

Complete freezer door assembly for bottom-mount refrigerators. Replaces cracked, dented, or damaged freezer doors. Includes door shell and inner components.

Home bar cover panel for bottom-mount refrigerators. Replaces cracked, broken, or missing exterior home bar covers. Restores appearance and finish.

Secures and pivots the ice bank door for smooth opening and proper sealing. Replace if door sags, won't close, or ice dispenser misaligns. Confirm fit.

The Lever Cover is an OEM part for LG refrigerators. This cover fits neatly over the freezer door lock mechanism, protecting its internal lever and hardware.

Causes of a bad lever cover can include damage from regular opening and closing of the freezer door over time. Accidental impacts or heavy impacts from moving the refrigerator could also crack or weaken the plastic material.

Symptoms of a bad lever cover include:

• Exposure of the lock mechanism that allows dust and debris to enter
• Improper shielding of lock parts leading to potential jamming issues
• Cracking or breakage of the plastic allowing outside contaminants inside

This OEM LG part is also compatible with some Kenmore models.

Seals your refrigerator door to keep cold air in and warm air out. Replace if torn, cracked, or not sealing properly. Confirm fit with your model number.

Replaces a cracked, broken, or missing ice dispenser door handle on your refrigerator. Installs on the exterior dispenser for easy ice access.

Roller component for the ice dispenser door handle on bottom-mount refrigerators. Replaces broken, worn, or missing rollers. Ensures smooth handle operation.

Seals the ice bank door to prevent warm air from melting ice and causing clumping. Replace if ice melts, refreezes into clumps, or frost forms around the bin.

Keeps refrigerator air fresh by filtering odors and contaminants. Replace every 6 months or when indicator alerts. Confirm fit with your model number.
