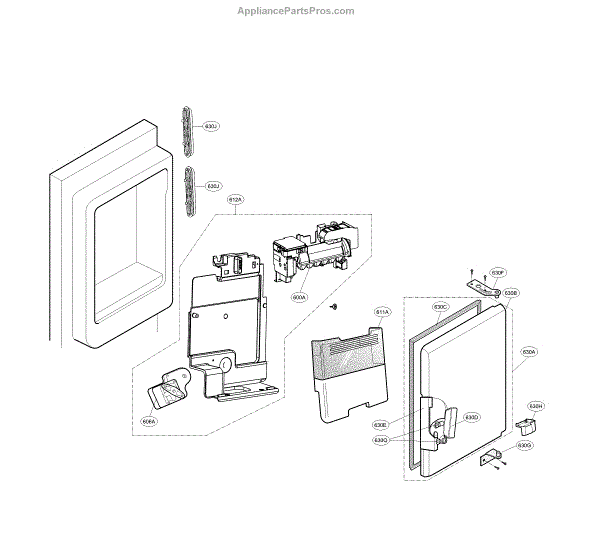

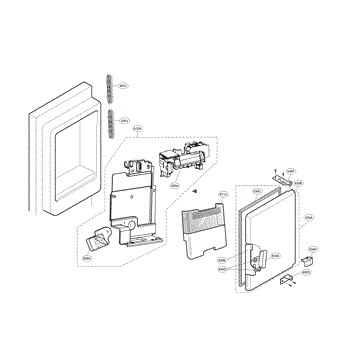

Parts for Lg LFXS28566S/00: Icemaker & Icebin Parts

This is a replacement screw designed to secure appliance components where the original customized fastener is required. It restores proper fit and stability for panels, brackets, or assemblies that use this specific fastener. What it does:

• Replaces a missing, stripped, or damaged customized screw to restore secure attachment of parts.
• Helps eliminate rattling, loose panels, or misaligned assemblies caused by a faulty fastener.
• Matches the OEM mounting point to maintain correct part alignment and function.
• Suitable where the appliance design calls for this specific customized screw type.

• Turn off and unplug the appliance before servicing to avoid shock or injury.
• Use the correct screwdriver or bit to avoid stripping the screw head; do not force.
• Keep track of small parts during disassembly and reassembly; work on a stable surface.
• If threads are damaged or the mounting hole is stripped, inspect the mating component for repair before installing the new screw.

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

This customized replacement screw secures appliance components and restores proper fit and function. It's a direct-fit fastener designed for use where the OEM specifies a tailored screw to replace a worn, stripped, or missing fastener. What it does

• Fastens panels, brackets, or assemblies that use a manufacturer-specified customized screw
• Stops rattling or loose parts caused by worn or missing hardware
• Restores secure mounting for affected components
• Matches the OEM shape and thread pattern to prevent damage when used as directed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Install by hand initially, then tighten snugly—do not overtighten to avoid thread damage
• Keep removed hardware organized so you replace parts in their original locations

This customized screw secures internal components and panels in compatible appliances, providing a reliable fastener that restores proper fit and function. Use it when factory screws are missing, stripped, or damaged. What it does:

• Fastens panels, brackets or assemblies to maintain structural alignment and prevent rattles
• Replaces stripped, corroded or missing mounting screws that can cause loose parts or vibration
• Restores secure connections for controls and internal components to help appliances operate quietly
• Works where the OEM called for a non-standard or modified screw shape/length

• Use the correct screwdriver or bit to avoid stripping the head; avoid overtightening
• Turn power off and unplug the appliance before accessing internal components
• Compare replacement to the original screw for length, thread and head type before installation

This rear door handle replaces a worn or damaged handle on compatible LG appliances, restoring a secure grip and smooth opening. It's a direct-fit exterior handle that keeps the appliance door operating and looking right. What it does

• Provides a secure gripping point to open and close the appliance door
• Replaces cracked, loose, or broken rear handle hardware
• Restores correct alignment and feel when the door is operated
• Helps prevent further damage to the door edge from makeshift handles

• Power off and unplug the appliance before starting work; remove food or shelves as needed for access
• Keep fasteners and mounting clips; transfer original hardware unless new hardware is explicitly included
• Test door operation and alignment after installation; tighten fasteners evenly to avoid stress

This funnel assembly directs detergent and rinse aid from the dispenser into the dishwasher wash chamber for proper cleaning. Replaces a cracked or clogged funnel to restore reliable dispensing and reduce leaks or pooling. What it does:

• Channels detergent and rinse aid from the dispenser to the wash chamber for even distribution
• Prevents splash-back and reduces the chance of detergent clumping or not reaching the wash arms
• Helps stop minor leaks or water pooling around the dispenser area when the original funnel is damaged
• Keeps the dispenser pathway clear so the detergent dissolves and dispenses as intended

• One replacement funnel assembly

• Disconnect power to the appliance before starting any repair
• Turn off the water supply and drain standing water from the unit if applicable
• Remove the dispenser bezel or control panel per OEM instructions to access the funnel; handle plastic clips and tabs gently to avoid breakage
• After installation, run a short cycle to check for leaks

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

This adjustable leveling leg assembly supports and stabilizes your appliance by threading into the base frame. Replacing a worn or missing leg helps you level the unit for smoother, quieter operation on uneven floors.

• Provides height adjustment to level the appliance and distribute weight evenly
• Helps prevent rocking, wobbling, and excess vibration or rattling
• Can improve door alignment and smooth opening/closing when the cabinet is properly leveled
• Useful when a leg is missing, damaged, or threads are stripped

• Disconnect power; if applicable, shut off the water supply
• Use a helper to safely brace or tip the unit; protect flooring when accessing the leg
• Unthread the old leg and hand-thread the new one; tighten as needed
• Adjust front-to-back and side-to-side until stable; all legs bear weight evenly

The Roller Assembly is an OEM part for LG refrigerators. It comprises the set of rollers that suspends and aids the smooth gliding of refrigerator shelves. The rollers are designed with precision bearings to withstand the weight of shelf loads and years of use while providing quiet and frictionless movement.

Causes of a bad roller assembly include worn-out or damaged rollers due to heavy usage over time, or shelf loads that are too excessive.

Symptoms of a bad roller assembly are:

• Shelves that do not easily slide in and out
• Grinding or squeaking noises emanating from the shelf tracks
• Shelves that get stuck or do not smoothly glide

This OEM LG part is also compatible with Sears/Kenmore. Replace yours today and restore like-new shelf functionality to your refrigerator.


The Freezer Tray Roller is an OEM part for LG refrigerators. It is a dual roller wheel assembly located at the rear wall of the freezer compartment. The roller aids sliding shelf movement by reducing friction between trays and the liner wall.

Causes of a bad freezer tray roller include cracks, flat spots, or separated roller pieces from wear over years of use.

Symptoms of a bad tray roller are:

• Difficulty sliding shelves smoothly in and out of position
• Excessive force required to access stored items
• Noisy operation or rattling noises within the freezer

This genuine LG OEM replacement part is also compatible with some Kenmore models.

This Drawer Tray Assembly replaces a damaged or worn refrigerator drawer tray to restore stable storage and proper drawer operation. It helps keep food contained and prevents items from shifting or falling when opening and closing the drawer. What it does:

• Provides a stable surface for produce or stored items inside the refrigerator drawer.
• Replaces cracked, warped, or broken trays that can catch, bind, or allow items to fall.
• Restores smooth sliding and proper fit of the drawer to reduce jams and spills.

• Disconnect power to the appliance and remove food before servicing.
• Remove the drawer per your manual to access and swap the tray; handle edges carefully to avoid damage.
• Use only manufacturer-recommended parts; inspect mounting tabs and tracks for wear before reassembly.

This refrigerator shelf assembly replaces a cracked, damaged or missing glass shelf to restore stable storage and organization inside the fresh food compartment. The tempered glass shelf offers a flat, easy-to-clean surface for storing food and containers. What it does

• Provides a stable, level surface for groceries and containers to prevent items from tipping or spilling.
• Restores proper shelf spacing and organization when an original shelf is broken or missing.
• Easy-to-clean glass helps contain spills and simplifies refrigerator housekeeping.
• Fits into existing shelf supports and rollers to integrate with the interior shelving system.

• Remove food and any loose items from the shelf area before starting; handle glass with care and wear cut-resistant gloves.
• Lift out the damaged shelf by angling as needed to clear supports; set the replacement into the same tracks or brackets.
• Test stability before returning items to the shelf.
• If shelves use trim or clips, keep and reinstall all original trim pieces.

This is a refrigerator shelf assembly that provides a stable, easy-to-clean surface for storing food and organizing items inside the fresh food compartment. Replacing a damaged or missing shelf restores usable space and proper support.

• Supports food items and containers on a rigid, flat surface
• Helps maintain organized storage and visibility in the compartment
• Replace if the glass is cracked, frame is broken, or shelf sags/doesn't seat properly
• Can also address rattling or instability from a warped or damaged shelf

• Unplug the appliance or disconnect power before servicing
• Remove contents and carefully lift out the old shelf
• Align the new shelf with the side rails and fully seat it in the supports
• Handle glass with care; avoid impact and uneven pressure during installation

This cover assembly replaces the rear outer panel that protects a flat-panel TV's internal components and restores the set's finished appearance. It helps keep circuitry secure and maintains proper ventilation and mounting alignment. What it does:

• Shields internal boards, power components, and connectors from dust and physical damage
• Restores the TV's exterior appearance and hides internal wiring
• Supports rear mounting points and keeps panel openings aligned for proper airflow
• Can resolve visible cabinet damage or gaps that expose internal parts

• Disconnect power and unplug the TV before attempting any repair
• Remove stand or wall mount and place the TV face-down on a soft, protected surface
• Use the original screws and follow the manufacturer's service instructions to avoid damaging clips or connectors

This replacement shelf assembly restores usable storage space and provides a stable surface for food and containers in the refrigerator. It's a direct-fit shelf designed to match the original form and function for easy restoration. What it does:

• Provides a flat, stable shelf surface so food and containers sit level and secure
• Replaces cracked, chipped, or missing shelves that cause items to slide or break
• Restores proper shelving layout to help organize interior storage
• Helps maintain even airflow and access to stored items when positioned correctly

• One shelf assembly

• Remove food and unplug the appliance before beginning any service
• Handle glass or trim sections carefully to avoid chipping or injury
• Slide into the existing shelf supports; no special tools typically required
• Replace shelf clips or supports if damaged before installing the new shelf

This tray assembly fits the refrigerator fresh room and provides a stable, easy-to-clean surface for storing fruits and vegetables. It helps contain spills and supports the fresh room drawer for organized, fresher produce storage. What it does:

• Serves as the bottom tray for the fresh room/crisper area to hold produce and containers
• Catches minor spills and drips to protect the cabinet interior
• Provides a smooth surface for the fresh room drawer to slide on and sit level
• Restores proper storage function when a cracked or warped tray reduces usability

• Unplug or disconnect power to the appliance before servicing for safety.
• Remove the fresh room/crisper drawer to access and replace the tray; reinstall the drawer afterward.
• Inspect surrounding rails and seals for damage during replacement; clean with mild soap and water.
• If the tray does not seat easily, confirm alignment and do not force to avoid breakage.

This rail guide assembly restores smooth, stable sliding for a refrigerator/freezer drawer or shelf drawer, helping the drawer track properly and reducing rubbing or sticking during use. What it does:

• Replaces a worn or damaged drawer slide rail to restore proper alignment and smooth movement
• Helps stop drawers from sticking, binding, scraping, or falling out of track
• Supports the drawer weight and guides it in and out evenly
• Reduces noise caused by misaligned or worn rails

• Disconnect power (and water, if applicable) before servicing the appliance
• Remove the drawer or shelving to access the rail; retain fasteners for reuse unless new ones are provided
• Inspect matching rail on the opposite side; replace both sides if both show wear for best performance

This tray cover protects the appliance tray from spills, debris and everyday wear while restoring a finished appearance. Replacing a damaged or missing cover helps contain messes and keeps internal tray areas accessible for service. What it does:

• Covers and protects the tray area from food, water and debris
• Restores a clean appearance and helps prevent buildup on underlying components
• Stops small spills from spreading into the tray cavity
• Commonly replaced when cracked, warped, broken or missing

• Disconnect power to the appliance before beginning any service
• Remove nearby parts or trays as needed to access the cover
• Do not force the cover; align tabs and fasteners to avoid damage

The Deli Drawer Front Cover is an OEM part for LG refrigerators. It provides an attractive facia that protects the internal components of the deli drawer. This cover is designed to integrate with the style and finish of the refrigerator interior.

Symptoms of a bad Deli Drawer Front Cover include:

• Cracks, chips, or other visible cosmetic damage
• Discoloration that detracts from the aesthetics
• The cover is loose, misaligned, or missing
• Difficulty opening or closing the deli drawer

Causes of a bad cover can be normal wear and tear over time from repeated use, as well as accidental drops or impacts that cause cracks or breaks.

This OEM replacement part is also compatible with select LG models.

This decor assembly is the outer trim that surrounds the appliance control panel, restoring the unit's finished appearance and protecting the controls from everyday wear. It replaces cracked, scratched or faded trim to make the front look like new. What it does

• Covers and protects the control area from spills, scratches and cosmetic damage
• Restores the appliance's factory appearance after impact or deterioration
• Helps keep buttons and touch controls clear of debris and grime
• Required to properly seat or secure the control components it surrounds

• One decor assembly (control-panel trim) as pictured

• Disconnect power (unplug or shut off breaker) before starting work
• Remove any retaining screws or clips from the control panel; handle trim gently to avoid breaking tabs
• Reuse existing fasteners unless new hardware is explicitly listed as included

This LED assembly replaces a TV backlight module to restore even screen illumination and image brightness. It mounts behind the LCD panel and provides the LED sources that light the display. What it does:

• Replaces a damaged or failed TV backlight module
• Restores even screen brightness and reduces dark spots
• Helps resolve flickering, dim display, or no-picture issues related to the backlight
• Works as a direct-fit LED module for compatible LG LCD TVs

• One LED assembly

• Disconnect power and remove the TV from power source before beginning service
• Requires partial disassembly of the TV (front bezel and LCD panel removal); handle the panel and LEDs carefully
• Avoid touching LED surfaces and circuit traces; use ESD precautions and appropriate tools

This tray cover assembly replaces a damaged or missing lid that protects and contains the appliance tray, restoring proper coverage and helping keep contents secure. It's a direct-fit replacement designed for straightforward swap-out. What it does:

• Covers and protects the tray to help prevent spills and contamination.
• Restores proper alignment and fit for trays that won't seat fully without the cover.
• Reduces stray debris from entering the tray area.
• Commonly replaces cracked, warped, or broken covers that impair function.

• Power off and unplug the appliance before starting any repair.
• Remove any items from the tray area and work on a clean, flat surface.
• Gently unclip or lift the old cover (retain any small clips or fasteners) and snap the new cover into place until fully seated.
• If any clips or adjacent parts are damaged, replace them before use; do not force the part into position.

This rail guide assembly keeps a refrigerator drawer aligned and sliding smoothly so you can open and close it without sticking or sagging. It restores proper drawer support and alignment for reliable everyday use. What it does:

• Supports the drawer on its track so the drawer slides in and out evenly
• Guides movement to prevent binding, sticking, or uneven operation
• Helps reduce noise from rubbing or misaligned drawer slides
• Restores proper drawer height and prevents sagging or catching

• Remove all contents from the drawer before beginning work
• Use basic hand tools; handle plastic parts gently to avoid cracking
• Reassemble drawer and test smooth operation before returning items to the drawer
• If the drawer is heavy or awkward, get help to avoid dropping the drawer or injuring yourself

This guide rail assembly keeps a refrigerator or freezer drawer aligned and sliding smoothly so you can open and close drawers without sticking or tilting. Replaces worn or damaged rails to restore proper drawer function and support. What it does:

• Supports and guides a refrigerator or freezer drawer along its track for smooth movement
• Prevents drawer tilt or sag that can cause binding or uneven closing
• Helps maintain proper load alignment so shelves and drawers operate reliably
• Commonly replaced when drawer scraping, sticking, or misalignment occurs

• One guide rail assembly as shown

• Basic hand tools required; disconnect power before working near electrical components
• Remove the drawer and follow OEM disassembly steps to access rail mounting points
• Inspect mating slides and mounting clips; replace any damaged hardware for best fit

This freezer door foam assembly restores the insulated core inside a freezer door to help the door maintain proper cold retention and reduce frost. It replaces damaged or compressed foam that can compromise the door's thermal barrier. What it does:

• Replaces the insulated foam core inside the freezer door to improve thermal performance
• Helps reduce frost buildup and uneven temperatures caused by degraded door insulation
• Supports a tighter door fit by restoring original door thickness and shape
• Works with the existing door liner and outer panel to re-establish proper sealing

• Disconnect power to the appliance before starting any repairs.
• Removal of the inner door liner or outer panel is commonly required; handle panels and clips carefully to avoid damage.
• Use proper tools and keep small fasteners organized; inspect door gasket and hardware while the door is open.

Restore a tight seal on your freezer by replacing a worn gasket. A fresh, pliable gasket keeps cold air in, limits frost and moisture around the door, and helps your freezer maintain stable, food-safe temperatures.

• Creates the air-tight seal between the freezer door and cabinet frame
• Helps maintain correct freezer temperature and energy efficiency
• Reduces frost/ice buildup and condensation near the door opening
• Symptoms include tears, warping, gaps, excessive frost, or the door not closing flush

• Disconnect power before servicing
• Warm the gasket in hot tap water or with low heat to improve flexibility
• Clean and dry the door channel; press the gasket fully into the retainer, starting at the corners
• Close the door and check the seal all around; adjust as needed and allow time for the gasket to conform

This decor handle is a cosmetic and functional door handle designed to replace a cracked, broken or worn handle and restore a secure grip and finished look to the appliance door. It installs in place of the original trim handle. What it does:

• Provides a finished grip for opening and closing the appliance door
• Replaces damaged, cracked or loose handles that affect use and appearance
• Restores proper alignment and user control when the original handle is worn
• Matches the appliance's exterior trim for a cohesive look

• Disconnect power to the appliance before starting any repair
• Remove any door trim or fasteners as needed to access mounting points
• Use the original screws or OEM-replacement fasteners; do not overtighten

This hinge cap covers and protects the door hinge, keeping the hinge assembly clean and improving the appliance's appearance. It replaces a cracked, missing, or worn hinge cover to help doors operate smoothly and look finished. What it does:

• Covers the door hinge to protect mating surfaces from dirt and damage
• Hides hinge hardware for a cleaner, finished look
• Helps prevent debris from interfering with hinge movement
• Can resolve cosmetic issues and reduce risk of snagging on exposed hinge parts

• One hinge cap

• Remove power and open the door to a safe, supported position before starting
• Typically snaps or screws onto the hinge—retain original fasteners unless replacement required
• Inspect hinge and fasteners while installing; replace any damaged hardware

The Hinge Cover Assembly conceals and protects the door hinge area on your refrigerator. It safeguards wiring harnesses while restoring a clean, finished appearance, helping keep the hinge area secure and free of dust and damage.

• Protects the hinge mechanism and wiring for a clean, finished look
• Helps keep harnesses routed correctly and prevents snagging/abrasion near the hinge
• Replaces cracked, broken, loose, or missing hinge covers
• Helps reduce rattling or vibration noise from a loose/damaged cover

• Disconnect power before servicing.
• Support the door as needed; remove any screws or clips securing the old cover.
• Transfer and reuse existing hardware or clips if required; align the new cover and secure in place.
• Ensure wiring is not pinched; ensure smooth door movement before restoring power.

The Name Plate is an OEM part for LG refrigerators. It is the printed decorative plate used to label the model and serial numbers for individual refrigerator components and the refrigerator itself. This nameplate adheres or attaches to the visible exterior of the appliance for identification purposes.

Causes of a bad nameplate include damage, aging, or removal of the original nameplate. Over time, nameplates can become faded, stained, cracked, or removable.

Symptoms of a bad nameplate include:

• Missing or illegible model/serial numbers
• Inability to accurately identify appliance components
• Substandard aesthetic appearance

This OEM LG replacement nameplate will allow you to correctly label your refrigerator should the original nameplate become damaged or unusable. This LG part is also compatible with Sears/Kenmore.

The Handle Assembly is an OEM part for LG refrigerator freezer compartments. It includes the handle and mechanical components that operate the freezer drawer.

Causes of a bad handle assembly can include fatigue from repeated opening and closing motions, damage sustained from heavy loads, or exposure to harsh chemicals over years of use.

Symptoms of a bad handle assembly include:

• Handles detaching from the drawer front
• Difficulty smoothly opening and closing the freezer drawer
• Inability to fully open or close the drawer
• Excessive play, wobble, or loose motion in the handle

Replace yours today with this genuine OEM LG assembly to restore effortless operation. This replacement handle is compatible with Frigidaire, Samsung, Whirlpool, and some Kenmore models.

This door foam assembly replaces the inner insulation inside a refrigerator door to help restore thermal performance and reduce condensation. Fits behind the interior door panel to improve temperature retention and efficiency. What it does:

• Replaces damaged or compressed foam that can allow cold air to escape
• Helps reduce interior door condensation and frost buildup
• Restores even cooling and can prevent warm spots near the door
• Works with door panel and gasket to maintain proper insulation

• One door foam assembly

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the interior door panel and any trim or hardware
• Handle foam gently; avoid tearing and ensure proper positioning before reassembling the panel

Left side

The Door Gasket Assembly is an OEM part for LG refrigerators. This part creates a tight seal around the refrigerator door, preventing warm air from entering and cool air from escaping.

Causes of a bad door gasket assembly can include regular wear and tear, damage from frequent door openings and closings, or exposure to temperature fluctuations that degrade the material.

Symptoms of a bad door gasket assembly include:

• Visible cracks, tears, or deformities in the gasket
• The refrigerator door not closing properly
• Increased condensation or frost buildup inside the refrigerator
• Higher energy bills due to the refrigerator working harder to maintain temperature

This OEM LG part is also compatible with some Kenmore models.

The Refrigerator Flipper Assembly is an OEM part for LG refrigerators. This assists in the smooth opening and closing of the refrigerator door. It ensures an airtight seal when the door is closed, preventing cool air from escaping and maintaining the refrigerator's internal temperature.

Causes of a malfunctioning Refrigerator Flipper Assembly can range from physical damage, such as cracks or breakage, to wear and tear from regular use.

Symptoms of a bad Refrigerator Flipper Assembly include:

• Difficulty in opening or closing the refrigerator door
• A noticeable gap when the door is supposed to be sealed shut
• Increased energy consumption as the refrigerator works harder to maintain its temperature
• Spoilage of food items quicker than expected due to poor temperature regulation

This OEM LG part is also compatible with some Kenmore models.

This replacement door basket restores storage on the refrigerator door, keeping bottles and small items secure and organized. It matches the original fit and helps maintain usable shelf space in compatible LG refrigerators. What it does

• Replaces a cracked, broken, or missing door bin to restore door storage capacity.
• Supports bottles, condiments and other small food items for easy access.
• Prevents items from falling out when the door is opened or closed.
• Uses the refrigerator's original mounting points for a stable fit.

• Remove all contents and open the door fully before replacing the basket.
• Most installs are tool-free: lift out the old basket and snap the new one into the existing mounting slots.
• If mounting clips or rails are damaged, replace them before installing the new bin.
• Handle with care to avoid chipping plastic or cutting hands on sharp edges; disconnect power only if working near electrical components.

This Door Basket is a replacement door-mounted storage basket that restores inside-door storage and helps keep items organized and accessible. It fits the original door mounting points to return usable shelf space. What it does:

• Provides a rigid storage shelf mounted to the appliance door for bottles, jars, and small containers
• Restores lost or damaged door storage to improve organization and access
• Replaces cracked, broken, or missing door basket that causes items to fall or shift
• Matches original mounting locations for a secure fit when installed correctly

• 1 door basket

• Remove power to the appliance and empty the door before starting work
• Align with existing door mounting clips or screws and secure using the original hardware
• Inspect surrounding door trim and seals for damage during installation

The Basket Assembly is an OEM component specifically designed for LG Door-in-Door refrigerators containing bottom-mounted crisper drawers. This integral assembly organizes stored items within the refrigerator doorway.

Symptoms of a bad basket assembly include:

• Cracked or broken perforated shelves
• Detached mounting brackets failing to secure basket
• Warped contours no longer fitting base compartment
• Missing attachments inhibiting proper installation

Causes of failure involve stresses from repeated loading/unloading cycles, mineral buildup weakening plastic brackets over time, or impact damage compromising structural integrity.

Replace yours today with this genuine OEM LG assembly to maintain tidy organizational capacity. Precision slots provide adjustable shelf positioning optimized for produce, snacks, and beverages. Compatible across Samsung, Frigidaire, and GE models featuring removable door crisper baskets.

Replacement refrigerator door basket that restores usable storage on the door and keeps bottles, jars and condiments secure. Molded plastic design replaces a cracked or broken bin so items stay organized and won't fall when the door opens. What it does

• Provides a shelf on the refrigerator door to hold bottles, jars and small containers
• Replaces cracked, chipped or warped door bins that no longer secure items
• Helps prevent spills and shifting items when opening or closing the door
• Use only on compatible models; fit with your model number before ordering

• Remove all items from the door and lift or slide out the old basket
• Install the new basket by aligning tabs/runners and snapping it into place; do not force
• Inspect mounting tabs—if damaged, replacement may require additional clips
• Dispose of broken plastic pieces carefully and keep children away during replacement

Lower hinge assembly that supports the refrigerator door and provides a secure pivot point for smooth opening and closing, helping maintain proper door alignment and seal. What it does:

• Provides the pivot and support for the bottom of the refrigerator door to open and close smoothly.
• Keeps door aligned to help maintain an effective seal and reduce gaps that can cause cooling loss.
• Prevents door sag and uneven wear on the door and cabinet when functioning correctly.
• Addresses symptoms such as a crooked or dragging door, rubbing at the gasket, or noisy pivoting.

• Unplug the appliance and remove food and shelving from the door before beginning work.
• Support the door securely while removing the old hinge to avoid damage or injury.
• Keep original mounting hardware—replace with manufacturer hardware if needed.

This bushing is a replacement shaft support that stabilizes a rotating assembly and helps reduce wear and noise. It restores smooth movement and helps maintain proper alignment for the appliance component. What it does

• Supports and centers a rotating shaft or drum to reduce wobble and rubbing
• Reduces noise and friction from worn pivot or support points
• Helps prevent uneven wear on mating parts and prolongs assembly life
• Commonly replaced when you hear squeaking, grinding, or notice excessive play

• One bushing

• Inspect mating surfaces and replace any damaged clips, seals, or fasteners as needed
• Use basic hand tools; hold the assembly steady and press the bushing squarely into place
• If the bushing is press-fit, use a suitable driver or press to avoid damage
• Disconnect power and follow all safety precautions before beginning repairs

STOPPER ASSEMBLY,DOOR

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators. This hinge supports the refrigerator door, allowing it to open and close smoothly while maintaining proper alignment. It is designed to handle the weight of the door and ensure a secure and stable operation over time.

Causes of a bad lower refrigerator door hinge can include regular wear and tear, physical damage from overloading or impacts, and gradual loosening over time. A faulty hinge can lead to misalignment, difficulty in opening or closing the door, and potential damage to the door seal.

Symptoms of a bad lower refrigerator door hinge include:

• The door not closing properly or staying open
• Sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal, causing cooling inefficiency

This OEM LG part is also compatible with Sears/Kenmore models.

This refrigerator door handle assembly restores a solid, comfortable grip on the fresh food door. Replace a loose, cracked, or missing handle to improve door operation and refresh your refrigerator's appearance.

• Provides the handhold used to open and close the refrigerator door
• Attaches to existing door mounting studs and fasteners
• Common symptoms: handle broken, cracked, loose/wobbly, or missing; difficulty opening due to failed handle
• Built to match the original fit and look on applicable models

• Unplug the refrigerator and wear gloves to protect hands
• Loosen the set screws or fasteners securing the old handle; remove and retain any reusable hardware
• Position the new handle on the mounting studs; tighten fasteners evenly until snug—do not overtighten
• Reinstall any decorative caps if present

Replace a worn, loose, or broken refrigerator door handle with this complete handle assembly. It restores a secure, comfortable grip so you can open and close the refrigerator door easily while maintaining the unit's original look. What it does:

• Attaches to the refrigerator door to provide a sturdy handhold
• Replaces cracked, broken, or missing handles
• Helps correct a loose or wobbly handle that won't stay secure
• Restores the factory appearance of the door

• 1 refrigerator door handle assembly

• Disconnect power and protect the door surface with tape or a cloth before starting
• Remove any trim/caps as needed and loosen the hidden set screws or mounting bolts on the old handle
• Position the new handle, then tighten fasteners evenly—do not overtighten
• Reinstall any caps/trim and ensure the handle is secure

This slide rail is a replacement drawer guide that restores smooth, stable drawer movement and helps prevent binding or sagging. Designed to match the OEM fit so drawers open and close reliably. What it does:

• Guides and supports the appliance drawer for smooth sliding motion
• Replaces worn or damaged rails that cause sticking, sticking intermittently, or uneven travel
• Helps prevent drawer tilt or sag when loaded
• Restores proper alignment for secure closing

• Disconnect power to the appliance before beginning any work
• Remove the drawer per your model's service instructions to access the rail
• Use basic hand tools (screwdriver/driver) to remove and replace the rail; keep fasteners for reuse
• Align the rail carefully, slide the drawer to test operation, and verify smooth movement before returning the appliance to service

This slide rail supports and guides a drawer, bin, or rack so it can glide smoothly in and out of the appliance. Replacing a worn or broken rail restores alignment and easy operation while preventing binding or derailment. What it does:

• Provides the track surface for a drawer, bin, or rack to slide on
• Keeps the sliding assembly aligned and level during travel
• Worn rails can crack, warp, or lose mounting tabs over time
• Symptoms include sticking, rough travel, derailment, uneven drawer/rack, or difficulty fully opening/closing

• 1 slide rail

• Disconnect power before servicing; shut off the water supply
• Remove the drawer/rack and any end caps or stops per your model's instructions
• Position and secure the new rail using the original fasteners; transfer any reusable stops
• Reinstall and test for smooth, even travel; inspect the companion rail and rollers/wheels for wear

This harness assembly is a factory-style wiring harness that routes power and control signals between the dispenser, ice maker and main control—restoring electrical connections for reliable dispenser and ice-maker operation. What it does

• Carries power and signal lines between the refrigerator control board, dispenser and ice maker
• Restores lost or intermittent dispenser power and control communication
• Helps stop intermittent ice-maker cycling or dispenser failures caused by damaged wiring
• Eliminates loose, corroded or broken connector problems on the original harness

• One harness assembly as shown

• Disconnect power to the appliance before starting any repair
• Handle connectors gently and match keyed plugs to their mating sockets
• Inspect connector pins and wiring routing; replace any damaged clips or grommets

This connector assembly secures and drives the freezer drawer bar so the drawer opens and closes smoothly. Replaces a worn or broken bar/gear assembly to restore proper drawer movement and alignment. What it does:

• Transfers drawer motion to the slide mechanism so the freezer drawer glides correctly
• Replaces worn or stripped gears that cause slipping, grinding, or uneven movement
• Secures the drawer bar to the internal slide/track to prevent misalignment or sagging
• Useful when a drawer won't open/close smoothly, catches, or rattles during operation

• Disconnect power before servicing and remove stored items from the drawer
• Generally replaces with basic hand tools; support the drawer while detaching and installing the assembly
• Inspect surrounding slide components for wear and replace if needed for reliable operation

This is a service spanner designed for appliance maintenance, giving a secure grip for loosening and tightening service fittings and retaining nuts. It helps access and remove service components safely and efficiently. What it does

• Provides the correct fit and leverage for specific appliance service fittings and retaining nuts.
• Helps free seized or over-tightened fittings that cause vibration or poor connections.
• Allows safe removal and reinstallation of components during repairs or routine maintenance.
• Reduces risk of damaging fasteners compared with improper or makeshift tools.

• Disconnect power and gas before servicing the appliance.
• Use proper hand protection and eye protection; hold the tool securely and apply steady force.
• Refer to the appliance service manual for the correct access points and torque specifications.
• Do not use as a substitute for other specialty tools unless specified by the manufacturer.

This center hinge assembly secures and guides the refrigerator doors, restoring correct door alignment and smooth opening. Replaces worn or damaged center hinge hardware to help stop sagging and improve door sealing. What it does:

• Provides the central pivot point between the refrigerator doors for proper alignment and operation
• Restores smooth, even door movement when original hinge is worn or bent
• Helps the doors close fully to maintain the appliance seal and consistent internal temperature
• Fits the factory mounting points and matches OEM form for direct replacement

• Basic removal of trim and temporary support of the doors is required; have a helper to steady doors during replacement
• Use appropriate hand tools; avoid overtightening fasteners to prevent damage
• Disconnect power only if removing electrical components nearby; this part replacement is typically mechanical
• Inspect surrounding hinge screws and door hardware and replace if worn for best results

This center hinge assembly supports the refrigerator door at the mid-hinge position and allows smooth, reliable pivoting. Replacing a worn hinge restores proper alignment so the door closes and seals as designed.

• Provides the pivot point at the center hinge location
• Supports door weight to maintain alignment and clearance
• Helps ensure even gasket contact for an effective seal
• Common symptoms: door sagging or rubbing, squeaking at the hinge, difficulty closing, visible play or damage at the hinge pin

• Unplug the appliance and remove items from the door to reduce weight
• Support the door while removing the center hinge fasteners
• Note and transfer any spacers/washers in the same order and orientation
• After installation, align the door and verify the gasket seals evenly

This upper hinge assembly supports the refrigerator door at the top, providing a smooth pivot and proper alignment. Replacing a worn hinge restores even gaps and a tight seal to help maintain consistent cooling performance.

• Supports the door's weight and provides the top pivot point
• Maintains alignment for correct gasket compression and a tight seal
• Helps the door open and close smoothly without rubbing or binding
• Common signs of wear: door sagging or misalignment, rubbing/clicking noises, and poor sealing or condensation around the gasket

• Unplug the refrigerator before servicing.
• Remove the top hinge cover; retain screws and any shims for reuse.
• Support the door with a helper while removing and installing the hinge.
• Position the new hinge, align the door, then tighten screws and verify smooth swing and full gasket contact all around.

Left side upper hinge.

This cap assembly seals and secures the dryer exhaust duct connection to maintain proper airflow and help keep lint and debris contained. It replaces a damaged or missing duct cap to restore a tidy, safer vent junction. What it does:

• Covers and secures the dryer duct outlet to prevent gaps where lint and debris escape
• Helps maintain directed airflow for efficient drying and reduced lint buildup
• Can reduce rattling or vibration caused by a loose or broken duct connection
• Common symptom fixes: visible gap at the duct connection, excessive lint around the exhaust, or a loose/unstable duct outlet

• One cap assembly (duct) as shown

• Always disconnect power (and gas if applicable) before servicing the dryer
• Access may require removing the dryer back panel or exhaust collar; keep track of fasteners
• Check the mating duct and seal; replace damaged ducting or seals to ensure a proper fit

This lever return spring restores proper tension to the lever assembly so the control or latch returns smoothly. A direct-fit replacement designed to restore normal lever movement and function. What it does:

• Provides return tension for the lever to ensure reliable latch or control movement
• Helps stop the lever from sticking or remaining engaged after use
• Restores smooth, consistent operation when the original spring is worn or broken
• Commonly replaced when lever movement feels loose or fails to return

• One spring lever

• Disconnect power (or unplug) and follow appliance safety procedures before servicing
• Access may require removing panels or the control/door assembly; keep fasteners organized
• Inspect mating lever and pins for wear; replace damaged components to prevent repeat failure

This replacement spring provides the tension for a door hinge, helping the door open smoothly and stay closed for a proper seal and consistent appliance performance.

• Applies controlled tension to the hinge mechanism for smooth door movement
• Helps the door stay closed and aligned against the gasket
• Worn or broken spring symptoms can include the door dropping open, not staying closed, an uneven gap, or squeaking/binding at the hinge
• Restores normal feel and operation to the door

• Disconnect power and allow the appliance to cool completely before servicing
• Support the door; removal of the door or hinge arm may be required
• Use caution—hinge springs are under significant tension; wear gloves and eye protection
• Replacing both springs together helps maintain balanced tension

This button lever is the small control-panel actuator that transfers finger pressure to the underlying switch, restoring reliable button feel and control response. Replaces worn, cracked, or missing levers to make front-panel buttons usable again. What it does

• Acts as the actuator for a specific control-panel push button, transferring user press to the switch beneath.
• Restores button engagement when the original lever is cracked, broken, or has fallen off.
• Helps eliminate intermittent or non-responsive button presses caused by damaged actuators.
• Fits into the control-bezel and aligns the button with the switch for consistent operation.

• One button lever/actuator as shown.

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock or accidental activation.
• Access typically requires removing the control-bezel or panel; handle clips and small fasteners carefully.
• Align the lever onto the switch plunger and secure the bezel; do not force plastic parts to avoid breakage.

The Door Handle Holder Assembly is an OEM replacement part for LG refrigerators. It contains the internal brackets and mounting hardware required to securely attach the refrigerator door handles.

Causes of a faulty door handle holder assembly include wear from years of use, broken or stripped screws, or cracks in the plastic from heavy pulling or slamming.

Symptoms of a problematic door handle holder assembly are:

• Loose, wobbly or disconnected door handles
• Difficulty opening the refrigerator door
• Handles that do not stay flush or feel secure

This OEM LG replacement is compatible with select Kenmore side-by-side refrigerator models as well.

This lever button is the push-style control used to activate a specific function on the appliance's control panel. It restores tactile control and makes it easy to trigger the associated feature without replacing the whole panel. What it does:

• Acts as the user-facing push lever that completes the button action on the control assembly
• Replaces a cracked, worn or unresponsive lever that won't depress or return properly
• Helps resolve intermittent or failed button activation when the switch and contacts are otherwise good
• Matches the OEM shape so the button aligns and engages cleanly with the underlying switch

• High-level swap: remove the front/control bezel to access and replace the lever; keep screws and clips organized
• Power safety: disconnect power (unplug or shut off breaker) before servicing control area
• Inspect underlying switch and mounting clips during replacement; do not force parts into place

This door magnet is the magnetic gasket strip that helps the door close securely and maintain an airtight seal, improving cooling efficiency and preventing leaks or temperature loss. What it does:

• Restores the magnetic attraction in the door seal so the door stays closed
• Helps maintain proper internal temperature by providing an airtight seal
• Reduces frosting, condensation, and energy waste caused by a weak or damaged seal
• Common symptom: door not sealing or closing firmly

• Disconnect power to the appliance before starting any repair
• Remove the door gasket or trim per the service manual to access the magnet strip
• Press or seat the magnet strip into the gasket channel; some models may require adhesive or fasteners—refer to OEM instructions

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


The Thermistor Assembly is an OEM part for LG refrigerators. As a key component, it plays an integral role in monitoring and regulating interior temperatures. Consisting of a thermistor sensor and connection wire harness, it communicates real-time temperature readings to the control board.

Symptoms of a bad thermistor assembly can include failure to properly detect temperature changes, causing inaccurate interior conditions, or affecting automatic defrost cycles. Breaks or shorts in the wiring can interrupt readings.

Causes of failure include general wear over time, damage from moisture exposure, or loose connections inhibiting communication. Thermistors may also fail prematurely in high-humidity environments.

Symptoms of a bad thermistor assembly include:

• Inability to maintain set interior temperatures
• Frost or ice buildup inside with poor defrosting
• Refrigerator failing to cool or cooling excessively
• Control panels displaying error codes relating to sensors

This OEM LG part is also compatible with Sears/Kenmore.


The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

Replacement front cover that restores your appliance's exterior finish and helps protect controls and internal components from everyday wear, spills, and minor impacts, delivering a clean, finished look and proper front-panel fit. What it does:

• Covers and protects the appliance's front area, helping shield controls and wiring from dirt and moisture.
• Restores damaged or cracked front trim for improved appearance.
• Helps maintain proper alignment and fit of the front assembly.
• Common symptom: cracked, chipped, warped, or loose front panel that exposes internal parts or looks worn.

• Disconnect power (unplug or switch off breaker) before starting any repair.
• Basic hand tools (screwdriver set) may be required to remove the old cover and install the replacement.
• Handle edges carefully to avoid cuts; align tabs/clips and secure fasteners snugly but do not overtighten.

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

This customized pin is a precision fastener that serves as a pivot or locating point within your appliance. It helps keep mating parts aligned and moving smoothly. Replace a bent, worn, or missing pin to restore proper operation. What it does

• Acts as a pivot/axle or locating pin between connected parts
• Maintains alignment to reduce wobble and uneven movement
• Supports smooth opening/closing or rotation at the joint
• Common signs it's needed: looseness, sagging or misalignment, scraping/squeaking at the pivot, or a visibly worn/bent/missing pin

• One customized pin

• Disconnect power (and shut off water supply, if applicable) before servicing
• Support the door/panel/assembly to remove load from the pin during removal/installation
• Note the orientation and order of any spacers, bushings, or washers and transfer them to the new pin
• Apply a light lubricant and verify smooth movement before restoring power

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part removes moisture and contaminants from the refrigerant, ensuring the system operates efficiently and effectively. The drier assembly helps maintain the proper function of the compressor and other cooling components, contributing to the longevity and performance of the refrigerator.

Causes of a bad drier assembly can include clogs from debris, wear and tear over time, or contamination from moisture or refrigerant leaks.

Symptoms of a bad drier assembly include:

• The refrigerator not cooling properly
• Frost or ice buildup on the evaporator coils
• Increased noise from the compressor
• Reduced efficiency and higher energy consumption
• You should replace the drier assembly if it becomes faulty or damaged.

This OEM LG part is also compatible with select Sears/Kenmore models.

This replacement drip tray catches and channels water beneath the appliance to prevent leaks and pooling. It helps maintain proper drainage and reduces the chance of water damage under your refrigerator or freezer. What it does:

• Collects condensation, defrost water, or minor leaks to keep the cabinet floor dry
• Directs water to the evaporator or drain system so it can safely evaporate
• Helps prevent pooling that can lead to odors or mildew
• Restores a damaged or missing tray to stop water from dripping onto the floor

• For safety, unplug the appliance and shut off water supply (if applicable) before installing
• Slide or snap the tray into the designated location; ensure it seats fully and aligns with the drain path
• Inspect surrounding seals and drain channels for blockages or damage while the tray is accessible

Restore proper airflow with this replacement fan assembly. It circulates air across the coils and through the cabinet so your refrigerator can move heat effectively and maintain consistent temperatures throughout. What it does:

• Drives airflow to support heat exchange at the coils
• Helps maintain stable, even temperatures inside the compartments
• Supports proper cooling performance and system reliability
• Common symptoms: fan not running or intermittent, unusual rattling/scraping noise, reduced airflow, warmer-than-normal temps or extended run times

• 1 fan assembly

• Disconnect power before servicing; wear cut-resistant gloves
• Access the fan compartment; remove covers/panels as designed
• Note wire orientation and transfer any reusable hardware from the old unit
• Secure the assembly; ensure the blade spins freely before restoring power and testing

The Evaporator Fan Blade is an OEM replacement part for LG refrigerators. It is a key component located inside the refrigerator that works to circulate cold air evenly throughout. The fan blade spins rapidly to distribute chilled air from the evaporator coil and refrigeration system, ensuring proper airflow and consistent temperatures across all shelves and compartments.

Symptoms of a bad evaporator fan blade include:

• Inconsistent or improper interior cooling temperatures
• Hot or warm spots developing inside the refrigerator
• Strange noises such as clicking or grinding emanating from the rear wall

Causes of a bad evaporator fan blade can be wear and tear over time, an accumulation of dust or debris on the blades restricting airflow, or accidental damage like dents or cracks to the blades affecting their ability to spin smoothly.

This OEM LG part is also compatible with select Sears/Kenmore brand models.

This fan grille assembly covers and protects the appliance fan while helping direct airflow and minimize noise. It's a direct-fit replacement component that restores proper ventilation and keeps debris away from the fan blades. What it does:

• Shields fan blades from objects and debris that can cause damage or binding
• Directs airflow for more consistent ventilation and cooling performance
• Helps reduce rattle or vibration caused by cracked or loose grille pieces
• Restores proper fan clearance when the original grille is warped or broken

• Disconnect power to the appliance before starting any work.
• Handle the grille carefully to avoid damaging mounting tabs; small plastic clips are common.
• Installation typically requires basic hand tools (screwdriver); align tabs and secure fasteners snugly.

This sheathed heating element powers the automatic defrost system. It melts frost from the evaporator so air can circulate and temperatures stay consistent, helping restore cooling performance while preventing ice buildup.

• Provides controlled heat during the defrost cycle to clear ice from the evaporator coils
• Maintains airflow and stable temperatures for proper cooling
• Common failure symptoms: heavy frost on the back panel, warm or inconsistent temps, long run times
• Also presents as fan noise from ice contact or reduced cooling/ice production

• Disconnect power before service; allow any built-up ice to thaw
• Access the evaporator by removing interior panels; steps vary by model
• Handle the element carefully—do not kink, sharply bend, or stress the lead wires; transfer any clips/insulators from the original
• Check heater continuity and inspect the defrost thermostat/sensor while the area is open

This magnet-activated switch is a small sensor that tells the appliance when a door or lid is open or closed. Replacing a faulty switch restores proper lighting, door-ajar alerts, and safety interlocks for normal operation.

• Senses a nearby magnet to report door/lid open/closed status to the control
• Helps control interior lights, alarms, fans, and dispenser/ice interlocks on applicable units
• Failure symptoms can include lights staying on or off, false door-ajar beeps, or dispenser/ice disabled
• Common causes: moisture intrusion, damaged leads, or stuck internal contacts

• Disconnect power before servicing
• Access the switch at the door opening (behind trim/control housing or liner, location varies by model)
• Release locking tabs/fasteners, move wiring carefully, and install the new switch in the same orientation
• Restore power and verify operation by bringing a magnet near the switch to toggle

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

The Evaporator Fan Motor Assembly is an OEM replacement part for LG refrigerators. This assembly is responsible for circulating cold air from the evaporator coils throughout the refrigerator and freezer compartments. By doing so, it ensures that both compartments maintain the desired temperatures and that the cooling process is efficient.

Causes for a malfunctioning Evaporator Fan Motor Assembly can include motor wear from continuous operation, electrical issues like faulty wiring, obstructions preventing the fan blades from turning, or damage to the fan blades themselves.

Symptoms of a bad Evaporator Fan Motor Assembly include:

• Inconsistent temperatures in the refrigerator or freezer compartments
• Unusual noises, such as humming or buzzing, coming from the back of the refrigerator
• Reduced cooling efficiency, leading to food spoiling faster
• Frost buildup in the freezer due to poor air circulation

This OEM LG part is also compatible with Sears/Kenmore model refrigerators.

A replacement cover motor that powers the refrigerator's dispenser cover, allowing the door to open and close so you can access ice and water. Replaces a worn or failed motor to restore normal dispenser cover operation. What it does:

• Drives the dispenser cover mechanism so the cover opens when dispensing and closes when idle
• Helps keep the dispenser sealed to reduce drafts and prevent pests or debris from entering
• Stops or fails to move when worn, causing a stuck, slow, or noisy dispenser cover
• Works with the dispenser linkage and gears to coordinate cover motion with user controls

• One cover motor

• Disconnect power to the appliance before beginning any repair
• Remove dispenser trim and access panel per your model's service instructions to reach the motor
• Handle gears and linkage carefully; ensure proper alignment during reassembly and test cover operation before finishing

Damper motor support secures the damper motor assembly inside the refrigerator, keeping the air-control damper aligned so it opens and closes correctly. Replacing a damaged support restores proper airflow control and reduces noise. What it does:

• Secures and positions the damper motor assembly so the air-control damper moves smoothly.
• Keeps the motor and damper aligned to help prevent rattling, grinding, or loose motor noise.
• Supports consistent airflow between compartments to assist with even cooling.
• Resolve damper movement problems like the damper not opening or closing fully.

• Disconnect power to the appliance before starting work; remove food and shelves as needed for access.
• Remove the interior access panel to reach the damper assembly; handle plastic tabs and clips gently to avoid breakage.
• Align the motor and damper during reassembly and secure all fasteners; test damper operation before replacing panels and shelving.

This damper motor support replaces a broken or warped mount for the refrigerator's air damper assembly. It holds the damper motor and door securely so the system can meter freezer air into the fresh food compartment.

• Secures and aligns the air damper motor/door within the duct
• Helps ensure proper opening/closing of the damper to regulate airflow and temperature
• Damage can contribute to a warm or too-cold refrigerator and inconsistent temperatures
• May cause clicking or buzzing from the damper area or a visibly loose assembly

• Disconnect power to the refrigerator before servicing
• Access the damper behind the fresh food compartment duct/cover; remove shelves as needed
• Note wiring and orientation; transfer the existing damper motor and door to the new support and reuse fasteners
• Ensure the door moves freely and seals before reassembly; restore power and verify airflow

This button holder secures a control panel push button in place so button presses register reliably and the panel stays finished. It restores proper button positioning and prevents the button from falling out or sticking. What it does:

• Holds a control panel push button in the correct position for reliable operation
• Keeps the button aligned so presses engage the switch or membrane consistently
• Prevents the button from popping out or becoming loose during normal use
• Helps maintain the appliance's finished appearance around the control area

• One button holder

• Turn power to the appliance off before attempting any service to avoid shock or injury
• Remove the control panel or bezel per the manufacturer's instructions to access the holder
• Inspect surrounding buttons and switches for wear; replace damaged components as needed

Replacement handle cap that covers and secures the end of a refrigerator or freezer door handle for a finished appearance and to protect exposed hardware. Restores a clean look and hides fasteners. What it does:

• Covers the exposed end of a door handle to conceal screws and mounting holes.
• Protects handle hardware from dirt and wear.
• Improves the appliance's appearance when an original cap is cracked, broken, or missing.
• Helps prevent snagging on a damaged or loose handle end.

• High-level snap-on or screw-on installation; handle removal may be required for access.
• Use basic hand tools as needed and avoid forcing parts to prevent damage.
• Confirm fit and finish before final installation.

This door stopper cushions and limits the travel of a refrigerator door to prevent slamming and reduce wear on the hinge and cabinet. Replaces a worn or broken stopper to restore smooth, controlled door movement. What it does:

• Acts as a bumper and travel limiter to prevent the door from hitting the cabinet
• Absorbs impact to reduce noise and protect hinge components
• Helps the door close and align properly when opening and closing
• Commonly replaced when cracked, missing, or excessively worn

• Turn off and unplug the appliance or disconnect power before starting any work
• Remove the hinge or door trim as needed to access the stopper following the manufacturer service instructions
• Replace the stopper by removing the old piece and securing the new stopper in the same position; retain original fasteners unless replacement is required

A replacement door supporter that secures and stabilizes the appliance door assembly to restore alignment and smooth operation. Ideal when a worn or damaged bracket causes door sag, misalignment, or rubbing. What it does:

• Provides structural support to the door assembly and keeps the door properly aligned.
• Helps prevent door sag and binding that can stop the door from closing fully.
• Reduces rubbing, scraping, or noisy operation caused by a damaged or bent bracket.
• Restores correct door travel and helps maintain an even seal when the door is closed.

• Disconnect power and remove/disconnect the door before replacing the bracket.
• Use appropriate hand tools to remove mounting screws; keep original hardware unless replacement is required.
• Test door alignment and operation after installation; tighten fasteners evenly to avoid binding.
• If hinge components or mounting points are damaged, replace those parts as well to ensure proper fit and function.

The PCB Assembly is an OEM part for LG refrigerators. It stands for Printed Circuit Board, which is the main control board that manages and regulates various functions and components within the refrigerator.

Symptoms of a bad PCB Assembly include:

• The refrigerator not powering on or displaying any lights/indicators
• Specific components or features not functioning correctly (ice maker, dispenser, cooling, etc.)
• Error codes or warning lights illuminated on the control panel
• Strange noises or abnormal behavior from the refrigerator

Causes of a bad PCB Assembly can be related to electrical faults, such as short circuits, power surges, or component failures. Physical damage from impact, moisture exposure, or overheating can also contribute to the malfunction of the PCB.

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

This LED assembly restores screen illumination by replacing a failed backlight strip. It helps return even, bright lighting to the LCD panel so pictures and menus are visible again without the dim or dark display caused by burned-out LEDs. What it does:

• Replaces the display backlight to restore screen brightness and uniform lighting
• Can resolve symptoms like dim display, dark bands, flickering backlight, or no visible picture with audio
• Works as the LED lighting component mounted behind the LCD panel to illuminate the image
• Designed to match the original LED layout and connector for a direct replacement

• One LED assembly (backlight strip) as shown

• Disconnect power and remove the display panel and bezel before replacing the assembly
• Handle the LCD and LEDs carefully to avoid damage; avoid touching LED surfaces and circuit traces
• Observe ESD precautions and use appropriate tools;

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

The Capacitor is an OEM part for LG refrigerators. It plays a vital role in the electrical system, providing the necessary power boost to start the compressor and maintain its operation. This component ensures that the refrigerator runs efficiently by stabilizing voltage and improving overall performance.

Common causes of a bad capacitor include electrical surges, wear and tear over time, or exposure to excessive heat.

Symptoms of a bad capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual noises coming from the refrigerator
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

Power cord assembly that restores the appliance's connection to household mains. Replaces a damaged or worn cord to help stop power loss, sparking, or intermittent operation and restore a safe power feed. What it does:

• Provides the main electrical connection from the wall outlet to the appliance so internal components receive line voltage.
• Replaces cords with visible damage, frayed insulation, exposed wires, or broken plug prongs.
• Can resolve symptoms such as no power, intermittent power, sparks at the plug, or breaker trips caused by a faulty cord.
• Restores the original style of power connection and strain-relief routing for a secure fit.

• Always disconnect power at the wall before attempting service.
• Basic hand tools may be required; secure the cord firmly with the appliance's strain relief and tighten screws.

This DC motor assembly powers a fan inside your appliance to move air where it's needed. Replacing a weak or failed motor restores proper airflow for stable temperatures and reliable performance. What it does:

• Drives a fan blade to circulate air within the appliance
• Supports consistent temperatures and efficient airflow
• Common failure signs: fan not running, intermittent operation, or grinding/squealing noises
• Contribute to poor cooling/heating and fan/motor-related error codes

• Includes: 1 DC motor assembly

• Disconnect power to the appliance before servicing
• Access the fan area, note wire routing/orientation, and remove mounting fasteners
• Transfer the fan blade and any mounting hardware from the original motor if needed
• Ensure the blade spins freely and connectors are fully seated before reassembly and power-up

The Main PCB Assembly is an OEM part for LG refrigerators. Housed inside the control housing, this circuit board directs all critical refrigerator operations from cooling and icemaking to door alarms. Precise programming maintains consistent temperatures across compartments.

Causes of a bad main PCB can include physical impact, moisture intrusion into circuit paths, or expected component degradation over time. Without proper control, the refrigerator sections cannot regulate temperatures as designed.

Symptoms of a bad main PCB include:

• Inability to adjust temperature settings
• Erratic cooling or icemaker performance
• Intermittent control functions and error codes
• Moisture or physical damage visible on PCB

This LG OEM replacement ensures reliable operation for years to come. Compatible also with Sears/Kenmore refrigerators, it provides a direct fit and restoration of essential cooling functions. Proper installation protects future operations.

A replacement display cover assembly for the control panel that protects the display and control buttons while keeping the panel looking clean. Restores the finished appearance and helps shields controls from household wear. What it does:

• Protects the control board display lens and button area from scratches, spills, and everyday wear
• Preserves visibility of the control panel and display indicators
• Helps prevent direct contact with electronics behind the panel
• Useful when the original cover is cracked, scratched, or discolored

• Disconnect power before beginning any repair to avoid shock or damage
• Typically installs at the front control panel; some disassembly of the console may be required
• Handle gently to avoid scratching the new cover during installation

The Ice Maker Assembly Kit is an OEM part for LG refrigerators. This kit includes all the necessary components to produce ice efficiently, ensuring your refrigerator maintains a steady supply of ice for your household. The kit also features a 20-pin and 3-pin wiring harness.

Causes of a bad ice maker assembly can include wear and tear over time, mineral buildup from hard water, or electrical malfunctions. Additionally, damage can occur due to improper handling or issues with other components in the ice-making system.

Symptoms of a bad ice maker assembly include:

• No ice production
• Slow ice production or smaller ice cubes
• Ice cubes that are misshapen or irregular
• Leaking water around the ice maker
•  Unusual noises during the ice-making process

This OEM LG part is also compatible with Sears/Kenmore.

This indoor fan motor powers the air conditioner's indoor unit blower to move air across the evaporator coil. Replacing a weak or failed motor restores proper airflow for effective cooling and comfort.

• Drives the indoor blower/crossflow fan to circulate conditioned air
• Maintains correct airflow across the evaporator for cooling and dehumidification
• Common symptoms of failure: no or weak airflow, fan won't start or stalls, intermittent operation
• May cause unusual buzzing/grinding noises or the unit shutting down with a fan-related fault

• Disconnect power at the breaker before servicing; allow moving parts to stop
• Remove the indoor unit cover and access panel; note wire harness connections and routing
• Transfer any brackets, insulators, or hardware from the old motor if required
• Ensure the fan wheel spins freely and does not rub before restoring power and testing

This sensor PCB assembly detects and relays sensor signals to the appliance control system, restoring accurate sensor feedback and communication when the original sensor board fails or malfunctions. Designed as a direct replacement board. What it does:

• Reads sensor inputs and converts them to signals the main control board can interpret.
• Replaces a failed or intermittent sensor board that causes incorrect readings or sensor-related error codes.
• Can resolve symptoms such as unexpected sensor faults, control errors, or appliances not responding to sensor changes.
• Matches the OEM board function; verify model compatibility before ordering.

• Always disconnect power before servicing to avoid shock or shorting the board.
• Use ESD precautions and handle the PCB by its edges to prevent static damage.
• Ensure all connectors are fully seated and the board is mounted in the original orientation.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

This cap assembly replaces a damaged or worn dryer exhaust duct cap to restore proper venting and help keep pests and debris out of the ductwork. Fits the dryer's exterior duct outlet and guides hot, moist air outside. What it does:

• Seals and covers the dryer exhaust opening to reduce air leaks and backflow
• Directs exhaust airflow out of the home for proper drying performance
• Helps block pests, leaves and debris from entering the vent system
• Reduces moisture buildup and associated odor or lint accumulation near the duct opening

• One cap assembly

• Disconnect power (and gas supply on gas dryers) before beginning any work
• Remove the old cap and clean the surrounding duct and mounting surface before installing
• Secure with the existing fasteners or compatible screws and seal edges with foil HVAC tape if needed
• Inspect the connected ducting and lint trap while replacing the cap; replace damaged duct sections for best performance

The Lever Dispenser is an OEM part for LG refrigerators. It is the control mechanism responsible for dispensing crushed ice and water through the refrigerator door without opening it. The lever and dispensing components are designed to withstand frequent use while retaining smooth, reliable operation.

Causes of a bad lever dispenser can include worn parts inhibiting proper dispensing movement, cracks or damage reducing structural integrity, or mineral buildup affecting functionality over time.

Symptoms of a bad lever dispenser include:

• Difficulty or inability to dispense ice and water
• Leaks or drips around the dispenser area
• Loose, rattling, or unresponsive lever action
• The dispenser not activating or emptying the reservoir

This OEM LG part is also compatible with dispenser models featured on Kenmore side-by-side refrigerators.

The Water Tank Assembly is an OEM part for LG refrigerators. It stores and supplies water for the refrigerator's dispenser and ice maker, ensuring a steady and clean water flow for these features.

Causes of a bad water tank assembly can include mineral buildup from hard water, leaks due to cracks or punctures, or contamination from mold or bacteria if the tank is not regularly cleaned. Over time, wear and tear from repeated use can also lead to failure.

Symptoms of a bad water tank assembly include:

• Water dispenser not functioning properly
• Reduced or no ice production
• Leaks or puddles inside the refrigerator
• Unpleasant taste or odor in the water

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

An in-line union for appliance tubing, this tube connector joins two sections of plastic line to create a secure, leak-resistant connection in the water circuit, ideal for restoring flow after a repair, trim, or reroute. What it does:

• Connects two lengths of compatible plastic tubing to form a continuous run
• Helps maintain proper water delivery through the appliance's water system
• Can address leaks, drips, or loose/failed connections at a splice point
• Useful when replacing, shortening, or rerouting tubing during service

• 1 tube connector

• Disconnect power and shut off the water supply before servicing
• Cut tubing square; ensure ends are clean, round, and free of gouges
• Insert tubing fully into the connector until seated, then perform a gentle pull test
• Restore water and inspect all joints for leaks; use the connector size that matches your tubing's outer diameter

This tube assembly directs water through the appliance, restoring a secure, leak-resistant path when the original line is brittle, kinked, or damaged. Replacing it helps stop leaks and restores normal water flow.

• Routes water from the inlet valve to internal components
• Maintains sealed connections to reduce drips and seepage
• Replaces tubing that is cracked, kinked, or clogged with mineral deposits
• Common symptoms: visible leaks, puddling, low flow, or intermittent water delivery

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water and relieve line pressure
• Note the routing and connection points; transfer any retainers from the old part if needed
• Insert tubing fully into fittings and tug gently to confirm engagement; restore water and check for leaks

This tube assembly directs water through the appliance, restoring a secure, leak-resistant path when the original line is brittle, kinked, or damaged. Replacing it helps stop leaks and restores normal water flow.

• Routes water from the inlet valve to internal components
• Maintains sealed connections to reduce drips and seepage
• Replaces tubing that is cracked, kinked, or clogged with mineral deposits
• Common symptoms: visible leaks, puddling, low flow, or intermittent water delivery

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water and relieve line pressure
• Note the routing and connection points; transfer any retainers from the old part if needed
• Insert tubing fully into fittings and tug gently to confirm engagement; restore water and check for leaks

The Water Inlet Valve is an OEM part for LG refrigerators. It controls the flow of water into the refrigerator for the ice maker and water dispenser, ensuring a steady and controlled supply of water.

You should replace the water inlet valve if it becomes clogged, damaged, or fails to function properly. Causes of a bad water inlet valve can include mineral buildup from hard water, electrical malfunctions, or general wear and tear over time.

Symptoms of a bad water inlet valve include:

• The ice maker not producing ice
• The water dispenser not dispensing water
• Leaking water from the valve area
• Unusual noises when the valve is operating
