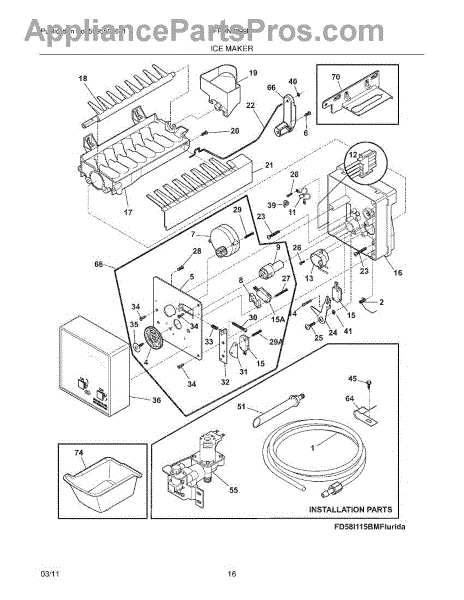

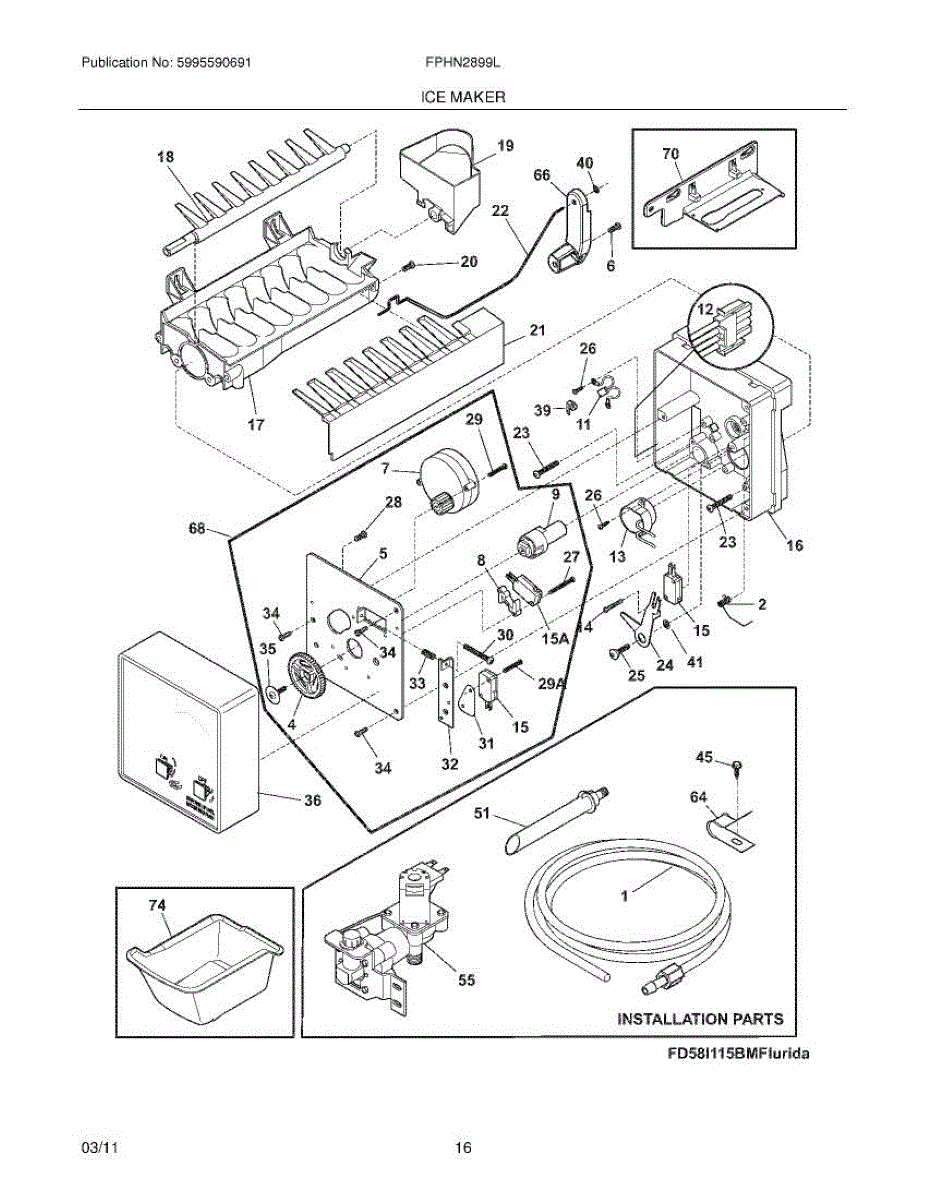

Parts for Frigidaire FPHN2899LF2: 15 - Ice Maker Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This is the drive gear for the ice maker module. It transfers motor power to the ejector/harvest mechanism so cubes release consistently; worn or stripped teeth can cause clicking, stalls, or little to no ice production.

• Transfers motor torque to rotate the ejector and complete the harvest cycle
• Replaces a cracked, stripped, or worn gear that prevents proper ice ejection
• Typical symptoms: no ice production, icemaker stuck mid-cycle, clicking or grinding from the module
• Helps restore reliable ice maker cycling

• Unplug the refrigerator before service; turn off the water supply if moving the icemaker
• Remove the icemaker assembly for access; note the original gear's orientation before removal
• Align the new gear with the shaft; do not force it—inspect mating parts for wear
• After reassembly, verify the ejector turns freely; restore power and run a test cycle

This ice ejector is the plastic arm that pushes cubes out of the ice maker mold and into the ice bin, restoring proper ice ejection and dispenser function. It's a direct-replacement component for affected ice maker assemblies. What it does:

• Physically strips and pushes formed ice cubes from the mold into the bin or dispenser
• Helps restore normal ice dispensing when cubes remain stuck in the mold
• Works with the ice maker's motor/gear train to time ejection during the harvest cycle
• Commonly replaced when the ejector is broken, cracked, or worn and no longer contacts cubes

• One ice ejector (ejector arm)

• Disconnect power to the refrigerator before starting any repairs
• Remove the ice maker/cover or access panel as required to reach the ejector
• Inspect related components (drive gear, motor, and mounting pins) for wear while replacing the ejector
• After installation, run a test harvest/dispense cycle to correct operation

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This is a replacement screw used to secure appliance components and panels so parts stay aligned and stable during normal use. Installing the correct screw restores proper fit and helps eliminate loose panels or rattling. What it does:

• Fastens panels, brackets, or small assemblies to the appliance frame
• Keeps components aligned to prevent gaps and vibration
• Replaces stripped, rusted, or lost hardware to restore secure attachment
• Compatible with the original mounting point and thread form when matching the OEM PN

• Disconnect power or unplug the appliance before starting repairs
• Use the properly sized driver to avoid cam-out or head damage
• Do not overtighten; tighten until snug to avoid stripping threads
• Keep removed hardware before final reassembly

This is a single replacement screw used to secure appliance panels and components. It restores proper fastening so parts sit securely and reduces rattling or loose trims. What it does

• Secures panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling, vibration noise, and loose or sagging parts
• Replaces stripped, corroded, or missing fasteners for a snug fit
• Works as a direct replacement when the original screw is lost or damaged

• One replacement screw

• Turn power off and unplug the appliance before servicing
• Use the correct driver and avoid over-tightening to prevent stripping
• Keep replacement screws dry and use corrosion-resistant screws in wet areas

A small flat washer used as a spacer or load-distribution washer in the appliance. Replaces a worn or missing washer to help maintain proper part alignment and reduce metal-on-metal wear. What it does:

• Provides a stable bearing surface between fasteners and mating parts
• Maintains correct spacing and alignment for rotating or stationary components
• Helps reduce wear, vibration, and noise where mounted
• Commonly replaced when corroded, bent, or missing

• Disconnect power and water before servicing the appliance
• Replace with an identical washer size and thickness to maintain fit and function
• Use appropriate hand tools; avoid overtightening fasteners
• If unclear where this washer fits, consult your model's parts diagram

The Water Valve is an OEM part for Frigidaire refrigerators. It is crucial for controlling the flow of water to the ice maker and water dispenser. This solenoid-operated valve responds to commands from the refrigerator's electronic control to supply water when needed, ensuring efficient operation and reliable delivery of ice and water.

Symptoms of a bad Water Valve include:

• No water being dispensed
• The ice maker not producing ice or producing very small ice cubes
• Water leaking from the valve

Causes of a bad water valve can include mineral deposits blocking the valve, electrical failures preventing the valve from opening, or wear and tear from normal use leading to leaks or operational failures.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This Refrigerator Water Valve is a genuine OEM replacement part for Frigidaire refrigerators. It is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser. This part ensures a steady and reliable water supply for ice production and water dispensing.

Causes of a bad water valve can include a faulty solenoid, clogged or blocked water lines, or a malfunctioning water pressure regulator. These issues can result in a variety of problems, such as slow or no ice production, weak water flow from the dispenser, or leaks around the valve.

Symptoms of a bad water valve include:

• No ice cubes being produced
• Low water pressure or weak water flow from the dispenser
• Leaks around the water valve or water lines
• Inconsistent ice production or dispensing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This ice maker mounting bracket secures the ice maker assembly inside the refrigerator so it stays stable and correctly aligned with the water fill tube. Replace a damaged bracket to prevent looseness and restore consistent ice production.

• Supports and positions the ice maker assembly
• Maintains proper alignment with the water fill tube for correct filling
• Damage can cause a loose/sagging ice maker, rattling, water drips near the ice maker, or intermittent/no ice
• Replace if the bracket is cracked, bent, or missing

• Unplug the refrigerator and shut off the water supply before service
• Remove the ice bin and ice maker to access the bracket; reuse existing mounting hardware
• Ensure the fill tube seats correctly and the ice maker sits level before tightening fasteners
• Restore power and water; check for leaks and proper ice maker operation

Color: Black/natural. Nylon

The Screw is an OEM part for Frigidaire refrigerators. As a common fastener used throughout the appliance, screws hold panels, handles, components and more securely in place. Reliable performance depends on intact assemblies.

Causes of a bad screw can include wear and corrosion over time from constant vibration, as well as stripping or shearing from repeated securing and removal of parts during repairs.

Symptoms of a loose, damaged, or missing screw include:

• Rattling noises and vibration
• Doors, handles, or panels that are no longer flush or tightened securely
• Internal components that have shifted position

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This thermistor kit is the refrigerator temperature sensor assembly that monitors internal air temperature so the control can run the compressor and fans at the right times. Replaces a failed sensor to restore proper temperature sensing and cycling. What it does:

• Detects refrigerator/freezer compartment temperature and sends that signal to the control board
• Helps the control manage compressor and fan runtime for consistent cooling
• Commonly used when the fridge is not maintaining temperature or cycles erratically
• Works as the sensor portion of the evaporator/air-sensing circuit in compatible models

• Disconnect power before servicing to avoid shock or damage.
• Handle the sensor and connector gently; do not kink the sensor lead or damage the probe tip.
• Route the harness and secure clips per the original layout to ensure accurate sensing.

This tube adapter connects and seals a refrigerator water line to the inlet or valve, restoring a secure water pathway for the ice maker or dispenser. Use it to stop leaks and re-establish reliable water flow. What it does

• Adapts and secures the appliance water tube to the inlet or valve, forming a leak-proof connection
• Restores proper water feed to the ice maker and/or water dispenser when the original adapter is damaged
• Helps prevent drips or steady leaks at the tube connection
• Works with standard refrigerator water tubing and compression fittings where specified

• One tube adapter

• Turn off the refrigerator power and shut off the household water supply before starting
• Remove the damaged adapter and clean tube ends; replace with this adapter using appropriate compression or push-fit method
• Tighten fittings to a snug, leak-free fit; avoid over-tightening plastic parts
• After installation, restore water and power, and check thoroughly for leaks

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

The Fill Tube Kit is an OEM part for Frigidaire refrigerators. It contains the tubes used to direct water from the water supply line into the refrigerator's water dispenser and ice maker. As these tubes can degrade over time due to mineral buildup or cracking, this kit provides a like-new replacement to ensure optimal water flow.

Causes of a bad fill tube include mineral or limescale deposits restricting water flow, cracks or leaks developing from general wear and tear, or accidental damage from installation or maintenance issues.

Symptoms of a bad fill tube are:

• Slow or inconsistent water flow from the dispenser
• Dripping or leaks from the fill tube connection points
• Ice maker not working or producing small or misshapen ice cubes
• Water backing up or overflowing in the refrigerator

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle

This refrigerator water inlet tube routes water from the supply/valve into the appliance's water system. Replacing a cracked or kinked tube restores proper flow to the dispenser and ice maker while helping prevent leaks.

• Directs water from the inlet valve to internal components for dispensing and ice production
• Maintains a sealed, food-grade water path
• Replace if you notice leaks under/behind the unit, visible cracks/kinks, reduced or intermittent dispenser flow, or ice maker not filling
• Normal wear, brittleness, or damage during moves can lead to failures

• Disconnect power and shut off the water supply before servicing
• Place a towel or tray to catch residual water when disconnecting lines
• Note the original routing; release any retaining clips and disconnect the tube from fittings
• Route the new tube exactly like the original and fully seat tube ends in connectors; restore water and check for leaks

This refrigerator water inlet tube routes water from the supply/valve into the appliance's water system. Replacing a cracked or kinked tube restores proper flow to the dispenser and ice maker while helping prevent leaks.

• Directs water from the inlet valve to internal components for dispensing and ice production
• Maintains a sealed, food-grade water path
• Replace if you notice leaks under/behind the unit, visible cracks/kinks, reduced or intermittent dispenser flow, or ice maker not filling
• Normal wear, brittleness, or damage during moves can lead to failures

• Disconnect power and shut off the water supply before servicing
• Place a towel or tray to catch residual water when disconnecting lines
• Note the original routing; release any retaining clips and disconnect the tube from fittings
• Route the new tube exactly like the original and fully seat tube ends in connectors; restore water and check for leaks

The Freezer Ice Maker is an OEM part for Frigidaire freezers. It is responsible for producing ice within the freezer compartment, providing a steady supply of ice cubes.

Causes of a bad ice maker can include wear and tear over time, issues with the water supply line, or electrical problems affecting the ice-making cycle.

Symptoms of a bad ice maker include:

• The ice maker not producing ice
• Ice cubes being smaller or misshapen
• Unusual noises coming from the ice maker
• Water leaks around the ice maker area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Screw Kit is an OEM part for Frigidaire appliances. It contains various screws specifically designed to fit and secure different components of Frigidaire appliances, ensuring a tight and secure assembly. This kit is essential for both initial installations and for making repairs or replacements to existing appliances, providing the necessary hardware to maintain or restore the structural integrity of your appliance.  These screws are #10-16 x .500 inches long and can be loosened or tightened using either a Phillips-head or square-head screwdriver.

Symptoms of needing a new Screw Kit include:

• Loose components or panels on your appliance due to missing or damaged screws.
• Inability to securely fasten parts during assembly or repairs, which can lead to operational issues or safety hazards.
• Screws stripping or corroding over time, which can compromise the stability and durability of the appliance.

Causes for replacing screws can include mechanical stress that causes screws to loosen or fall out, environmental factors like moisture leading to corrosion, or accidental damage during cleaning or maintenance.

This screw kit is designed to be universally compatible with various Frigidaire models, ensuring that you have the right screws for a range of repair needs.
