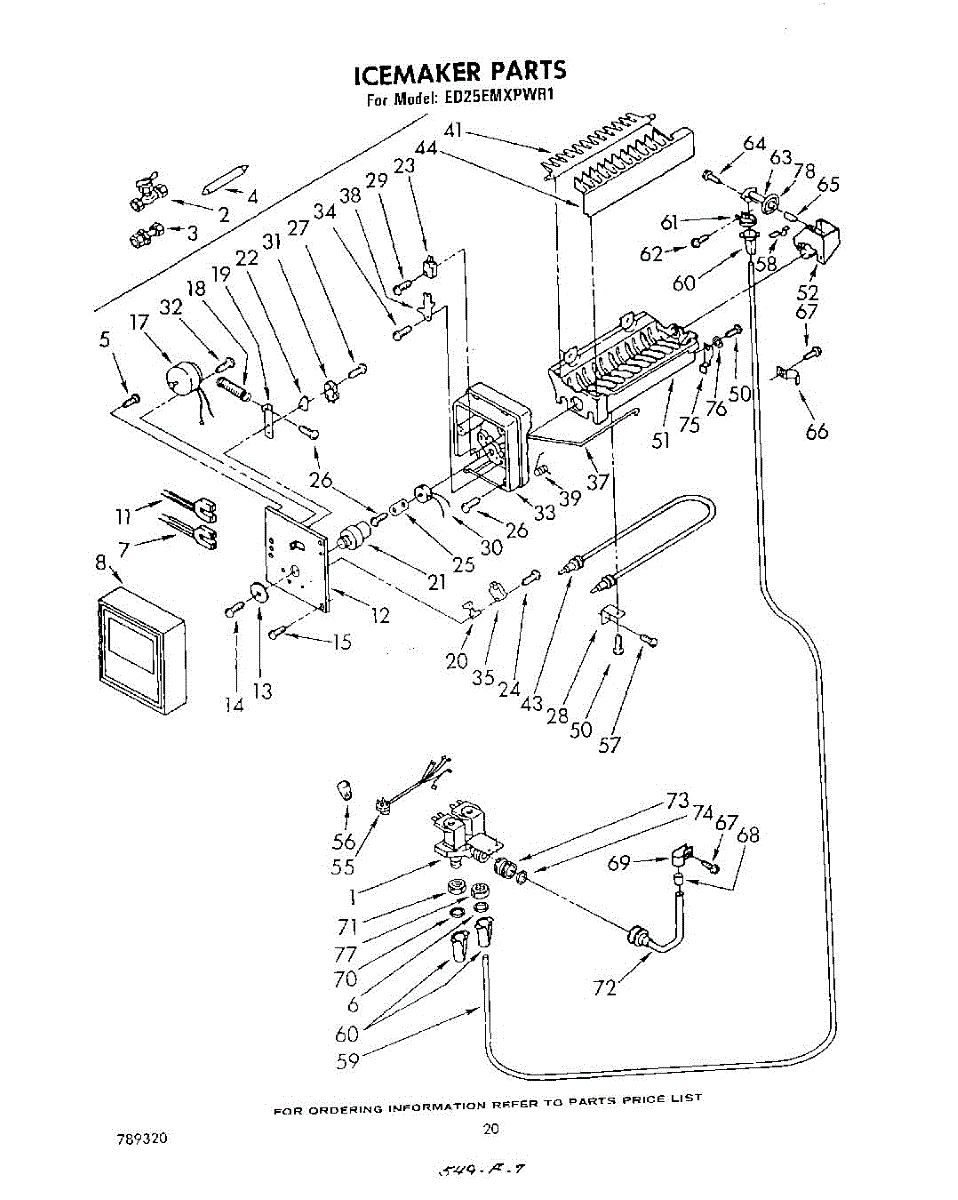

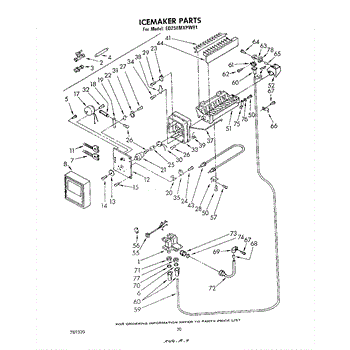

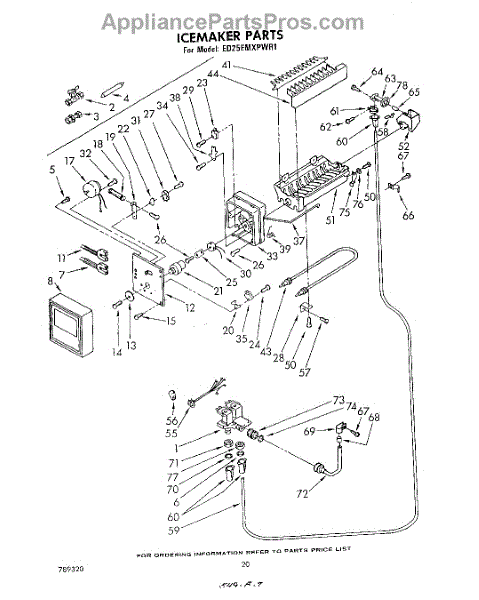

Parts for Whirlpool ED25EMXPWR1: 11 - Ice Maker Parts

The Whirlpool refrigerator dual solenoid icemaker water inlet valve is an OEM replacement part responsible for controlling the water flow to the refrigerator's icemaker. It is typically located at the back of the refrigerator, near the bottom, where the water supply line connects to the refrigerator. The water valve receives signals from the refrigerator's control board to open and close, allowing water to flow into the icemaker.


The Whirlpool water inlet valve can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This part fixes the following symptoms:

• Failure to make ice or limited ice production
• Loud or unusual noises coming from the water valve

This part has been discontinued and is no longer available.

Size; 8-18 x 1/2 inch.

This replacement bracket secures the refrigerator ice maker assembly so it stays properly positioned for reliable ice production. It restores stable mounting and helps prevent the ice maker from shifting or coming loose. What it does:

• Holds the ice maker assembly in place on the freezer liner or mounting frame
• Keeps the ice maker aligned for proper operation and water fill
• Helps stop vibration or movement that can cause noisy operation or misfeeds
• Useful when the original bracket is bent, broken, or missing

• Disconnect power to the refrigerator and shut off the water supply before starting
• Remove the ice maker to access the bracket mounting screws
• Reuse existing screws if undamaged; tighten to secure but avoid overtightening
• If mounting points or surrounding plastic are damaged, replace or repair before reinstalling

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

Specs: 10-16 x 1/2 inch.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

These inserts are for 1/4 inch plastic tubing. Package of 4.

This hose clamp secures a rubber or plastic hose to its fitting on your appliance, maintaining a tight, leak-resistant seal under vibration and pressure. Replace when the old clamp is rusted, bent, or no longer holds tension. What it does:

• Clamps around a hose to grip the fitting and seal the joint
• Helps prevent drips, leaks, and hose blow-off at the connection
• Restores secure clamping force when the original is worn or damaged
• Common symptoms: water at the connection, hose slipping off, visible corrosion or distortion

• 1 hose clamp

• Disconnect power and shut off the water supply before servicing
• Slide clamp onto hose, seat hose fully on the fitting, then position clamp just behind the bead/raised lip
• Tighten or compress evenly with the appropriate tool; avoid overtightening that could damage the hose
• After reassembly, run a short test and inspect for leaks

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

The Icemaker Fill Tube Fitting is an OEM part for Whirlpool refrigerators. This part connects the water supply line to the icemaker, ensuring a seamless and leak-free delivery of water into the icemaker mold.

Causes of a bad Icemaker Fill Tube Fitting can include wear and tear over time, mineral buildup from hard water, which can block the water flow or damage the fitting, and improper installation that may lead to leaks or restricted water flow.

Symptoms of a bad Icemaker Fill Tube Fitting include:

• Water leakage at the connection points, leading to potential water damage or ice buildup in the freezer
• Insufficient ice production if the fitting is partially blocked or not properly connected, restricting water flow to the icemaker
• Unusual noise during the icemaker fill cycle, indicating a potential issue with the fitting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This dampener cushions and stabilizes the washer tub during spin cycles to reduce vibration and noise for smoother operation. It replaces worn or damaged suspension dampeners to help restore proper tub balance and quieter performance. What it does:

• Absorbs and dampens tub movement during agitation and spin to reduce vibration and noise.
• Helps maintain proper tub alignment for more even spinning and less wobble.
• Commonly replaced when the washer rocks, thumps, or makes excessive noise during spin.
• Works with the washer's suspension system to protect other components from shock and wear.

• 1 dampener

• Disconnect power and shut off water supply before beginning any repair.
• Access typically requires removing the washer cabinet or front panel; follow OEM service instructions.
• Inspect mounting studs and clips for wear; replace as needed to ensure a secure fit.

Size: 1/4 inch. Nut for plastic water line.

Icemaker water inlet valve adapter kit, hose thread to 1/4" copper tubing

Size: 1-1/16 x 5/8 inch. Used for fill hose. For a 4 pack order 285448A

Comes with 4 nuts and 2 inserts. Instruction sheet included.

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly
