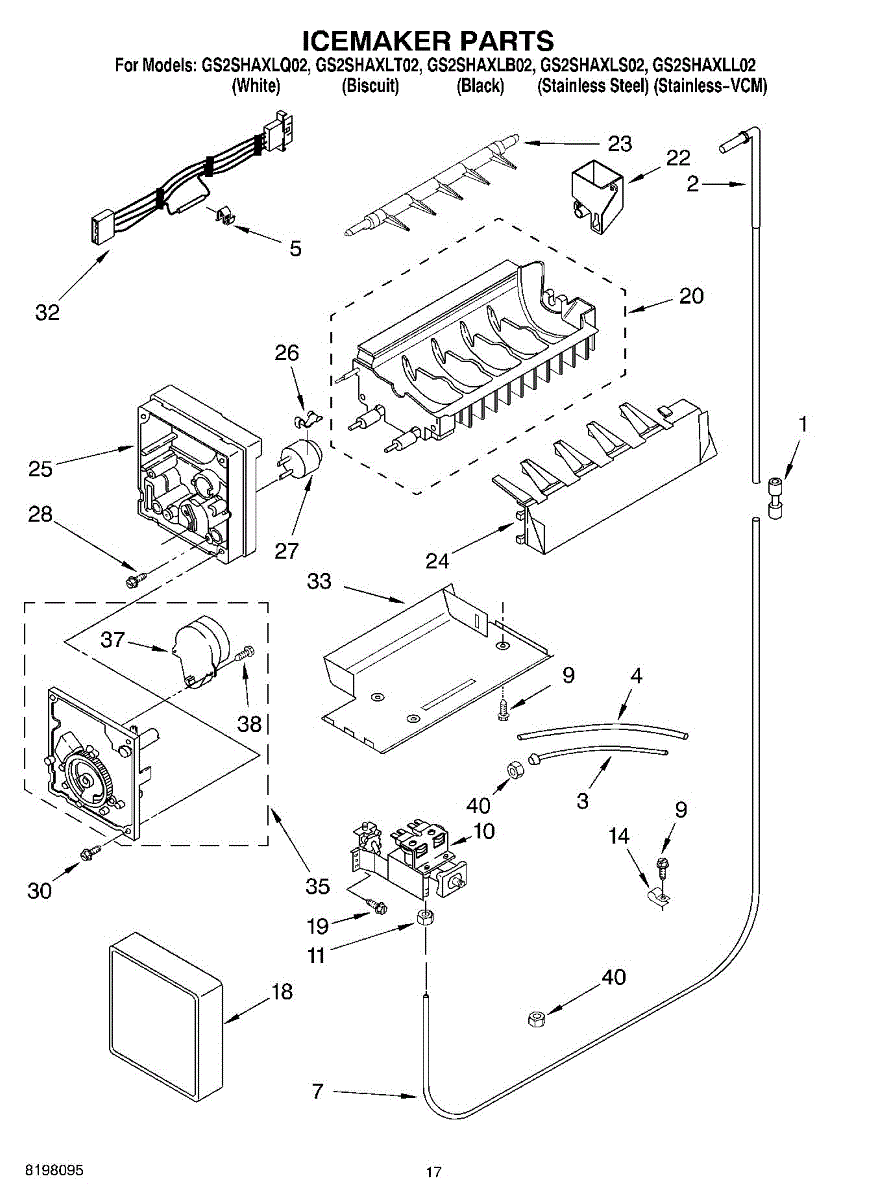

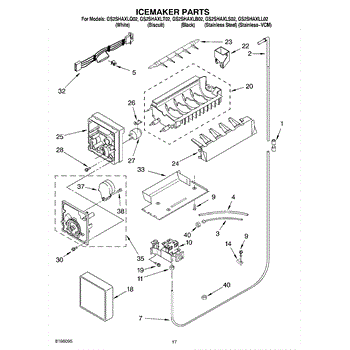

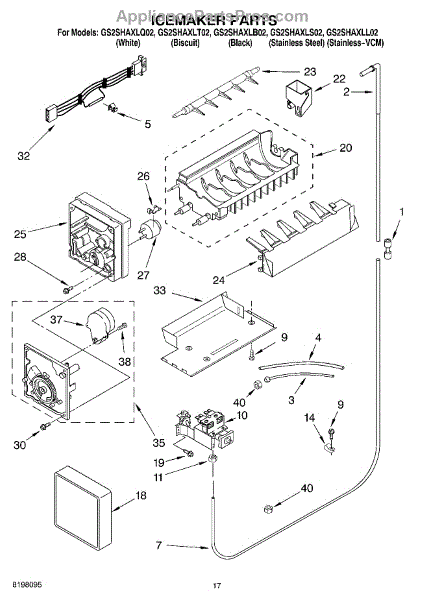

Parts for Whirlpool GS2SHAXLS02: 10 - Ice Maker Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

Size: 1/4" to 1/4" John Guess coupler. Compression fitting is also acceptable.

The Ice Maker Water Supply Tube is an OEM replacement part for Whirlpool built-in refrigerator models equipped with interior automatic icemakers. This plastic tube transports freshwater from the external water supply line into the upper ice maker assembly. It is precision-engineered by Whirlpool to provide a watertight seal resistant to repeated freeze-thaw stresses.

Symptoms of a faulty supply tube could include:

• Noticeably reduced ice production over time
• Water leaks inside the top of the refrigerator cabinet
• Blockages that stop water from reaching the ice mold

Causes involve the regular stress of daily thermal cycling. Mineral deposits left behind each refill may insulate plastic over the years, leading to cracks. Kinking from improper installation could potentially weaken the tube as well.

This ice maker water supply tube and fitting is also compatible with some KitchenAid, Jenn-Air, and Kenmore built-in models too.

The Water Tube is an OEM component specifically designed for Whirlpool refrigerators. This 1/4" diameter water tube provides a pathway for water to flow through the refrigerator's internal components during operations like ice production.

Causes of a bad water tube can include cracks or defects from manufacturing, damage from impact or abrasion during shipping or installation, or wear over time from cycles of use.

Symptoms of a bad water tube include:

• Water leaks or drips inside the refrigerator
• Insufficient or slow water flow to components
• Abnormal sounds from water not flowing smoothly
• Failure of components dependent on water flow like the ice maker

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore refrigerator models.

The Filter Inlet Water Tube Kit is an OEM part for Whirlpool refrigerators. This kit includes the necessary tubing and fittings to ensure a proper water supply to the refrigerator's filtration system. The inlet tube starts out as 1/4" tubing but transitions to a 5/16" diameter.

You should replace the filter inlet water tube kit if it becomes damaged or clogged. Common causes of issues include mineral buildup from hard water, wear and tear over time, or accidental damage during maintenance or installation. A faulty water tube can result in reduced water flow or leaks.

Symptoms of a bad filter inlet water tube include:

• Reduced water flow to the ice maker or water dispenser
• Leaks or water puddles near the refrigerator
• Ice maker not producing ice or producing ice slowly
• Unusual tastes or odors in the water or ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

The Ice Maker Water Supply Tube is an OEM replacement part for Whirlpool built-in refrigerator models equipped with interior automatic icemakers. This plastic tube transports freshwater from the external water supply line into the upper ice maker assembly. It is precision-engineered by Whirlpool to provide a watertight seal resistant to repeated freeze-thaw stresses.

Symptoms of a faulty supply tube could include:

• Noticeably reduced ice production over time
• Water leaks inside the top of the refrigerator cabinet
• Blockages that stop water from reaching the ice mold

Causes involve the regular stress of daily thermal cycling. Mineral deposits left behind each refill may insulate plastic over the years, leading to cracks. Kinking from improper installation could potentially weaken the tube as well.

This ice maker water supply tube and fitting is also compatible with some KitchenAid, Jenn-Air, and Kenmore built-in models too.

Size: 8 x 1/2 ab.

The Refrigerator Water Inlet Valve is an OEM replacement part for Whirlpool side-by-side models. This valve regulates water entry to the ice maker.

Causes of failure can include worn solenoid coils leading to inconsistent opening/closing, stripped plastic stems from over-torquing common with mineral buildup areas, or severed wire connections rendering the valve inoperable.

Symptoms involve:

• Inoperative or slow ice production
• Ice maker not filling or making ice cubes fully
• Water leaking or pooling near the valve body

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

Note: On some models, there is a separate water connector from this valve. Order part# WPW10445062 for that connector.

Size: 1/4 inch. Nut for plastic water line.

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

This ice maker mold and heater assembly forms the cube cavities and briefly warms the mold during harvest so ice releases cleanly. Replace a corroded, leaking, or non-heating mold to restore reliable ice production and ejection. What it does:

• Contains and shapes water into ice cubes during the freeze cycle
• Integrated heater warms the mold during harvest so cubes release to the ejector
• Failure can cause cubes to stick in the mold, stalled harvests, or no ice production
• Pitting or corrosion of the mold can lead to leaks and poor cube release

• One ice maker mold with attached heater assembly

• Disconnect power before servicing; turn off the ice maker or water supply to prevent fill during service
• Remove the ice maker from the freezer to access the internal mold assembly; support wiring and harnesses
• Transfer any reusable components and fasteners from the original unit as directed by your service information
• After reassembly, restore power and allow a full cycle to verify proper fill, release, and ejection

This icemaker fill cup and bearing assembly directs water from the inlet tube into the ice mold and provides the pivot point for the shutoff arm. Replacing a cracked or missing cup helps stop leaks, misdirected fills, and inconsistent ice production.

• Channels incoming water into the ice mold to prevent splashing and overfilling
• Provides the pivot/bearing for the ice level (shutoff) arm
• Helps maintain consistent cube size and reliable icemaker shutoff
• Typical symptoms: water or ice buildup under the icemaker, overfilling or hollow/irregular cubes, or a loose/binding shutoff arm

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the ice bin and detach the icemaker to access the side-mounted cup
• Position the new cup directly under the fill tube; secure with existing hardware and verify the shutoff arm pivots freely in the bearing
• Restore power and water; run a test fill and check for leaks

This ejector arm replaces the dispenser ejector that helps move detergent or rinse aid from the dispenser to the wash chamber for proper release during the cycle. Restores reliable dispensing and prevents missed or partial releases. What it does:

• Physically pushes or guides detergent/rinse into the wash chamber at the correct point in the cycle
• Replaces cracked, broken, or worn ejector arms that fail to move or sit correctly
• Addresses symptoms such as detergent not dispensing, dispenser door sticking, or visible damage to the ejector arm
• Works with the dispenser assembly to ensure consistent product release during operation

• Disconnect power to the appliance before starting any repair
• Remove the dispenser assembly per the service manual to access and replace the ejector arm
• Inspect surrounding dispenser components (hinges, springs, clips) and replace if damaged

This Arm-Stripper is the factory replacement stripper arm that restores the original part that guides and supports related moving components, helping the appliance operate smoothly and quietly. What it does

• Positions and guides the component it mates with to prevent binding or misalignment.
• Helps maintain proper contact/clearance between moving parts for reliable operation.
• Prevents rubbing or wear that can cause noise or uneven performance.
• Common signs it may be needed: rubbing or scraping noises, part misalignment, or erratic movement where the arm is located.

• One Arm-Stripper replacement part.

• Recommended for users familiar with basic appliance repair; verify power is disconnected before starting.
• Inspect surrounding clips, fasteners and mating parts; replace damaged hardware as needed.
• Handle carefully to avoid bending or damaging the arm during installation.

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures panels, trim pieces and small assemblies so covers and components stay aligned and rattle-free. It's a simple, direct fastening part used when an original screw is missing or damaged. What it does:

• Fastens panels, trim, control housings and other small components to the appliance chassis
• Replaces missing, worn or stripped screws that cause loose panels or rattling noises
• Restores correct alignment of covers and trims after service or disassembly
• Provides a direct, hardware-level repair instead of temporary fixes

• Disconnect power (and gas, where applicable) and ensure the appliance is cool before starting.
• Use the correct screwdriver bit and turn until snug; do not overtighten to avoid stripping threads or damaging parts.
• Keep removed hardware for reference; replace like-for-like if threads or inserts are damaged.
• Wear eye protection and gloves when working on appliances.

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This wire harness supplies electrical connections to the refrigerator ice maker assembly, restoring reliable power and signal routing so the ice maker can cycle and harvest ice properly. What it does

• Provides the factory electrical connections between the ice maker and the refrigerator controls.
• Replaces damaged or frayed wiring that can cause the ice maker to stop cycling or power up.
• Helps restore intermittent or no-power symptoms to the ice maker assembly.
• Maintains correct connector fit and routing to prevent shorts or loose connections.

• One wire harness for the ice maker assembly.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Match connectors and routing to the factory harness; secure with existing clips or fasteners.
• Inspect mating connectors and the ice maker for damage before reconnecting power.

The Ice Maker Control Module is an OEM replacement part for Whirlpool refrigerators. It acts as the brain of the ice maker, controlling and regulating its various functions to ensure efficient and consistent ice production.

Symptoms of a bad ice maker control module include:

• No ice production or intermittent ice production
• Ice maker not cycling on or off correctly
• Errors or error codes related to the ice maker on the refrigerator's display
• Unusual noises or clicking sounds from the ice maker

Causes of a bad control module can range from electrical issues, such as power surges or voltage fluctuations, to physical damage or wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Maker Control Module is an OEM replacement part for Whirlpool refrigerators. It acts as the brain of the ice maker, controlling and regulating its various functions to ensure efficient and consistent ice production.

Symptoms of a bad ice maker control module include:

• No ice production or intermittent ice production
• Ice maker not cycling on or off correctly
• Errors or error codes related to the ice maker on the refrigerator's display
• Unusual noises or clicking sounds from the ice maker

Causes of a bad control module can range from electrical issues, such as power surges or voltage fluctuations, to physical damage or wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Comes with 4 nuts and 2 inserts. Instruction sheet included.
