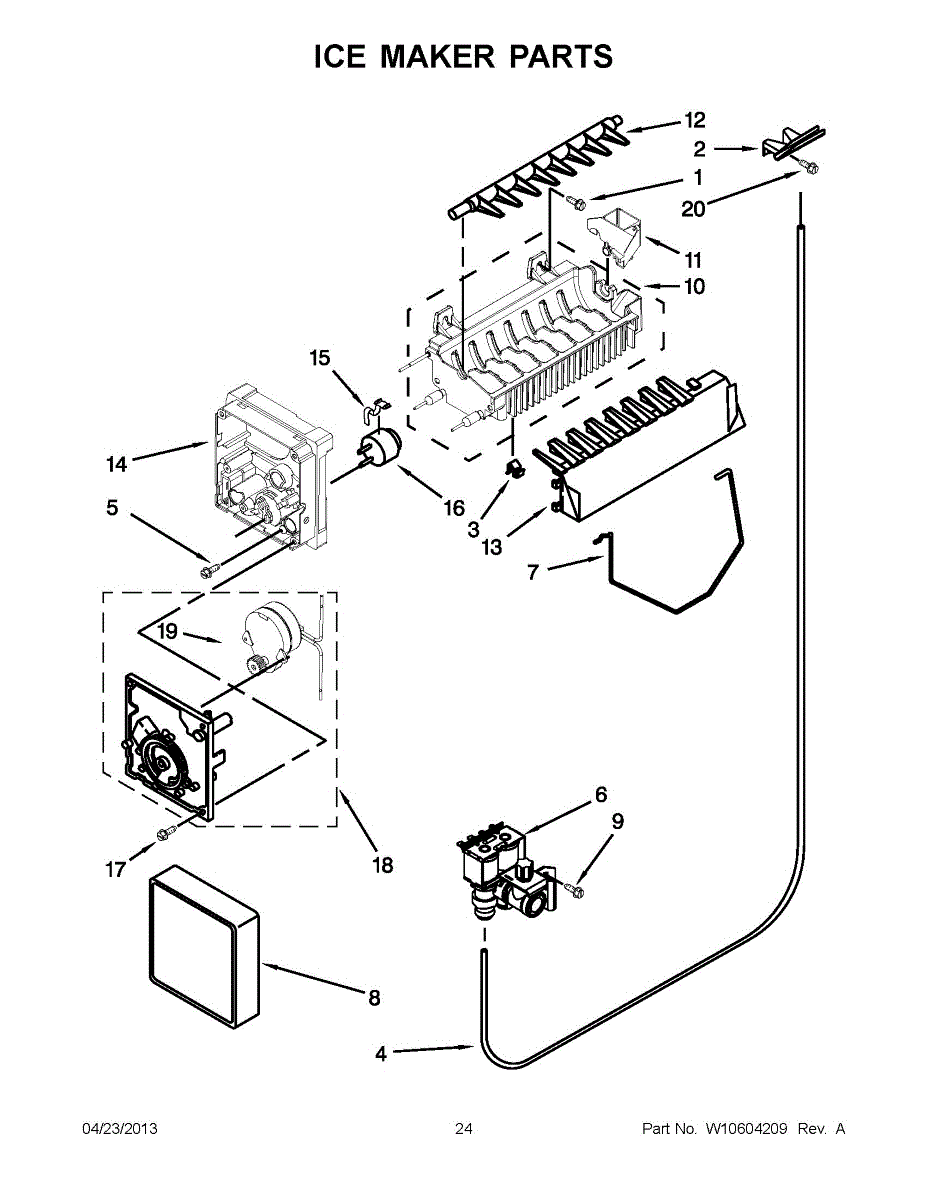

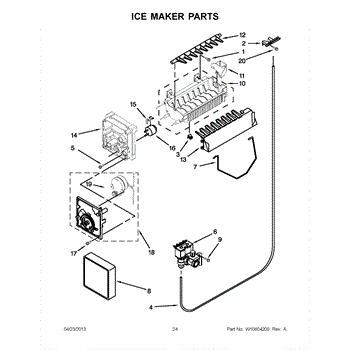

Parts for Whirlpool WRS325FDAM02: 12 - Ice Maker Parts

Removes contaminants for clean, great-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit with your model number.

Replacement screw that secures panels, brackets, and trim to appliance cabinets. Restores reliable hold when original hardware is stripped or missing.

This chute channels water and wash additives from the dispenser housing into the tub. Replacing a damaged or clogged chute helps ensure proper dispensing and reduces leaks or residue around the dispenser area. What it does:

• Guides detergent/bleach/fabric softener from the dispenser to the wash tub
• Maintains proper flow to prevent backups at the dispenser drawer
• Helps reduce leaks and drips from the dispenser area
• Common failure symptoms include water backing up into the drawer, detergent residue left in the dispenser, or leaks at the front-left/top of the washer

• 1 chute

• Disconnect power and turn off water supply before servicing
• Access is typically from the top; remove panels as needed to reach the dispenser assembly
• Transfer any seals, clamps, or hardware from the old chute
• Reassemble and run a brief fill/rinse to check for proper flow and leaks

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

Water supply tube that connects the water valve to the ice maker in your refrigerator. Replace if cracked, leaking, or damaged to restore proper water flow.

Replacement screw secures panels, brackets, and components inside your refrigerator. Needed when original fastener is stripped, missing, or lost.

Fix water leaking from your refrigerator or ice buildup in the freezer. This water inlet valve controls flow to your ice maker and dispenser. DIY repair.

Ice maker won't stop making ice? The shut off arm senses when the bin is full and stops production. Easy 10-minute DIY fix—just snap into place.

Cracked or missing ice maker cover exposing internal components? This protective cover shields the ice maker assembly. Simple DIY install in minutes.

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

Ice cubes stuck in tray or not releasing? This ice mold and heater assembly warms the tray during harvest to release cubes cleanly into the bin.

Ice maker dripping or splashing water? A cracked or clogged fill cup spout disrupts water flow. This direct-fit part restores clean dispensing in under an hour.

This Arm Ejector secures and positions the dishwasher spray arm so it spins properly and distributes water for effective cleaning. Replacing a worn or broken ejector restores spray-arm stability and helps prevent uneven washing. What it does:

• Holds the spray arm in the correct position so it can rotate freely
• Prevents spray arm wobble, scraping, or falling off during cycles
• Helps maintain proper water distribution for consistent cleaning
• Can resolve symptoms like noisy spray arm movement or uneven wash performance

• Disconnect power and turn off the water supply before starting any repair
• Remove the lower spray arm and mounting cup as shown in your model's parts diagram to access the ejector
• Inspect surrounding components for wear when replacing the ejector
• Use only the exact replacement part number to ensure proper fit and function

Ice cubes jamming or hanging up in the ice maker? This stripper arm guides cubes off ejector fingers into the bin. Requires removing ice maker to install.

Mounts in the dispenser to secure the ice housing assembly. Keeps the chute and door aligned for smooth dispensing. Replace if cracked, broken, or worn.

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

Ice buildup on evaporator coils? A failed defrost thermostat prevents proper defrost cycles. This bimetal sensor restores defrost heating on schedule.

This is a replacement screw fastener used to secure appliance components and panels. It restores proper fastening and helps stop loose parts from vibrating or shifting during operation. What it does:

• Secures panels, brackets, or components in place to maintain appliance stability
• Stops rattling, vibration noise, and intermittent contact caused by loose fasteners
• Restores proper alignment where original screws have stripped, corroded, or been lost
• Functions as a direct-fit hardware replacement when the OEM screw is needed

• One replacement screw (quantity: 1)

• Use appropriate driver and moderate torque to avoid stripping threads or damaging parts
• Disconnect power and follow appliance safety procedures before working on the unit
• Repair or replace the mating component as needed

Ice maker stopped making ice or won't eject cubes? A failed motor module is often the cause. DIY repair in under an hour with our video guide.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Ice Maker is an OEM part for Whirlpool refrigerators. Designed to efficiently produce ice, this ice maker ensures your refrigerator dispenses fresh and clear ice cubes whenever you need them. It integrates seamlessly into compatible models, maintaining the integrity and performance of your appliance. Note: The original bracket that covered bottom of the icemaker is NLA.  The new bracket is part number W11500948.

Signs that it's time to replace your ice maker include a noticeable decrease in ice production, ice cubes that are smaller or misshaped, and unusual noises during the ice-making process. These issues can arise from a variety of causes such as a malfunctioning water inlet valve, a clogged filter, or even temperature inconsistencies within the freezer compartment.

Symptoms of a bad Ice Maker include:

• Inability to produce ice
• Producing ice at a slower rate than usual
• Ice cubes are not ejected from the mold
• Water leaks in the freezer compartment

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
