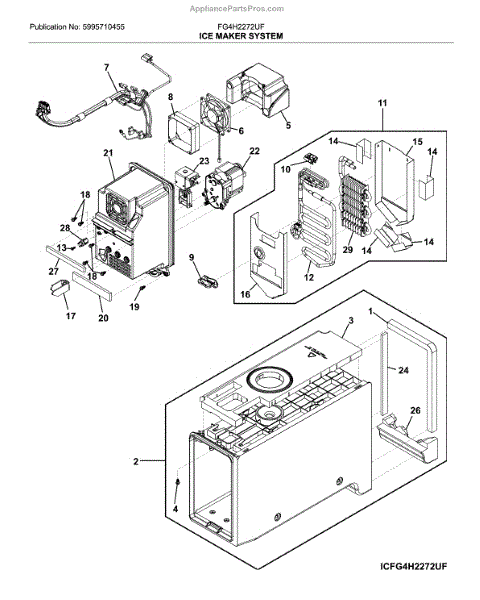

Parts for Frigidaire FG4H2272UF: Ice Maker System Parts

The Frigidaire PureSource Ultra II Refrigerator Water & Ice Filter is an OEM part for Frigidaire refrigerators provides clean, fresh-tasting water and ice. This advanced filtration system is specifically engineered to remove impurities and contaminants from your water supply, including lead, chlorine, mercury, and certain pesticides, without removing beneficial fluoride.

Regular replacement of the water and ice filter is crucial for maintaining the quality of your drinking water and the efficiency of your refrigerator's water and ice dispensing system. Over time, filters can become saturated with contaminants, reducing their effectiveness and potentially impacting the taste and safety of your water.

Symptoms of a filter in need of replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turning on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This refrigerator door gasket seals the cabinet to keep cold air in and warm air out, helping the appliance maintain proper temperatures and efficiency. It replaces a worn, torn, or distorted seal to reduce frost and spoilage risk. What it does:

• Creates an airtight seal around the refrigerator door to prevent cold air leaks
• Helps maintain consistent internal temperatures for food safety
• Reduces frost buildup and excessive compressor run time caused by leaking seals
• Restores proper door closure when the original gasket is cracked, warped, or split

• Inspect the cabinet sealing surface and remove old gasket adhesive or debris before installing
• Warm the gasket (per OEM guidance) or let it sit at room temperature to make it pliable for easier installation
• Press the gasket firmly into the channel, working around the door evenly to avoid gaps
• Disconnect power before working near electrical components

This is the icemaker housing assembly that supports and protects the icemaker's internal components, helping maintain proper water routing and structural alignment for reliable ice production. Fits select top- and side-mount refrigerator icemakers. What it does:

• Provides the structural shell that holds the icemaker module and related components in place
• Directs water toward the fill tube and ice mold to help form ice properly
• Shields internal components from debris and helps prevent water leaks around the icemaker area
• Resolves symptoms such as loose or misaligned icemaker, leaking near the icemaker, or inconsistent ice formation

• Icemaker housing assembly (1)

• Disconnect power and water supply before starting any repairs
• Handle plastic housing carefully to avoid cracking tabs or mounting points
• Reuse or replace mounting screws and seals as needed; verify proper alignment before restoring power

This is the icemaker housing assembly that supports and protects the icemaker's internal components, helping maintain proper water routing and structural alignment for reliable ice production. Fits select top- and side-mount refrigerator icemakers. What it does:

• Provides the structural shell that holds the icemaker module and related components in place
• Directs water toward the fill tube and ice mold to help form ice properly
• Shields internal components from debris and helps prevent water leaks around the icemaker area
• Resolves symptoms such as loose or misaligned icemaker, leaking near the icemaker, or inconsistent ice formation

• Icemaker housing assembly (1)

• Disconnect power and water supply before starting any repairs
• Handle plastic housing carefully to avoid cracking tabs or mounting points
• Reuse or replace mounting screws and seals as needed; verify proper alignment before restoring power

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

Replacement drive motor that powers an appliance's rotating components, restoring normal operation and reliable movement. Use this motor to address rotation failures and abnormal noises so the unit can run as intended. What it does

• Turns the appliance's rotating assemblies to enable normal operation.
• Helps when the appliance won't rotate, tumble or start turning even though power is present.
• Restores consistent speed and torque for proper cycle performance.

• Disconnect power before attempting any service to avoid shock or injury.
• Verify alignment and mounting orientation; secure all fasteners to manufacturer torque where specified.
• Inspect wiring harness, connector pins and any grommets for damage; replace damaged components as needed.

This wire harness connects the range or oven's control and internal components to provide reliable electrical routing and secure connector connections. Replacing a damaged harness restores proper power and signal delivery for controls and lights. What it does:

• Routes power and signals between the control board and internal components (burners, ignitors, lights, switches)
• Ensures secure connector connections to prevent intermittent operation
• Commonly replaces frayed, melted, or broken wiring that can cause loss of function
• Resolves symptoms like no display, intermittent power, burners or lights not working, or tripped breakers

• One pre-assembled wire harness with factory-style connectors

• Disconnect all power (unplug or switch off breaker) before servicing to avoid shock or injury
• Route wires according to original harness path and secure with clips or ties to avoid heat or abrasion

This rubber grommet cushions and secures appliance components, reducing vibration and wear while helping maintain proper alignment. It's a small replacement part that restores quiet operation and prevents metal-on-metal contact. What it does:

• Cushions or isolates moving parts to reduce noise and vibration
• Provides a snug mount or seal where components pass through panels
• Helps keep trim, panels or wiring from rubbing and wearing
• Commonly replaced when parts become loose, cracked, or noisy

• Disconnect power before attempting any repair.
• Access may require removing a panel or trim piece; use trim tools to avoid damage.
• Ensure the grommet seats fully in the mounting hole and that retained parts align correctly.
• Replace if torn, hardened, or deformed; do not install a damaged grommet.

This connector is a factory-style wire harness connector that secures electrical wiring and provides a reliable plug-in connection for appliance circuits. It helps restore proper electrical contact and prevents loose or intermittent connections. What it does:

• Joins wiring circuits with a keyed plug to ensure correct polarity and secure connection
• Restores power or signal continuity when an original plug is cracked, corroded, or loose
• Reduces arcing and intermittent operation caused by damaged connector ends
• Fits inline with existing harness locations to maintain OEM routing and function

• One replacement connector

• Always disconnect power at the breaker or unplug the appliance before starting
• Inspect adjoining wires and terminals; trim damaged insulation and use proper crimps if required
• Push connector fully onto mating plug until it latches; secure any retaining clips or harness ties
• If you see melting, heavy corrosion, or damaged wiring, replace the harness.

This complete evaporator assembly circulates refrigerant and supports proper airflow in the freezer compartment to help maintain consistent cooling and reduce frost buildup. It replaces the evaporator coil and mounting components as an assembly. What it does:

• Enables refrigerant to absorb heat from the freezer, a core part of the cooling cycle
• Restores proper cold temperatures when a damaged or leaking evaporator causes poor cooling
• Helps reduce excessive frost or ice buildup when paired with a working defrost system
• Works with the evaporator fan and defrost components to maintain consistent freezer performance

• High-level replacement: may require accessing the freezer interior and removing liners or panels
• Handle refrigerant components with care; manage refrigerant service
• Disconnect power before starting work to avoid electrical shock or injury
• Inspect and test related components (evaporator fan, defrost heater/thermostat) for best results

This complete evaporator assembly circulates refrigerant and supports proper airflow in the freezer compartment to help maintain consistent cooling and reduce frost buildup. It replaces the evaporator coil and mounting components as an assembly. What it does:

• Enables refrigerant to absorb heat from the freezer, a core part of the cooling cycle
• Restores proper cold temperatures when a damaged or leaking evaporator causes poor cooling
• Helps reduce excessive frost or ice buildup when paired with a working defrost system
• Works with the evaporator fan and defrost components to maintain consistent freezer performance

• High-level replacement: may require accessing the freezer interior and removing liners or panels
• Handle refrigerant components with care; manage refrigerant service
• Disconnect power before starting work to avoid electrical shock or injury
• Inspect and test related components (evaporator fan, defrost heater/thermostat) for best results

This is a replacement screw used to secure appliance panels and components. It restores proper fastening to stop rattles and keep parts aligned for reliable operation. What it does:

• Secures trim, brackets, or small panels to the appliance
• Prevents loose parts that can cause vibration, noise, or improper sealing
• Restores factory fastening where a screw is missing or damaged
• Simple, single-purpose fastener — use where the original screw was installed

• Use the matching screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage
• Disconnect power or follow appliance safety steps when working near electrical components
• Replace only the screw(s) that match the original size and type

This complete evaporator assembly circulates refrigerant and supports proper airflow in the freezer compartment to help maintain consistent cooling and reduce frost buildup. It replaces the evaporator coil and mounting components as an assembly. What it does:

• Enables refrigerant to absorb heat from the freezer, a core part of the cooling cycle
• Restores proper cold temperatures when a damaged or leaking evaporator causes poor cooling
• Helps reduce excessive frost or ice buildup when paired with a working defrost system
• Works with the evaporator fan and defrost components to maintain consistent freezer performance

• High-level replacement: may require accessing the freezer interior and removing liners or panels
• Handle refrigerant components with care; manage refrigerant service
• Disconnect power before starting work to avoid electrical shock or injury
• Inspect and test related components (evaporator fan, defrost heater/thermostat) for best results

This complete evaporator assembly circulates refrigerant and supports proper airflow in the freezer compartment to help maintain consistent cooling and reduce frost buildup. It replaces the evaporator coil and mounting components as an assembly. What it does:

• Enables refrigerant to absorb heat from the freezer, a core part of the cooling cycle
• Restores proper cold temperatures when a damaged or leaking evaporator causes poor cooling
• Helps reduce excessive frost or ice buildup when paired with a working defrost system
• Works with the evaporator fan and defrost components to maintain consistent freezer performance

• High-level replacement: may require accessing the freezer interior and removing liners or panels
• Handle refrigerant components with care; manage refrigerant service
• Disconnect power before starting work to avoid electrical shock or injury
• Inspect and test related components (evaporator fan, defrost heater/thermostat) for best results

This auger drive bar links the dispenser motor to the ice bucket auger, transmitting torque to move cubes or crushed ice to the chute. Replacing a worn or stripped bar restores consistent, reliable ice dispensing. What it does:

• Couples the dispenser motor to the auger/crusher assembly
• Transfers rotation so ice advances to the dispenser chute
• Interfaces with the cube/crush selector mechanism
• Common symptoms include the motor running but no ice dispensing, intermittent dispensing, the auger not turning, or grinding/clicking from the dispenser

• 1 auger drive bar

• Disconnect power and remove the ice bucket before servicing
• Note the bar's orientation; remove any retainers and separate it from the yoke/coupler
• Align the new bar with the mating parts and seat it fully; transfer any reusable retainers
• Reinstall the bin and test both cube and crush selections

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This air handler housing and seal kit restores a tight, factory fit around the refrigerator's air plenum. Replacing a warped housing or flattened seals helps direct airflow correctly and prevent warm-air leaks that lead to frost, moisture, and temperature swings.

• Seals and supports the air-handler ducting to maintain designed airflow between compartments
• Helps keep temperatures stable and reduce moisture or frost caused by air leaks
• Replace if the housing is cracked/warped or the seals are torn, missing, or permanently compressed
• Symptoms may include weak airflow from vents, condensation/frost around the plenum, temperature fluctuations, or rattling from a loose housing

• Unplug the refrigerator and shut off water if working near ice/water components
• Remove shelves, drawers, and panels as needed to access the air handler area
• Carefully extract the old housing; clean mating surfaces and transfer any reusable parts from the original assembly as required
• Seat new seals evenly and fasten the housing without overtightening; reassemble and verify airflow

Replacement solenoid that restores electromechanical action for the appliance component it controls, helping restore reliable operation when a worn or failed solenoid prevents movement or actuation. What it does:

• Converts electrical input into mechanical motion to move or hold a controlled mechanism.
• Energizes to engage the component and de-energizes to release it.
• Common symptoms of a failing solenoid: the controlled function doesn't respond, intermittent operation, or a humming/no-movement sound.
• Used as a direct replacement for a failed or sticking solenoid to return normal operation.

• Always disconnect power to the appliance before starting work.
• If the solenoid controls water, shut off the water supply before replacing.
• Match wiring connectors and mounting points; secure the part in the original orientation.
• After installation, restore power/water and test the controlled function for proper operation.

This replacement refrigerator door gasket restores a tight seal to help keep cold air in and warm air out, improving cooling performance and helping prevent frost and moisture buildup around the door. What it does:

• Creates an airtight seal around the refrigerator door to maintain interior temperature
• Helps reduce frost buildup in the freezer and prevents moisture intrusion
• Minimizes energy loss from warm air entering the cabinet
• Can stop small leaks and cold-air drafts caused by a torn or worn seal

• Inspect the door and mounting channel for damage or debris before installing
• Warm and flex the gasket as needed for easier positioning; follow OEM bedding/adhesive instructions if applicable
• Replace with matching gasket orientation; incorrect fit can cause poor sealing
• Disconnect power only if removal requires heating elements or light assembly—otherwise follow standard safety precautions

This is the icemaker housing assembly that supports and protects the icemaker's internal components, helping maintain proper water routing and structural alignment for reliable ice production. Fits select top- and side-mount refrigerator icemakers. What it does:

• Provides the structural shell that holds the icemaker module and related components in place
• Directs water toward the fill tube and ice mold to help form ice properly
• Shields internal components from debris and helps prevent water leaks around the icemaker area
• Resolves symptoms such as loose or misaligned icemaker, leaking near the icemaker, or inconsistent ice formation

• Icemaker housing assembly (1)

• Disconnect power and water supply before starting any repairs
• Handle plastic housing carefully to avoid cracking tabs or mounting points
• Reuse or replace mounting screws and seals as needed; verify proper alignment before restoring power

This complete evaporator assembly circulates refrigerant and supports proper airflow in the freezer compartment to help maintain consistent cooling and reduce frost buildup. It replaces the evaporator coil and mounting components as an assembly. What it does:

• Enables refrigerant to absorb heat from the freezer, a core part of the cooling cycle
• Restores proper cold temperatures when a damaged or leaking evaporator causes poor cooling
• Helps reduce excessive frost or ice buildup when paired with a working defrost system
• Works with the evaporator fan and defrost components to maintain consistent freezer performance

• High-level replacement: may require accessing the freezer interior and removing liners or panels
• Handle refrigerant components with care; manage refrigerant service
• Disconnect power before starting work to avoid electrical shock or injury
• Inspect and test related components (evaporator fan, defrost heater/thermostat) for best results
