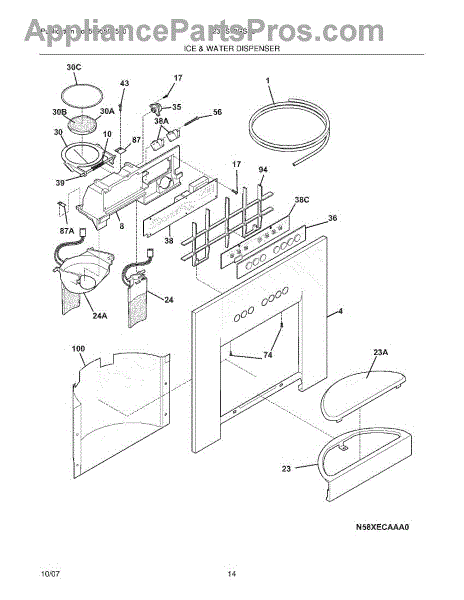

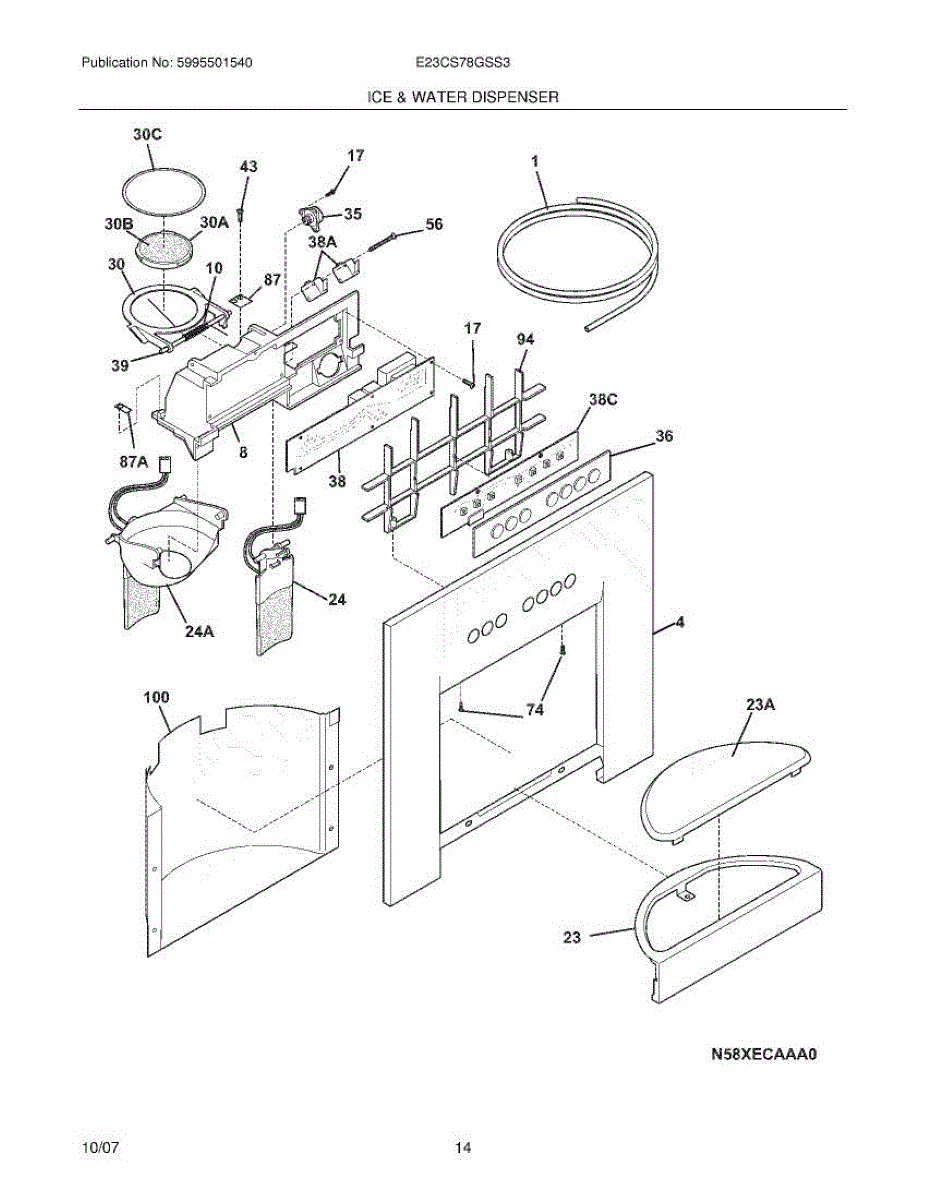

Parts for Electrolux E23CS78GSS3: 15 - Ice & Water Dispenser Parts

Frigidaire PureAir® Refrigerator Air Filter combines activated carbon, Zeolite and real baking soda to reduce odors from foods such as onions, garlic, fish, stale milk and over-ripe fruits and vegetables. Recommended air filter replacement is every six months. Dimensions: 4-1/2" x 2-1/2"

The Water Tube is an OEM part for Frigidaire refrigerators. It is responsible for transporting water from the supply line to various components such as the ice maker and water dispenser. Ensuring a steady and reliable flow of water, this tube is essential for the proper functioning of these features.

Causes of a bad water tube can include cracks or splits due to temperature fluctuations, clogging from mineral deposits, or damage from bending and kinking.

Symptoms of a bad water tube include:

• Water leaks inside or outside the refrigerator
• Reduced or no water flow to the ice maker or water dispenser
• Visible cracks or kinks in the tube
• Water tasting off due to contaminants

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This torsion spring mounts in the dispenser to return the ice chute door/flapper to the closed position after dispensing. Replacing a weak or broken spring helps stop warm air leaks, frost, and ice clumping in the chute.

• Provides the closing force for the dispenser ice door
• Helps seal the ice chute to reduce frost and moisture intrusion
• Typical symptoms: ice door won't close fully, frost/ice buildup around the chute, cubes dropping after dispensing, or air leakage at the dispenser
• Replace if the spring is broken, deformed, or has lost tension

• Disconnect power before servicing; shut off water if working near the dispenser area
• Remove dispenser trim/bezel and control panel to access the ice door assembly; support wiring harnesses
• Note spring orientation and preload before removal; install the new spring on the same hinge posts in the same direction
• Manually cycle the flapper to ensure smooth return and a full seal before reassembly

A single replacement mounting screw used to secure appliance panels and components. Restores proper fit and prevents rattling or loose parts so trims and panels stay aligned during normal use. What it does:

• Fastens panels, brackets or trim pieces to the appliance frame
• Replaces worn, stripped or missing screws that cause loose or rattling parts
• Helps restore secure alignment for doors and access panels
• Works where the OEM lists a basic machine/fastener screw

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread by hand to start, then tighten until snug—do not overtighten
• Keep small parts away from children and pets during installation

This replacement drip tray collects and directs defrost and condensate water to the evaporation area, helping prevent pooling under the refrigerator. Durable plastic construction fits under the freezer compartment to manage normal defrost runoff. What it does:

• Catches defrost and condensation water so it safely drains to the evaporator pan
• Helps stop water from pooling on the floor or under the refrigerator
• Reduces risk of mold or odors caused by standing water
• Restores proper water flow if a cracked or warped tray was leaking

• One drip tray

• Disconnect power to the appliance before accessing the tray
• Remove kick plate/low access panel and slide out the old tray; inspect mounting tabs for damage
• Clean surrounding area and any drain or tubing before installing the new tray
• Reinstall access panel and restore power; check for proper drainage during the next defrost cycle

This actuator replaces the ice dispenser door motor that opens and closes the dispenser door so ice can drop into your cup. Restores proper door movement to help prevent ice blockages and missed dispenses. What it does:

• Drives the dispenser door to open and close when the dispenser is activated.
• Allows ice to release into the cup while keeping the dispenser sealed when idle.
• Common symptoms: dispenser door won't open, ice not dispensing, clicking or humming from the door area.
• Replaces a failed or intermittent dispenser door motor to restore normal dispensing action.

• Disconnect power to the appliance before beginning any repair.
• Replacement typically requires removing the inner dispenser/door panel; use common hand tools and keep track of fasteners.
• Inspect door linkage and wiring harness for damage when replacing the actuator.

This refrigerator dispenser actuator is the paddle/lever you press with your glass to start ice or water dispensing. Replacing a cracked or worn actuator restores smooth operation and consistent switch engagement at the door dispenser.

• Engages the dispenser micro switch to initiate ice or water dispensing
• Provides the user-facing paddle/lever in the dispenser recess
• Helps the dispenser return to its rest position after you release
• Common symptoms: no dispense when pressed, intermittent response, broken/loose paddle, sticking or continuous dispense if jammed

• Unplug the refrigerator and shut off the water supply before servicing
• Carefully remove the dispenser trim/escutcheon to access the actuator; protect the finish and avoid breaking locking tabs
• Note spring and pivot orientation; transfer any reusable hardware to the new actuator
• Reassemble, restore power/water, and test both ice and water dispensing

The Ice Chute Door Insulation is an OEM replacement part for Frigidaire refrigerators. It is installed on the ice chute door to prevent warm air infiltration and moisture buildup around the ice dispenser.

Causes may include compression or cracking of insulating foam/material from normal use stress. Spills exposing it to liquid are also damaging.

Symptoms of defective insulation consist of:

• Ice accumulating within the chute cover area
• Condensation visible on exterior chute surfaces
• Inefficient icemaker performance due to altered temperatures

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Center is an OEM part for Frigidaire refrigerators. This component is part of the ice dispenser system, managing the release of ice through the dispenser chute. It helps prevent cold air from escaping the freezer, maintaining energy efficiency and preserving the ice supply.

You should replace the ice door center if it becomes damaged or fails to seal properly. Causes of a bad ice door center can include regular wear and tear, damage from repeated use, or build-up of ice and debris obstructing its movement.

Symptoms of a bad ice door center include:

• Ice dispenser not working correctly
• Ice build-up around the dispenser area
• Warm air entering the freezer, causing ice to melt or clump
• Increased energy consumption due to poor sealing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Seal is an OEM part for Frigidaire refrigerators. This seal is designed to create an airtight barrier around the ice dispenser door, preventing warm air from entering the freezer and maintaining optimal temperature inside the ice compartment. Please note, this listing is for the seal only, other components are sold separately.

Over time, the ice door seal can become worn out or damaged due to frequent use, exposure to varying temperatures, and regular opening and closing. Causes of a bad ice door seal include cracking, tearing, or loss of elasticity, which can lead to air leaks.

Symptoms of a bad ice door seal include:

• Frost or ice buildup around the ice dispenser
• Warm air entering the freezer compartment
• Increased energy consumption
• Water or condensation around the ice dispenser area
• The ice door not closing properly or sealing tightly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Bracket is an OEM part for Frigidaire refrigerators. It is a critical component of the ice dispenser mechanism, designed to support and align the ice door properly. This bracket ensures the ice door opens and closes smoothly, maintaining an airtight seal to prevent warm air from entering the freezer compartment and causing frost buildup.

Symptoms of a bad Ice Door Bracket include:

• The ice dispenser door failing to close completely, which can lead to ice melting and freezer burn.
• Excessive frost or ice accumulation near the dispenser area.
• Unusual noise when the dispenser is activated, indicating misalignment or instability.

Causes of a bad ice door bracket can include mechanical stress from repeated use, accidental damage from impact, or wear and tear that weakens the structural integrity of the bracket.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement board-switch is the electronic control that manages user inputs and basic appliance functions, restoring reliable response from the control panel. Use it to replace a faulty board causing unresponsive or erratic controls. What it does:

• Routes user inputs to the appliance's control system so buttons, knobs or touchpads register correctly.
• Activates internal relays/outputs that initiate functions; failure can cause controls to be unresponsive or commands not to execute.
• Helps stop intermittent or erratic behavior caused by a damaged or corroded control board.
• Resolves symptoms such as non-working control buttons, blank or flickering display, or inconsistent function selection.

• Always disconnect power at the breaker or unplug the appliance before starting work to avoid shock.
• Handle the board by its edges and avoid touching components; use an anti-static strap if available.
• Keep track of screws and wire connections; label or photograph harness locations before removal for correct reassembly.

The Ribbon Cable Harness is an OEM part for Frigidaire refrigerators. It connects various electronic components within the refrigerator, facilitating communication and control signals between them. This harness is essential for the proper functioning of the refrigerator's electronic systems.

Causes of a bad cable harness can include physical damage from bending or pinching, wear and tear from regular use, or electrical failures that disrupt signal transmission. Ensuring the integrity of this component is crucial for maintaining the appliance's performance.

Symptoms of a bad ribbon cable harness include:

• Intermittent or complete loss of electronic functions
• Error codes or malfunctioning display
• Unresponsive buttons or controls
• Inconsistent operation of refrigerator features

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dispenser Switch is an OEM replacement part for Frigidaire refrigerators. It is a component that controls the operation of the water and ice dispenser, allowing users to conveniently access chilled water, cubed ice, or crushed ice from the refrigerator door.

Symptoms of a bad dispenser switch:

• Failure of the water or ice to dispense when the lever or button is activated
• Erratic or inconsistent dispensing behavior
• Water or ice continuously dispensing without user input
• Leaks or moisture around the dispenser area

Causes of a bad dispenser switch can include mechanical wear and tear, electrical malfunctions, or physical damage due to mishandling or impact.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This door hinge pin forms the pivot for the refrigerator door hinge, keeping the door supported and aligned. Replacing a worn or missing pin restores smooth door movement and consistent sealing.

• Acts as the hinge's pivot shaft to support the door
• Helps maintain door alignment so the gasket can seal properly
• Reduces wobble and scraping at the hinge point
• Typical failure symptoms: door sagging, misalignment, poor closing, or a loose/wobbly hinge

• Unplug the refrigerator and remove items from the door to reduce weight.
• Support the door; remove hinge cover and screws, then lift the door off the hinge.
• Replace the hinge pin in the hinge bracket; transfer any existing spacers/bushings as designed.
• Reinstall and align the door; tighten hardware and verify smooth operation and seal contact.

This water inlet tube routes household water from the supply to the fridge's internal water system, helping deliver water to the dispenser and ice maker without leaks. Durable tubing replaces cracked or kinked lines to restore proper flow. What it does:

• Directs water from the supply valve to the refrigerator's internal water components.
• Replaces cracked, split, or kinked tubing that can cause leaks or low flow.
• Helps restore water flow to the dispenser and ice maker when the original line is damaged.
• Provides a secure, leak-resistant path when installed with proper fittings or clamps.

• One water inlet tube.

• Always disconnect power and shut off the water supply before replacing the tube.
• Drain and relieve pressure from the water line before disconnecting fittings to avoid spills.
• Use the correct OEM clamps or fittings and inspect connectors for wear; replace clamps if damaged.
• Tighten fittings securely but avoid over-tightening plastic fittings to prevent cracking.

This water inlet tube routes incoming water from the supply to the refrigerator's internal water system, restoring proper flow for the dispenser and icemaker. Replace a damaged tube to stop leaks and regain reliable water delivery. What it does

• Channels water from the household supply to the fridge's water valve, dispenser, and icemaker
• Helps prevent leaks caused by cracked, pinched, or deteriorated tubing
• Can restore water flow when internal tubing is blocked or split
• Works with the appliance's existing fittings and seals when installed correctly

• One water inlet tube

• Disconnect power and shut off the water supply before beginning work
• Inspect and reuse only original fittings and seals if undamaged; replace seals if leaking
• Avoid sharp bends or kinks when routing the tube; secure with existing clips or brackets

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

The Ice Maker Fill Tube Assembly is an OEM replacement part for Frigidaire refrigerators. As a component of the automatic icemaker, this fill tube assembly transports water from the water supply line into the ice molding chamber.

Causes of a bad fill tube assembly can include cracks, leaks, or blockages developing over time due to mineral buildup or mold growth inside the plastic tubing. Constant bending during ice production also leads to tubing fatigue.

Symptoms of a bad fill tube assembly include:

• Icemaker not filling with water or producing ice
• Water leaks in the freezer compartment
• Mineral residue or mold observed inside the tubing

This OEM Frigidaire part is compatible with models including Electrolux, Gibson, Kelvinator, and some Kenmore units.
