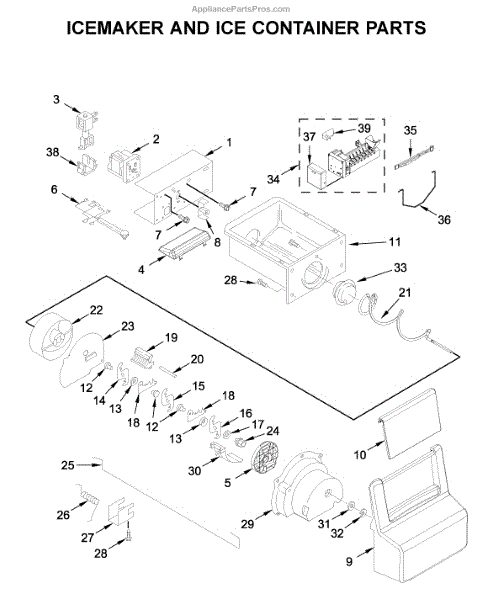

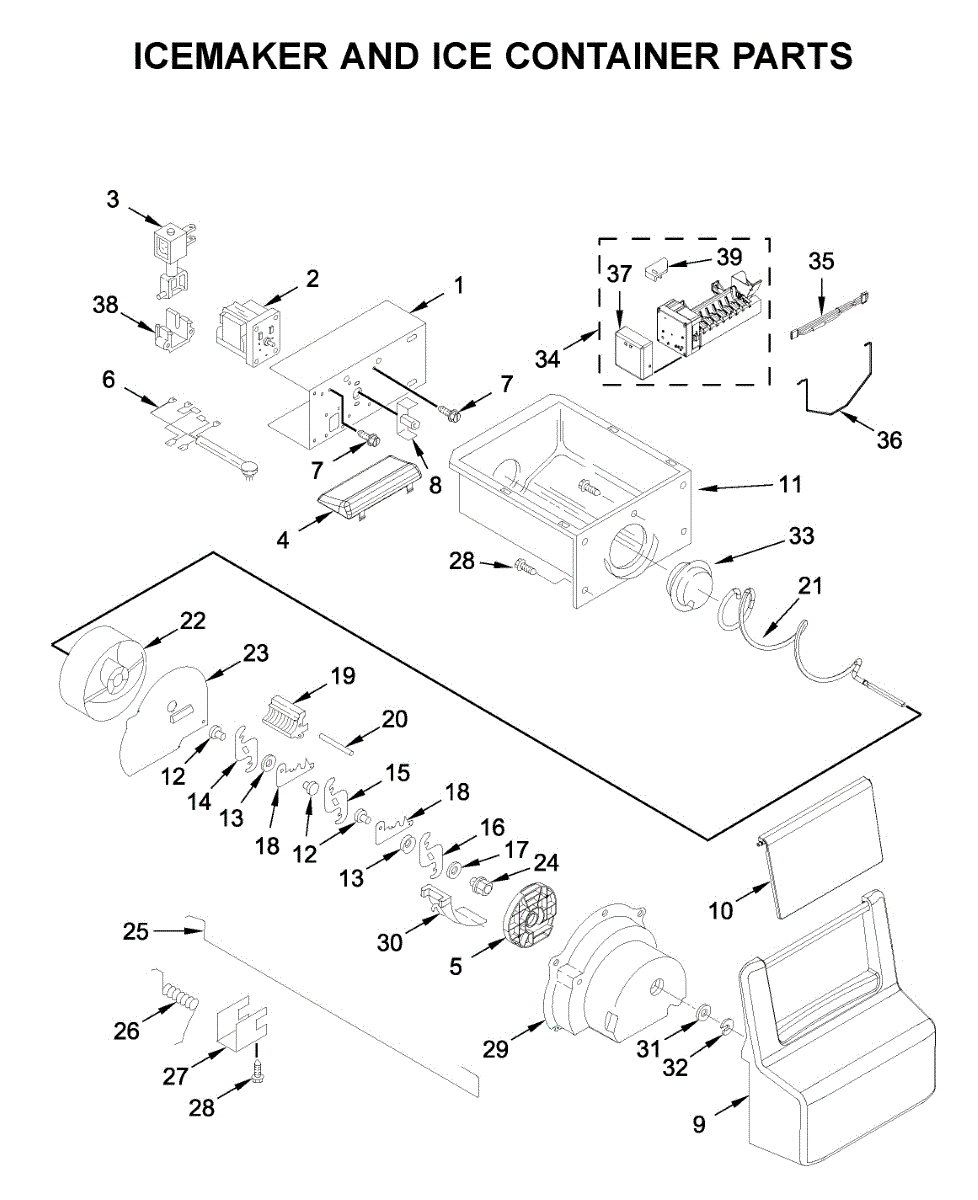

Parts for Whirlpool WRS321SDHB00: Icemaker And Ice Container Parts

Removes contaminants for clean, great-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit with your model number.

Ice dispenser not working or only dispensing sometimes? The auger motor powers ice ejection from the storage bin. DIY-friendly repair in under an hour.

Ice won't switch between crushed and cubed? The dispenser solenoid controls the crusher mechanism. Most DIYers replace it in 25-30 minutes with basic tools.

Replace your cracked or cloudy dispenser light lens to restore clear illumination. Protects the bulb and improves visibility. Verify fit with your model.

Ice or water dispenser not working? This dispenser control harness restores power and signal connections between controls and your refrigerator.

Size: 8-32 x .312 inch.

Ice dispenser not working or coupling spins freely? This motor coupling connects the dispenser motor to the auger. 10-minute fix with channel lock pliers.

Access panel cover for refrigerators. Protects internal components from dust and debris. Replace if cracked, broken, or missing to maintain safety.

Ice dispenser door for side-by-side refrigerator freezer compartment. Replaces broken, cracked, or warped doors that no longer seal properly.

Ice dropping into freezer or not dispensing? A cracked ice container is often the cause. This storage bin replacement takes 15-30 minutes with a screwdriver.

Fix ice that won't crush or dispense with this refrigerator crusher blade. Solves bent or damaged blades preventing ice from dispensing. Easy DIY repair.

Fix ice not dispensing properly with this ice crusher blade. Replaces free-wheeling or worn blades on the auger assembly. DIY-friendly repair.

Ice crusher not working or producing inconsistent crushed ice? This rotating crusher blade restores proper ice crushing when worn, bent, or cracked.

Flat plain washer that distributes load and spaces hardware on appliance assemblies. Replace if worn, missing, or needed for secure fastening.

Secures rotating shafts and levers in your refrigerator's ice dispenser mechanism. Replace if pin is sheared, worn, or missing to restore alignment.

Ice not dispensing or auger broken? This refrigerator ice crusher auger transfers ice from bucket to dispenser. Moderate DIY repair in 30 minutes.

The Ice Dispenser Drum is an OEM replacement part for Whirlpool refrigerators. This drum is located in the ice maker assembly and is responsible for dispensing ice when activated. It rotates to push ice through the chute and into your glass or container.

Causes of a bad ice dispenser drum include wear and tear from regular use, damage from ice jams, or breakage due to accidental mishandling. Accumulation of ice and debris can also cause the drum to malfunction.

Symptoms of a bad ice dispenser drum include:

• Ice not dispensing properly
• Grinding or clicking noises during operation
• Inconsistent ice output
• The dispenser becoming jammed frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Ice dispenser jammed or grinding? A cracked baffle prevents smooth ice flow. This support aligns the auger inside the bin. Moderate DIY with video guide.

This bearing nut secures a bearing and related rotating components on the shaft, keeping the assembly tight and aligned for smooth, dependable operation. Replacing a worn or stripped nut helps stop wobble, noise, and drive slippage.

• Locks the bearing/stack onto the shaft to prevent loosening
• Maintains alignment for smooth rotation and reduced vibration
• Helps restore consistent drive in shaft-driven assemblies
• Typical symptoms: loose or non-turning drive, rattling/grinding, or visible thread damage

• Disconnect power before servicing; shut off water if working near dispenser components
• Remove the related assembly to access the shaft; note part order for reassembly
• Hand-start the nut to avoid cross-threading; verify thread direction against the original
• Tighten securely; inspect the bearing, washers/spacers, and shaft for wear

Ice maker not cycling or shutting off? This control arm extension restores proper movement to the ice maker mechanism. Simple snap-in replacement.

Return spring provides tension for ice maker levers, door latches, or control rods. Replace if broken, stretched, or missing to restore proper snap-back.

Secures support rods or shafts to keep moving parts aligned in your refrigerator. Replace if the clip is broken, worn, or missing to prevent rattling.

Size; 8-18 x 1/2 inch.

Ice not dispensing properly or spilling? This crusher housing secures ice-crushing components and guides crushed ice to the chute. Fixes cracked housings.

This ice deflector guides ice cubes from the icemaker into the ice bin to help keep ice delivery consistent and reduce cube jams or spills. It's a simple replacement that restores proper ice routing in compatible refrigerators. What it does:

• Directs ice cubes from the icemaker into the ice bin for orderly dispensing
• Helps prevent ice clumping and blockages that can stop ice flow
• Keeps ice moving away from the icemaker assembly and into the bin
• Restores proper alignment and function after a cracked or missing deflector

• Disconnect power to the refrigerator before servicing to avoid electrical or mechanical injury
• Remove the ice bin or access panel per your model's service instructions to reach the deflector
• Part typically snaps or slides into place; reuse existing fasteners unless new hardware is supplied
• After installation, reconnect power and run the icemaker through a cycle; discard any ice made during the repair if contamination is suspected

Secures components to prevent axial movement and rattling. Replace worn rings to restore quiet, stable operation. Confirm fit with your model number.

Ice dispenser not working or auger keeps falling off? This coupling connects the motor to the auger. Simple 15-minute DIY fix restores ice dispensing.

The Ice Maker is an OEM part for Whirlpool refrigerators. Designed to efficiently produce ice, this ice maker ensures your refrigerator dispenses fresh and clear ice cubes whenever you need them. It integrates seamlessly into compatible models, maintaining the integrity and performance of your appliance. Note: The original bracket that covered bottom of the icemaker is NLA.  The new bracket is part number W11500948.

Signs that it's time to replace your ice maker include a noticeable decrease in ice production, ice cubes that are smaller or misshaped, and unusual noises during the ice-making process. These issues can arise from a variety of causes such as a malfunctioning water inlet valve, a clogged filter, or even temperature inconsistencies within the freezer compartment.

Symptoms of a bad Ice Maker include:

• Inability to produce ice
• Producing ice at a slower rate than usual
• Ice cubes are not ejected from the mold
• Water leaks in the freezer compartment

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement wire harness routes electrical power and control signals between components in your appliance. Replacing a damaged harness helps restore reliable operation and prevents intermittent electrical issues caused by broken or overheated wiring. What it does:

• Distributes power and signals between the control, motors, sensors, and other components
• Helps resolve issues like components not running, intermittent operation, or features losing power
• Addresses visible damage such as burnt, melted, pinched, or frayed wires/connectors
• Helps when diagnostics indicate open/shorted circuits in the wiring

• One wire harness assembly

• Disconnect power to the appliance before servicing; shut off water or gas if applicable
• Photograph/label each connection and follow the original routing to avoid pinch points or heat sources
• Release locking tabs and pull on connector housings—do not pull on the wires
• After installation, ensure all connectors are fully seated and wires are secured away from moving or hot parts

Ice bin overflowing or ice maker won't stop making ice? The shut off arm signals when to stop production. Simple install in under an hour.

Cracked or missing ice maker cover exposing internal components? This protective cover shields the ice maker assembly. Simple DIY install in minutes.

This guide helps align and support the dryer drum so it turns smoothly and reduces wear on the drum and bulkhead. Replacing a worn guide restores quieter operation and proper drum rotation. What it does:

• Centers and supports the dryer drum to prevent scraping and uneven wear
• Reduces squeaks, grinding noises, and rubbing during rotation
• Helps maintain proper drum alignment to improve drying performance
• Works with existing drum glides, bearings, and rollers to stabilize rotation

• One replacement guide

• Disconnect power before servicing to avoid electric shock
• Access may require removing the dryer front or top panel; your model's service instructions
• Inspect adjacent glides, rollers, and seals; replace any worn parts to prevent premature wear
• Retain all screws and clips; install the guide in the same orientation as the original

Ice not dispensing or leaking from bottom? This ice bucket and auger assembly stores ice and moves it to the dispenser. Moderate DIY repair with video.
