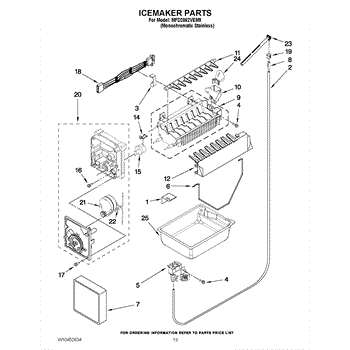

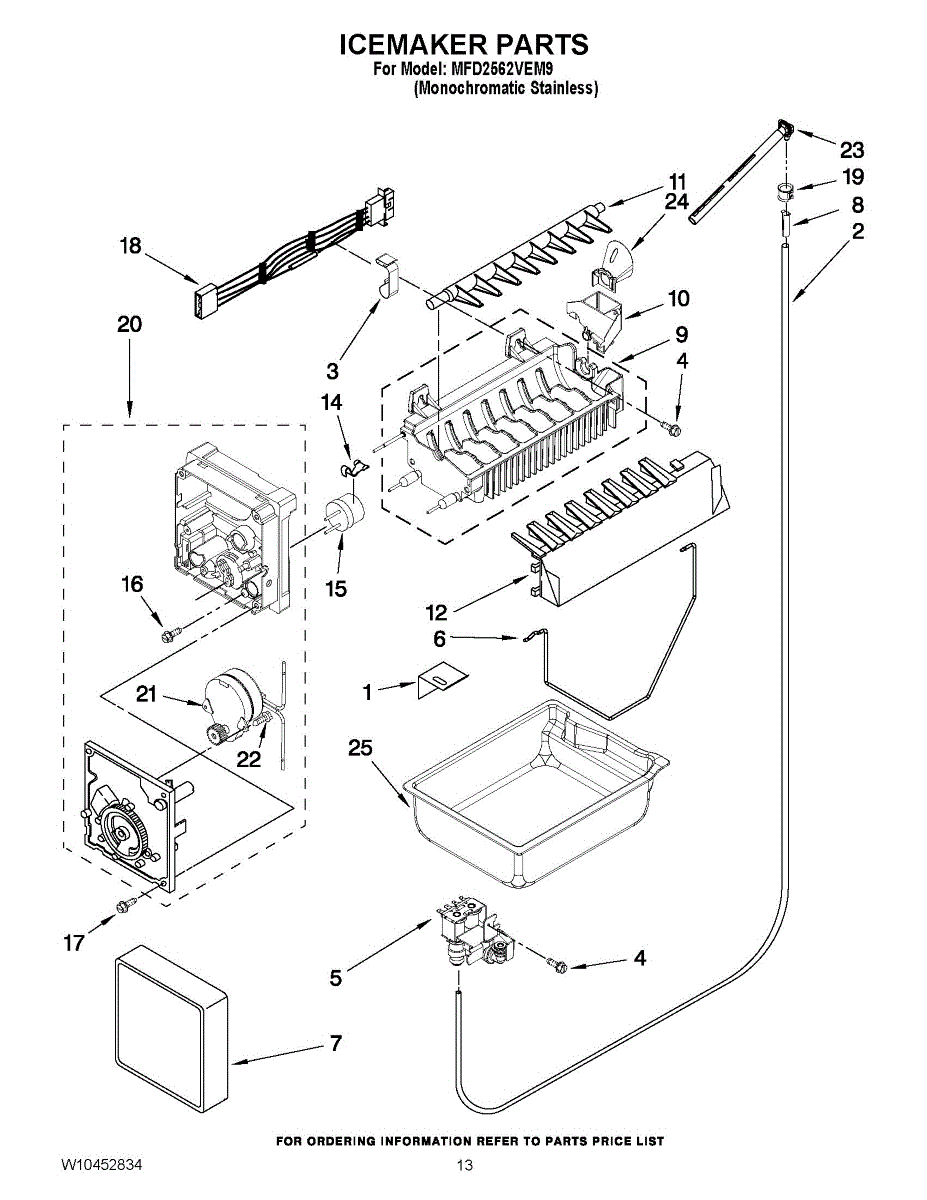

Parts for Maytag MFD2562VEM9: 07 - Icemaker Parts

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

Ice maker shifting or loose? This mounting bracket secures your ice maker assembly in place to restore stable positioning and reliable ice production.

6-20 screw secures panels, brackets, and internal components. Replace stripped, missing, or damaged screws to restore proper fit and eliminate rattling.

Ice maker stopped working or leaking water in freezer? This water inlet valve controls flow to your ice maker and dispenser. Moderate DIY repair.

This shutoff arm is the replacement shut-off actuator for an automatic ice maker. It stops ice production when the storage bin is full, helping prevent overflow and ensuring the ice maker cycles correctly. What it does:

• Acts as the bin-level sensor that signals the ice maker to stop making ice when the bin is full
• Prevents overfilling and ice spillage by physically blocking the ice maker's harvest cycle
• Commonly replaced when the arm is broken, bent, or fails to hold the "up" (off) position
• Restores normal tank/ice production control when functioning correctly

• One ice maker shutoff arm

• Disconnect power to the refrigerator before servicing to avoid electrical shock
• This arm typically snaps or mounts onto the ice maker assembly; handle plastic parts carefully to avoid cracking
• Test operation by manually moving the arm through its travel before reassembling the cabinet or bin

Cracked or missing ice maker cover exposing internal components? This protective cover shields the ice maker assembly. Simple DIY install in minutes.

Fix water leaks in your refrigerator's ice maker or water line. This tube insert reinforces plastic tubing for leak-resistant compression fittings.

Ice cubes stuck in tray or not releasing? This ice mold and heater assembly warms the tray during harvest to release cubes cleanly into the bin.

The Icemaker Fill Cup Sensor is an OEM part for Whirlpool bottom-mount and side-by-side refrigerators. Located inside the icemaker assembly, the fill cup sensor works to automatically detect when an ice scoop or bucket is in place below the icemaker chute. It signals the icemaker to drop ice cubes into the receptacle below.

Causes of a bad fill cup sensor can include mineral or dirt build-up inhibiting sensor response, moisture damage to its electronic functioning, or physical damage to the sensor head.

Symptoms of a bad fill cup sensor include:

• Ice failing to dispense or drop when a container is in place
• Ice clumping in the chute instead of dispensing properly
• The icemaker continuing to run even with ice present below
• Inability to sense when ice is removed from the bucket

This OEM Whirlpool replacement fill cup sensor is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore bottom-mount and side-by-side refrigerators.

This Arm Ejector secures and positions the dishwasher spray arm so it spins properly and distributes water for effective cleaning. Replacing a worn or broken ejector restores spray-arm stability and helps prevent uneven washing. What it does:

• Holds the spray arm in the correct position so it can rotate freely
• Prevents spray arm wobble, scraping, or falling off during cycles
• Helps maintain proper water distribution for consistent cleaning
• Can resolve symptoms like noisy spray arm movement or uneven wash performance

• Disconnect power and turn off the water supply before starting any repair
• Remove the lower spray arm and mounting cup as shown in your model's parts diagram to access the ejector
• Inspect surrounding components for wear when replacing the ejector
• Use only the exact replacement part number to ensure proper fit and function

Ice cubes jamming or hanging up in the ice maker? This stripper arm guides cubes off ejector fingers into the bin. Requires removing ice maker to install.

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

Replacement mounting screw for refrigerators. Secures panels, trim pieces, and small assemblies. Needed when original screw is missing or damaged.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Ice maker not working? This wire harness restores power connection between ice maker and control board. Common fix for melted or damaged connectors.

Speed clip slides over panel edges to create captive threads for mounting screws. Replace worn, missing, or broken clips to restore secure attachment.

This is a replacement screw fastener used to secure appliance components and panels. It restores proper fastening and helps stop loose parts from vibrating or shifting during operation. What it does:

• Secures panels, brackets, or components in place to maintain appliance stability
• Stops rattling, vibration noise, and intermittent contact caused by loose fasteners
• Restores proper alignment where original screws have stripped, corroded, or been lost
• Functions as a direct-fit hardware replacement when the OEM screw is needed

• One replacement screw (quantity: 1)

• Use appropriate driver and moderate torque to avoid stripping threads or damaging parts
• Disconnect power and follow appliance safety procedures before working on the unit
• Repair or replace the mating component as needed

Water fill tube that connects from the back of the refrigerator cabinet into the ice maker fill cup. Replace if cracked, broken, or leaking water.

Fix a refrigerator that stopped making ice with this complete ice maker assembly. DIY-friendly installation takes about 10 minutes with basic tools.

The Replacement Icemaker is an OEM replacement part for Whirlpool made refrigerators including Whirlpool, Amana, Maytag, and many others. It is a component responsible for producing ice cubes or crushed ice, ensuring a constant supply of fresh ice for your convenience. Measuring approximately 11 inches long and 5 inches wide, this ice maker assembly is made of durable plastic and metal

Symptoms of needing a replacement icemaker include:

• No ice production or significantly reduced ice output
• Ice cubes appearing misshapen or clumped together
•  Leaks or water buildup in the icemaker area
• Strange noises or grinding sounds coming from the icemaker

Causes of a faulty icemaker can include normal wear and tear over time, water supply issues, clogging or blockages, or electrical malfunctions.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

Please note: that this ice maker is a replacement only and not suitable for add-ons or brand-new installations. It does not include the harness or hardware. For wire harness(Plug)order WPD7813010. For cover order WPW10289690. For shut off bail arm order WP67004028.
