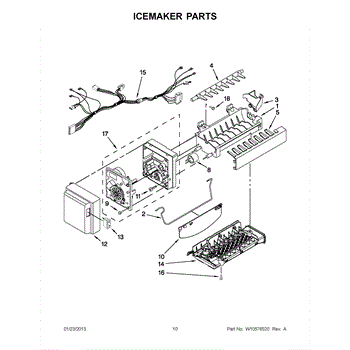

Parts for Whirlpool GI0FSAXVB09: 05 - Icemaker Parts

Ice cubes stuck in tray or not releasing? This ice mold and heater assembly warms the tray during harvest to release cubes cleanly into the bin.

Ice maker won't stop making ice or won't start? This shutoff arm controls ice production by sensing bin level. Simple DIY fix in under 30 minutes.

The icemaker fill cup installs inside the refrigerator icemaker assembly. Replace this part if it's cracked, broken, or missing to restore proper function.

This Arm Ejector secures and positions the dishwasher spray arm so it spins properly and distributes water for effective cleaning. Replacing a worn or broken ejector restores spray-arm stability and helps prevent uneven washing. What it does:

• Holds the spray arm in the correct position so it can rotate freely
• Prevents spray arm wobble, scraping, or falling off during cycles
• Helps maintain proper water distribution for consistent cleaning
• Can resolve symptoms like noisy spray arm movement or uneven wash performance

• Disconnect power and turn off the water supply before starting any repair
• Remove the lower spray arm and mounting cup as shown in your model's parts diagram to access the ejector
• Inspect surrounding components for wear when replacing the ejector
• Use only the exact replacement part number to ensure proper fit and function

Ice cubes jamming or hanging up in the ice maker? This stripper arm guides cubes off ejector fingers into the bin. Requires removing ice maker to install.

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

Ice maker overflowing or not stopping? This shut-off arm extension clips onto the bail arm to help the bin detect when full. Simple 5-minute fix.

Replacement screw secures panels, brackets, and components inside your refrigerator. Needed when original fastener is stripped, missing, or lost.

Ice maker cover for refrigerators. Replaces cracked, broken, or missing covers on the ice maker assembly. Restores clean appearance and protection.

Fix intermittent or unresponsive controls with this single-pole, single-throw rocker switch. Restores reliable on/off operation for refrigerators.

Refrigerator air baffle assembly fixes uneven cooling and ice maker issues caused by poor airflow. Slides into place behind ice maker housing.

Replace your refrigerator's damaged or burned main wire harness. Connects and routes power between internal components. Needed when wiring is frayed or melted.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Ice maker stopped making ice or won't eject cubes? A failed motor module is often the cause. DIY repair in under an hour with our video guide.

Ice maker not making ice or leaking water? This complete ice maker assembly fixes frozen, jammed, or non-ejecting ice issues. DIY-friendly replacement.
