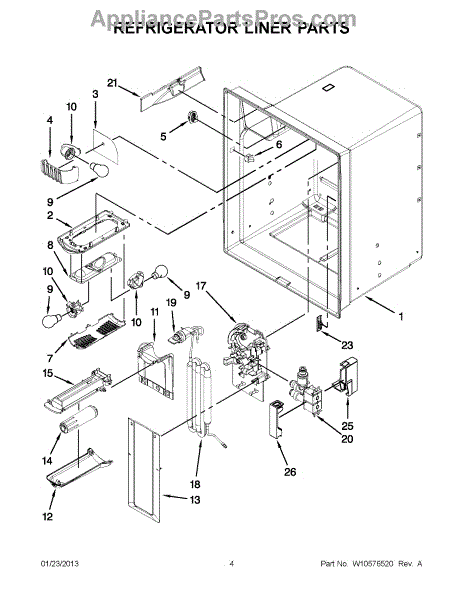

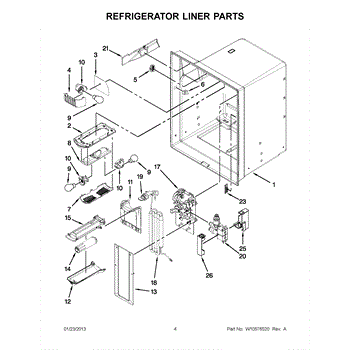

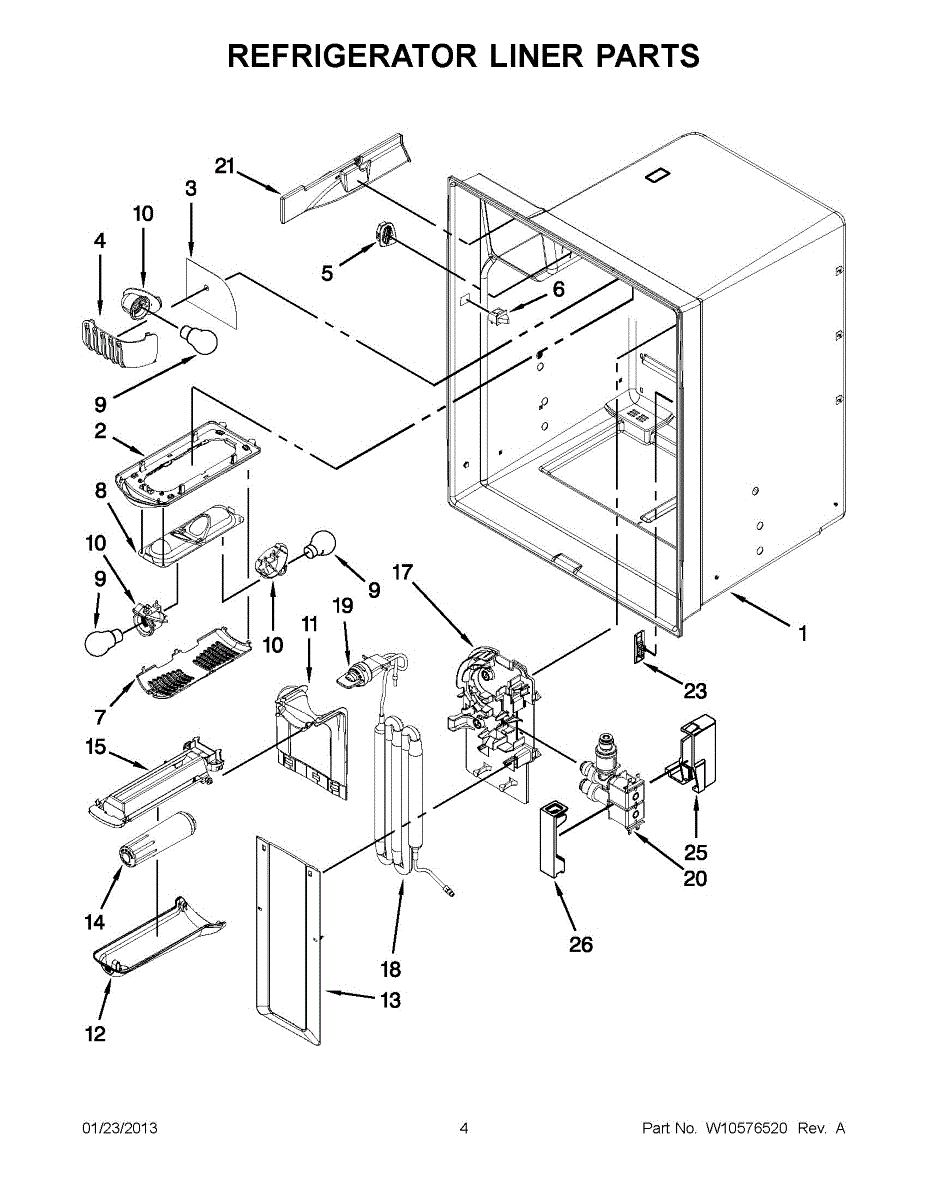

Parts for Whirlpool GI0FSAXVB09: 02 - Refrigerator Liner Parts

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement housing is the outer cabinet component that supports and protects internal appliance parts, restoring proper alignment and preventing debris intrusion. It's a direct-fit service piece when the original housing is cracked, bent, or damaged. What it does:

• Replaces a damaged or cracked outer housing to restore structural support
• Protects internal components from dirt, moisture, and impact
• Reduces vibration and rattling caused by warped or broken housing
• Helps maintain correct alignment of internal assemblies for reliable operation

• One replacement housing

• Disconnect power (and water if applicable) before starting any repair
• Handle edges carefully — use gloves to protect against sharp metal or plastic
• Follow OEM instructions for removal and reassembly; fasteners and trim may be required

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Filter Cover is an OEM part for Whirlpool refrigerators. It is specifically designed to encase and protect the water filter, ensuring it remains securely in place and free from contamination. This cover aids in maintaining the cleanliness and efficiency of the water filtration system, providing safe and clean drinking water.

These problems usually arise from normal wear and tear, accidental damage during filter replacement, or when the refrigerator is moved or handled improperly.

Symptoms of a bad Water Filter Cover include:

• Difficulty in accessing or replacing the water filter.
• Unsecured water filter due to a cracked or broken cover.
• Potential contamination of the water filter if the cover does not seal properly.
• Visible damage or cracks on the cover, which could compromise the integrity of the water filtration system.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This water tank cover replaces a damaged or missing upper reservoir cover to keep the appliance's water reservoir contained and protected. It restores a proper seal and helps prevent water from spilling into internal compartments. What it does:

• Covers and protects the water reservoir to reduce leaks and water intrusion
• Helps maintain correct water flow paths inside the cabinet
• Prevents debris from entering the tank and affecting performance
• Reduces risk of water contacting electrical components or insulation

• One water tank cover

• Designed for drop-in or snap-in replacement; follow OEM diagram for orientation
• Disconnect power and water supply before servicing to avoid shock and leakage
• Inspect adjoining gaskets and mounting clips; replace if cracked or missing
• Handle plastic parts gently to avoid cracking; use appropriate tools to remove fasteners

This bracket mounts the refrigerator's water filter base/head to the cabinet. Replace a cracked or missing bracket to keep the filter housing secure and properly aligned for smooth filter changes and proper sealing at the connections.

• Secures the water filter head/base to the refrigerator cabinet or liner
• Maintains alignment so the cartridge seats and locks correctly
• Stabilizes the housing to help reduce vibration and drips at the fittings
• Typical symptoms: loose or sagging filter housing, leaks around the filter head, difficulty inserting/removing the filter, rattling during dispensing

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the water filter and any cover or grille to access the bracket
• Support the filter head and tubing; remove mounting screws and swap in the new bracket using existing hardware
• Restore water and power, reinsert the filter, then check for leaks and flush per your filter's instructions

The Reservoir is a Whirlpool OEM replacement part for Whirlpool side-by-side refrigerators. This assembly does include the filter head. The filter head connects the external filter cartridge to the internal reservoir. The reservoir holds filtered water that is dispensed from the external door dispenser.

Causes can be normal wear to sealing components, cracks in plastic from repeated pressure changes, or mineral buildup affecting water flow.

Symptoms of a problem include:

• Prematurely lit filter change indicators
• Water dispenser flow slowing or stopping over time
• Gradual decline in ice production amounts
• Noticeable sediment or particles in dispensed water

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Some Kenmore models.

The Cartridge Bypass is an OEM part for Whirlpool refrigerators. It is designed to replace the water filter cartridge when filtration is not desired or necessary. This allows the refrigerator to bypass the filter and provide unfiltered water to the dispenser and ice maker.

Common causes of failure include wear and tear, improper installation, or physical damage from mishandling.

Symptoms of a bad Cartridge Bypass include:

• Water leakage around the filter area
• Reduced water flow or no water flow from the dispenser
• Ice maker not producing ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Inlet Valve is an OEM part for Whirlpool refrigerators. It controls the flow of water into the refrigerator for the icemaker and water dispenser, ensuring a consistent supply for ice production and chilled water.

Common causes of failure include sediment buildup, electrical issues, or damage from freezing. A malfunctioning valve can disrupt the water supply, affecting both the icemaker and water dispenser functions.

Symptoms of a bad Water Inlet Valve include:

• No water or ice production
• Slow filling of the ice tray or water dispenser
• Leaks or puddles around the refrigerator
• Unusual noises when the water dispenser is activated

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cover is a replacement cabinet trim piece that restores the appliance's exterior finish and protects underlying components from dust and damage. It provides a clean, finished look and helps maintain proper airflow around the unit. What it does

• Covers and protects exposed cabinet openings or component access points
• Hides fasteners and internal parts for a finished exterior appearance
• Prevents dust and debris from entering service areas
• Helps maintain proper airflow pathways by closing gaps

• One cover cabinet trim piece as pictured

• Intended for basic exterior replacement; verify orientation before fastening
• Use appropriate screws or clips removed from the original piece; do not force
• Disconnect power (and gas if applicable) and follow all safety precautions before servicing
