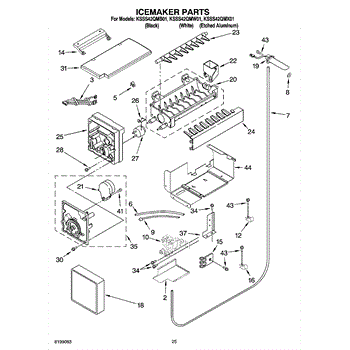

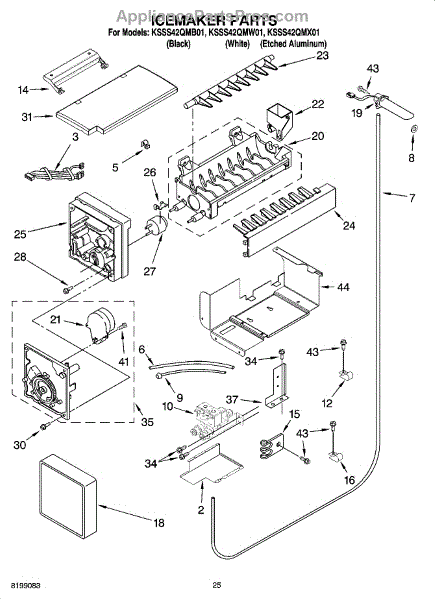

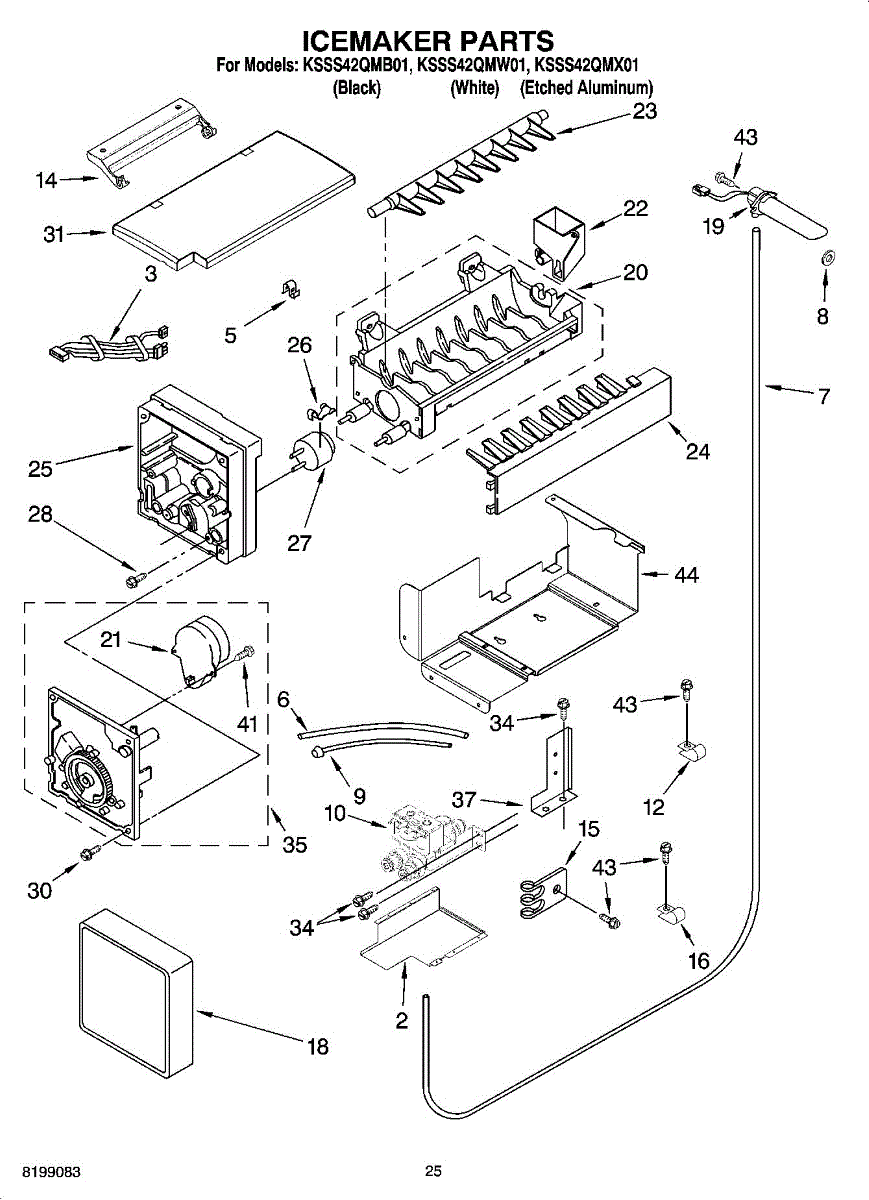

Parts for Kitchenaid KSSS42QMB01: 15 - Icemaker Parts

Replace your refrigerator water filter every 6 months for clean, fresh-tasting water and ice. Simple twist installation. Verify fit with your model number.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Supply Tube is an OEM part for Whirlpool refrigerators. This tube transports water to supply the automatic ice maker. It ensures a consistent water flow to produce batches of ice on demand.

Causes of a bad water supply tube can include cracks or leaks from regular use and flexing over time. Mineral buildup inside the tube may also restrict water flow.

Symptoms of a bad water supply tube include:

• Ice maker not working or producing ice slowly
• Water droplets under the refrigerator
• Noticeable cracks or splits in the tube

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Fix a leaking water dispenser or no ice production with this dual inlet valve. Controls water flow to ice maker and dispenser. DIY-friendly repair.

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

Ice maker cover loose or broken? This bracket secures the front cover to your ice maker assembly. Simple 5-minute DIY repair with basic tools and video guide.

Secures flexible tubing to fittings on water and drain lines. Replace when clamps lose tension or you find leaks. Confirm fit with your model number.

Routes water from the valve to your refrigerator's ice maker. Replace if cracked, leaking, or disconnected to restore proper water flow and prevent spills.

The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

• Ice cubes not forming correctly or being irregular in shape
• Ice cubes sticking to the mold and not dispensing
• The icemaker not producing ice at all
• Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Ice maker stopped making ice or won't eject cubes? The control module regulates ice production cycles. Simple 3-screw replacement restores function.

Ice maker leaking or shutoff arm broken? This fill cup and bearing assembly directs water into the mold and supports the arm. 15-minute DIY fix.

Ice cubes stuck in tray and won't eject? This ejector arm pushes ice from the mold into the bin. Simple snap-in install restores ice production.

The Ice Stripper Kit is an OEM part for Whirlpool refrigerators. This kit helps in the efficient removal of ice from the ice maker, ensuring smooth and continuous ice production.

Common causes include wear and tear from regular use, buildup of ice or debris, or damage from mishandling during maintenance.

Symptoms of a bad ice stripper kit include:

• Ice cubes not being properly ejected from the ice maker
• Ice jams or blockages
• Reduced ice production
• Unusual noises coming from the ice maker

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Mounts in the dispenser to secure the ice housing assembly. Keeps the chute and door aligned for smooth dispensing. Replace if cracked, broken, or worn.

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

Replacement mounting screw for refrigerators. Secures panels, trim pieces, and small assemblies. Needed when original screw is missing or damaged.

Mounting screw for refrigerator ice maker assembly. Secures components to maintain structural integrity. Replace if lost, stripped, or corroded.

This ice maker cover protects the ice maker assembly and helps keep ice contained for reliable dispensing and storage. It replaces worn or cracked covers to restore proper ice flow and reduce exposed frost areas. What it does:

• Covers and protects the ice maker and associated components from debris and accidental contact
• Helps guide ice into the dispenser or storage bin for consistent delivery
• Reduces ice exposure that can contribute to frost build-up around the ice maker
• Useful when a cracked or warped cover causes ice to jam or spill

• Disconnect power to the refrigerator before starting any work
• Handle the plastic cover gently to avoid cracking during removal or installation
• Installation typically requires removing the ice maker assembly or front trim; keep track of fasteners

Color: Stainless steel

Ice maker stopped making ice or won't eject cubes? The control module regulates ice production cycles. Simple 3-screw replacement restores function.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Secures the icemaker assembly inside your refrigerator freezer compartment. Replace this bracket if it's cracked, broken, or missing to restore support.

Ice maker not producing ice or leaking water? This complete ice maker assembly replaces faulty units. Straightforward DIY replacement restores ice production.
