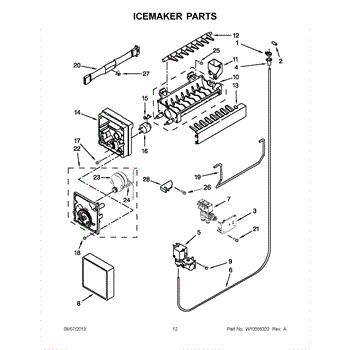

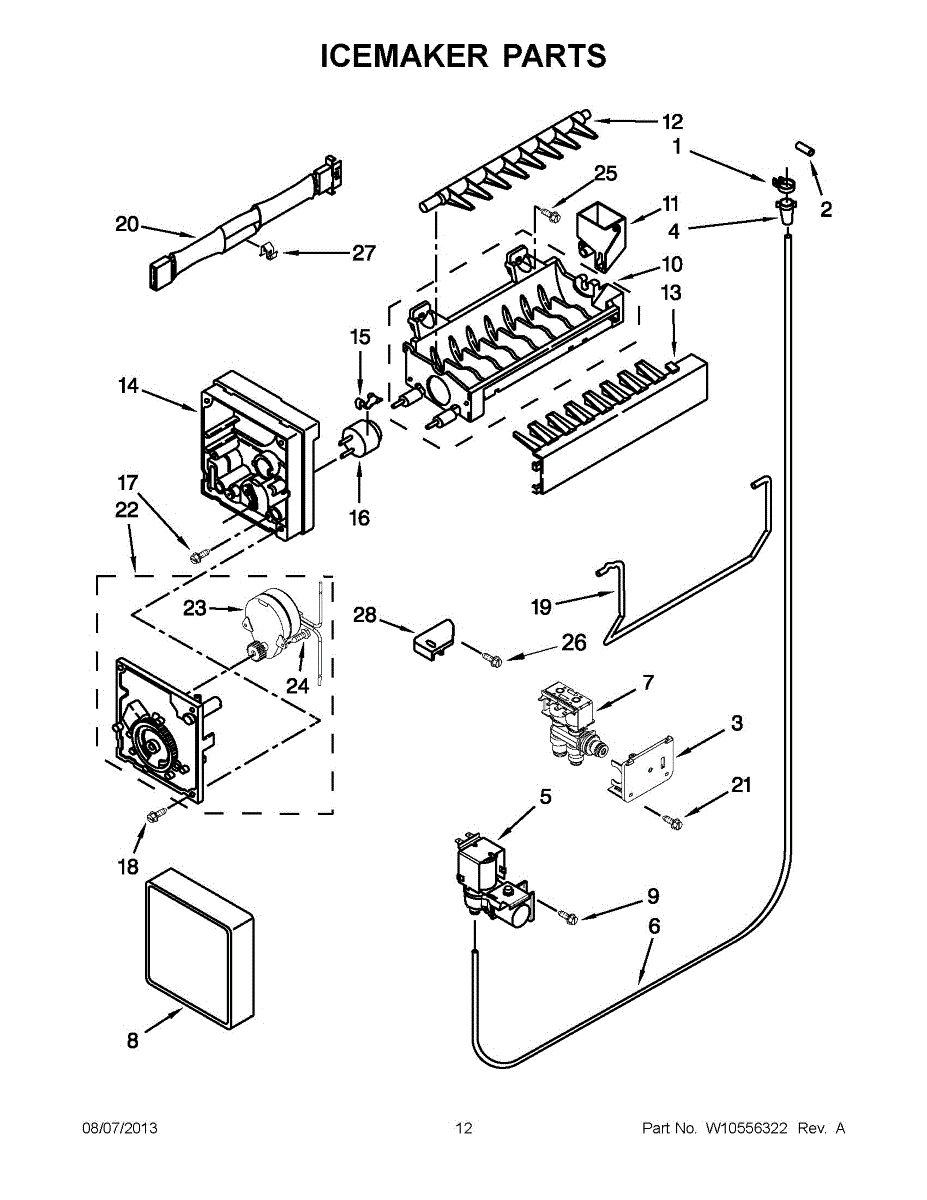

Parts for Whirlpool 5VWT71REYF00: 06 - Icemaker Parts

A small metal clamp that secures flexible hoses or tubing in laundry and kitchen appliances to prevent leaks and keep connections tight. Simple, durable replacement for a worn or loose hose fastening point. What it does

• Holds a hose or tube firmly to a barb, fitting or nipple to stop leaks and movement
• Restores a secure connection where a cracked or corroded clamp allows fluid or air escape
• Common service item for loose drain, fill, or vent hoses showing seepage or slipping
• Helps maintain proper appliance function by ensuring sealed hose connections

• One clamp

• Disconnect power and water before servicing; follow your appliance safety procedures
• Inspect mating hose and fitting for damage; replace hose if cut or brittle
• Use the correct pliers or clamp tool for safe installation and to avoid over-tightening

These inserts are for 1/4 inch plastic tubing. Package of 4.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8-18 x 1/2 inch.

This mold heater assembly warms the ice maker mold to help release ice and prevent ice buildup for consistent ice production. It replaces a faulty heater that can cause stuck cubes or irregular harvesting. What it does:

• Gently warms the ice mold so ice cubes release cleanly from the tray
• Helps prevent ice from sticking or freezing unevenly to the mold
• Supports regular ice harvesting cycles when heater has failed or is intermittent
• Works as the heater component inside the ice maker housing

• One mold heater assembly

• Disconnect power to the appliance before attempting any service
• Accessible from the ice maker module area; some models require removing the ice bin or access panel
• Handle the heater and surrounding components carefully to avoid damage to the ice maker

This cup fill spout directs the dispenser's water stream cleanly into a cup. If the spout is cracked, clogged, or warped, it can cause splashing or persistent drips—replacing it restores a steady, controlled flow.

• Funnels water from the dispenser outlet for a smooth, targeted stream
• Helps reduce splashing and water running down the door
• Can resolve drips after dispensing, erratic spray, or a damaged/missing spout
• Visible cracks, mineral buildup, or deformation are common failure signs

• Unplug the appliance and turn off the water supply
• Open the dispenser area and release the spout from its locking tabs or clips
• Seat the new spout fully; transfer any seals from the old part if applicable
• Restore water and power, then test for proper flow and leaks

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

This comb-shaped insert mounts at the front of the modular ice maker. It strips freshly ejected cubes from the rake and directs them into the bin to help prevent jams and cube hang-ups for consistent ice harvests.

• Guides cubes off the ejector fingers and into the bin
• Helps prevent cubes from re-entering the mold, bridging, or jamming
• Replaces a cracked, warped, or missing stripper to restore proper harvest path
• Typical symptoms: cubes stuck on the ejector, repeated jams, ice spilling or clumping

• Disconnect power to the refrigerator and turn off the ice maker before servicing
• Remove the ice maker front cover; release locking tabs or screws to remove the old stripper
• Position the new stripper over the ejector fingers; seat fully without forcing the rake
• Reinstall cover/ice maker, restore power, and allow a full cycle to verify operation

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

This bimetal defrost thermostat controls power to the evaporator defrost heater. Replacing a failed thermostat restores proper defrost cycling, helping prevent ice buildup on the coils and safeguarding the unit from overheating during defrost.

• Senses evaporator coil temperature and opens/closes the defrost heater circuit
• Protects against overheating by cutting heater power when the coil warms
• Works with the control/timer to complete the defrost cycle
• Common symptoms: heavy frost on the freezer back panel/evaporator, warming temperatures after several days, or a defrost heater that won't energize

• Disconnect power; remove freezer shelves and the rear panel to access the evaporator
• The thermostat is typically clipped to the evaporator tubing—note placement/orientation before removal
• Make secure electrical connections and route wires away from sharp edges and the fan
• Reassemble, restore power, and operate the defrost system properly

This is a replacement screw fastener used to secure appliance components and panels. It restores proper fastening and helps stop loose parts from vibrating or shifting during operation. What it does:

• Secures panels, brackets, or components in place to maintain appliance stability
• Stops rattling, vibration noise, and intermittent contact caused by loose fasteners
• Restores proper alignment where original screws have stripped, corroded, or been lost
• Functions as a direct-fit hardware replacement when the OEM screw is needed

• One replacement screw (quantity: 1)

• Use appropriate driver and moderate torque to avoid stripping threads or damaging parts
• Disconnect power and follow appliance safety procedures before working on the unit
• Repair or replace the mating component as needed

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This ice maker shut-off arm is the wire lever that detects the ice bin level and stops production when raised. Replace a bent, broken, or missing arm to restore reliable on/off control of your icemaker.

• Monitors bin fullness; in the up position it opens the internal switch to pause ice making
• Lowers as ice is used so the icemaker can resume cycles
• Restores manual shutoff when you lift the arm

• Disconnect refrigerator power and turn off the water supply before servicing
• Remove the ice bin for access; open the icemaker front cover if your model has one
• Pull the old arm straight out of the pivot holes; align and fully seat the new arm so it moves freely
• Restore power and lower the arm to resume ice production; the arm raises and stops production when the bin is full

This wire harness assembly routes power and signals between a unit's controls and components so the appliance operates reliably. It replaces a damaged or burned harness to restore proper electrical connections and safe operation. What it does

• Provides organized wiring paths for power and control signals to motors, switches, and sensors
• Restores lost or intermittent electrical connections caused by frayed, broken, or burned wires
• Helps eliminate symptoms like non-responsive controls, intermittent operation, or components not receiving power
• Maintains factory routing and connector configuration for correct fit and function

• One complete wire harness assembly as shown

• Disconnect power (unplug or switch off breaker) before starting any repair
• Compare the harness and connector shapes to the original before installing to ensure correct fit
• Route wires following factory clips and channels; avoid pinching or contact with sharp edges or heat sources

Size: 8 x 1/2 ab.

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

Size: 8 x 1/2 ab.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

The ice maker bracket is an OEM part for Whirlpool refrigerators. This bracket is a structural component that holds and supports the icemaker assembly within the refrigerator. It allows for secure mounting and installation of the icemaker while also maintaining proper alignment.

Causes of a bad bracket can include wear and tear over time, cracks or breaks due to impact or stress, or corrosion issues that compromise the integrity of the mounting structure.

Symptoms of a bad bracket include:

• Loose or unstable icemaker installation
• Improper ice production or dispensing
• Noise or vibrations emanating from the icemaker area
• Moisture leaks or water damage near the bracket mounting points

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Icemaker Complete Add-On Kit is an OEM replacement part for Whirlpool side-by-side refrigerators. The kit includes the icemaker head, auger motor assembly, wire harness, installation hardware, and more. These allow ice production capability to be added to older refrigerators that were not initially equipped with icemaking.

Causes of a bad icemaker can include wear and tear from regular use, mineral buildup from hard water, and electrical issues that affect the ice production cycle.

Symptoms of a bad icemaker include:

• No ice production or slow ice-making
• Ice cubes that are irregularly shaped or smaller than usual
• Leaks or water pooling in the ice maker area
• Unusual noises during the ice-making process

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
