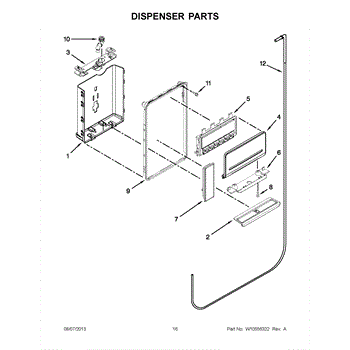

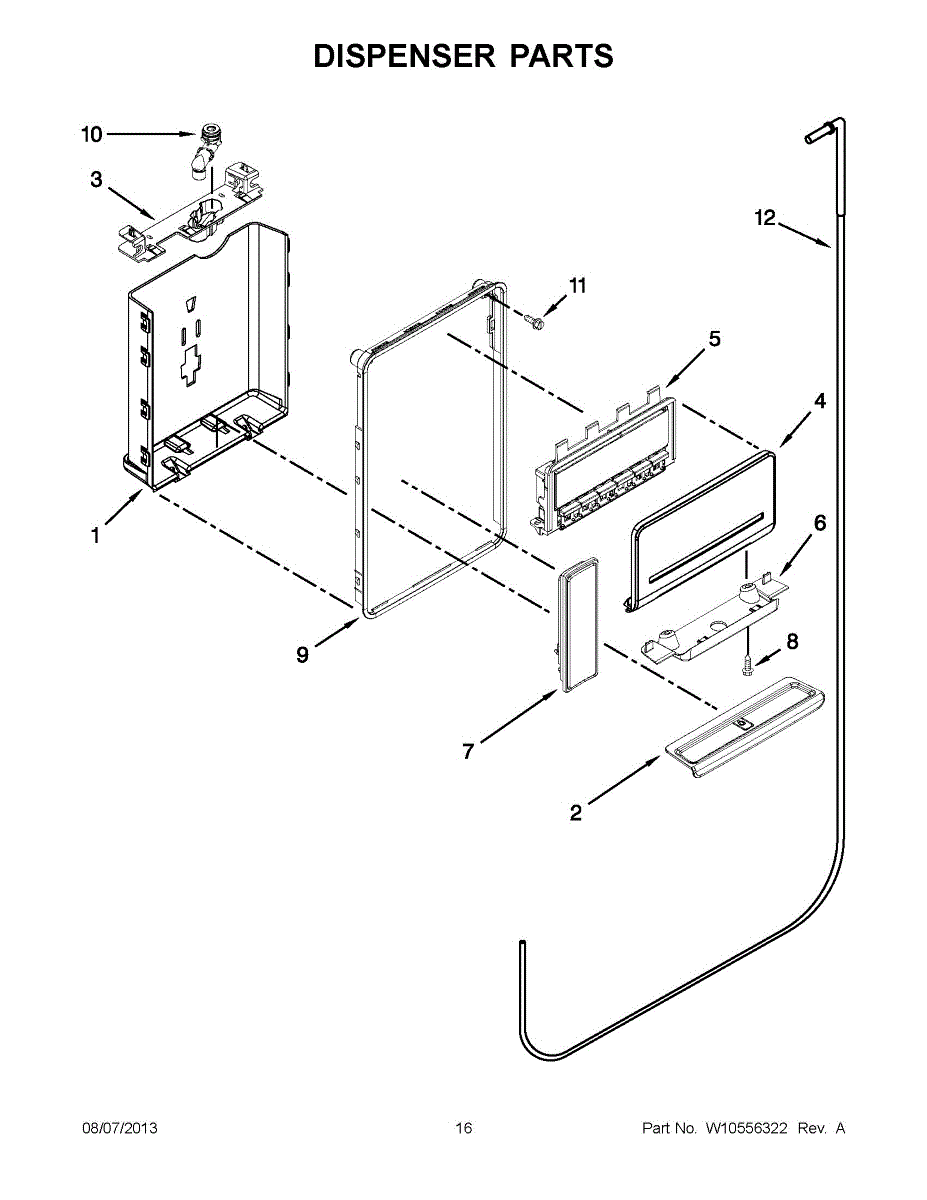

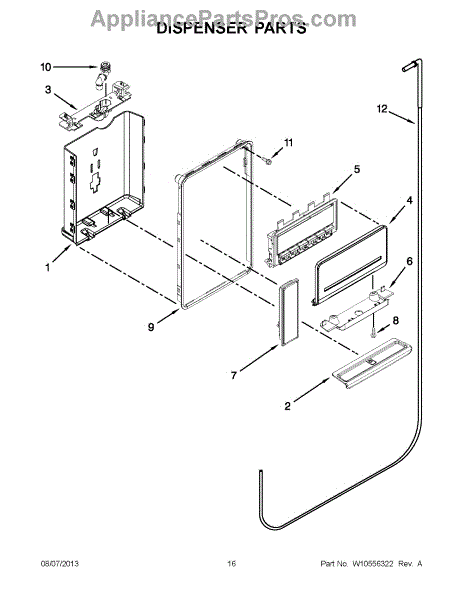

Parts for Whirlpool 5VWT71REYF00: 08 - Dispenser Parts

This drip tray in a Midnight finish sits at the dispenser area to catch minor drips and splashes, helping keep your door clean and dry. It also refreshes appearance if the original tray is cracked, stained, or missing.

• Collects drips under the dispenser to help prevent water from running down the door or onto the floor
• Provides a stable landing for cups and glasses during dispensing
• Restores a clean look if the old tray is worn or discolored
• Typical symptoms: puddling at the dispenser, mineral buildup, or a loose/warped tray

• Pull the old tray straight out; some models require lifting the front edge first
• Clean the recess thoroughly before installing the new tray
• Align tabs and press evenly until fully seated—do not force
• Avoid activating the dispenser during installation; wipe with mild soap and water only

This separator is a molded plastic divider that helps keep ice organized inside the ice bin for smoother dispensing and less clumping. It restores proper spacing so ice moves freely during dispense cycles. What it does:

• Divides and guides ice inside the ice bin to reduce jamming and clumping
• Helps improve ice feed into the auger or dispenser chute
• Reduces shifting and rattling of ice during door movement
• Restores intended bin geometry after a cracked or missing divider

• One separator

• Unplug the refrigerator or shut off power before working on the ice bin or dispenser
• Empty the ice bin and remove any loose ice to avoid spills during replacement
• Snap the separator into the molded slots in the ice bin; no tools typically required

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

This dispenser trim is the exterior bezel that finishes the refrigerator dispenser opening, restoring a clean appearance and helping align the dispenser components for smooth operation. What it does:

• Covers and protects the dispenser opening from scratches and wear
• Helps position the dispenser controls and chute for reliable use
• Prevents debris from entering behind the dispenser assembly
• Commonly replaced when the bezel is cracked, chipped, or loose

• One dispenser trim piece as shown

• Disconnect power to the appliance before beginning service
• Remove any clips or screws holding the existing trim and lift the old bezel away carefully
• Align the new trim and secure with the original fasteners; avoid overtightening

This spigot body assembly routes water from the refrigerator supply to the dispenser and replaces a worn, cracked, or leaking dispenser spigot. It restores proper water flow and helps stop drips or visible leaks at the dispenser. What it does:

• Channels water from the supply line through the dispenser area for normal dispense operation.
• Provides the structural mounting for the dispenser valve and actuator components.
• Common symptoms it can address: leaking or dripping at the dispenser, visible cracks or broken spigot housing, or intermittent water flow from the dispenser.
• Works with existing dispenser valve and seals when those components are undamaged.

• Disconnect power to the appliance and shut off the water supply before starting work.
• Access may require removing the refrigerator door panel or inner dispenser bezel.
• Inspect and replace any worn O-rings or seals during reassembly to prevent leaks; tighten fasteners only to specified torque if provided by the manufacturer.

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing
