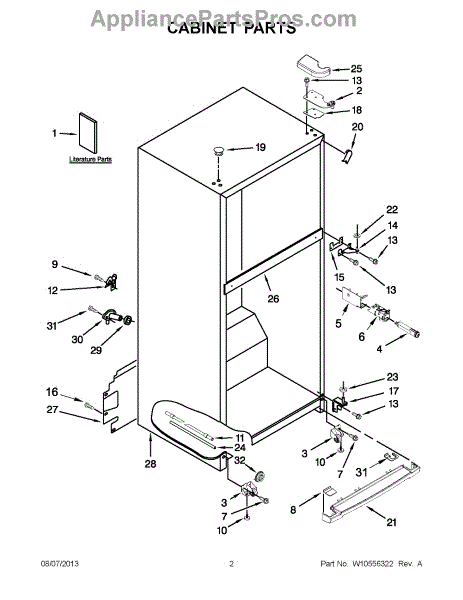

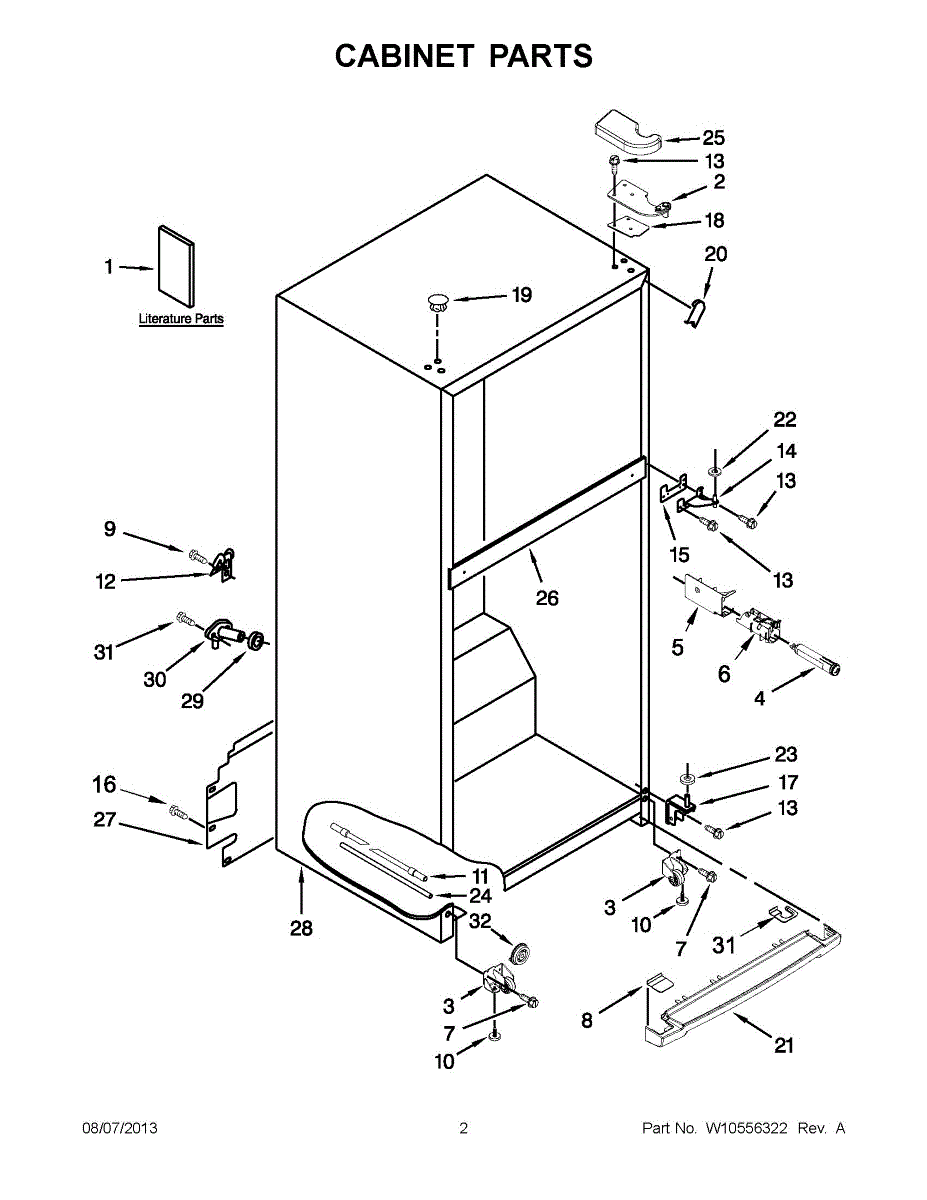

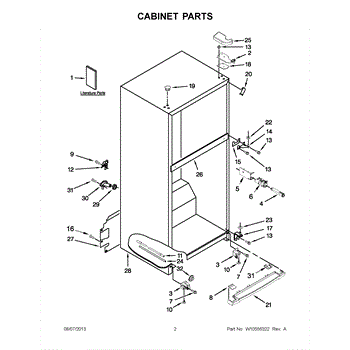

Parts for Whirlpool 5VWT71REYF00: 01 - Cabinet Parts

This top door hinge assembly mounts at the upper corner of a refrigerator or freezer door to support the door and provide a smooth pivot. Replacing a worn hinge restores proper alignment, smooth closing, and an effective gasket seal.

• Supports the door at the upper pivot point and carries its weight
• Keeps the door square with the cabinet for proper sealing
• Enables smooth opening and closing without binding
• Common symptoms of a failing hinge include door sagging, rubbing, popping/creaking sounds, and poor sealing or condensation around the door

• Disconnect power; remove door contents for easier handling
• Support the door before removing the upper hinge screws and hinge
• Note hinge orientation and transfer any shims/spacers during reassembly
• Tighten screws securely, then verify door alignment and gasket seal

This front roller assembly replaces a worn wheel/bracket so the appliance or drawer moves smoothly and stays properly supported. Restore easy glide and alignment to reduce drag, noise, and strain during everyday use.

• Supports the front of the cabinet or drawer and allows smooth rolling
• Helps maintain proper alignment and level during movement
• Reduces scraping, squeaking, or hard-to-move operation
• Common signs of failure: broken/missing wheel, bent bracket, uneven stance, or dragging

• Disconnect power before servicing; shut off water or gas if applicable. Use help when moving heavy appliances
• Support the drawer or appliance and access the front roller mount
• Remove retaining fasteners, noting orientation; transfer any reusable hardware
• Install and secure the new assembly, then check for smooth travel and proper alignment/level

A front roller assembly that supports the dryer's drum edge to help the drum turn smoothly and quietly. Replacing a worn roller restores proper drum alignment and helps reduce rubbing, squeaks, and uneven spinning. What it does:

• Supports the front of the dryer drum so it rotates freely and stays centered.
• Reduces noise and vibration caused by worn or rough rollers.
• Prevents drum wobble that can cause rubbing against the cabinet or seals.
• Helps the drum turn smoothly so airflow and drying performance remain consistent.

• Disconnect power before any service. For gas dryers, turn off gas supply if required by your local codes.
• Remove the dryer front panel or cabinet as required to access the drum; support the drum while removing and installing the roller.
• Inspect related parts (rear roller/glides, drum seals, belt) and replace if worn to avoid repeat failures.
• Use common hand tools; do not force parts. Follow OEM service instructions for torque/fastening details.

This filter cover secures the appliance's filter element, keeping debris out of the sump and maintaining proper water flow for efficient cleaning. Replaces a worn or cracked cover to help restore normal filter function and reduce recurring clogs. What it does:

• Secures and protects the filter assembly from food particles and large debris
• Helps maintain correct water circulation through the filter area
• Prevents loose debris from entering the pump or spray system
• Can resolve symptoms like visible cover damage, persistent clogs, or debris in the sump

• One filter cover

• Turn off power to the appliance before accessing internal components
• Remove the old cover, clean the filter area, and snap or fasten the new cover into place per manufacturer guidance
• Do not force the cover; verify proper seating to avoid leaks or damage

This replacement housing serves as the structural cover/mount for a specific appliance assembly. Replacing a cracked or damaged housing restores secure mounting and protection so components stay aligned and operate as intended. What it does:

• Holds and positions the related components for correct operation
• Shields internal parts and wiring from impact and vibration
• Restores proper fit when the original housing is cracked, warped, or broken
• Common symptoms include loose/misaligned parts, rattling noises, broken tabs, or visible damage in the affected area

• 1 housing

• Disconnect power; if the serviced area ties into water, shut off the water supply
• Wear cut-resistant gloves; edges and surrounding sheet metal can be sharp
• Transfer any sensors, seals, or hardware from the old housing to the new one
• Reuse existing screws/clips; align carefully and do not overtighten, then test operation

This genuine replacement screw secures appliance panels and components for reliable operation. Use it to replace stripped, missing, or corroded fasteners and restore proper fit and alignment for safe appliance use. What it does

• Secures panels, brackets, and small components to restore proper alignment and reduce vibration
• Replaces stripped or missing fasteners that can cause loose parts or rattling
• Helps maintain safe electrical and mechanical connections by holding components in place
• Works wherever the original matching screw was used on the appliance

• Disconnect power and water before beginning any repair
• Use the correct driver bit to avoid cam-out and head damage
• Tighten securely but avoid overtightening to prevent stripping threads or cracking plastic
• If threads are damaged, replace mating hardware or use appropriate repair inserts rather than forcing the screw

Size: 8-18 x 1/2 inch.

The Leveling Leg is an OEM replacement part for Whirlpool refrigerators. It is one of four legs situated internally at the base corners for proper tilt positioning. It raises or lowers each leg independently to stabilize units on uneven kitchen floors.

Causes of replacement consist of wear from continual torque required during positioning processes. Thread damage or corrosion buildup attributable to floor locations over extended use necessitates periodic renewal as well.

Symptoms involve:

• Doors that fail to align or seal completely during open-close cycles
• Noisy imbalances traced to feet contacting floor surfaces
• Appliance rocking is unable to be remedied through existing leg corrections

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

The Center Door Hinge is an OEM replacement part for Whirlpool refrigerators. As one of several hinges supporting each refrigerator door panel, it works to guide opening and closing movements.

Causes of a faulty center hinge tend to be wear from years of continuous operation with near-daily door cycles. Complete failure could also occur in the event of physical damage sustained during a repair or installation issue.

Symptoms include:

• Looseness, wobbling, or misalignment of the associated door
• Increased effort required to open or close doors
• Potential for doors to fall off alignment, cease opening fully
• Risk of door detachment altogether without hinge support

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This small shim installs on the refrigerator's center hinge pin to set door height and reduce excess play. Replacing a worn spacer can help restore smooth door movement and a reliable gasket seal. What it does:

• Maintains proper spacing at the center hinge to support door alignment
• Reduces door wobble, sagging, or rubbing against the cabinet
• Helps doors open and close smoothly with consistent gasket contact
• Can lessen clicking or squeaking from a worn hinge interface

• Includes the center hinge spacer only

• Unplug the refrigerator or switch off power at the breaker
• Remove items from the door; support the door before loosening center hinge screws
• Lift the door off; place the new spacer on the center hinge pin in the same orientation as the original
• Reinstall the hinge and door; tighten fasteners and verify door alignment and gasket seal

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This lower door hinge supports the refrigerator door at the bottom pivot so it opens smoothly and stays properly aligned. Replacing a worn hinge can restore reliable door closure and help maintain an effective gasket seal.

• Provides the bottom pivot point and supports the door's weight
• Helps keep the door aligned for proper gasket contact
• Allows smooth opening and closing without binding
• Common symptoms of a failing hinge: door sagging, rubbing/scraping, squeaking, or not closing fully

• Disconnect power and, if applicable, shut off the water supply; remove items from the door.
• Support the door, remove the top hinge hardware, and lift the door off the bottom hinge.
• Remove the old bottom hinge from the cabinet/frame and install the new hinge in the same orientation, reusing original screws/shims.
• Reinstall the door and top hinge, then check alignment and gasket seal before restoring power.

This hinge shim corrects hinge spacing to help doors sit square and reduce rubbing or uneven gaps. It's a simple replacement used to restore proper door alignment so the door closes and seals more reliably. What it does:

• Adjusts hinge spacing to realign doors; use when a door leans or shows uneven gaps.
• Helps the door close and seal better by restoring correct hinge clearance.
• Prevents binding or rubbing that can occur when a hinge or door is slightly out of position.
• Small, low-profile shim used as a targeted fix without replacing the entire hinge assembly.

• Disconnect power to the appliance before starting; if applicable, shut off the water supply.
• Support the door while loosening hinge fasteners to avoid sudden movement or injury.
• Install the shim between hinge components as shown in the service diagram; retighten fasteners evenly.

Color: Grey

This 33-inch toe grille restores the lower front trim on compatible refrigerators for a finished look and proper airflow at the base. It replaces damaged, cracked, or discolored grilles to improve appearance and maintain normal venting. What it does:

• Covers and protects the refrigerator kick area while allowing airflow under the cabinet
• Replaces cracked, broken, or warped grilles that affect appearance
• Helps keep dust and debris out of the lower vent area
• Restores a clean, factory look to the appliance front

• Disconnect power to the appliance before starting any work to ensure safety
• Typically installs at the refrigerator base—may require removing the lower access panel or sliding the grille into place
• Use caution to avoid scratching surrounding surfaces during removal and installation

The Hinge Washer is an OEM replacement part for Whirlpool refrigerators. This small washer plays a supports the refrigerator door hinge assembly. Center hinge plastic washer.

Causes of a bad hinge washer are generally normal wear and tear from extensive use. As the washer absorbs pressure each time the door is opened or closed, it can gradually deteriorate or crack. Physical damage is also possible if the door is accidentally struck or slammed.

Symptoms of a worn or damaged hinge washer include:

• sagging doors
• uneven gaps around the door seal
• doors that do not stay securely closed on their own
• Over time and repeated opening/closing stress, the hinge washer compresss which affects door alignment.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Hinge Washer is an OEM part for Whirlpool refrigerators. This part ensures smooth opening and closing by reducing friction between the door hinge and the refrigerator body.

Causes of a bad hinge washer can include normal wear and tear from frequent use, accumulation of dirt or debris, and exposure to moisture, which can lead to rust and corrosion.

Symptoms of a bad hinge washer include:

• Difficulty in opening or closing the refrigerator door
• A door that does not stay in place
• Squeaking or grinding noises when the door is moved
• Visible wear or deformation on the washer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This cover protects the washer's control console and underlying components from moisture, dust and accidental damage, keeping the control area looking finished and functioning properly. What it does

• Shields control board and console components from spills and debris that can cause faults.
• Restores a secure, finished appearance to a damaged or missing console area.
• Helps prevent intermittent control issues caused by moisture intrusion.
• Useful when replacing cracked, warped or broken console trim after impact or wear.

• One console cover as shown.

• Disconnect power before starting any repair to avoid shock or damage.
• Removal typically requires loosening nearby screws or clips—retain fasteners for reassembly.
• Handle plastic parts gently to avoid cracking; align tabs and clips before snapping into place.

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

This water tube fitting links sections of the appliance's water line to create a secure, leak-resistant connection. Replacing a worn or cracked fitting helps maintain proper water flow and reduces the chance of leaks around the water system. What it does:

• Joins two sections of water tubing within the appliance's water circuit
• Maintains a watertight seal at the connection point
• Supports consistent flow to water-dependent features (e.g., dispenser or ice maker)
• Typical symptoms: leaks or drips at the joint, water under the unit, weak/no dispenser flow, or ice maker not filling

• 1 water tube fitting (approximately 128 mm length)

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure by dispensing water; place a towel to catch residual water
• Remove the old fitting and fully seat tubing into the new fitting; restore water, check all connections for leaks, then reconnect power
