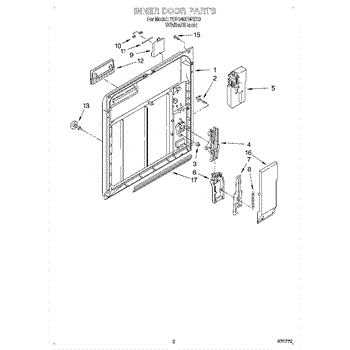

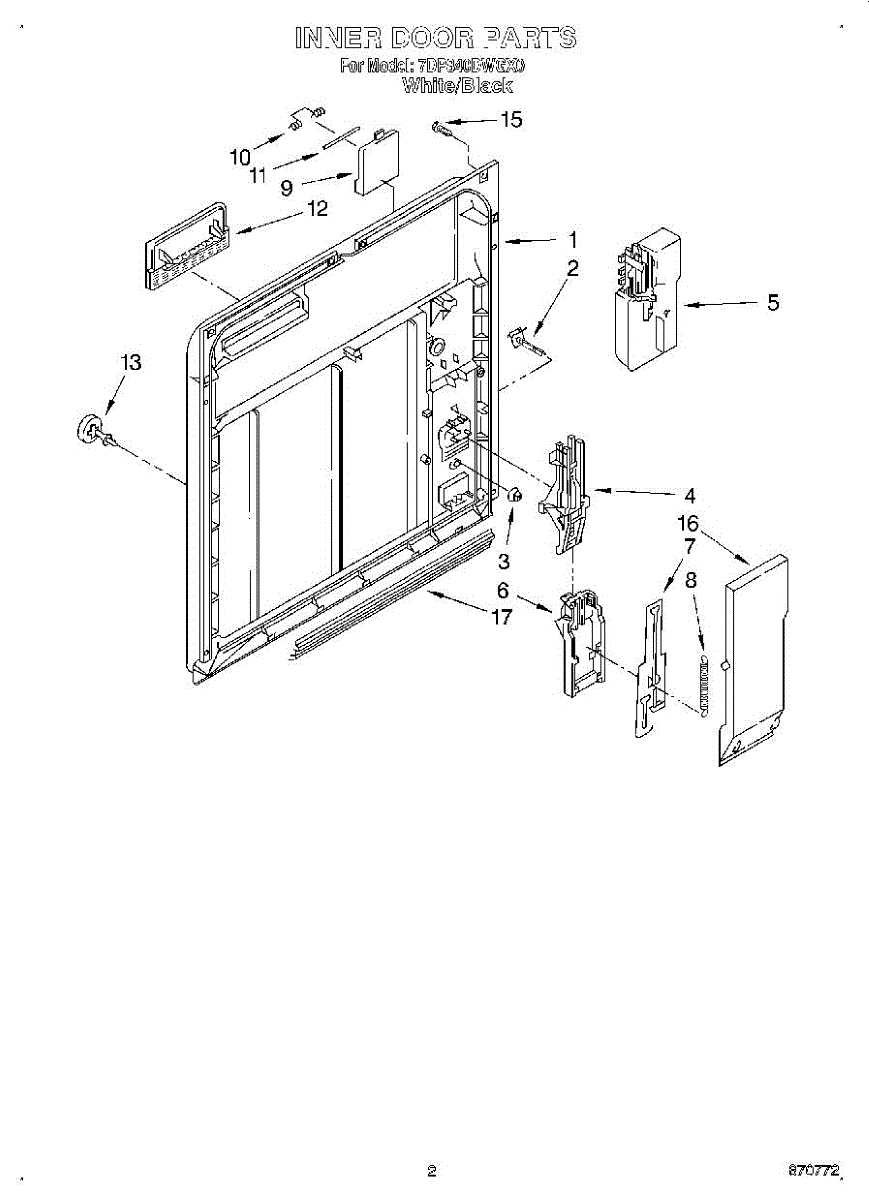

Parts for Whirlpool 7DP840DWGX0: 02 - Inner Door Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Latch Kit is an OEM replacement part for Whirlpool dishwashers. This kit includes all the necessary components to replace or repair the latch mechanism that secures the detergent and rinse aid dispenser during the wash cycles.

Causes of a faulty dispenser latch can include wear and tear over time, physical damage from impact or mishandling, or issues with the dispenser alignment or hinges.

Symptoms of a bad dispenser latch kit include:

• The dispenser door not closing or latching properly
• Leaks or drips from the dispenser area
• Detergent or rinse aid not being dispensed correctly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

The Latch Kit is an OEM replacement part for Whirlpool dishwashers. This kit includes all the necessary components to replace or repair the latch mechanism that secures the detergent and rinse aid dispenser during the wash cycles.

Causes of a faulty dispenser latch can include wear and tear over time, physical damage from impact or mishandling, or issues with the dispenser alignment or hinges.

Symptoms of a bad dispenser latch kit include:

• The dispenser door not closing or latching properly
• Leaks or drips from the dispenser area
• Detergent or rinse aid not being dispensed correctly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

The Latch Kit is an OEM replacement part for Whirlpool dishwashers. This kit includes all the necessary components to replace or repair the latch mechanism that secures the detergent and rinse aid dispenser during the wash cycles.

Causes of a faulty dispenser latch can include wear and tear over time, physical damage from impact or mishandling, or issues with the dispenser alignment or hinges.

Symptoms of a bad dispenser latch kit include:

• The dispenser door not closing or latching properly
• Leaks or drips from the dispenser area
• Detergent or rinse aid not being dispensed correctly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

The Actuator is an OEM part for Whirlpool dishwashers. This actuator is responsible for releasing detergent from the dispenser at the appropriate time during the wash cycle, ensuring effective cleaning of the dishes.

Causes of a bad detergent dispenser actuator can include electrical malfunctions, wear and tear from frequent use, or physical damage to the actuator mechanism.

Symptoms of a bad detergent dispenser actuator include:

• The detergent not dispensing during the wash cycle
• The dispenser door not opening
• Dishes not being cleaned properly due to no detergent release
• Error codes related to the dispenser

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This wet agent dispenser replaces the washer's liquid fabric softener dispenser to restore proper dispensing during the rinse cycle. It helps keep softener contained until the machine is ready to release it, improving rinse-time performance. What it does:

• Holds and releases liquid fabric softener (wet agent) into the rinse cycle
• Ensures softener is delivered at the correct time for even distribution
• Stops leaking or premature release when the dispenser housing is intact
• Commonly replaced when the dispenser cracks, clogs, or fails to dispense

• Disconnect power to the appliance before starting any repairs
• Access method varies by model; remove dispenser drawer or top panel per your model's service instructions
• Inspect surrounding seals and clips; replace if damaged to prevent leaks

This upper draw bar is a door-latch linkage piece used in dishwashers. It connects the handle/actuator to the latch mechanism so the door closes securely and the door switch engages, allowing the cycle to start reliably.

• Links the door handle/actuator to the latch for positive closure
• Helps ensure the door switch is engaged so the unit will run
• Restores proper latch alignment and handle feel
• Common symptoms: door won't latch or pops open, dishwasher won't start, must push/hold door to run, loose or floppy handle

• Disconnect power at the breaker; turn off water supply if working near the inlet
• Open the door and remove inner-door screws to access the latch linkage
• Note bar orientation; transfer any clips/bushings and reuse existing hardware
• Reassemble and check latch engagement before running a cycle

The Actuator is an OEM part for Whirlpool dishwashers. This actuator is responsible for releasing detergent from the dispenser at the appropriate time during the wash cycle, ensuring effective cleaning of the dishes.

Causes of a bad detergent dispenser actuator can include electrical malfunctions, wear and tear from frequent use, or physical damage to the actuator mechanism.

Symptoms of a bad detergent dispenser actuator include:

• The detergent not dispensing during the wash cycle
• The dispenser door not opening
• Dishes not being cleaned properly due to no detergent release
• Error codes related to the dispenser

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Actuator Spring is an OEM replacement part for the detergent dispenser system in Whirlpool dishwashers. This small spring is responsible for applying pressure and initiating the process of dispensing detergent at the proper time in the wash cycle.

Causes of a bad actuator spring soap dispenser can include fatigue from opening and closing thousands of times over the life of the dishwasher. Failure prevents proper dosing of detergent.

Symptoms of a bad actuator spring soap dispenser include:

• Dishes not getting sufficiently clean even with detergent used
• Wet or damp dishes after the cycle ends
• Built-up residue or food soils still present post-wash
• The detergent cup not opening or closing reliably

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Dispenser Lid is an OEM replacement part for Whirlpool dishwashers. Located at the top of the dishwasher door, it provides access to add detergent and rinse aid to the internal dispenser compartment below.  This dishwasher soap dispenser lid is included in the dispenser cover kit 4387043.

Causes of a bad dispenser lid can include wear and tear of hinge points from years of repeated openings. Cracks may also arise in the plastic material.

Symptoms of a bad Dispenser Lid include:

• Difficulty fully opening or closing the lid securely
• Leaks or spills occurring from around the sealing edges
• Potential cracks that compromise lid integrity or function
• Hinges that are loose or fail to support the lid in position

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Amana, and some Kenmore models.

The Detergent Lid Spring is an OEM part for Whirlpool dishwashers. It is responsible for providing the necessary tension to open and close the detergent dispenser lid during the wash cycle.

Over time, the detergent lid spring can wear out, lose tension, or break due to repeated use, exposure to water and detergent, or accidental mishandling. If the spring becomes faulty, the dispenser lid may not function properly, leading to poor washing results.

Symptoms of a bad detergent lid spring include:

• Detergent dispenser lid not opening during the cycle
• Difficulty in closing the dispenser lid
• Inconsistent or incomplete release of detergent
• Visible damage or wear on the spring

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For the complete detergent dispenser kit order 4387043.

The Detergent Lid Pin is an OEM part for Whirlpool dishwashers. This pin plays a crucial role in securing the detergent dispenser lid, ensuring that it opens and closes correctly during the washing cycle. This dishwasher detergent lid pin is also included in the cover kit 4387043.

Over time, the detergent lid pin can wear out or break due to regular use, exposure to harsh detergents, or accidental force. When the pin is damaged, it can cause the detergent lid to malfunction, leading to improper dispensing of detergent and reduced cleaning performance.

Symptoms of a bad detergent lid pin include:

• The detergent dispenser lid not staying closed
• Detergent not being dispensed correctly during the wash cycle
• Visible damage or wear on the pin
• The dispenser lid not opening or closing smoothly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This vent screen covers the dishwasher door vent, allowing steam to escape while blocking food particles and debris. Replacing a damaged or missing screen helps maintain proper airflow and can reduce moisture and odors around the vent area.

• Screens the door vent to keep debris out of the vent duct and fan path
• Maintains airflow for venting steam during the dry cycle
• A clogged, cracked, or missing screen may lead to moisture at the vent, odors, or reduced drying performance
• Replace if warped, broken, or lost during service

• Disconnect power to the dishwasher at the breaker before servicing
• Open the door and remove inner-door screws to access the vent assembly
• Remove the old screen, seat the new screen fully and evenly, then reassemble without overtightening
• Run a short cycle and check the vent area for proper airflow and moisture

The Rinse Aid Cap is an OEM part for Whirlpool dishwashers. It is designed to securely cover the rinse aid dispenser, ensuring the proper release of rinse aid during the wash cycle to improve drying performance and prevent water spots on dishes.

Causes of a bad rinse aid cap can include wear and tear over time, damage from accidental mishandling, or loss of the cap. Without a properly functioning cap, the rinse aid may not dispense correctly.

Symptoms of a bad rinse aid cap include:

• Rinse aid leaking or not dispensing
• Water spots or streaks on dishes after drying
• The cap not fitting securely or being visibly damaged
• The rinse aid compartment remaining full or not using rinse aid as expected

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels and components so they stay tight and aligned. Replace a missing, rusty, or stripped fastener to restore a solid hold and reduce vibration or rattling during operation. What it does:

• Fastens and secures panels, brackets, trim, or internal components as specified for your model
• Replaces missing, corroded, or stripped hardware to restore a proper fit
• Helps prevent vibration, rattling, and misalignment caused by loose fasteners
• Addresses issues like a loose panel/handle or a screw head that's rounded off

• 1 screw

• Disconnect power; if applicable, shut off gas and water before servicing
• Use the correct driver size; start by hand to avoid cross-threading
• Tighten snugly—do not overtighten into plastic or thin sheet metal
• Keep track of original screw locations and lengths during reassembly
