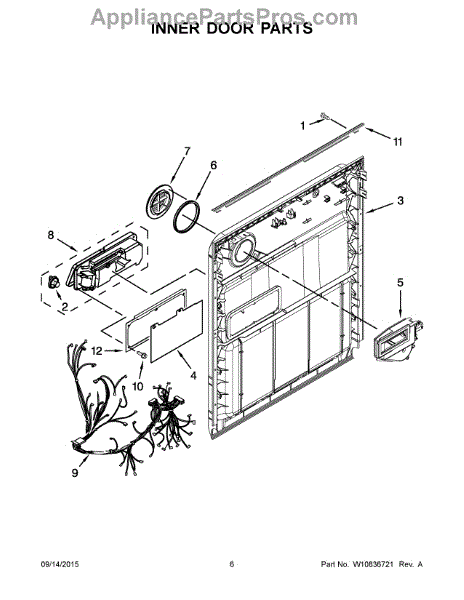

Parts for Whirlpool WDF540PADT2: 04 - Inner Door Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This replacement screw secures appliance panels and components so they stay tight and aligned. Replace a missing, rusty, or stripped fastener to restore a solid hold and reduce vibration or rattling during operation. What it does:

• Fastens and secures panels, brackets, trim, or internal components as specified for your model
• Replaces missing, corroded, or stripped hardware to restore a proper fit
• Helps prevent vibration, rattling, and misalignment caused by loose fasteners
• Addresses issues like a loose panel/handle or a screw head that's rounded off

• 1 screw

• Disconnect power; if applicable, shut off gas and water before servicing
• Use the correct driver size; start by hand to avoid cross-threading
• Tighten snugly—do not overtighten into plastic or thin sheet metal
• Keep track of original screw locations and lengths during reassembly

Color: blue. It measures about 2 inches in diameter.

The Inner Door Assembly is an OEM part for Whirlpool dishwashers. Located inside the dishwasher door, this assembly includes components like the door springs, rollers, and locking mechanisms that secure the inner door in place. It works internally to provide structure and support to the door and seal tightly against the tub when closed.

Causes of a bad inner door assembly can include wear and tear over time, damage to springs or rollers, or issues with the locking mechanism not functioning properly.

Symptoms of a bad inner door assembly include:

• The inner door not sealing correctly against the tub
• Gaps forming around the inner door seal
• Difficulty opening or closing the door
• Squeaks or noise coming from the door area

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This dispenser cover is the replacement lid for a washer dispenser assembly, restoring a secure, functional cover that keeps detergent and fabric softener contained until the wash cycle. It helps prevent spills and keeps the dispenser looking finished. What it does:

• Replaces a cracked, warped, or missing dispenser lid so the dispenser closes properly
• Helps contain detergent and softener to prevent drips and spills onto the washer top
• Restores a flush, finished appearance to the dispenser area
• Works with the dispenser housing to ensure proper release of cleaning agents during cycles

• Disconnect power and water supply before servicing the washer
• Replacement typically installs with clips or screws; keep original fasteners and note their placement
• Handle plastic parts carefully to avoid cracking; align tabs before snapping into place

This passive vent assembly allows moist air to escape during the dry cycle, helping reduce steam and moisture inside the dishwasher tub. Replacing a warped or leaking vent can improve drying performance and prevent moisture from seeping onto the door panel.

• Allows steam to vent from the tub without a fan
• Helps reduce condensation and moisture buildup during drying
• Common fix for visible steam leaks at the door, moisture on the console, or poor drying results
• Restores proper air path through the door vent channel

• Disconnect power and shut off water supply before servicing
• Access is typically from the inner door; remove the inner panel to reach the vent
• Inspect and replace any damaged gasket or door insulation as needed
• Ensure the vent seats evenly and fasteners are snug to prevent leaks

The Air Vent Gasket is an OEM part for Whirlpool dishwashers. It is designed to seal the air vent, preventing water from leaking out during the dishwasher's operation. This gasket plays a critical role in maintaining the efficiency and effectiveness of your dishwasher by ensuring a watertight seal around the air vent, which is essential for the proper function of the venting system.

Causes of a bad Air Vent Gasket can include wear and tear over time, leading to cracks or deterioration, improper installation, which may result in a poor seal, or damage from harsh cleaning chemicals.

Symptoms of a bad Air Vent Gasket include:

• Water leaking from around the dishwasher's door.
• Dishes not drying properly due to compromised venting.
• Visible signs of wear or damage on the gasket itself.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Dispenser Assembly is an OEM replacement part for Whirlpool dishwashers. This component is responsible for releasing detergent and rinse aid during the wash cycle at the appropriate time, ensuring efficient cleaning and drying of dishes. Its precise design integrates seamlessly with the dishwasher’s system for optimal performance.

Causes of a bad Dispenser Assembly can include clogging from detergent residue, damage to the dispenser door or latch, or failure of internal electronic components. Prolonged exposure to moisture and heat may also contribute to wear over time.

Symptoms of a bad Dispenser Assembly include:

• Detergent or rinse aid not dispensing properly
• The dispenser door not opening or closing
• Visible leaks or cracks in the dispenser compartment
• Poor cleaning or rinsing results after the wash cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hex-Head Screw is an OEM replacement part for use in Whirlpool dishwashers. This metal screw measures approximately ¾ inch long. Its primary purpose is to secure the dispenser bracket in place, ensuring stable operation. This hex-head screw is designed for use with compatible hexagonal tools. This makes installation and removal straightforward. This part is sold individually and is guaranteed to fit your dishwasher door panel. This screw is compatible with select Whirlpool brand models including Amana, Crosley, Estate, Inglis, Jenn Air, Kenmore, Kitchen Aid, and Maytag.

The Seal is an OEM part for Whirlpool dishwashers. As a crucial door component, it ensures a tight fit that prevents leaks and contains the necessary heat and moisture during operation.

Symptoms of a bad seal can include cracks, tears, or looseness allowing water to escape during cycles. Deterioration from chemical exposure or repeated flexing over time is common.

Causes of a bad seal include general wear and tear, damage from improper loading of dishes, or accidents like sharp objects puncturing the material.

Symptoms of a bad seal include:

• Puddles or pools of water found beneath the dishwasher after cycles
• Wet floors and surfaces surrounding the dishwasher
• Steam or moisture visible escaping during heating phases
• The door not closing or latching properly

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Detergent Dispenser Bracket is an OEM replacement part for Whirlpool dishwashers. Located inside the dishwasher tub along the edge, this bracket securely holds the entire detergent dispenser assembly in place.

Causes of a bad bracket may be normal wear and tear over time, damage from overloading dishes, or accidental impact affecting the integrity of the plastic.

Symptoms of a bad detergent dispenser bracket include:

• Loose or unstable detergent dispenser
• Detergent not dispensing or leaking
• Clanking noises coming from inside the tub
• Visible cracks, breaks, or deformations in the bracket

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, and some Kenmore and Maytag models.
