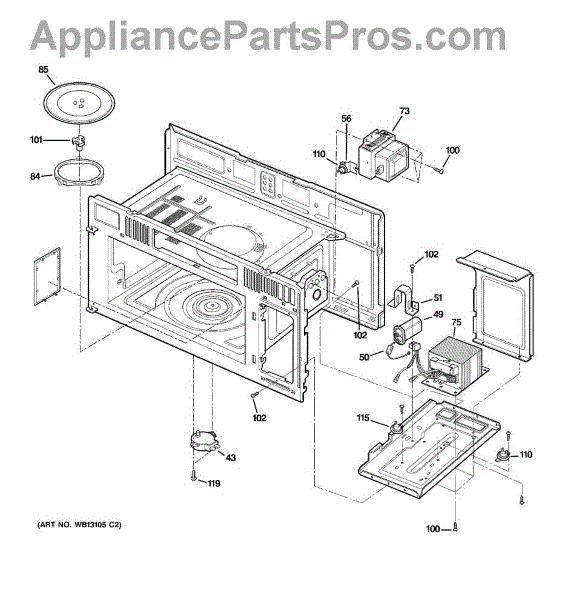

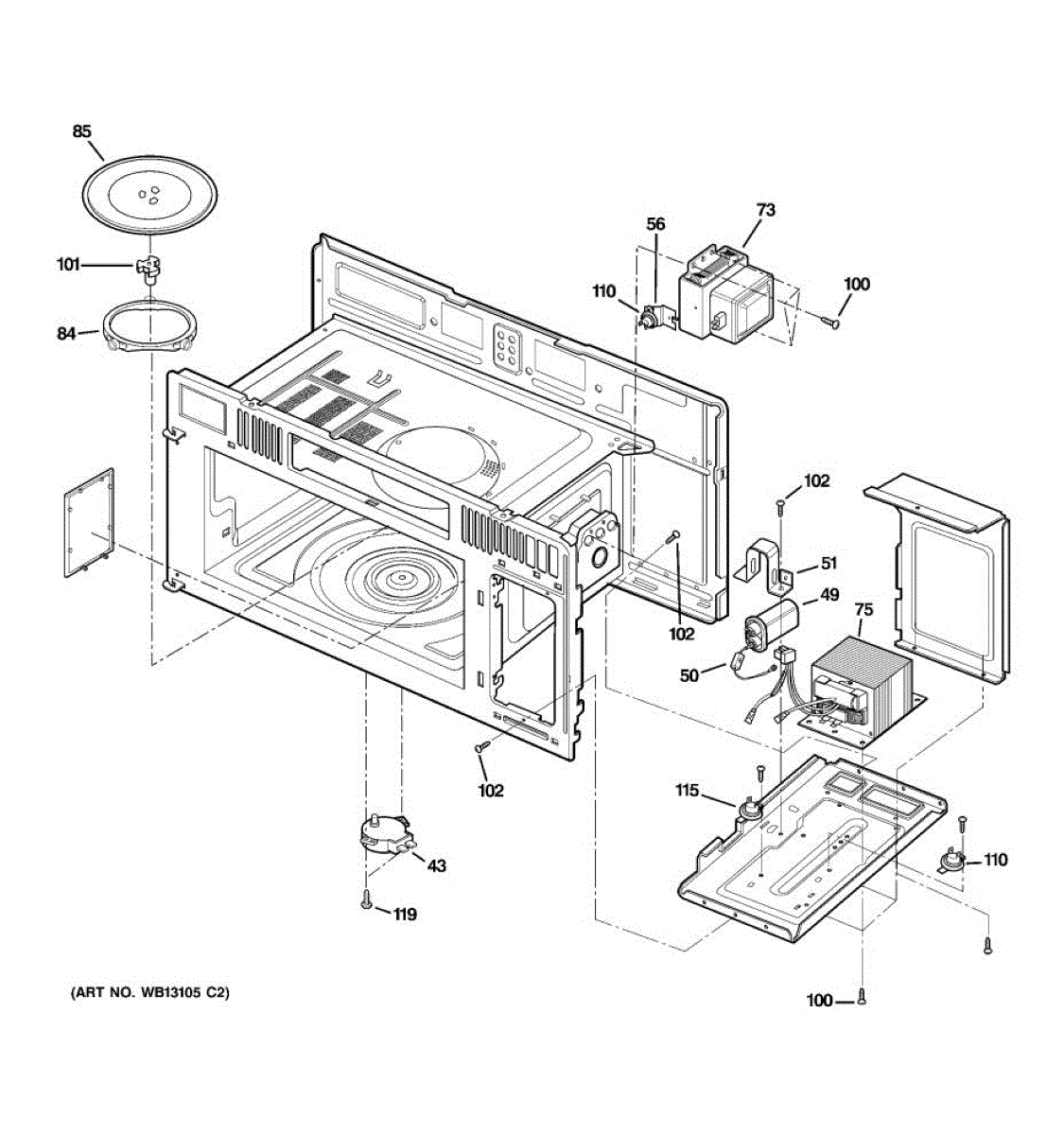

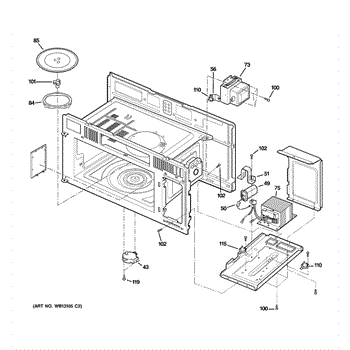

Parts for Ge JVM1631CH002: 05 - Interior Parts (1) Parts

Microwave not heating? A failed diode prevents the magnetron from generating heat. This high-voltage component converts AC to DC power. DIY repair.

Replacement mounting bracket that secures internal panels to the frame. Install this bracket if your original is cracked, bent, or missing.

Microwave not heating? The magnetron generates the radiation that cooks food. Moderate DIY repair—discharge capacitor first, then swap 3 screws.

The Rotating Ring Assembly is an OEM replacement part for GE microwaves. It houses the turntable motor and platter that rotate food during the cooking process. Proper rotation ensures even heating and cooking of items. This ring assembly measures approximately 9 inches.

Causes of a bad rotating ring assembly can include a failing motor that prevents rotation or a worn turntable mechanism. Without functioning rotation, microwave cooking performance is compromised.

Symptoms of a bad rotating ring assembly include:

• The turntable not spinning during cooking cycles
• Loud grinding or buzzing noises from the assembly area
• The motor overheating or burning smell

This GE replacement part is also compatible with some Kenmore models.

Color: clear. Measures about 14 inches in diameter.

Binding head screw secures panels and brackets inside your microwave or wall oven. Replace if screw is stripped, missing, or damaged during service.

Female D shaft

Truss head tapping screw for microwave assembly. Secures internal components and panels. Replace if screw is stripped, missing, or lost during repair.

The Thermostat is an OEM part for GE ovens. This critical component functions as a temperature sensor and controller within the oven, ensuring that the oven heats to the set temperature and maintains it throughout the cooking process. The thermostat prevents the oven from overheating by cycling the heat on and off as needed.

Symptoms of a failing thermostat include:

• Oven not reaching the desired temperature
• Overheating beyond the set temperature
• Uneven cooking or baking results
• Oven temperature fluctuating more than usual

Causes of thermostat failure generally include age-related wear and tear, calibration issues, or exposure to extreme temperatures that can damage its internal components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Microwave won't heat or stops working? This thermal cutoff thermostat prevents overheating damage. DIY-friendly repair, typically takes 10-15 minutes.
