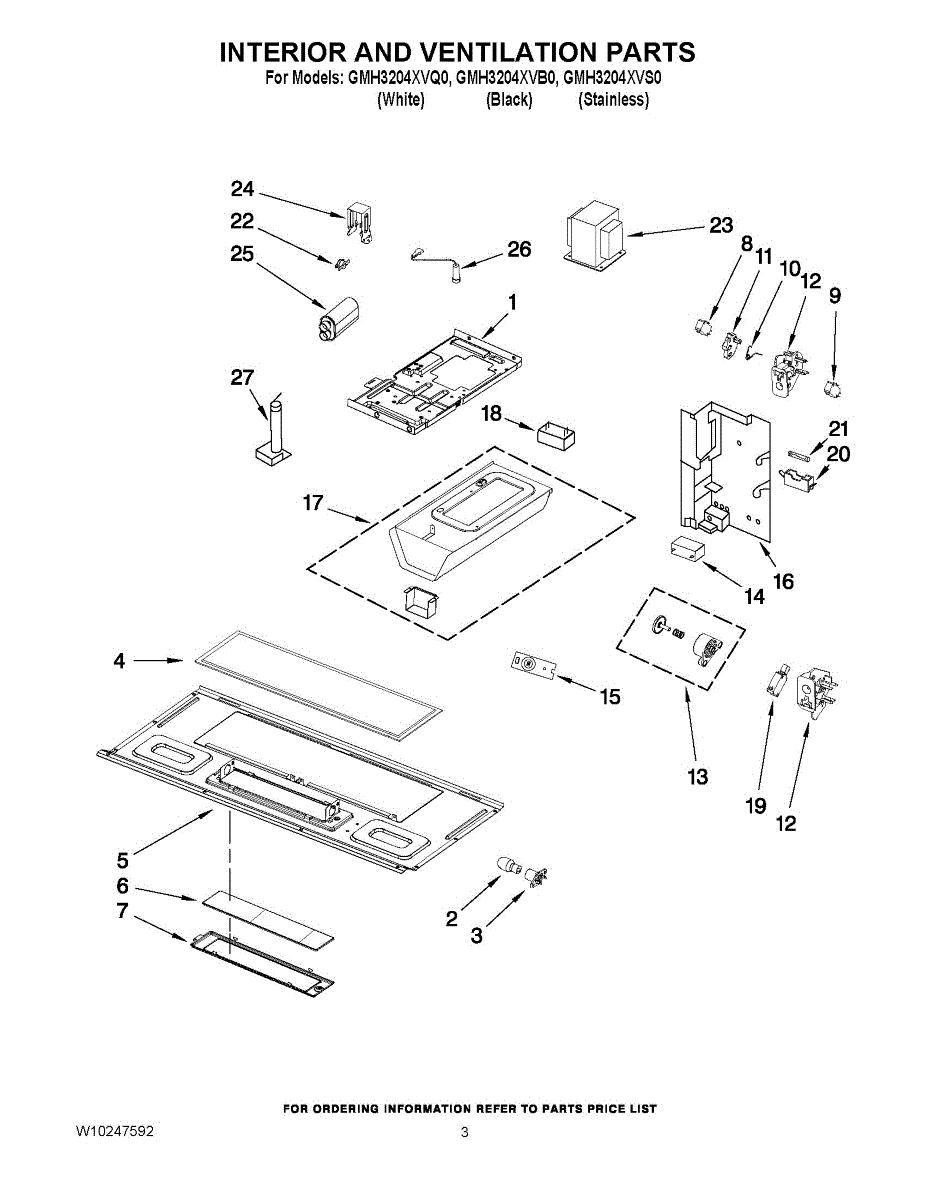

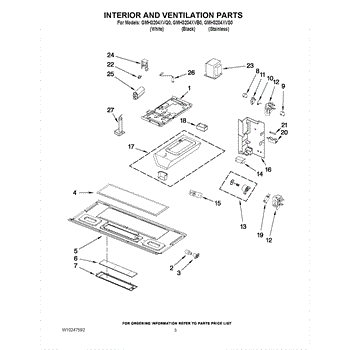

Parts for Whirlpool GMH3204XVB0: 03 - Interior And Ventilation Parts

The 40W Light Bulb is an OEM replacement part for Whirlpool microwave ovens. It is a standard-size bulb designed to provide illumination inside the microwave cavity, allowing you to easily view and monitor the cooking or reheating process.

Symptoms of a faulty microwave light bulb include:

• Dimming or flickering light during operation
• Complete bulb failure or no illumination within the cavity
• Discoloration or physical damage to the bulb itself

Causes of a bad microwave light bulb can include normal wear and tear over time, electrical surges or voltage fluctuations, or physical impact or vibration during use.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave oven models.

Replace your microwave's light socket if the bulb won't illuminate or flickers. This socket powers the interior bulb for safe cooking visibility. Verify fit by model number before ordering.

Captures grease and particles from air circulating through your over-the-range microwave. Replace when clogged to maintain air quality and efficiency.

Lower cabinet base for microwaves. Provides structural support and stabilizes the unit. Replace if cracked, damaged, or warped to restore level positioning.

This is a light lens cover that fits over the surface light bulb housing on the underside of an over-the-range microwave. It protects the light bulb and diffuses light onto the cooktop below. Replace this cover if it is cracked, yellowed, missing, or if it no longer snaps securely into place.

The Switch is an OEM part for Whirlpool microwaves. It controls the turning on and off of power to the microwave during cooking cycles as well as detects positions within cycles to signal appropriate actuations of the microwave's magnetron, fans, and lights. The switch is a crucial electrical component that facilitates the fully automatic operation of preset cooking programs.

Causes of a bad switch can include wear and tear over time or unexpected surges that cause electrical component failure.

Symptoms of a bad switch include:

• Cooking programs failing to advance properly or stopping mid-cycle unexpectedly
• The microwave failing to turn on or experiencing power issues
• Random noises, humming, or lights occurring when the microwave is supposed to be idle
• Buttons or controls acting intermittently unresponsive

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Microwave displays 'close door' message or won't start? The door interlock switch is likely failed. Moderate DIY repair—replace all 3 switches together.

This small spring is part of the door interlock system in your microwave, providing tension to the safety switch mechanism that detects whether the door is properly closed. It ensures the microwave will only operate when the door is securely latched. Replace this spring if the microwave does not start, runs with the door open, or the door interlock switch is not engaging correctly.

The Interlock Cam Plate is an OEM part for Whirlpool microwaves. It is responsible for securing the microwave door to notify the unit that the door is closed. It works in conjunction with other components to ensure proper alignment and engagement of the door. This allows the microwave to function safely and efficiently.

Causes of a faulty interlock cam plate can include wear and tear over time, damage due to regular use or mishandling, or malfunctioning internal components. These factors can result in issues such as the door not closing properly, difficulty in starting or operating the microwave, or safety concerns.

Symptoms of a bad interlock cam plate may include:

• The door not closing or latching properly
• The microwave not starting or operating when the door is closed
• Flickering interior lights

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Microwave Top Interlock Support is an OEM part for Whirlpool microwave ovens. It is an essential safety component that helps ensure the microwave door is securely closed and locked before the microwave can operate.

Causes of a faulty Top Interlock Support include physical damage from impact or wear over time, as well as failure of the internal mechanisms that detect the door's position.

Symptoms of a bad Microwave Top Interlock Support include:

• Microwave does not start or operate when the door is closed
• Door appears closed but microwave will not run
• Microwave starts with the door open, posing a safety hazard
• Error codes related to the door interlock system

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Microwave won't start or shows door open error? The bottom interlock support ensures proper door latching. Moderate DIY repair—access control panel.

This plastic actuator engages the door interlock switches when the microwave door is closed, ensuring the appliance only operates when the door is fully latched. It translates the motion of the door latch into the switch activation needed for safe operation. Replace this part if the microwave won't start, runs with the door open, or the door doesn't latch securely.

This thermistor measures temperature changes inside your microwave to control cooking functions and safety systems. It sends temperature readings to the control board to adjust power levels and cooking times. Replace this part if your microwave doesn't heat properly, overheats, or sensor cooking features don't work correctly.

This door interlock switch is a safety micro switch that detects whether the microwave door is properly closed before allowing the unit to operate. It is a small, snap-action switch mounted near the door latch mechanism. Replace this switch if the microwave won't start, runs with the door open, or blows a fuse when the door is closed.

This block-style fuse holder secures and connects the appliance fuse to the wiring harness, restoring a safe electrical connection and thermal protection. Use it when the original fuse block is cracked, corroded, or no longer holding the fuse securely. What it does:

• Holds and connects the appliance fuse to the wiring harness so the thermal/overload fuse can function.
• Restores reliable electrical contact when the original block is cracked, melted, or corroded.
• Addresses symptoms such as intermittent power, no heat, or appliance not starting when caused by a bad fuse connection.
• Works with the existing fuse and wiring—does not replace the fuse itself.

• Disconnect power to the appliance before inspecting or replacing this part.
• Replace any damaged wiring, connectors, or insulation found during replacement; do not cut corners or bypass thermal safety devices.

Microwave has no power or won't heat? A blown thermal fuse is often the cause. This safety part protects against overheating. DIY repair in 30 minutes.

If your microwave overheats or the vent fan runs constantly, this fixed thermostat may need replacement. Controls heating and safety shutoff.

Capacitor mounting bracket for microwaves. Secures the capacitor inside the microwave cabinet. Replace if bent, broken, or missing to safely mount capacitor.

Microwave not heating or making loud humming noise? The high-voltage capacitor supplies power to the magnetron. DIY repair in under an hour.
