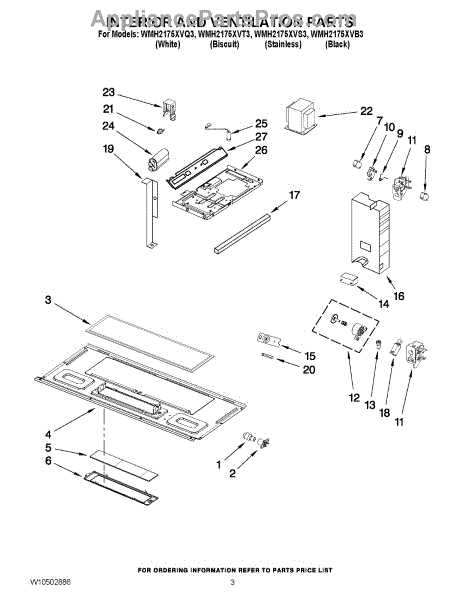

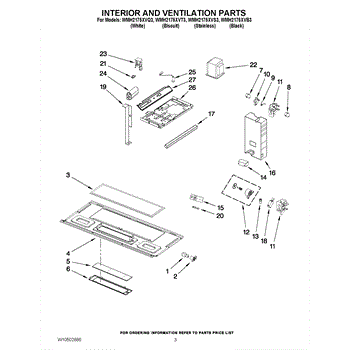

Parts for Whirlpool WMH2175XVT3: 03 - Interior And Ventilation Parts

The 40W Light Bulb is an OEM replacement part for Whirlpool microwave ovens. It is a standard-size bulb designed to provide illumination inside the microwave cavity, allowing you to easily view and monitor the cooking or reheating process.

Symptoms of a faulty microwave light bulb include:

• Dimming or flickering light during operation
• Complete bulb failure or no illumination within the cavity
• Discoloration or physical damage to the bulb itself

Causes of a bad microwave light bulb can include normal wear and tear over time, electrical surges or voltage fluctuations, or physical impact or vibration during use.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave oven models.

Replace your microwave's light socket if the bulb won't illuminate or flickers. This socket powers the interior bulb for safe cooking visibility. Verify fit by model number before ordering.

Captures grease and particles from air circulating through your over-the-range microwave. Replace when clogged to maintain air quality and efficiency.

Lower cabinet base for microwaves. Provides structural support and stabilizes the unit. Replace if cracked, damaged, or warped to restore level positioning.

Replacement interior reflector panel for microwave cavity. Needed when original is cracked, damaged, or missing. Installs behind waveguide cover.

Fix a microwave that won't start, runs with door open, or requires slamming the door. This door switch is a common fix for intermittent operation issues.

Microwave displays 'close door' message or won't start? The door interlock switch is likely failed. Moderate DIY repair—replace all 3 switches together.

The Interlock Spring is an OEM part for Whirlpool microwaves. It is located within the door assembly and provides proper tension to assist with smooth opening and closing of the microwave door. The spring allows for controlled movement that facilitates easy access when using the microwave.

Causes of failure could be normal wear and tear over time, damage from rough or forced handling of the door, or failure from excessive use.

Symptoms of a bad microwave spring include:

• Difficulty opening or closing the door
• The door not staying securely closed or popping open on its own
• Excessive vibration or noise related to door operation

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

The Interlock Cam Plate is an OEM part for Whirlpool microwaves. It is responsible for securing the microwave door to notify the unit that the door is closed. It works in conjunction with other components to ensure proper alignment and engagement of the door. This allows the microwave to function safely and efficiently.

Causes of a faulty interlock cam plate can include wear and tear over time, damage due to regular use or mishandling, or malfunctioning internal components. These factors can result in issues such as the door not closing properly, difficulty in starting or operating the microwave, or safety concerns.

Symptoms of a bad interlock cam plate may include:

• The door not closing or latching properly
• The microwave not starting or operating when the door is closed
• Flickering interior lights

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Microwave Top Interlock Support is an OEM part for Whirlpool microwave ovens. It is an essential safety component that helps ensure the microwave door is securely closed and locked before the microwave can operate.

Causes of a faulty Top Interlock Support include physical damage from impact or wear over time, as well as failure of the internal mechanisms that detect the door's position.

Symptoms of a bad Microwave Top Interlock Support include:

• Microwave does not start or operate when the door is closed
• Door appears closed but microwave will not run
• Microwave starts with the door open, posing a safety hazard
• Error codes related to the door interlock system

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Microwave won't start or shows door open error? The bottom interlock support ensures proper door latching. Moderate DIY repair—access control panel.

This piston assembly restores the moving piston used in the appliance's fluid/valve system to help recover proper dispensing and motion. It replaces a worn or damaged piston so the affected function can operate as intended. What it does:

• Replaces the piston that moves inside a valve or dispenser to control fluid or airflow
• Restores proper actuation and sealing that can prevent drips or improper dispensing
• Commonly installed when symptoms include poor dispensing, leaks near the valve area, sticking motion, or unusual noises during operation
• Works as a direct-fit replacement where this OEM piston assembly is specified

• One piston assembly as shown

• Disconnect power (and water supply or gas, if applicable) before starting any repair
• Follow the appliance service manual and use appropriate tools; keep small fasteners and seals organized
• Inspect sealing surfaces and O-rings; replace damaged seals to ensure a leak-free install
• Test the appliance after installation to confirm correct operation

Replacement mounting screw secures exterior panels, trim, or internal components. Needed when original fastener is missing, stripped, or damaged.

Fix a microwave that runs but won't heat with this capacitor. Works with magnetron and diode to restore heating function. Moderate DIY repair.

Fix a microwave that won't heat or runs inconsistently. This temperature sensor monitors internal heat levels to regulate cooking performance.

Microwave won't start or shows door error? A faulty door switch prevents operation when the door isn't detected as closed. DIY repair in under an hour.

Wall mounting bracket for over-the-range microwaves. Secures unit to wall during installation. Replace if bracket is bent, broken, or missing hardware.

Microwave has no power or won't heat? A blown thermal fuse is often the cause. This safety part protects against overheating. DIY repair in 30 minutes.

Microwave overheating or won't start? This fixed-temperature thermostat acts as a safety switch to prevent thermal damage. Straightforward repair.

Capacitor mounting bracket for microwaves. Secures the capacitor inside the microwave cabinet. Replace if bent, broken, or missing to safely mount capacitor.

Microwave not heating or making loud humming noise? The high-voltage capacitor supplies power to the magnetron. DIY repair in under an hour.

Microwave won't heat but hums loudly? The diode regulates power to the magnetron. Test with multimeter—reads one direction only. Moderate DIY repair.
