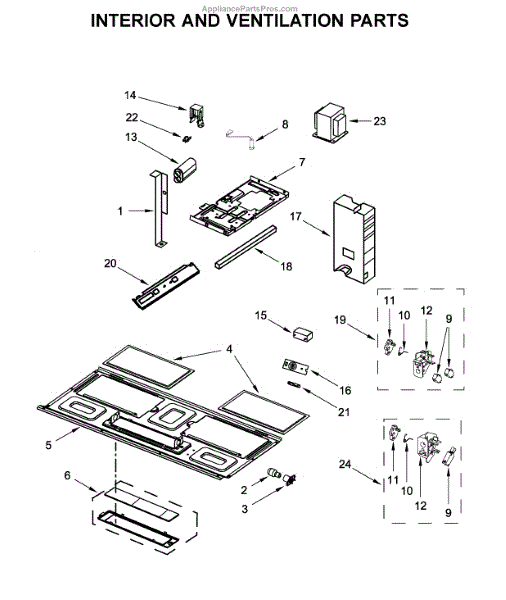

Parts for Whirlpool UMV1160CB4: Interior And Ventilation Parts

The 40W Light Bulb is an OEM replacement part for Whirlpool microwave ovens. It is a standard-size bulb designed to provide illumination inside the microwave cavity, allowing you to easily view and monitor the cooking or reheating process.

Symptoms of a faulty microwave light bulb include:

• Dimming or flickering light during operation
• Complete bulb failure or no illumination within the cavity
• Discoloration or physical damage to the bulb itself

Causes of a bad microwave light bulb can include normal wear and tear over time, electrical surges or voltage fluctuations, or physical impact or vibration during use.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave oven models.

The Light Socket is an OEM replacement part for Whirlpool microwaves. This socket holds and supplies power to the light bulb inside the microwave, illuminating the interior when the door is opened or when the microwave is in use. It ensures that users can easily monitor the cooking process and check the condition of the food.

Over time, the light socket can become worn out or damaged due to regular use, electrical surges, or the heat generated within the microwave. Corrosion or buildup on the contacts can also impair the socket’s ability to provide a stable connection to the light bulb, leading to intermittent or complete failure of the light.

Symptoms of a bad light socket include:

• The interior light not turning on when the door is opened or during operation
• Flickering or dimming of the light
• The light bulb frequently burning out
• Electrical arcing or sparking from the socket area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Grease Filter is an OEM part for Whirlpool microwaves, designed to enhance the performance of over-the-range units. This filter maintains the appliance's efficiency and the kitchen's air quality by capturing grease and other particles from the air that circulates through the microwave during cooking.

Signs of wear and tear or damage can affect not only the microwave's performance but also the cleanliness of your kitchen environment. Regular maintenance, including cleaning and replacing the grease filter as necessary, is essential for keeping your microwave functioning optimally and ensuring the air in your kitchen remains clean.

Symptoms that indicate a need for replacement:

• Decreased ventilation efficiency, resulting in lingering cooking odors
• Reduced airflow, which can cause the microwave to overheat
• Visible grease buildup and difficulty cleaning the filter

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This base is the appliance's lower cabinet section that supports internal components and helps stabilize the unit. It restores a solid foundation so the appliance sits level and protects internal parts from floor contact and debris. What it does:

• Provides structural support for the appliance's internal assemblies and controls
• Helps stabilize the unit and reduce excessive vibration or rocking
• Protects wiring, motors and other components from contact with the floor
• A damaged or cracked base can cause noisy operation, misalignment, or uneven sitting

• Disconnect power (and gas if applicable) before beginning any repair
• Follow the OEM service manual for disassembly and reassembly steps
• Replacement may require removing the cabinet and/or drum; having a second person helps with lifting and alignment
• Inspect and reuse original fasteners only if undamaged; replace any worn mounting hardware

The Reflector is an OEM part for Whirlpool microwaves. It is located inside the microwave cavity behind the waveguide and works to redirect electromagnetic waves for more even cooking.

Symptoms of a damaged reflector include:

• Inconsistent or incomplete heating of foods during cooking
• Hot and cold spots forming within the microwave cavity
• Lower overall power output from the microwave

Causes of reflector damage can be cracking or pitting of the reflective aluminum surface over multiple heating cycles. Impact incidents from user error may also damage its shape.

This OEM Whirlpool replacement assists in delivering uniform energy distribution for optimal microwave performance. This part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper microwave models.

The Diode is an OEM part for Whirlpool microwaves. The diode plays a key role in regulating power flow and protecting other sensitive components from voltage fluctuations.

Causes of a bad microwave diode can include component failure due to age or heat exposure over time. Diodes are also susceptible to electrical damage if exposed to power surges.

Symptoms of a bad diode can include:

• The microwave failing to power on or having intermittent power
• Food not heating up properly or unevenly
• Strange sounds like buzzing or humming emanating from inside
• The door lock mechanism not engaging or release properly
• Repeated tripping of fuses or circuit breakers

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Interlock Spring is an OEM part for Whirlpool microwaves. It is located within the door assembly and provides proper tension to assist with smooth opening and closing of the microwave door. The spring allows for controlled movement that facilitates easy access when using the microwave.

Causes of failure could be normal wear and tear over time, damage from rough or forced handling of the door, or failure from excessive use.

Symptoms of a bad microwave spring include:

• Difficulty opening or closing the door
• The door not staying securely closed or popping open on its own
• Excessive vibration or noise related to door operation

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

The Interlock Cam Plate is an OEM part for Whirlpool microwaves. It is responsible for securing the microwave door to notify the unit that the door is closed. It works in conjunction with other components to ensure proper alignment and engagement of the door. This allows the microwave to function safely and efficiently.

Causes of a faulty interlock cam plate can include wear and tear over time, damage due to regular use or mishandling, or malfunctioning internal components. These factors can result in issues such as the door not closing properly, difficulty in starting or operating the microwave, or safety concerns.

Symptoms of a bad interlock cam plate may include:

• The door not closing or latching properly
• The microwave not starting or operating when the door is closed
• Flickering interior lights

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Microwave Top Interlock Support is an OEM part for Whirlpool microwave ovens. It is an essential safety component that helps ensure the microwave door is securely closed and locked before the microwave can operate.

Causes of a faulty Top Interlock Support include physical damage from impact or wear over time, as well as failure of the internal mechanisms that detect the door's position.

Symptoms of a bad Microwave Top Interlock Support include:

• Microwave does not start or operate when the door is closed
• Door appears closed but microwave will not run
• Microwave starts with the door open, posing a safety hazard
• Error codes related to the door interlock system

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Bottom Interlock Support is an OEM part for Whirlpool microwaves. This component plays a crucial role in ensuring the microwave door latches securely, maintaining a proper seal for safe and efficient operation.

Over time, the bottom interlock support can wear out or become damaged due to regular use, physical impact, or issues with the door mechanism. A faulty interlock support can compromise the microwave’s safety features and proper functioning.

Symptoms of a bad bottom interlock support include:

• The microwave door not closing properly or securely
• The microwave not starting or stopping unexpectedly
• Error messages related to door latch or interlock issues
• Visible damage or wear on the interlock support

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This magnetron capacitor is the microwave high-voltage capacitor that helps supply the magnetron with the pulse of energy needed to produce heat. Replacing a failing capacitor restores normal heating performance and reduces arcing or loud humming. What it does

• Stores and releases the high-voltage pulse required by the magnetron so the microwave can generate heat.
• Prevents unstable magnetron operation that can cause weak or no heating.
• Common symptoms of a failing capacitor: oven runs but doesn't heat, intermittent heating, loud buzzing/humming, or visible arcing inside the cavity.
• A failed capacitor can also cause blown internal fuses or tripped circuits.

• One capacitor.

• Disconnect power and verify the appliance is completely de-energized before servicing.
• Capacitors can hold dangerous charge; discharge the capacitor safely with an insulated tool.
• Use the exact replacement part and follow the appliance service manual for routing and connections.

This capacitor stores and releases electrical energy to help an AC motor start and run smoothly. Replacing a weak or failed capacitor can restore reliable motor operation and reduce humming, no-start, or stall conditions.

• Provides the phase shift and starting torque an induction motor needs to start
• Helps the motor reach and maintain proper speed under load
• Common symptoms of a failing capacitor: motor hums but won't start, intermittent starts, slow or stalled rotation, or frequent thermal trips
• Visible clues may include a swollen case or leaking residue

• Disconnect power to the appliance before servicing; verify no voltage is present
• Capacitors can retain a charge—discharge safely before handling
• Note wire positions; move leads to the new capacitor one at a time and ensure snug terminal fit
• Reuse the original bracket/clip if applicable and secure the capacitor to prevent vibration

This thermistor is a refrigerator temperature sensor that monitors internal air temperature so the control board can regulate cooling. Replaces a failed sensor to help restore accurate temperature readings and more consistent cooling. What it does:

• Senses internal refrigerator temperature and sends a variable resistance signal to the control board
• Helps the control system cycle the compressor and fans correctly for stable temperatures
• Commonly replaced when refrigerator runs too cold, too warm, or has irregular cooling cycles
• Can address temperature-error codes or defrost control issues when the sensor is faulty

• Disconnect power to the appliance before inspecting or replacing the sensor
• Handle the sensor and wiring harness carefully to avoid damage to the probe or connectors
• Install in the original sensor mounting location and secure wiring away from moving parts

The Interlock Switch is an OEM part for Whirlpool microwaves. It monitors the position of the microwave door and signals to the control board whether it is safe to operate.

Causes of a bad interlock switch can include normal wear over time as the switch contacts open and close frequently with door usage. Lubricant breakdown or damage to wires/connectors may also cause failures.

Symptoms of a faulty interlock switch include:

• The microwave running with the door open
• Failure to start the microwave regardless of door position
• Inoperative door or faulty door latching

Replacing with this genuine OEM switch restores an essential safety feature. With accurate door monitoring, microwave energy transmission only occurs when intended.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This is a thermal safety fuse that opens the circuit if temperatures rise beyond a safe limit, protecting the appliance from overheating and preventing further damage. Replacing a failed fuse restores power to the affected circuit once the underlying cause is addressed.

• Monitors temperature in a protected circuit and cuts power if unsafe heat is detected
• Helps prevent overheating-related damage
• Typical failure signs: no power/no operation, cycle won't start, shuts off mid-cycle after overheating event
• Must not be bypassed; replace if open and investigate the root cause of overheating

• Unplug appliance or disconnect power before service
• Verify the fuse is open with a multimeter; replace only after correcting any airflow/overheating issues
• Install in the same orientation and location as the original to ensure proper temperature sensing
• Handle wiring carefully; transfer connectors one at a time to avoid miswiring

This fixed-temperature thermostat is a temperature-sensing safety switch that opens at a set limit to help prevent overheating and protect heating systems. Use it to restore proper thermal cutoff control in affected appliances. What it does:

• Senses internal temperature and opens the circuit when a set limit is reached to stop heating
• Acts as a high-limit/thermal cutoff to prevent overheating and potential damage
• Can restore normal heating control when a faulty limiter causes shutdowns or safety trips
• Common symptom link: appliance heater runs erratically, will not heat, or heats continuously and may trip safety circuits

• One fixed-temperature thermostat

• Disconnect power to the appliance before inspecting or replacing the thermostat
• Handle and test with care; verify continuity with a multimeter to confirm failure before replacing
• Follow the appliance service manual and wiring diagrams for correct location and wiring

This transformer provides the low-voltage power needed by the appliance's control and user-interface circuits so systems like the dispenser, ice maker, or control board can operate reliably. What it does:

• Steps down mains power to low-voltage power for control boards and user-interface components
• Restores power to dispensers, ice makers, timers or control modules that have lost low-voltage supply
• Commonly replaced when control circuits are unresponsive, displays are blank, or dispenser functions fail
• Matches OEM function for direct replacement of the failed transformer

• One replacement transformer

• Disconnect all power to the appliance before starting work to avoid shock hazard
• Handle wiring connections carefully; make secure electrical connections and restore grounding

This Whirlpool Microwave Interlock Switch is an OEM part specifically compatible with various Whirlpool microwave models. This safety component ensures that the microwave operates only when the door is securely shut, thereby preventing accidental exposure to microwave energy.

The failure of microwave interlock switches is often due to mechanical wear, electrical faults, or alignment issues. A defective interlock switch can result in the microwave not starting, running with the door open, or displaying erratic behavior, all of which are serious safety concerns.

Symptoms of a failing microwave interlock switch include:

• The microwave does not start or operate intermittently.
• The appliance runs while the door is open.
• Sudden stopping of the microwave during operation.
• Unusual sounds when the microwave door is opened or closed.
• The control panel is unresponsive or behaves irregularly with the door closed.

This genuine Whirlpool OEM replacement part is compatible with Maytag, Jenn-Air, and Kenmore models.
