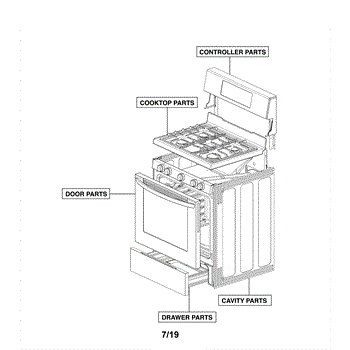

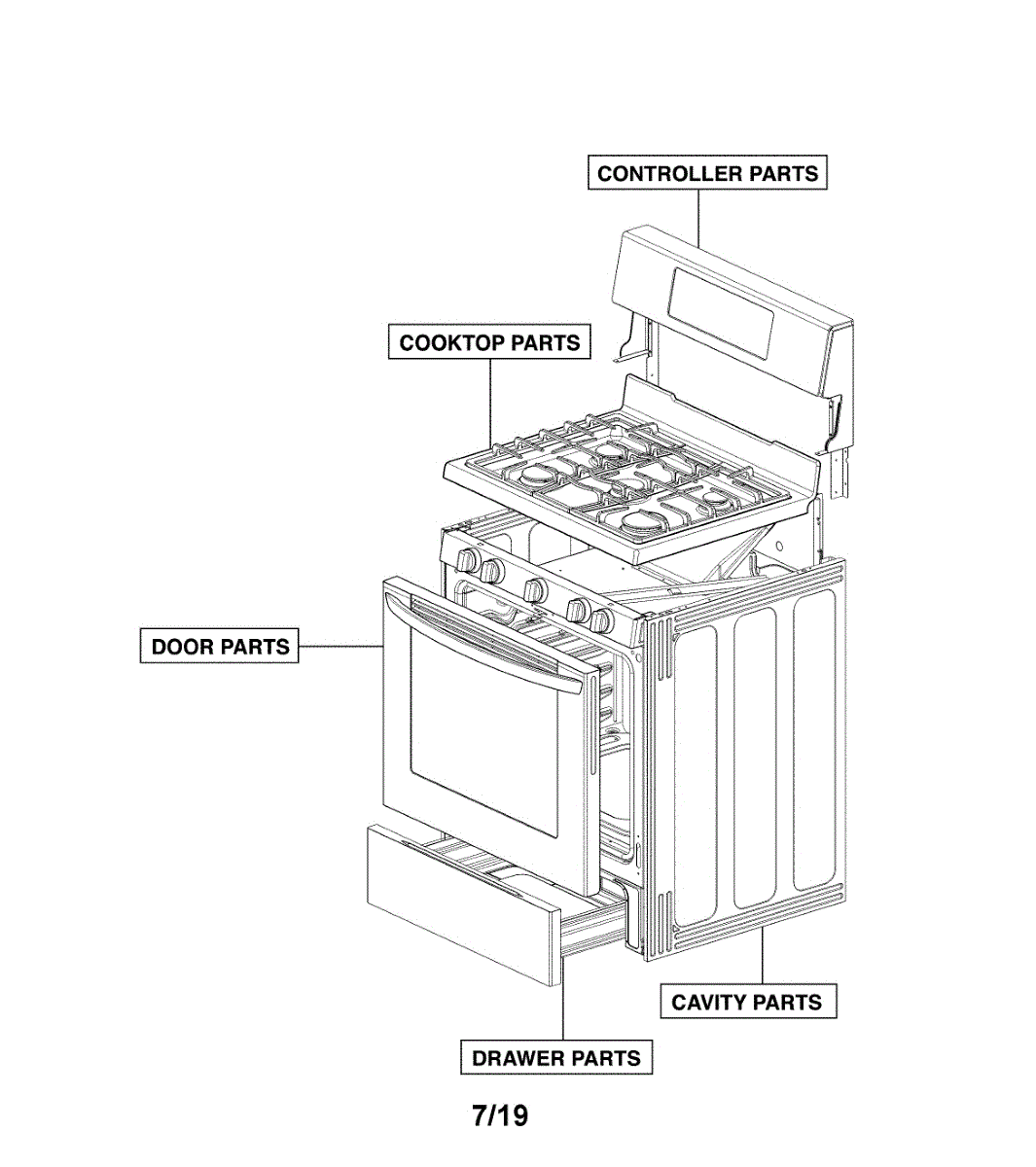

Parts for Lg LRG3193ST/00: Introduction Parts

This replacement screw fastens panels and components in your appliance, keeping them secure and aligned. Replace stripped, rusted, or missing hardware to stop rattles and ensure assemblies stay tight through everyday use.

• Secures covers, brackets, and internal assemblies at the specified mounting points
• Helps correct looseness or misalignment after a fastener is lost or stripped
• Can reduce rattling or vibration noises caused by loose fasteners
• Restores proper fit of panels or trim pieces

• Disconnect power to the appliance and shut off water or gas before servicing
• Match length and thread to the original fastener before installation
• Start threads by hand to avoid cross-threading; tighten only until snug to prevent damage
• Reuse any washers, spacers, or threadlocker originally installed at this location

A factory screw for securing specified components in your appliance. Replaces a missing or damaged fastener to restore a tight, reliable hold and help reduce vibration, rattling, and misalignment.

• Secures brackets, covers, or internal assemblies where this exact screw is specified by the manufacturer
• Useful when the original screw is missing, stripped, or corroded
• Helps eliminate looseness, vibration, and rattling noises
• Matches the original fastener for proper fit and thread engagement

• Disconnect power (and shut off water supply if applicable) before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged clips or inserts to ensure a secure repair

This customized washer is a small hardware piece that secures fasteners and helps distribute load where screws or bolts attach to appliance components. It restores proper fit and reduces movement at the connection point. What it does:

• Provides a stable bearing surface for screws or bolts to prevent pull-through and material damage
• Helps keep fasteners tight and reduces vibration-related loosening or rattling
• Maintains correct spacing and alignment of panels or internal parts
• Can help form a seal on fasteners in locations prone to vibration or minor movement

• Disconnect power and water (if applicable) before servicing the appliance
• Retain or replace the associated fastener; small parts can be easily lost—work on a clean surface

This factory-specified fastener secures designated panels and components, restoring a precise fit and helping keep your appliance solid and quiet. Replace a missing, stripped, or rusted original with the correct OEM match for the specified locations.

• Secures brackets, panels, and internal parts where this part number is called out
• Replaces damaged, stripped, corroded, or lost screws
• Helps reduce looseness and vibration that can cause rattling noises
• Exact OEM replacement for positions requiring this specific screw

• Disconnect power and shut off water/gas before servicing
• Match to the removed screw and install only in the locations specified for this part number
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening, especially into plastic
• If multiple screws are involved, start all fasteners before final tightening to ensure alignment

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

The Screw is an OEM component specifically designed for LG ranges. It plays an important mounting and fastening role by securely attaching internal components together.

The screws utilized within the range cabinet ensure sturdy construction and reliable mechanical cohesion. They allow for simple assembly and proper alignment of inner parts.

Causes of bad screws can include wear and tear over time, or damage from overtightening leading to stripped threads or heads.

Symptoms of bad screws include:

• Loose, detached, or misaligned inner parts
• Hardware that does not fit or interface as designed
• Unintended noises or movement during the operation

This OEM LG replacement part is also compatible with Sears/Kenmore and some GE ranges utilizing similar fasteners. Replacement ensures the range remains mechanically sound.


This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

This is a replacement customized screw designed to secure appliance panels and components. It restores proper fit and fastening where the original screw is lost or worn, helping maintain safe, stable operation. What it does

• Replaces missing or damaged mounting screw used on appliance panels and internal components
• Restores secure fastening to reduce vibration and rattling during operation
• Matches the original OEM fit and thread form for correct engagement when verified for your model
• Helps prevent loose parts that can cause noise or interfere with moving components

• Disconnect power and water before servicing the appliance
• Verify screw size, thread direction, and length match the original before installation
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid overtightening to prevent stripping or damaging mating threads

This control board assembly directs power and communication to key components, interpreting inputs and sensor signals so the appliance runs the correct functions and cycles. Replaces a failed electronics module to restore reliable operation.

• Distributes power and control signals to major components per the unit's programmed logic
• Interfaces with sensors and the user controls to execute selected functions
• Coordinates cycle timing and safety monitoring
• Common signs of failure: no power or won't start, unresponsive controls/display, intermittent operation, error codes, or unexpected shutdowns

• Disconnect power to the appliance before servicing
• Handle the board by the edges; use ESD protection to avoid static damage
• Photograph and label connectors, then transfer them one at a time to the new board
• Secure wiring to avoid pinching; follow the unit's tech sheet or service manual

This tapping screw secures appliance panels, brackets, and trim. Replace a missing or stripped fastener to restore a tight, rattle-free fit and keep components properly aligned.

• Cuts its own threads as it drives (self-tapping) to fasten metal or plastic components securely
• Helps eliminate looseness and vibration noises when an original screw is missing or damaged
• Typical signs you need this part: loose or rattling panels, gaps/misalignment, or covers that won't stay secured
• Direct replacement for the original fastener in the same location

• Disconnect power; turn off water or gas supplies before service
• Start the screw by hand to avoid cross-threading, then tighten with the correct driver
• Align parts fully before tightening and avoid overtightening, especially into plastic
• Reuse any original washers or clips that were installed with the screw

This replacement screw is a factory-style fastener used to secure components in place and restore proper fit and function. It's a direct-fit hardware piece sized and finished to match the original installation. What it does:

• Secures panels, brackets, or assemblies to prevent rattling or misalignment
• Restores original mounting strength where a stripped or missing screw causes loose parts
• Helps maintain proper panel gaps and component positioning for reliable operation
• Appropriate where the appliance requires the OEM-style screw head and thread form

• Screw

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or damage plastic parts
• Replace any damaged or corroded mating hardware for best results
• Disconnect power to the appliance and follow manufacturer safety instructions before servicing

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This replacement door handle restores a secure, easy-grip opening to your refrigerator door. It matches the OEM shape and mounting points so the door operates smoothly and looks factory-fresh. What it does:

• Replaces a cracked, loose, or broken refrigerator door handle so the door is easier and safer to open.
• Restores proper grip and leverage for normal daily use.
• Reinstalls to existing factory mounting points to maintain door alignment and appearance.
• Helps prevent further cabinet or door damage caused by using a compromised handle.

• One refrigerator door handle

• Requires removing the old handle and securing the replacement to the same factory screw bosses; use the original screws unless new hardware is explicitly listed.
• Handle hardware may be hidden under trim—check for set screws or clips before prying.
• Support the door while working to avoid strain on hinges; two-person assistance recommended for larger doors.
• Disconnect power only if required for surrounding panels—this is an exterior handle replacement and typically does not require electrical disconnection.

Replacement window glass that restores a clear viewing area in the appliance door and helps maintain a clean, sealed surface. Ideal for replacing cracked, chipped, or cloudy glass to improve visibility and safety. What it does:

• Provides a transparent viewing window so you can monitor cycles without opening the door.
• Replaces cracked, chipped, or fogged glass to restore appearance and function.
• Serves as the door's viewing surface and works with the door assembly and trim.
• Inspect surrounding gaskets, trim, and fasteners when replacing the glass to ensure a proper fit.

• Disconnect power (and water, if applicable) before attempting any repair.
• Wear cut-resistant gloves and eye protection when handling or removing glass.
• Door disassembly and removal of trim or retaining clips is commonly required.
• If the glass is shattered, remove broken pieces carefully and dispose of them per local regulations.

This cover assembly replaces a damaged or worn poise cover to protect internal components and restore the appliance's appearance. It provides a secure outer panel that helps keep wiring and mechanisms enclosed and accessible for service. What it does:

• Replaces a cracked, bent, or missing poise cover to restore proper enclosure
• Protects internal wiring and components from debris and accidental contact
• Helps prevent rattles and movement caused by a loose or broken cover
• Restores a clean, finished look to the appliance exterior

• Disconnect power and unplug the appliance before starting any repair
• Remove exterior panels or fasteners as needed to access the old cover; keep screws and hardware organized
• Handle the cover carefully to avoid scratching the finish or damaging clips

This main control board is the electronic brain of your appliance. It supplies regulated power and coordinates sensors, user inputs, and components so cycles run correctly—restoring dependable operation when the original board fails.

• Distributes and regulates power to key components
• Interprets signals from sensors and the user interface
• Executes operating logic, timing, and safety routines
• Typical failure symptoms: no power, won't start, dead/flickering display, relay clicking, erratic cycling, or error codes traced to the main PCB

• Disconnect power before servicing; handle the PCB by the edges and follow ESD precautions
• Photograph wire/connector locations; transfer any jumpers/spacers from the original board if present
• Seat connectors fully and mount the board securely to prevent shorts or vibration
• Some models require control initialization or service-mode steps after installation—refer to the service manual

The Power PCB Assembly is an OEM component specifically designed for LG electric ranges. Within the control housing, integrated circuits direct voltage to critical systems including oven elements, surface coils, and control displays. Carefully calibrated circuitry ensures precise, even heating.

Causes of a bad power PCB can include water damage, loose connections over time, or defects preventing safe or reliable power distribution. Without functioning control circuits, the oven and burners cannot operate properly.

Symptoms of a bad power PCB include:

• Inoperable or inconsistent oven/surface heating
• Erratic or failed temperature/time control displays
• Burner elements failing to ignite or adjust flames
• Physical damage or condensation visible on PCB

This LG OEM replacement ensures all cooking functions work as designed. Proper installation preserves safety, performance, and convenience. Compatible also with Sears/Kenmore electric ranges for ease and longevity of use.

This supporter is a small mounting bracket that holds internal components in place to keep assemblies aligned and reduce vibration. Replacing a damaged supporter restores proper fit and steadies moving parts for quieter operation. What it does:

• Secures internal assemblies or panels to the appliance frame to prevent shifting
• Maintains alignment so doors, drawers or moving parts track correctly
• Dampens vibration and reduces rattling or knocking noises from loose components
• Prevents wear or damage caused by parts moving out of position

• Disconnect power (and water if applicable) before starting any repair.
• Access may require removing exterior panels or covers; keep fasteners organized.
• Install with the correct screws and hand tools; do not over-tighten to avoid cracking the bracket.
• Inspect neighboring clips, screws and supports while replacing this part; replace any additional damaged hardware.

The Oven Control Panel Assembly is an OEM replacement part for LG electric ranges. It houses both the electronic control interface and physical mounting plate/supports.

Symptoms of a faulty assembly can include:

• Unresponsive buttons or dials
• LED/display failure preventing monitoring
• Improper locking of oven door during bake/clean cycles

Causes may stem from moisture exposure damaging circuits over time, impact/flexing resulting in broken circuit boards, or mounting failures allowing controls to disengage.

This authentic LG assembly is compatible with select Kenmore brand models.

The Burner Knob Assembly is an OEM replacement part specific to LG gas ranges and cooktops. It refers to the assembly that includes the control knob and stem that adjusts burner flame levels on the stovetop.

Causes of a bad burner knob assembly can include wear from frequent use that results in hard-to-turn or unstable knobs. Overheating from pans placed directly on the knob could also warp and damage plastic components.

Symptoms of a bad burner knob assembly include:

• Difficulty smoothly adjusting burner flames up and down
• Knobs that do not stay securely in the selected flame setting
• Loose, unstable, or misaligned knobs

This genuine LG replacement part is compatible with specific Sears/Kenmore brand models.

A circular lug designed to join a stripped wire to a threaded terminal for a secure electrical connection. Helps restore reliable contact at terminals and reduces the chance of intermittent power or arcing at connection points. What it does:

• Provides a strong mechanical and electrical connection between a wire and a screw or bolt terminal.
• Helps prevent loose connections that can cause intermittent operation, sparking, or overheating.
• Commonly used where a ring-style termination is required for safe, stable wiring.
• Works with properly sized wire and fasteners to maintain consistent conductivity.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Use the correct lug size and gauge for the wire and terminal; crimp or solder per manufacturer recommendations.
• Tighten terminal hardware to the appliance manufacturer's specified torque; avoid over-tightening which can damage the lug or terminal.
• If wiring insulation or the terminal is damaged or corroded, replace the affected components rather than reusing them.

This top plate replaces a damaged or worn cooktop surface to restore appearance and protect internal components under the burners. Designed to provide a clean, even surface and help maintain proper burner placement and alignment. What it does:

• Covers and protects the area beneath burners and controls from spills, grease and debris
• Replaces dented, scratched or corroded cooktop panels to improve appearance
• Helps provide a flat mounting surface for burner components and trim pieces
• Reduces direct exposure of internal wiring and components to spills

• Disconnect power (and gas supply, if applicable) before starting any repair
• Removal typically requires lifting off burner caps/grates and removing fasteners
• Handle the plate carefully — edges may be sharp and finish can scratch during installation

This heater cover is the protective housing that surrounds and shields the dryer heater assembly, helping direct airflow and preventing contact with the heating element for safer, more reliable operation. What it does:

• Protects the heating element from debris and accidental contact
• Helps channel hot air through the heater assembly for proper drying performance
• Reduces risk of shorting or arcing by keeping wiring and components separated
• Can help eliminate rattling or vibration caused by a damaged or loose heater housing

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the dryer/back panel or cabinet; keep fasteners organized
• Inspect the heater element and surrounding components for damage while replacing the cover
• If you smell burning or see visible damage, replace damaged parts and test on a dedicated circuit

Replacement refrigerator shelf that restores usable storage space and provides a stable, level surface for food and containers. Ideal for replacing cracked, chipped or missing shelves to help keep the fresh-food compartment organized. What it does:

• Provides a flat support surface for containers, plates and groceries
• Replaces cracked, broken or missing shelves that cause instability or lost storage
• Helps keep items from sliding and allows even airflow through compartments
• Restores organized storage and usable shelf height in the fresh-food section

• Remove food and loose items from the compartment before installing
• Slide the shelf into the existing shelf tracks or support brackets until it seats firmly
• If part is glass, handle with care and wear gloves to avoid cuts
• Inspect shelf rails/supports for damage; replace damaged supports before installing

This switch assembly is the door lock mechanism for select front-load washers. It detects when the door is closed and locks it during operation, allowing the washer to start and run safely without interruptions.

• Monitors door position and signals the control; failure can prevent the cycle from starting or trigger door/lock errors
• Engages the latch to secure the door during wash and spin; a bad lock may stop the cycle mid-wash
• Coordinates door unlock at cycle end; faults can delay or prevent unlocking
• Intermittent operation may cause sporadic starts or pauses

• Disconnect power and turn off water supply before servicing
• Access the lock behind the front panel at the door opening; remove the door boot clamp to reach the mounting screws
• Move wire connectors to the new assembly one at a time to maintain placement
• Reassemble and verify proper locking and unlocking before running a full cycle

This grille assembly replaces a damaged or missing front trim piece to restore your refrigerator's finished look and airflow at the base. Durable plastic construction keeps the lower front panel secure and neat. What it does:

• Covers and protects the refrigerator kick/vent area from dust and debris
• Maintains proper airflow to condenser components (helps reduce rattling from loose trim)
• Restores cosmetic appearance when original grille is cracked, broken, or discolored
• Secures to the cabinet with factory clips or screws to prevent gaps and movement

• Disconnect power to the appliance before beginning work
• Removal and installation typically require removing toe kick or lower access panel and releasing retention clips or fasteners
• Handle plastic trim carefully to avoid breaking tabs; replace any damaged clips

The Grille Assembly is an OEM part for LG gas ranges. This assembly covers the ranges' cooking surface and plays an important safety and functional role.

Symptoms of a bad grille assembly include:

• Warping or bending of grates inhibiting pan placement
• Grates unable to withstand normal cooking loads
• Chips, cracks, or holes reduce safety and performance
• Grates difficult to remove or clean after cooking

Causes of failure can include damage from years of heat exposure, damage from heavy pans, or warping due to cleaning techniques.

Replace yours today with this genuine OEM LG assembly to maintain a sturdy, reliable, and safe cooking surface. This replacement grate is compatible with some Samsung and Kenmore Elite brand ranges. The grille ensures properly centered cookware and protection from spills or flare-ups.

The Grille Assembly is an OEM part for LG cooking ranges and range tops. It provides an additional flat-top cooking surface between the standard burner elements. The grille assembly itself is constructed of heavy-duty materials designed to withstand high heat levels while cooking.

Causes can be wear over time under heavy usage, accidental damage from cookware or cleaning, or failure of the heating elements underneath the plate.

Symptoms of a bad griddle plate include:

• Uneven or slow heating of the surface
• Warping or bending of the plate
• Scratches, cracks, or other surface damage
• Loose or missing mounting hardware

This LG part is also compatible with some Kenmore models.

The Nozzle is an OEM part for LG ranges. It is a small component located inside the burner box that emits gas to create flame. During operation, the nozzle precisely meters fuel flow to each burner to achieve balanced and consistent heating.

Symptoms of a faulty nozzle include:

• Burners that light unevenly or emit an irregular flame pattern
• Inability to adjust burner flames or in some cases, lack of ignition
• Possible safety hazard from gas emissions not mixing or igniting properly

Causes can stem from mineral buildup clogging the narrow opening over time. Damage, such as nicks or corrosion, may also disrupt critical gas flow.

This OEM LG part is also compatible with some Kenmore ranges featuring LG gas cooktop systems. Replacing a worn nozzle restores optimal and safe burner performance.

The Nozzle is an OEM part for LG gas ranges. It is a critical component that functions to release gas fuel from the supply line in a regulated and controlled manner to achieve the desired burner flame. The Nozzle has precision-engineered orifices and materials resistant to corrosion to provide reliable and safe operation over extended use.

Symptoms of a bad nozzle include:

• Burner flames that appear uneven, yellow, or unstable
• Inability to achieve or maintain desired flame height
• Unpleasant gas smells were detected around the range
• Potential safety hazards if damage severely restricts or leaks fuel

Replacing a faulty nozzle restores the exact fuel-air mixture for clean controlled cooking. This affordable OEM LG part ensures optimal and safe burner performance customers expect from their gas range.

This OEM LG part is also compatible with ranges from Crosley, Jenn-Air, and select Kenmore gas models.

Replacement nozzle that restores the outlet routing on compatible LG appliances. Installs into the existing mounting location to replace a worn, cracked, or damaged nozzle and helps reduce leaks and misdirected flow. What it does:

• Directs the appliance's outlet flow and helps form a clean seal at the exit point to reduce drips and splashes.
• Commonly replaced when the nozzle is cracked, loose, clogged, or missing.
• Can improve dispensing consistency and reduce misdirected flow or minor leaks.
• Fits into the OEM mounting location.

• Disconnect power and/or water supply before removing panels or working on the appliance.
• Remove any trim or access panels to reach the nozzle; small clips or screws may secure it.
• Handle plastic parts gently to avoid cracking; confirm correct orientation and fit before reassembly.

The Nozzle is an OEM part for LG gas ranges. It is a critical component that functions to release gas fuel from the supply line in a regulated and controlled manner to achieve the desired burner flame. The Nozzle has precision-engineered orifices and materials resistant to corrosion to provide reliable and safe operation over extended use.

Symptoms of a bad nozzle include:

• Burner flames that appear uneven, yellow, or unstable
• Inability to achieve or maintain desired flame height
• Unpleasant gas smells were detected around the range
• Potential safety hazards if damage severely restricts or leaks fuel

Replacing a faulty nozzle restores the exact fuel-air mixture for clean controlled cooking. This affordable OEM LG part ensures optimal and safe burner performance customers expect from their gas range.

This OEM LG part is also compatible with ranges from Crosley, Jenn-Air, and select Kenmore gas models.

This nozzle is the burner orifice that meters gas flow to a single burner, helping your range or cooktop produce a correct, stable flame for consistent heating and cooking performance.

• Controls gas flow to its designated burner for proper flame size and shape
• A clogged, worn, or incorrect nozzle can cause weak or oversized flames, yellow tipping, uneven heating, or noisy flames
• Commonly replaced during LP/Natural gas conversions; each burner requires the exact nozzle specified by the service manual
• Useful to check if burner cleaning doesn't restore normal flame behavior

• Disconnect electrical power and shut off the gas supply before servicing
• Match the nozzle to the exact burner position and gas type; verify markings against the original
• Access under the burner/cooktop; use the correct wrench size and avoid overtightening
• After installation, leak-test all fittings with a soap solution and confirm proper flame characteristics per the manual

This replacement burner surface element restores heating on compatible electric cooktops, letting you resume even, controllable cooking. Designed to match the original part's fit and function for straightforward service. What it does:

• Provides the heating element that transfers heat to cookware for stovetop cooking
• Replaces a cracked, non-heating, or unevenly heating surface element
• Helps stop hot spots or intermittent operation caused by a failed element
• Restores normal cooktop temperature control when paired with a working terminal block and controls

• One burner surface element (single replacement part)

• Disconnect power at the breaker before starting any repair to avoid shock
• Remove the cooktop or lift the element from its housing per your model's service instructions; handle gently to avoid bending terminals

This gas valve assembly controls gas flow to the appliance's burner, restoring reliable ignition and heating when the original valve fails. It replaces a faulty or leaking valve to help the unit heat safely and consistently. What it does:

• Regulates and routes gas to the burner based on the appliance's control signals
• Prevents gas flow when the appliance is off or during safety shutoff conditions
• Commonly used to address symptoms like no heat, weak heating, or a persistent gas smell when confirmed at the valve
• Works as the appliance's primary gas control component in the fuel delivery system

• One gas valve assembly

• Turn off gas supply and disconnect power before servicing; verify both are isolated
• Inspect all gas fittings and use an approved leak detection method after installation
• Do not modify the part; use proper tools and follow manufacturer service instructions

This gas valve assembly controls gas flow to the oven and burners so the range heats properly and maintains safe operation. Replace a failed valve to restore ignition and regulated gas delivery. What it does:

• Regulates gas flow to the oven/burner when the appliance calls for heat
• Enables proper ignition and sustained burner/oven flame
• Common symptom: oven or burners won't heat or light even when controls are set
• Can cause clicking or continuous ignition attempts when valve sticks or fails

• Turn off gas supply and unplug the appliance before starting repairs
• Check all fittings for leaks after installation using a soap solution or approved leak detector
• Do not force connections; replace any damaged seals or tubing to ensure safe operation

This gas valve assembly controls the flow of natural or LP gas to the oven/range burner, restoring safe ignition and burner operation. Replace a faulty valve to help resolve burners or oven not lighting or heating inconsistently. What it does:

• Regulates gas flow to the oven/burner burners so they ignite and maintain a steady flame
• Works with the oven/range ignition system and safety controls to open and close gas supply
• Commonly replaced when burners fail to light, flame is weak or intermittent, or oven won't heat
• Designed as a direct replacement assembly for the original valve configuration

• One gas valve assembly as shown

• Shut off both gas supply and electrical power before beginning any service
• After installation, check all fittings for leaks with a gas leak detector or soapy water and test operation
• Do not alter the valve or regulator; follow appliance manufacturer instructions

This gas valve assembly controls and delivers gas to the burner when the appliance calls for heat. Replacing a failing valve restores reliable ignition, steady flame, and consistent heating performance while maintaining proper safety shutoff when not heating.

• Regulates gas flow to the burner(s) under the appliance's control and safety circuits
• Provides positive gas shutoff when no heat is requested
• Helps resolve no heat/flame, igniter glows or sparks but no ignition, burner lights then goes out, or intermittent heating
• Before replacement, also inspect the igniter, flame sensor, wiring, and regulator settings

• Disconnect electrical power and turn off the gas supply before servicing
• Note connection orientation; transfer any required fittings or brackets from the original valve
• Use an approved gas-rated thread sealant where applicable and leak-test all joints with a soap solution after installation
• Verify proper ignition and stable flame per the product's service or test procedure

The Burner Head is an OEM part for LG ranges. It sits beneath the burner cap and controls the ignition and flame of each burner element.

The burner head allows for precise flame control through its electronic systems and valve positioning. This leads to efficient and responsive cooking performance across various heat levels.

Causes of a bad burner head can include cracking or damage to the coil or valve mechanisms from spilled liquids or debris. Over time, electronic components may fail due to regular use and heating/cooling cycles.

Symptoms of a bad burner head include:

• Burners that will not ignite or light
• Unstable, overly high, or low flames
• Burners that shut off unexpectedly
• Odd smelling or burning sounds coming from below the range surface

This OEM LG part is also compatible with some Kenmore models.

The Burner Cap is an OEM part for LG ranges. It is designed to fit over the burner assembly, protecting the burner from dirt, debris, and accidental scratches or damage over time.

The range burner cap assists in ensuring safe and efficient operation of the burner. It directs heat upward toward cookware while preventing any material from falling into the burner itself.

Causes of a bad burner cap can include wear and tears such as cracks or breaks from normal use over extended periods of cooking. Spills, baked-on messes, or mishandling can also damage individual burner caps.

Symptoms of a bad burner cap include:

• Burner elements not heating properly or unevenly
• Food or liquid seeping down into the burner area
• Loose, damaged, or missing burner caps

This OEM LG part is also compatible with some Kenmore models.

This replacement burner cap fits over the burner head to protect the burner and help shape the flame for more even cooking. It restores correct flame pattern and keeps debris away from the burner ports. What it does

• Covers the burner head to direct flame and improve heat distribution for cookware.
• Helps prevent food and crumbs from entering burner ports that can cause uneven flame or ignition issues.
• Supports consistent ignition by keeping the burner surface aligned and unobstructed.
• May reduce yellow or irregular flames caused by misaligned or damaged caps.

• One burner cap

• Turn off the range and allow all components to cool completely before handling.
• Remove the old cap, clean the burner head and surrounding area, then seat the new cap in the correct position.
• No special tools are typically required; ensure the cap sits flat and centered on the burner head before use.

This small, board-mounted tactile push-button switch is used on the control panel. It registers a momentary press so the control board can accept your selection. Replacing a worn switch restores reliable button response and consistent operation.

• Mounts to the user interface board and provides momentary contact when a button is pressed
• Sends a low-voltage signal to the control, enabling cycle or option selection
• Typical failure symptoms: unresponsive or intermittent buttons, needing extra force to register, stuck/always-on input, or unintended beeps/changes
• Helps restore consistent user-interface input when an individual button switch has failed

• Disconnect power to the appliance before servicing; shut off gas/water if applicable
• Access the control panel to reach the user interface board
• This is a board-level repair; note switch orientation. Replacement may require desoldering/soldering per OEM procedure
• Use ESD precautions and avoid overheating PCB pads; test button function before reassembly

This genuine replacement power cord assembly restores electrical power to the appliance by replacing a damaged or worn main power cable. It provides a direct, factory-fit connection for safe, reliable operation. What it does

• Delivers mains power from the wall outlet to the appliance's internal wiring and control systems.
• Replaces frayed, cut, melted or otherwise damaged cords that can cause loss of power or intermittent operation.
• Helps eliminate burning smells, visible damage, or exposed wires that indicate a compromised power connection.
• Restores a secure plug and strain-relief connection to reduce stress on terminal connections.

• One power cord assembly.

• Always disconnect power at the breaker or unplug the appliance before starting any work.
• Verify correct cord routing and secure the strain relief/retainer to prevent pinching or chafing.
• Tighten terminal screws to the manufacturer's specification and ensure proper grounding.

The Thermistor is an OEM replacement part for LG gas ranges. It serves as a highly sensitive temperature sensor mounted inside the oven cavity.

Symptoms of a bad thermistor include:

• Inability to select certain cooking modes like bake or convection that involve temperature control
• Fluctuating or inaccurate temperature readouts on oven displays
• Irregular cooking outcomes like hot/cold spots inside the oven
• Repeated error codes regarding temperature sensing issues

Causes can be attributed to prolonged exposures to heat and intermittent combustion byproducts inside the oven. Over a decade of use, these conditions may degrade the thermal and electrical properties of sensor components.

This genuine LG replacement thermistor installs effortlessly. Installing a new thermistor restores temperature monitoring required for reliable gas oven performance.

A convection fan assembly that circulates hot air inside the oven cavity to promote even baking and roasting. Replacing a worn or noisy fan helps restore consistent cooking performance and airflow in convection ovens. What it does:

• Circulates heated air for more even temperature distribution and improved browning.
• Restores proper airflow when the existing fan is noisy, loose, or failing to spin.
• Helps resolve uneven baking, hot spots, or longer cook times caused by poor air circulation.
• Works as the rotating airflow component of the oven's convection system.

• Disconnect power to the appliance before beginning any work to avoid shock risk.
• Access typically requires removing the oven interior panel or rear access panel; keep track of fasteners.
• Handle sharp sheet-metal edges and support the fan while disconnecting wiring or mounting hardware.

This insulator is the mica sheet that covers the microwave's waveguide opening. It shields the cavity from food splatter and moisture while allowing microwave energy to pass, helping prevent arcing and protecting internal components.

• Covers the waveguide port to keep grease and debris out
• Helps prevent sparking/arcing inside the cavity
• Restores safe, even microwave operation when the original is burned or stained
• Typical symptoms: visible burn marks or charring on the cover, arcing/sparking during use, unusual noises

• Unplug the appliance before service; high-voltage components can retain charge
• Remove the old cover by releasing mounting screw or tabs; clean residue from the area
• Do not bend or crack the new mica; install with the same orientation
• If trimming is required per service literature, follow the outline of the original cover only

This incandescent oven lamp provides interior illumination so you can safely check food without opening the door. Direct replacement for a burned or dim oven/range light to restore cooking visibility. What it does

• Replaces a burned-out or flickering oven interior light bulb
• Restores clear visibility of the oven cavity for monitoring cooking progress
• Helps avoid opening the oven door unnecessarily, preserving oven temperature
• Fits the original lamp socket and installs in the oven light housing

• Disconnect power to the appliance before replacing the lamp to prevent electric shock
• Allow the oven and old bulb to cool completely before handling
• Use a cloth or gloves when installing the new lamp to avoid transferring oils from skin

The Oven Ignitor is an OEM replacement part for LG ovens. It is a critical component responsible for igniting the gas burners or heating elements within the oven, allowing it to reach and maintain the desired cooking temperatures.

Symptoms of a bad oven ignitor include:

• Failure of the oven to ignite or heat up properly
• Intermittent or delayed ignition issues
• Clicking or sparking noises from the ignitor area

Causes of an oven ignitor failure can range from general wear and tear over time, to electrical or mechanical malfunctions, to obstructions or buildup preventing proper ignition.

This OEM LG part is also compatible with Sears/Kenmore models.

The Nozzle is an OEM part for LG ranges. It is a small component located inside the burner box that emits gas to create flame. During operation, the nozzle precisely meters fuel flow to each burner to achieve balanced and consistent heating.

Symptoms of a faulty nozzle include:

• Burners that light unevenly or emit an irregular flame pattern
• Inability to adjust burner flames or in some cases, lack of ignition
• Possible safety hazard from gas emissions not mixing or igniting properly

Causes can stem from mineral buildup clogging the narrow opening over time. Damage, such as nicks or corrosion, may also disrupt critical gas flow.

This OEM LG part is also compatible with some Kenmore ranges featuring LG gas cooktop systems. Replacing a worn nozzle restores optimal and safe burner performance.

The Gas Orifice Nozzle is an OEM part for LG gas ranges. The gas orifice nozzle regulates the amount of gas entering the burner assembly. It meters out the proper gas flow needed for combustion.

Causes of a bad gas orifice nozzle include mineral buildup obstructing the small opening over time or impact damage distorting the nozzle.

Symptoms of a faulty nozzle are:

• Unstable or irregular burner flames
• Changes in flame coloration
• Smells of gas from the range top
• Inconsistent or improper heating

This part is also compatible with select Sears/Kenmore ranges.

This burner assembly replaces a damaged or worn surface burner to restore reliable heating on your cooktop. It provides a direct-fit replacement that helps eliminate ignition issues and uneven cooking performance. What it does:

• Directs the flame or heating element to cookware for consistent heat transfer
• Replaces cracked, clogged, or damaged burner components that cause poor heating
• Helps stop ignition clicking or failed light-offs when the burner hardware is faulty
• Restores correct burner alignment for even flame distribution and safer operation

• Disconnect electrical power and, if applicable, the gas supply before starting work
• Handle electrodes and terminals carefully to avoid damage; ensure proper alignment during reassembly
• Use basic hand tools; keep screws and small parts organized for reinstall

This heater cover mounts over the dishwasher's heating element at the bottom of the tub. It shields the element and helps direct wash water, protecting dishes and the tub floor from direct contact with the heater. What it does:

• Covers and protects the exposed heating element at the tub base
• Helps channel water flow around the element during the cycle
• Replace if the cover is cracked, warped/melted, or missing
• Can help prevent utensils or items from snagging near the heater area

• 1 heater cover

• Disconnect power and shut off the water supply before servicing
• Remove the lower rack and, if needed, the lower spray arm and filters to access the heater area
• Release retaining tabs or screws, remove the old cover, and seat the new cover evenly
• Ensure the cover locks securely and the spray arm spins freely before restoring service

This governor assembly is the mechanical control that stabilizes and regulates motion within the appliance's drive mechanism. Replacing a worn governor restores smooth, consistent operation and helps prevent erratic movement that can strain connected components. What it does:

• Regulates and limits the speed/rotation of the linked drive for stable, predictable movement
• Helps synchronize gears or shafts so the mechanism operates smoothly
• Common symptoms: intermittent or no movement, jerky/erratic motion, clicking or grinding noises
• Visible wear, cracks, or a loose/broken hub on the original governor

• 1 governor assembly

• Disconnect power before servicing; allow moving parts to come to a complete stop
• Note the original orientation; take photos to aid reassembly
• Transfer any reusable brackets, clips, or spacers from the original if required
• After installation, rotate the mechanism by hand to verify free movement before restoring power

This replacement base restores a solid mounting platform for the assembly it supports, keeping components aligned and secure. Replace a cracked or warped base to eliminate looseness, rattling, or misalignment that can lead to premature wear.

• Supports and secures the associated assembly for proper operation
• Maintains alignment to reduce vibration and noise during use
• Helps protect connected parts by preventing shifting and flexing
• Replace when you see cracks, warping, stripped/broken mounts, or symptoms like rattling, looseness, or poor fit

• Disconnect power; shut off water or gas if applicable
• Wear cut-resistant gloves and handle edges carefully
• Document screw locations/routing; transfer any reusable clips or bushings from the old base
• Start screws by hand and avoid overtightening, especially into plastic bosses

This burner assembly replaces a worn or damaged gas burner module to restore reliable ignition and consistent flame for proper operation. It helps get your appliance back to safe, even heating and cooking. What it does:

• Directs and distributes gas to the ignition source so the burner can produce a steady flame.
• Restores reliable ignition when a burner fails to light or flames are intermittent.
• Helps resolve uneven heating or poor cooking performance caused by damaged burner components.
• Works as the primary flame-producing module in the appliance's gas system.

• Turn off gas supply and electrical power before servicing; follow all local codes and OEM safety guidance.
• Replace only with the correct, matching part number.
• After installation, check for proper ignition, stable flame, and correct gas connections before regular use.

This foot is a small rubber base pad that supports and stabilizes the appliance on the countertop or cabinet surface. Replacing a worn or missing foot helps keep the unit level and reduces vibration and slipping.

• Provides stable, non-slip support on flat surfaces
• Helps keep the appliance level for proper operation
• Replaces missing, cracked, or flattened feet
• Can reduce vibration, rattling, or shifting during use

• Unplug the appliance before servicing
• Turn the unit on its side/back for access to the base
• Pull off the old foot and press the new one firmly into place (some models may use adhesive or a tab fit)
• Verify the unit sits level; replace additional feet as needed

This idler bracket mounts the idler pulley or roller in your appliance's tensioning system, keeping a belt or cable aligned and properly tensioned for consistent operation. A bent or worn bracket can cause noise, slippage, or loss of motion.

• Secures the idler pulley/roller in the correct position
• Maintains proper belt/cable tension and alignment
• Helps reduce squealing or squeaking from friction/misalignment
• Can address belts/cables coming off or intermittent movement in the drive mechanism

• Disconnect power; also shut off gas or water before servicing
• Access the tensioner area and note the belt/cable routing and spring orientation
• Relieve tension, remove the old bracket, and transfer the pulley/roller and any spring or hardware as required
• Reinstall the bracket, ensure smooth free movement, route belt/cable correctly, and test operation

This replacement slider restores smooth, guided movement for the appliance component it mounts to, helping reduce sticking, binding and noise. A simple, low-cost part that returns parts to proper alignment and operation. What it does:

• Guides and supports a moving panel or drawer to ensure even, low-friction travel
• Reduces binding, catching or noisy movement when the original slider is worn or damaged
• Keeps the associated component aligned to prevent uneven wear or mis-tracking
• Helps restore normal operation without replacing larger assemblies

• One replacement slider

• Disconnect power to the appliance before beginning any repair
• Remove the affected panel/drawer per the appliance service instructions to access the slider
• Inspect surrounding tracks or mounting tabs for damage and replace if necessary
• Test movement after installation; if binding persists, re-check alignment

This slider is a replacement glide piece that helps a drawer or sliding compartment move smoothly and stay aligned. Replacing a worn slider restores quiet, consistent travel and prevents wear on the surrounding trim. What it does:

• Guides and supports a drawer or sliding compartment for even movement
• Reduces sticking, scraping, and noisy operation from worn glides
• Keeps the drawer aligned to prevent rubbing or binding against the cabinet
• Helps extend life of associated rails and trim by restoring proper tracking

• One slider glide piece

• Disconnect power to the appliance and remove any contents before servicing
• Remove the drawer or access panel per your appliance instructions to reach the slider
• Inspect mating rail and fasteners; replace any damaged clips or screws for a secure fit

This door handle mounting anchor creates the fixed attachment point on the appliance door or drawer. Replacing a worn or missing anchor restores a solid, wobble-free handle and a consistent feel when opening and closing.

• Provides the secure mounting point that the handle fastens to
• Helps keep the handle aligned and rigid during use
• Replace if the anchor is cracked, stripped, or missing
• Resolve a loose/wobbly handle, a handle that won't tighten, or misalignment after service

• Disconnect power; turn off the water supply
• Protect the door/drawer finish and support the handle during removal
• Remove the handle per your model's instructions and take out the damaged anchor
• Install the new anchor using the existing mounting location/hardware, seat the handle fully, then tighten set screws evenly without overtightening

This parts assembly is a factory replacement assembly designed to restore the original components and fit where the OEM assembly is used. Replacing the damaged or worn assembly helps return the appliance to proper operation and fit. What it does

• Replaces the OEM parts assembly used in the appliance's internal component group.
• Restores proper mechanical/electrical connections where the original assembly has failed.
• Addresses symptoms such as intermittent operation, loose connections, or parts that no longer engage correctly.
• Provides an exact-fit factory-made assembly to simplify part replacement.

• Recommended for technicians or experienced DIYers; disconnect power and, if applicable, gas and water before starting.
• Inspect connectors, wiring, and mounting points for damage before installing the new assembly.
• Handle the assembly carefully to avoid bending tabs or damaging connectors.
