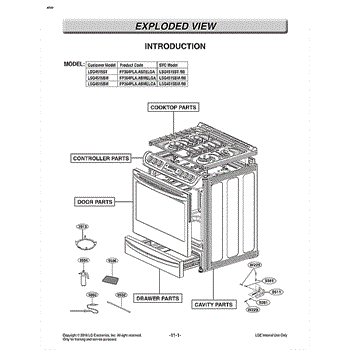

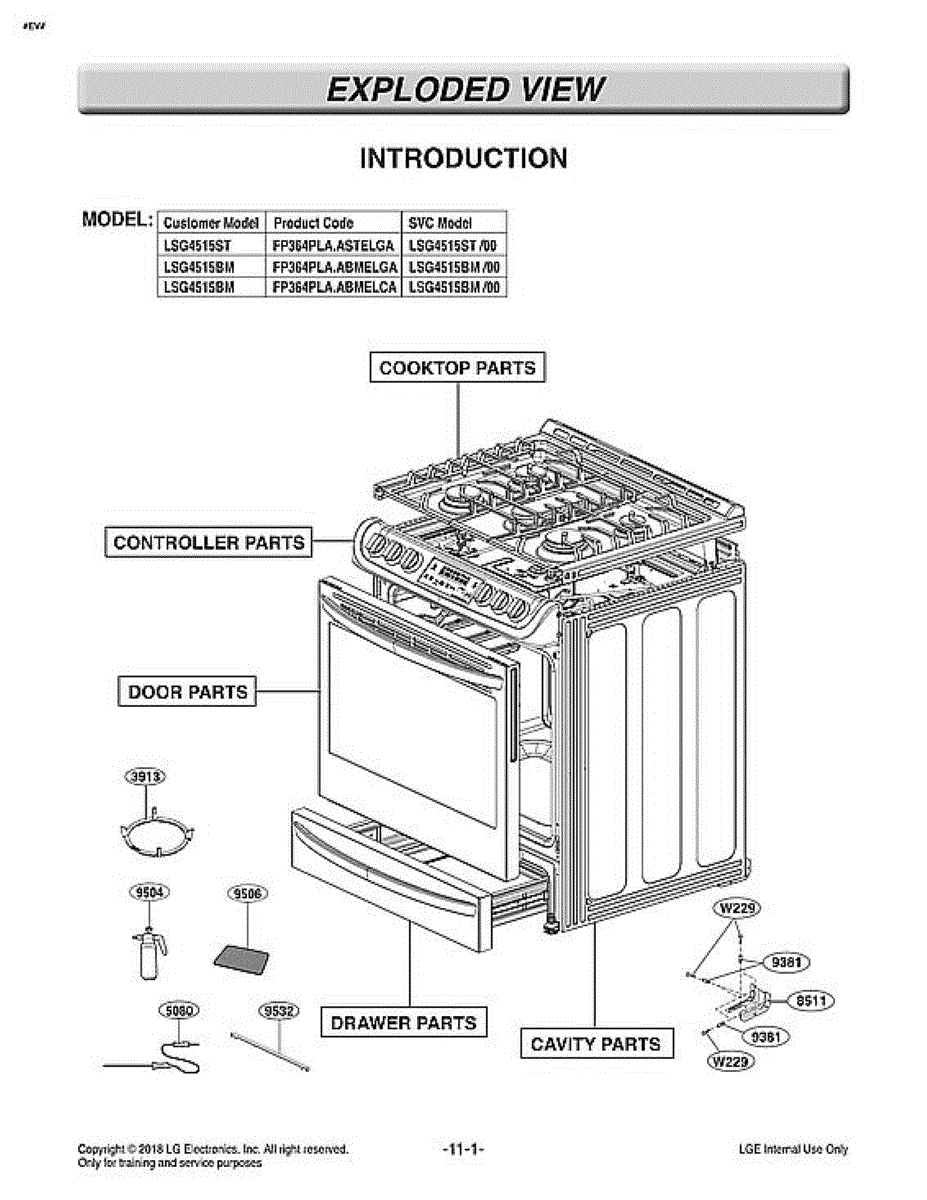

Parts for Lg LSG4515ST/00: Introduction Parts

Replace a gas range burner when flames are uneven, won't ignite, or produce yellow flames. Direct swap installation takes 10-15 minutes with basic tools.

Burner not heating or heating unevenly? This surface element restores full heat output on your range. Straightforward DIY fix in under an hour.

Replace your gas range burner head to restore even flame distribution and reliable ignition. Fixes weak flames and lighting issues. Confirm fit with your model number.

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

Insulator for electric and gas ranges. Installs between internal components to provide heat or electrical protection. Replace if cracked or missing.

Insulation component that protects internal range wiring and components from heat. Replace if cracked, deteriorated, or missing to restore proper insulation.

This is a replacement screw used to secure appliance components and panels. It restores proper fastening where a stripped, missing, or damaged screw causes loose parts or rattling. What it does:

• Fastens panels, trim, or internal components to maintain structural fit
• Helps stop vibration-related noise from loose assemblies
• Replaces missing or corroded screws that prevent proper closures
• Restores secure mounting after repairs or disassembly

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not over-torque to prevent thread damage
• Keep small parts away from children and pets
• Disconnect power or water before accessing internal parts

Replacement screw secures panels and components in your microwave. Install when original hardware is stripped, rusted, or missing to stop rattles.

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

A factory screw for securing specified components in your appliance. Replaces a missing or damaged fastener to restore a tight, reliable hold and help reduce vibration, rattling, and misalignment.

• Secures brackets, covers, or internal assemblies where this exact screw is specified by the manufacturer
• Useful when the original screw is missing, stripped, or corroded
• Helps eliminate looseness, vibration, and rattling noises
• Matches the original fastener for proper fit and thread engagement

• Disconnect power (and shut off water supply if applicable) before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged clips or inserts to ensure a secure repair

Replacement screw for electric and gas ranges. Secures internal components and panels. Needed when original is stripped, missing, or damaged during repair.

Secures panels, brackets, and internal components in your range. Replace this screw if the original is missing, stripped, or rusted for proper fit.

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

This is a replacement customized screw designed to secure appliance panels and components. It restores proper fit and fastening where the original screw is lost or worn, helping maintain safe, stable operation. What it does

• Replaces missing or damaged mounting screw used on appliance panels and internal components
• Restores secure fastening to reduce vibration and rattling during operation
• Matches the original OEM fit and thread form for correct engagement when verified for your model
• Helps prevent loose parts that can cause noise or interfere with moving components

• Disconnect power and water before servicing the appliance
• Verify screw size, thread direction, and length match the original before installation
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid overtightening to prevent stripping or damaging mating threads

Replacement control knob assembly for gas ranges. Restores a missing, cracked, or worn knob on your control panel for secure dial operation.

Replace a cracked, stripped, or missing control knob to restore precise temperature and burner control. Simple snap-on installation takes minutes.

Range not heating or control panel unresponsive? This control board assembly restores oven functions. Moderate difficulty repair requiring basic tools.

The PCB Assembly, Sidekey is an OEM replacement part for LG  ranges. This printed circuit board assembly is responsible for controlling the functions of the control panel on the side of the range. It communicates with all electronic components to operate the cooktop burners, oven lights and fans, and programming features.

Causes of a bad PCB assembly can include corrosion of printed circuits over time due to heat exposure, moisture damage, or component failure.

Symptoms of a bad PCB assembly include:

• Cooktop burners not working properly or unresponsive to control panel commands
• Inability to turn on oven lights or fans
• Programming features like timers or temperatures not functioning correctly
• Blank or unresponsive control panel displays

This OEM LG part is also compatible with Sears/Kenmore ranges. Replace yours today with this genuine electronic control board and upgrade the functionality of your electric range oven.

Fix a range that won't heat, cycle on, or respond to buttons. This control board assembly interprets inputs and restores reliable oven operation.

Fix an unresponsive oven control knob or broken control dial. This encoder board detects knob position and sends signals to adjust temperature settings.

Replacement screw for electric and gas ranges. Secures panels, brackets, and internal assemblies. Restores tight fit when original is missing or stripped.

Factory-style screw for securing panels, brackets, and assemblies on gas ranges and cooktops. Replace if missing, stripped, or damaged during repairs.

Replace a faulty gas range burner nozzle if flames are uneven, yellow, or won't ignite properly. This part meters fuel flow to each burner for balanced heating.

This power control board assembly replaces the appliance's sub power board to restore electronic control of cycles and power distribution. It fits into the control module area and provides the relay and circuit functions the machine uses to run. What it does:

• Controls power routing to motors, heaters and other major components through relays and circuitry
• Interfaces with the main control to execute cycle commands and timing functions
• Can resolve intermittent power loss, unresponsive controls, or failure to start when caused by a faulty sub board
• Helps stop erratic operation caused by burned traces, failed relays, or damaged components on the sub PCB

• Install only with the appliance unplugged and power disconnected to avoid shock or damage
• Handle the PCB by the edges and avoid touching components to prevent ESD damage
• Confirm connectors are fully seated and screws are tightened to factory torque; double-check wiring matches the removed board

Fix a range that won't heat, displays error codes, or has unresponsive controls. This main control board manages power distribution and system logic.

Pipe assembly for gas ranges. Connects gas supply lines within your range. Replace if cracked, corroded, damaged, or leaking to restore safe operation.

The Pipe Assembly is an OEM part for LG ranges and cooktops. This manifold is responsible for housing the gas valves and safely distributing gas to each burner. It works to allow control and adjustment of burner flames.

Over time, gas valves and other internal parts can become worn or damaged due to regular use and exposure to heat. Causes of a bad Pipe Assembly can include faulty gas valves that do not properly regulate gas flow, damage to internal tubing or gas lines, or worn seals and gaskets.

Symptoms of a bad Pipe Assembly include:

• Inconsistent or irregular burner flame sizes
• Difficulty adjusting burner flames
• Flames that become too high or too low and unstable
• Front burners that do not ignite or light unevenly
• Gas smells coming from the range

This OEM LG part is also compatible with some Kenmore models.

The Oven Ignitor is an OEM replacement part for LG ovens. It is a critical component responsible for igniting the gas burners or heating elements within the oven, allowing it to reach and maintain the desired cooking temperatures.

Symptoms of a bad oven ignitor include:

• Failure of the oven to ignite or heat up properly
• Intermittent or delayed ignition issues
• Clicking or sparking noises from the ignitor area

Causes of an oven ignitor failure can range from general wear and tear over time, to electrical or mechanical malfunctions, to obstructions or buildup preventing proper ignition.

This OEM LG part is also compatible with Sears/Kenmore models.

The Oven Ignitor is an OEM replacement part for LG ovens. It is a critical component responsible for igniting the gas burners or heating elements within the oven, allowing it to reach and maintain the desired cooking temperatures.

Symptoms of a bad oven ignitor include:

• Failure of the oven to ignite or heat up properly
• Intermittent or delayed ignition issues
• Clicking or sparking noises from the ignitor area

Causes of an oven ignitor failure can range from general wear and tear over time, to electrical or mechanical malfunctions, to obstructions or buildup preventing proper ignition.

This OEM LG part is also compatible with Sears/Kenmore models.

Secures the gas burner nozzle in your range cooktop. Replace this holder if it's cracked, broken, or no longer holding the nozzle firmly in position.

Fix misaligned or wobbling burner flames with this nozzle holder. Secures the nozzle in place to restore proper gas flow and even heating on your range.

Replace a gas range burner assembly when flames are uneven, burner won't ignite, or produces weak heat. Moderate DIY repair in 30-45 minutes.

Adjustable leveling foot assembly for ranges. Installs on the bottom of your appliance to provide stability. Replace if broken, cracked, or missing.

Replace your range's outer door frame to restore door structure, improve seal integrity, and fix cracked or bent trim. Confirm fit with your model number.

Replacement window glass for range oven doors. Restores clear viewing area when original glass is cracked, chipped, cloudy, or shattered. Installs inside door.

This is an exterior door handle that mounts to the front of the oven door, allowing you to open and close it during cooking. It attaches with mounting screws or brackets on the door panel. Replace this handle if it is cracked, loose, broken off, or if the mounting points have become damaged, making the door difficult to operate safely.

Replacement window glass for range oven doors. Restores clear viewing area when original glass is cracked, chipped, cloudy, or shattered. Installs inside door.

Inner door cover panel for electric and gas ranges. Replaces damaged, cracked, or missing inner door cosmetic panels. Installs on the interior door assembly.

Bracket that anchors the handle to your range oven door. Replace if cracked, stripped, or broken to restore secure handle attachment and alignment.

Color: Stainless w/black glass

Supports your range door and provides smooth opening and closing. Replace if the door sags, misaligns, or won't stay open. Confirm fit with your model.

Front panel assembly for your range. Replaces a cracked, damaged, or discolored control panel face. Installs on the front of the appliance.

Fix a gas range that won't turn on or respond to controls. This main power control board restores electronic functions. Moderate DIY repair.

This is a lever supporter that sits behind the control knob on a range, providing structural support for the knob shaft and ensuring the knob engages properly with the selector switch or valve stem. It helps maintain correct knob alignment and rotational feel. Replace this part if the control knob feels loose, spins freely without engaging, or if the original support is cracked or broken.

Wire harness for gas ranges. Connects electrical components inside your range. Replace if wires are frayed, damaged, or connections are loose or broken.

Fixes intermittent power or control issues caused by damaged wiring. This harness restores electrical connections between range components for reliable operation.

This single wiring harness is a direct-replacement electrical connector cable that restores proper connection between appliance components for reliable power and signal transmission. Use it to replace damaged or worn harnesses causing intermittent or failed connections. What it does:

• Re-establishes secure electrical and signal connections between matched appliance components
• Helps resolve symptoms like intermittent operation, no power to the connected component, or communication errors
• Prevents arcing and poor contact caused by frayed wires or broken connectors
• Maintains original routing and connector fit when swapped with the matching OEM harness

• One (1) single wiring harness as pictured

• Disconnect power to the appliance before starting any repair
• Match connector shapes and wire colors; do not force connectors together
• Route harness away from moving parts, pinch points, and heat sources

If your range control panel is loose or cooking functions are erratic, the PCB supporter may be cracked. This mounting bracket secures the circuit board.

Support bracket that secures the control board assembly inside your range. Replace if the bracket is cracked, bent, or missing to properly mount the PCB.

Fix an oven door that won't stay open or slams shut with this range door spring. Simple DIY repair requiring only a Phillips screwdriver, 30 minutes.

This window glass is the replacement inner glass for a microwave door, letting you safely view cooking without opening the door while restoring a secure, heat-resistant barrier. It replaces cracked, chipped or fogged door glass to improve visibility and safety. What it does:

• Restores a clear viewing window so you can monitor food while the microwave is running
• Replaces cracked, chipped or fogged glass that can compromise visibility or safety
• Helps maintain the microwave's sealed cooking cavity and proper operation
• Fits into the door assembly to provide a heat-resistant barrier between the cavity and exterior

• Disconnect power and allow the microwave to cool fully before attempting service
• Door disassembly is typically required; follow the OEM service manual or instructions
• Use gloves and eye protection when handling glass and sharp metal edges
• If door hardware or trims are damaged, replace them separately; verify proper door seal after reassembly

This is a circular wire harness holder that secures and organizes internal wiring within the range. It clips onto the frame or mounting points to keep wires routed properly and away from heat sources. Replace this part if it is broken or missing, which can cause loose wiring or potential contact with hot surfaces.

Rear cover panel for gas ranges. Mounts on the back of the range to conceal internal components. Replace if cracked, damaged, or missing.

This vent grille is the external trim piece that covers and protects the appliance exhaust opening, restoring proper airflow and finished appearance. It replaces damaged or cracked vent trim so air can vent safely and the appliance looks complete. What it does:

• Covers the appliance exhaust opening while directing airflow out of the cabinet or housing
• Helps prevent debris from entering the vent area and protects internal components
• Commonly replaced when cracked, broken, warped, or cosmetically damaged
• Can reduce air leaks around the exhaust opening when properly seated

• One vent grille

• Turn off and unplug the appliance or disconnect power before servicing
• Removal/installation typically requires removing a few fasteners or clips—handle trim pieces gently to avoid cracking
• Align grille tabs and secure with original screws or clips; do not overtighten

Replace a cracked, warped, or worn top plate on your gas range. This metal surface panel installs on the cooktop frame to restore appearance.

Idle packing bushing for electric and gas ranges. Replaces worn, cracked, or missing bushings. Ensures proper fit and cushioning for range components.

Oven rack for electric and gas ranges. Provides stable surface for cookware during cooking. Replace if bent, warped, cracked, or missing.

Replace cracked, warped, or missing oven rack shelves in your electric or gas range. Slides into oven cavity to provide sturdy, level surfaces for cooking.

Surface burner grate for gas ranges and cooktops. Sits atop burner to support cookware during cooking. Replace if warped, cracked, broken, or chipped.

The Surface Burner Grate is an OEM part specifically designed for LG ranges. It sits above the gas burners on the cooktop providing a durable, heat-resistant surface for cookware.

Causes of failure typically include warping, cracking, or breaking of grate bars from prolonged heat exposure over the life of the range. Material strength degradation is normal with heavy use.

Symptoms of faulty grates include:

• Uneven or inefficient heat transfer to pans
• Risk of cookware bottom damage from direct flame contact
• Potential gas leaks or fire hazards without grate coverage
• Loss of a functional, attractive cooktop appearance

This OEM part also fits select Sears/Kenmore ranges.

Grille assembly covers the cooking surface on gas ranges. Replace if warped, bent, cracked, or broken to ensure proper pan placement and safe operation.

The Grille Assembly is an OEM part for LG cooking ranges and range tops. It provides an additional flat-top cooking surface between the standard burner elements. The grille assembly itself is constructed of heavy-duty materials designed to withstand high heat levels while cooking.

Causes can be wear over time under heavy usage, accidental damage from cookware or cleaning, or failure of the heating elements underneath the plate.

Symptoms of a bad griddle plate include:

• Uneven or slow heating of the surface
• Warping or bending of the plate
• Scratches, cracks, or other surface damage
• Loose or missing mounting hardware

This LG part is also compatible with some Kenmore models.

Gas burner orifice nozzle for ranges and cooktops. Installs inside the burner box to meter gas flow. Replace if damaged, missing, or converting fuel type.

Fix weak flames or burners that won't light properly with this gas burner nozzle. Controls gas flow for proper flame size. Simple install with basic tools.

Gas burner orifice nozzle for ranges and cooktops. Installs inside the burner box to meter gas flow. Replace if damaged, missing, or converting fuel type.

Fix weak flames or burners that won't light properly with this gas range burner nozzle. Controls gas flow for optimal flame performance. DIY install.

Weak or uneven flames on your gas range? This burner orifice nozzle meters gas flow for proper flame size and consistent heating. Easy DIY fix.

Gas valve assembly that controls and delivers gas to the burner. Mounts inside the range cabinet. Replace if cracked, leaking, or damaged to restore safe gas flow.

Fix burners or oven not lighting with this gas valve assembly. Controls gas flow to restore safe ignition and consistent heating in your range.

Gas range won't ignite or heat properly? This valve assembly controls gas flow to your oven and burners. Restores ignition and safe operation.

Controls gas flow to your range burner. Replace this valve assembly when the original is faulty, leaking, or damaged to restore safe gas regulation.

Fixes burners that won't light or ignite properly on your gas range. This gas valve assembly controls gas flow to surface burners. Moderate DIY repair.

Fixes burner not working or weak flame issues on your gas range. Replaces worn or clogged burner to restore even heat and reliable ignition.

Replace a cracked, discolored, or missing burner cap that's causing uneven flames or allowing spills into the burner assembly. Fits over the burner head.

If your gas range has uneven flames, yellow or orange flames, or won't light properly, a damaged burner cap is often the cause. This part restores safe, even heat distribution.

Fixes uneven flames and improves heat distribution. This burner cap covers the burner head to direct flame properly and protect against debris buildup.

Uneven flames or poor heat distribution? This gas range burner cap sits atop the burner element to contain and distribute flames evenly for optimal cooking.

Fix intermittent power issues or control failures with this range main wiring harness. Connects electrical components for proper signal communication.

Cable assembly for gas ranges. Replaces worn, damaged, or broken cable connections inside your range. Essential structural component for proper operation.

Fix control issues or power failures with this gas range cable assembly. Restores reliable operation when wiring is damaged, burned, or has loose connections.

Fixes unresponsive controls or features not working on your gas range. This cable assembly restores power and signal connections between components.

Fix burners that won't light or controls that don't respond with this range wire harness. Restores electrical connections between components. Moderate DIY.

Bending pipe for gas ranges. Connects gas supply lines between burner valves and manifold. Replace if cracked, bent, corroded, or leaking at connections.

Bending pipe for gas ranges. Connects gas supply lines within the range assembly. Replace if bent, cracked, or damaged to restore proper fit and alignment.

Fix unresponsive control panel buttons with this tactile switch replacement. Restores reliable button response. Simple DIY repair, typically under 5 minutes.

This genuine replacement power cord assembly restores electrical power to the appliance by replacing a damaged or worn main power cable. It provides a direct, factory-fit connection for safe, reliable operation. What it does

• Delivers mains power from the wall outlet to the appliance's internal wiring and control systems.
• Replaces frayed, cut, melted or otherwise damaged cords that can cause loss of power or intermittent operation.
• Helps eliminate burning smells, visible damage, or exposed wires that indicate a compromised power connection.
• Restores a secure plug and strain-relief connection to reduce stress on terminal connections.

• One power cord assembly.

• Always disconnect power at the breaker or unplug the appliance before starting any work.
• Verify correct cord routing and secure the strain relief/retainer to prevent pinching or chafing.
• Tighten terminal screws to the manufacturer's specification and ensure proper grounding.

Microwave won't turn on or has no power? A failed thermostat often causes complete power loss. Moderate DIY repair requires disassembly to access.

Replace your range's wire harness if the existing wiring is damaged, frayed, or showing signs of wear. Connects electrical components inside your range.

If your oven won't reach the right temperature or shows an F9 error, the temperature sensor may be faulty. Simple DIY repair in under 45 minutes.

Replace a damaged or corroded wire harness in your range. This single-connection harness restores proper electrical connections when original wiring is frayed, melted, or broken.

Fix uneven cooking or baking in your range. This convection fan motor circulates hot air for consistent heat distribution. Moderate DIY repair.

Secures the control panel to your range cabinet. Replace if the bracket is cracked, bent, stripped, or hardware no longer holds the console firmly in place.

Wire harness for electric and gas ranges. Connects electrical components inside your range. Replace if wires are frayed, damaged, or connections are loose.

Fix inaccurate oven temperatures with this range temperature sensor. Restores proper heating cycles when your oven runs too hot or cold.

Fix range control panel display issues or power failures with this DC power jack. Restores electrical connection to control board. Moderate DIY repair.

Motor loose or vibrating excessively? This motor bracket secures the motor to the chassis, reducing vibration and maintaining alignment for quieter operation.

Fix loose or misaligned range components with this retaining ring. Secures parts in place to prevent excess movement and wear. Simple installation.

Fixes uneven baking and longer cooking times in your range. This convection fan blade restores proper air circulation for consistent oven temperatures.

This Fan Blade is an OEM part for LG microwaves. It is a critical component designed to circulate air within the microwave, aiding in heat dissipation and ensuring even cooking.

Fan blades in microwaves can suffer from wear, imbalance, or damage due to regular use or accumulation of debris. A malfunctioning fan blade can lead to inadequate ventilation, affecting the microwave's cooking efficiency and potentially causing overheating.

Symptoms of a bad fan blade include:

• Unusual noises during operation, such as rattling or buzzing, indicate a loose or damaged blade.
• The microwave overheating or shutting off prematurely.
• Inconsistent cooking or hot spots in food suggest poor air circulation.
• The fan not starting, or stopping unexpectedly during use.
• Visible signs of damage or wear on the blade.

This OEM LG part is also compatible with some Sears/Kenmore models.


This bracket secures the turntable motor to the microwave oven cavity base, keeping the motor properly aligned so the glass tray can rotate smoothly for even heating.

• Supports and positions the turntable motor beneath the oven floor
• Helps resolve issues like a non-turning glass tray or jerky rotation
• May correct intermittent grinding or scraping noises from the tray area

• Unplug microwave before servicing; high-voltage components can retain a charge
• Remove the unit from its install location if required for bottom access
• Access turntable motor from the underside; support the cavity to prevent damage
• Reuse existing screws and motor unless otherwise specified

Replace your damaged or broken range handle bar. This bar installs on the oven door, providing a secure grip for opening and closing. Order now.

Fix a humming or stalled range component with this AC synchronous motor assembly. Restores proper rotation when the motor fails to turn or makes noise.

This is the exterior side panel that attaches to the body of the range. It provides structural support and a finished appearance to the side of the appliance. Replace this panel if it is dented, scratched, rusted, or damaged during installation or use.

Replace your burned-out or dim oven light bulb to restore interior visibility while cooking. Direct-fit incandescent lamp for safe food monitoring. Verify fit with your model number.

This hinge bracket secures the oven door hinge mechanism on your range. Replace if the bracket is cracked, broken, bent, or missing to restore door support.

The range packing seal creates an airtight barrier around oven doors or other range components to maintain proper cooking temperatures and prevent heat loss. Positioned around door edges or component joints, it needs replacement if heat escapes, cooking becomes uneven, or the seal appears cracked or compressed.

Secures and supports your range oven door hinge for proper alignment and smooth operation. Replace if bracket is cracked, bent, or damaged to restore door fit.

Replacement support bracket for range control panels. Installs behind the control panel to provide structural support. Needed when original is broken or missing.

Range oven door gasket seals the oven cavity to retain heat and improve efficiency. Replace if torn, cracked, or no longer sealing properly. Confirm fit.

This pipe is the factory-design tubing used to route fluids inside the appliance, restoring proper flow and containment. Installing the correct pipe helps stop leaks and re-establish reliable fluid transfer where the original line has cracked or failed. What it does:

• Channels water or drain flow between internal components to maintain normal operation
• Prevents leaks by replacing cracked, split, or brittle tubing
• Helps restore proper filling, draining, or circulation when the original pipe is damaged
• Reduces risk of water-related faults and intermittent appliance behavior caused by compromised tubing

• One pipe as shown

• Turn off and unplug the appliance and shut off the water supply before starting work
• Remove any clips or fasteners carefully; save or replace clamps as needed
• Use the exact part number to ensure fit; route the pipe the same way as the original to avoid kinks

Gas pipe connects burner manifold to burner valves on gas ranges. Replace if cracked, corroded, or leaking. Ensures safe gas flow to burners.

A formed bending pipe used to route and secure a refrigerator appliance tube or line, keeping plumbing or tubing aligned and strain-free for reliable operation. Simple replacement for damaged, kinked, or corroded routing tubes. What it does:

• Provides a pre-formed pathway to route a fluid or service line without kinking or excessive bending
• Helps maintain proper alignment and connection between tubing sections
• Reduces stress on fittings and nearby components to prevent leaks
• Restores proper clearance where original routing has been deformed or compromised

• One bending pipe as shown

• Disconnect power and water supply before starting any repair to avoid shock or flooding
• Use proper tools and fittings; replace any damaged seals or clamps when reassembling

This is a small brass or metal orifice fitting that controls the flow of natural gas to a burner on your range or oven. It has a precisely sized opening that meters the correct amount of gas for proper flame size and combustion. Replace this orifice if you notice uneven flames, yellow or sooty burner output, or if you are converting your range to use a different gas type.

This replacement case is the outer housing that protects and supports internal components, helping keep your appliance's parts secure and aligned for reliable operation. What it does

• Covers and shields internal components from dust and debris
• Keeps internal parts properly positioned to prevent rubbing or misalignment
• Helps reduce vibration noise by securing assemblies in place
• Visible damage or cracking can expose internals and affect function

• One replacement case

• Disconnect power before starting any repair to avoid shock
• Use basic hand tools; keep fasteners and panels organized during disassembly
• Handle plastic housing carefully to avoid cracking or scratching
• Take care to reconnect wiring and secure connectors per manufacturer guidance

Replace a failing gas range burner assembly when flames are uneven, burner won't ignite, or heating is inconsistent. Direct-fit part restores cooking.

Fix a burner that won't light or heat unevenly with this gas range burner assembly. Common repair for weak or inconsistent flames on cooktop surfaces.

This is a metal cover that shields the convection fan and heating element inside the rear wall of the oven cavity. It protects the fan assembly from grease and food debris while allowing heated air to circulate evenly throughout the oven. Replace this cover if it is warped, corroded, or damaged, which can lead to uneven cooking or unusual noises during convection baking.

Pressure regulator assembly for gas ranges. Mounts to the gas supply line to control fuel pressure. Replace if cracked, leaking, or damaged.

If your gas range burner won't ignite or heat unevenly, this surface burner assembly restores reliable flame and even cooking. Moderate DIY repair.

Secures and finishes your range door opening with proper structural support. Replace if cracked, warped, or damaged to restore door alignment and seal.

Outer front plate panel for ranges. Restores exterior appearance and provides finished surface for controls. Replaces damaged, dented, or scratched panels.

Replaces the outer control panel on your range. Restores appearance when the original is cracked, scratched, or worn. Covers and protects controls.

Rubber foot pad that supports and stabilizes your range on the floor. Replace if cracked, broken, worn, or missing to keep your appliance level.

Replacement slider for range drawers and panels. Restores smooth movement when original is worn, cracked, or broken. Mounts to moving components for alignment.

Replace worn range drawer sliders to restore smooth, quiet operation and proper alignment. Prevents damage to surrounding trim. Confirm fit with your model.

This insulator is a small mounting cushion that reduces vibration and prevents metal-to-metal contact in the appliance. It helps lower operational noise and protects nearby parts from wear caused by movement. What it does:

• Cushions and isolates components to reduce vibration and rattling
• Prevents metal edges from rubbing together and causing wear or noise
• Protects wiring and hoses from chafing where parts meet
• Keeps panels and brackets securely spaced for proper alignment
