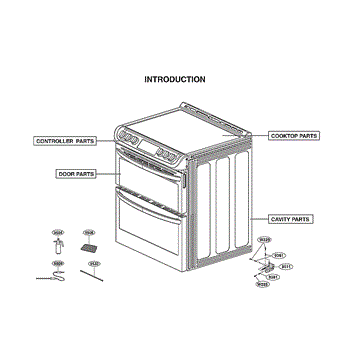

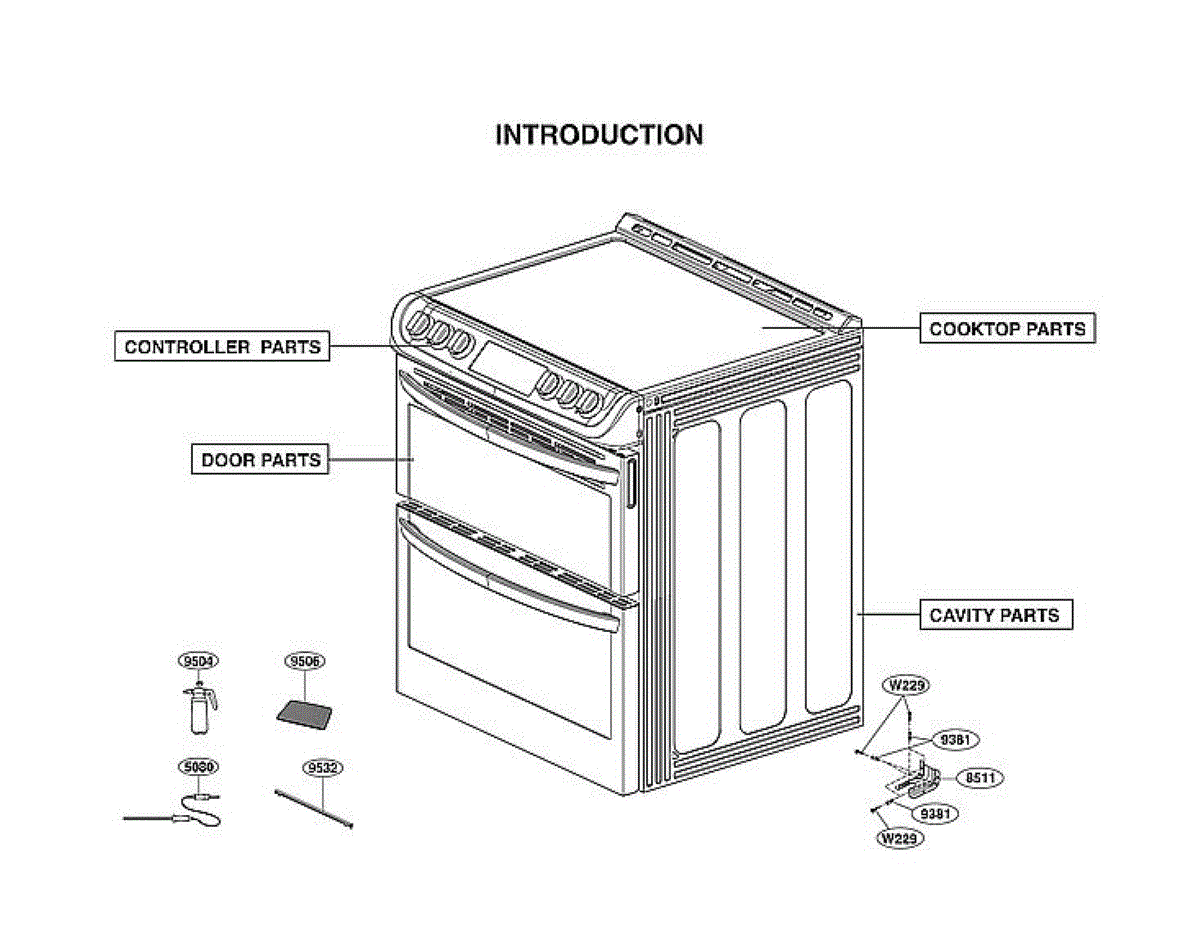

Parts for Lg LTE4815ST/00: Introduction Parts

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

Protective insulator cushion for ranges. Installs between components to dampen vibration and prevent rubbing. Replace if cracked, worn, or missing.

Insulator pad for electric and gas ranges. Protects components from heat damage. Replace if cracked, deteriorated, or missing to maintain proper insulation.

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

Replacement screw for securing panels, brackets, and internal components. Restores tight fit and proper alignment when original hardware is stripped or missing.

A factory screw for securing specified components in your appliance. Replaces a missing or damaged fastener to restore a tight, reliable hold and help reduce vibration, rattling, and misalignment.

• Secures brackets, covers, or internal assemblies where this exact screw is specified by the manufacturer
• Useful when the original screw is missing, stripped, or corroded
• Helps eliminate looseness, vibration, and rattling noises
• Matches the original fastener for proper fit and thread engagement

• Disconnect power (and shut off water supply if applicable) before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged clips or inserts to ensure a secure repair

Secures panels, brackets, and internal components in your range. Replace this screw if the original is missing, stripped, or rusted for proper fit.

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

This is a replacement customized screw designed to secure appliance panels and components. It restores proper fit and fastening where the original screw is lost or worn, helping maintain safe, stable operation. What it does

• Replaces missing or damaged mounting screw used on appliance panels and internal components
• Restores secure fastening to reduce vibration and rattling during operation
• Matches the original OEM fit and thread form for correct engagement when verified for your model
• Helps prevent loose parts that can cause noise or interfere with moving components

• Disconnect power and water before servicing the appliance
• Verify screw size, thread direction, and length match the original before installation
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid overtightening to prevent stripping or damaging mating threads

Replace your worn, cracked, or missing electric range control knob. Restores tactile control and clear settings for selecting heat levels and cycles.

Replacement control knob assembly for electric range front panel. Restores grip and rotation for selecting settings when original is cracked, worn, or missing.

Replace broken or missing range control knobs that prevent precise temperature adjustments. This knob assembly restores secure grip and smooth turning.

Control knob assembly for electric range burners. Mounts on the control panel to adjust heat settings. Replace if knobs are cracked, broken, or missing.

The PCB Assembly, Sidekey is an OEM replacement part for LG  ranges. This printed circuit board assembly is responsible for controlling the functions of the control panel on the side of the range. It communicates with all electronic components to operate the cooktop burners, oven lights and fans, and programming features.

Causes of a bad PCB assembly can include corrosion of printed circuits over time due to heat exposure, moisture damage, or component failure.

Symptoms of a bad PCB assembly include:

• Cooktop burners not working properly or unresponsive to control panel commands
• Inability to turn on oven lights or fans
• Programming features like timers or temperatures not functioning correctly
• Blank or unresponsive control panel displays

This OEM LG part is also compatible with Sears/Kenmore ranges. Replace yours today with this genuine electronic control board and upgrade the functionality of your electric range oven.

Fix a range that won't heat, cycle on, or respond to buttons. This control board assembly interprets inputs and restores reliable oven operation.

The PCB Assembly is an OEM part for LG refrigerators. It stands for Printed Circuit Board, which is the main control board that manages and regulates various functions and components within the refrigerator.

Symptoms of a bad PCB Assembly include:

• The refrigerator not powering on or displaying any lights/indicators
• Specific components or features not functioning correctly (ice maker, dispenser, cooling, etc.)
• Error codes or warning lights illuminated on the control panel
• Strange noises or abnormal behavior from the refrigerator

Causes of a bad PCB Assembly can be related to electrical faults, such as short circuits, power surges, or component failures. Physical damage from impact, moisture exposure, or overheating can also contribute to the malfunction of the PCB.

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

Fix an unresponsive oven control knob or broken control dial. This encoder board detects knob position and sends signals to adjust temperature settings.

Replacement screw for electric and gas ranges. Secures panels, brackets, and internal assemblies. Restores tight fit when original is missing or stripped.

Fix intermittent power issues or function failures in your electric range. This wiring harness restores electrical connections between components.

Replacement oven rack support bracket for ranges. Mounts inside the oven cavity to hold rack glides in position. Needed when original is bent or broken.

Support bracket for range burner assembly. Secures and stabilizes burner components in proper position. Replace if cracked, bent, or broken to restore stability.

Burner not heating? This radiant surface element restores heat to your electric range's smooth-top cooking surface. DIY-friendly replacement part.

This is a radiant surface heating element measuring 5-1/2 inches in diameter and rated at 1200 watts. It sits beneath the glass cooktop surface and provides heat to the burner area when activated. Replace this element if the burner fails to heat, heats unevenly, or does not reach full temperature.

This Radiant Surface Element is an OEM replacement part for LG electric ranges and cooktops. It is a high-power coil heating unit located below the cooktop surface that provides efficient, customizable heat for various cooking needs.

Causes of failure can be wear and damage to coiled filaments from prolonged heating cycles, cracking of ceramic insulators, or loose wiring connections suffering arcing or resistance over time.

Symptoms of a faulty element include:

• Slow or inadequate heating of cookware even on high settings
• Temperature fluctuations within the heating zone
• Burning or charring of spills and foods on the element itself
• Tripped circuit breakers obstructing range operation

This replacement is also compatible with some Kenmore models

Fix range display not working, oven not heating, or control panel errors with this power control board assembly. Moderate DIY repair for ranges.

Fix a range that won't heat, displays error codes, or has unresponsive controls. This main control board manages power distribution and system logic.

Replace your range's outer door trim to restore a finished appearance and maintain proper door seal alignment. Direct-fit frame for compatible models.

This is the inner glass panel that sits on the inside of the oven door, forming part of the insulated door assembly. It helps retain heat inside the oven cavity and protects the outer door glass from direct exposure to high temperatures. Replace this glass if it is cracked, shattered, or has visible damage that could compromise oven heat retention or safety.

This air guide directs cooled air inside the refrigerator compartment to help maintain even airflow and temperature distribution. Replaces a damaged or missing guide to restore proper venting and help reduce uneven cooling. What it does

• Channels cold air from the evaporator vent into the fresh food compartment for more consistent cooling.
• Helps reduce warm spots or uneven temperatures near shelves and door bins.
• Prevents direct airflow onto stored items, protecting sensitive foods from frost or drying.
• Fits behind vents or above crisper drawers to guide airflow where needed.

• One (1) air guide

• Always unplug the appliance or switch off power at the breaker before servicing.
• Typically installs without specialty tools; you may need to remove shelves or drawers for access.
• Handle plastic parts carefully to avoid cracking; align tabs and snap into place until secure.
• If airflow issues persist after replacement, check vents, damper, and evaporator fan for related faults.

Clear viewing pane for range oven doors. Replace when cracked, shattered, chipped, or stained to restore visibility and a clean, finished appearance.

Inner door cover panel for electric and gas ranges. Replace this part if your existing panel is cracked, broken, damaged, or missing from the oven door.

Trim piece that snaps over the hinge/closer area on your range. Replace if cracked, broken, or missing to restore a clean, finished look and protection.

Bracket that anchors the handle to your range oven door. Replace if cracked, stripped, or broken to restore secure handle attachment and alignment.

Outer door glass and stainless steel panel assembly for your range oven. Replaces cracked, broken, or damaged glass and trim on the lower door.

Replacement door frame for electric and gas range ovens. Replace this structural component if cracked, bent, or damaged to restore door appearance.

Decorative panel for your range oven door. Installs on the exterior door surface to refresh appearance. Replace if cracked, chipped, or discolored.

The inner cover protects internal components and wiring by covering the appliance's cabinet opening, helping prevent debris entry and accidental contact. It restores safe access and maintains the appliance's internal layout and airflow. What it does

• Shields internal electronics, wiring and assemblies from dust and debris
• Helps prevent accidental contact with energized components
• Restores proper internal clearance and part alignment after repair
• Can address symptoms like visible damage, exposed wiring, burning odor or intermittent operation caused by a compromised cover

• Replace with power disconnected and appliance unplugged to avoid shock
• Verify correct orientation and secure all mounting tabs/screws; do not force into place
• Inspect adjacent wiring and components for damage while the cover is removed
• Use only the part number shown for exact fit

Secures and pivots your range door smoothly. Replace when doors drift, rub, or won't align properly. Confirm fit with your model number before ordering.

Shield plate for electric and gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, damaged, or missing for proper range operation.

Replace your electric range's control panel assembly if the panel is cracked, damaged, or worn. This component houses the interface controls and display.

Fix an oven that won't heat while the cooktop still works. This main power control board regulates oven temperature and timing. Moderate difficulty repair.

Protects and shields the indicator light on your range console. Replace if cracked, broken, or missing to restore clear visibility of settings. Verify fit with your model number.

This is a lever supporter that sits behind the control knob on a range, providing structural support for the knob shaft and ensuring the knob engages properly with the selector switch or valve stem. It helps maintain correct knob alignment and rotational feel. Replace this part if the control knob feels loose, spins freely without engaging, or if the original support is cracked or broken.

Fixes intermittent power or control issues caused by damaged wiring. This harness restores electrical connections between range components for reliable operation.

Range controls not responding or features intermittent? This wiring harness restores power and signal connections between components for reliable operation.

If your range control panel is loose or cooking functions are erratic, the PCB supporter may be cracked. This mounting bracket secures the circuit board.

This ring guide supports and centers the microwave oven's glass turntable so it rotates smoothly for even cooking. It replaces a cracked or worn guide to reduce wobble and noisy operation. What it does:

• Centers and supports the glass tray so it turns evenly on the roller/drive assembly
• Helps keep the tray from slipping or wobbling during rotation
• Restores smooth, quiet turntable movement when the original guide is damaged
• Addresses symptoms such as a tray that wobbles, binds, or does not rotate properly

• One ring guide

• Disconnect power before servicing the appliance
• Remove the glass tray and roller assembly to access the guide
• Set the new guide into place on the turntable support/roller path and reinstall the roller and glass tray
• Handle the glass tray carefully; replace rollers or the drive coupling if worn

Support bracket that secures the control board assembly inside your range. Replace if the bracket is cracked, bent, or missing to properly mount the PCB.

This neon indicator lamp lights up when its circuit is energized, providing at-a-glance status confirmation. Replace when dim or burned out. Verify fit.

Burner won't turn off or runs too hot? This rotary switch controls heating elements and temperature settings. Straightforward DIY replacement.

Burner stuck on high or won't adjust temperature? This rotary switch behind the control knob regulates heat settings. DIY-friendly, 20-minute fix.

Fix an oven door that won't stay open or slams shut with this range door spring. Simple DIY repair requiring only a Phillips screwdriver, 30 minutes.

A replacement window glass for microwave doors that restores a clear viewing area and protects internal components. Fits the oven door assembly to help you monitor food without opening the door. What it does:

• Replaces cracked, cloudy, or broken microwave door glass to restore visibility
• Helps contain heat and food splatter inside the oven cavity when the door is closed
• Restores the door's finished appearance after impact or wear
• Safe symptom linkage: use when door glass is chipped, shattered, or severely scratched

• Disconnect power to the appliance before service to avoid electrical shock.
• Handle glass carefully and wear cut-resistant gloves and eye protection.
• May require partial door disassembly; keep track of screws and clips for reassembly.

Factory service parts assembly for electric and gas ranges. Replaces worn, damaged, or missing multi-component grouping. Restores original configuration.

This is a circular wire harness holder that secures and organizes internal wiring within the range. It clips onto the frame or mounting points to keep wires routed properly and away from heat sources. Replace this part if it is broken or missing, which can cause loose wiring or potential contact with hot surfaces.

Wire harness for electric ranges. Connects electrical components internally. Replace if wires are damaged, frayed, melted, or connections are loose.

This heater assembly is the dryer's heating element housing that warms air for efficient drying. Replacing a damaged or failed heater assembly restores heat delivery and helps your dryer dry clothes consistently. What it does:

• Houses the heating element and directs heated air into the drum
• Provides the electrical connection point for the dryer's heater circuit
• Commonly replaced when the dryer produces no heat, poor heat, or trips thermal fuses
• Works with the dryer's thermostats and sensors to regulate operating temperature

• Disconnect power at the breaker or unplug the dryer before starting any repair
• Handle the heating element and terminals carefully to avoid damage or electrical shorts
• Follow the dryer's service manual

Replace your range's vent grille if cracked, broken, or missing. This cover piece installs over the ventilation opening on your electric range. Restores appearance.

Protective cover that installs over the power cord connection on your electric range. Replace if cracked, broken, or missing to restore appearance.

Directs heat and light inside the oven cavity for even browning and proper illumination. Replace if damaged or warped to restore cooking consistency.

This is the main glass cooktop surface that sits on top of the range and houses the burner elements beneath it. It provides the cooking surface and integrates with the control panel area. Replace this assembly if the glass is cracked, chipped, scratched deeply, or if burn marks and discoloration cannot be cleaned.

Idle packing bushing for electric and gas ranges. Replaces worn, cracked, or missing bushings. Ensures proper fit and cushioning for range components.

Oven not heating evenly or at all? The carbon heater element radiates consistent heat throughout the oven cavity. Moderate DIY repair with guidance.

Fix loose or rattling heating elements with this range heater bracket. Secures the heater assembly in proper alignment to prevent movement and damage.

Fix loose or noisy heating elements with this heater mounting bracket. Secures the heater assembly in proper position to restore quiet, stable operation.

Replace a bent or missing heater mounting bracket to prevent sagging heating elements, uneven heating, and potential contact damage in your range.

Seals your electric range door to maintain temperature and prevent heat loss. Replace when cracked, loose, or no longer sealing properly. Verify fit.

This heater cover protects the dryer heater assembly and helps direct airflow for efficient operation. Replacing a damaged cover restores proper heater protection and reduces the risk of airflow restriction or overheating. What it does:

• Shields the heating element and internal wiring from debris and lint buildup
• Helps channel hot air through the drum and vent path for consistent drying
• Prevents direct contact with the heater, improving safety
• Addresses symptoms like excessive lint accumulation, rattling near the heater area, or minor airflow issues

• One heater cover

• Disconnect power to the appliance before starting any repairs
• Typical install requires removing the dryer cabinet or access panel; follow OEM instructions
• Inspect surrounding components (heater, element housing, mounting clips) and replace any damaged fasteners

Oven rack for electric and gas ranges. Provides stable surface for cookware during cooking. Replace if bent, warped, cracked, or missing.

Replace cracked, warped, or missing oven rack shelves in your electric or gas range. Slides into oven cavity to provide sturdy, level surfaces for cooking.

Seals the oven door to contain heat and maintain proper cooking temperatures. Replace if torn, cracked, or no longer creates a tight seal. Confirm fit with your model number before ordering.

Fix unresponsive control panel buttons with this tactile switch replacement. Restores reliable button response. Simple DIY repair, typically under 5 minutes.

Replace your range's wire harness if the existing wiring is damaged, frayed, or showing signs of wear. Connects electrical components inside your range.

The Magnetron Thermostat is an OEM part for LG microwaves and built-in ranges. Its primary function is to monitor the temperature and ensure that it remains within a safe operating range. If the temperature exceeds the preset limit, the thermostat will interrupt the power supply to the magnetron, preventing overheating and potential damage.

Causes of a faulty magnetron thermostat can include electrical malfunctions, component failures, or physical damage. These factors can result in issues such as erratic heating, microwave not heating properly, or the appliance shutting off unexpectedly.

Symptoms of a bad magnetron thermostat may include:

• Microwave not heating food evenly or at all
• Inconsistent or weak heating performance
• Microwave shutting off or displaying error codes related to temperature issues

This OEM LG part can also be used on Kenmore/Sears appliances.

If your oven won't reach the right temperature or shows an F9 error, the temperature sensor may be faulty. Simple DIY repair in under 45 minutes.

Replace a damaged or corroded wire harness in your range. This single-connection harness restores proper electrical connections when original wiring is frayed, melted, or broken.

Fix uneven cooking or baking in your range. This convection fan motor circulates hot air for consistent heat distribution. Moderate DIY repair.

Secures the control panel to your range cabinet. Replace if the bracket is cracked, bent, stripped, or hardware no longer holds the console firmly in place.

Oven door hinge assembly for electric and gas ranges. Replaces broken, worn, or damaged hinges that prevent proper door operation or alignment.

Fix inaccurate oven temperatures with this range temperature sensor. Restores proper heating cycles when your oven runs too hot or cold.

Motor loose or vibrating excessively? This motor bracket secures the motor to the chassis, reducing vibration and maintaining alignment for quieter operation.

Fix loose or misaligned range components with this retaining ring. Secures parts in place to prevent excess movement and wear. Simple installation.

Fixes uneven baking and longer cooking times in your range. This convection fan blade restores proper air circulation for consistent oven temperatures.

This Fan Blade is an OEM part for LG microwaves. It is a critical component designed to circulate air within the microwave, aiding in heat dissipation and ensuring even cooking.

Fan blades in microwaves can suffer from wear, imbalance, or damage due to regular use or accumulation of debris. A malfunctioning fan blade can lead to inadequate ventilation, affecting the microwave's cooking efficiency and potentially causing overheating.

Symptoms of a bad fan blade include:

• Unusual noises during operation, such as rattling or buzzing, indicate a loose or damaged blade.
• The microwave overheating or shutting off prematurely.
• Inconsistent cooking or hot spots in food suggest poor air circulation.
• The fan not starting, or stopping unexpectedly during use.
• Visible signs of damage or wear on the blade.

This OEM LG part is also compatible with some Sears/Kenmore models.


Replace your damaged or broken range handle bar. This bar installs on the oven door, providing a secure grip for opening and closing. Order now.

Fix a humming or stalled range component with this AC synchronous motor assembly. Restores proper rotation when the motor fails to turn or makes noise.

Range heating element loose or misaligned? This heater mounting bracket secures your heating assembly to the cabinet for stable, reliable operation.

This is the exterior side panel that attaches to the body of the range. It provides structural support and a finished appearance to the side of the appliance. Replace this panel if it is dented, scratched, rusted, or damaged during installation or use.

Replace your burned-out or dim oven light bulb to restore interior visibility while cooking. Direct-fit incandescent lamp for safe food monitoring. Verify fit with your model number.

The range packing seal creates an airtight barrier around oven doors or other range components to maintain proper cooking temperatures and prevent heat loss. Positioned around door edges or component joints, it needs replacement if heat escapes, cooking becomes uneven, or the seal appears cracked or compressed.

Oven not heating or baking unevenly? This electric range heating element restores proper cooking temperature. Moderate DIY repair in 30-45 minutes.

This is the broil heating element (sheath heater) located at the top of the oven cavity in an electric range. It provides high, direct radiant heat used for broiling foods. Replace this element if the broiler no longer heats, heats unevenly, has visible damage such as blistering or breaks, or if the element glows in some spots but not others.

Oven not heating or heating unevenly? This electric range heating element restores proper cooking temperatures. Moderate DIY difficulty, 30-45 minutes.

Base plate for electric and gas ranges. Provides structural support at the bottom of the appliance. Replace if cracked, broken, or missing. Easy install.

Rubber foot pad that supports and stabilizes your range on the floor. Replace if cracked, broken, worn, or missing to keep your appliance level.

Idle bracket for electric and gas ranges. Secures internal components in place. Replace if bracket is bent, cracked, broken, or missing during repair.

Mounting anchor for range door handles. Replaces worn, broken, or missing anchors to restore secure handle attachment and eliminate wobbling or loose fit.

Accessory assembly for electric and gas ranges and wall ovens. Replaces damaged, broken, or missing accessory components. Restores proper fit and function.

Decorative trim piece that surrounds the rear of your range for a finished look. Replace if cracked, chipped, damaged, or missing. Enamel finish.
