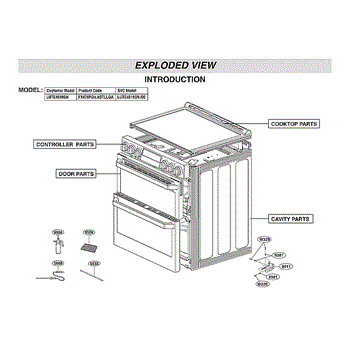

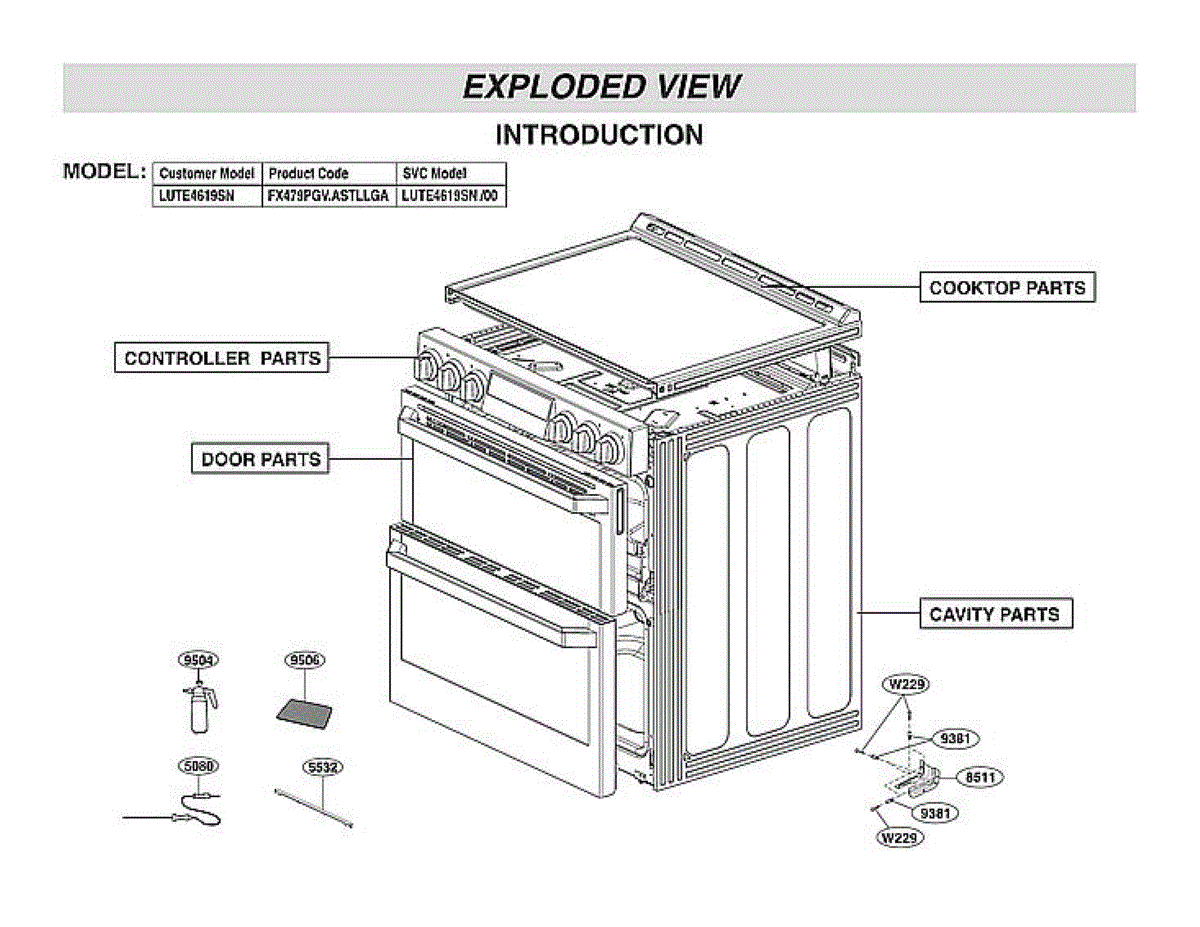

Parts for Lg LUTE4619SN/00: Introduction Parts

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

This insulator cushions and isolates a component to reduce vibration and help prevent heat or electrical transfer to adjacent parts. It's a simple replacement part that restores proper spacing and support where the original insulator has worn or failed. What it does

• Provides cushioning and vibration isolation for the mounted component
• Helps maintain correct spacing and alignment of panels or assemblies
• Reduces direct heat or electrical contact between parts
• Stops rubbing or noise caused by a deteriorated or missing insulator

• One insulator

• Turn off power and unplug the appliance before attempting any repair
• Remove any surrounding panels or components as needed to access the mount point
• Replace only the damaged insulator with the same shape and orientation; ensure a snug fit
• If fasteners or clips were removed, reuse OEM hardware or replace with equivalent parts to secure the insulator

This insulator is a small protective cushion that helps damp vibration and prevent rubbing or heat transfer between adjacent appliance components. It restores proper spacing and reduces noise where panels or parts meet. What it does:

• Cushions components to reduce vibration, rattling, and wear
• Prevents metal-to-metal contact that can cause noise or damage
• Helps maintain correct spacing and alignment of nearby parts
• Can reduce heat transfer between hot and sensitive parts

• One insulator

• Disconnect power before servicing the appliance
• Remove only the panels or components necessary to access the old insulator
• Press or adhesive-mount the replacement in the same location and orientation as the original

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

The Ring Assembly is an OEM part for LG gas ranges. This ring assembly surrounds the control knobs, protecting the surrounding range surface.

The ring assembly acts as a barrier, preventing spills, splatters, and spillovers from burner adjustments from damaging the range exterior. It channels these messes safely back onto the cooktop surface for easy cleanup.

Causes of a bad ring assembly are usually wear and tear from repetitive cleaning or impact damage from accidental bumps or drops over time. Heat exposure may also cause cracking or discoloration.

Symptoms of a bad bezel include:

• Exposed range exterior at risk of damage
• Loss of a neat, uniform appearance
• Difficulty cleaning around loose or damaged parts

This OEM LG part is also compatible with some Kenmore models.

A factory screw for securing specified components in your appliance. Replaces a missing or damaged fastener to restore a tight, reliable hold and help reduce vibration, rattling, and misalignment.

• Secures brackets, covers, or internal assemblies where this exact screw is specified by the manufacturer
• Useful when the original screw is missing, stripped, or corroded
• Helps eliminate looseness, vibration, and rattling noises
• Matches the original fastener for proper fit and thread engagement

• Disconnect power (and shut off water supply if applicable) before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged clips or inserts to ensure a secure repair

This factory-specified fastener secures designated panels and components, restoring a precise fit and helping keep your appliance solid and quiet. Replace a missing, stripped, or rusted original with the correct OEM match for the specified locations.

• Secures brackets, panels, and internal parts where this part number is called out
• Replaces damaged, stripped, corroded, or lost screws
• Helps reduce looseness and vibration that can cause rattling noises
• Exact OEM replacement for positions requiring this specific screw

• Disconnect power and shut off water/gas before servicing
• Match to the removed screw and install only in the locations specified for this part number
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening, especially into plastic
• If multiple screws are involved, start all fasteners before final tightening to ensure alignment

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

This is a replacement customized screw designed to secure appliance panels and components. It restores proper fit and fastening where the original screw is lost or worn, helping maintain safe, stable operation. What it does

• Replaces missing or damaged mounting screw used on appliance panels and internal components
• Restores secure fastening to reduce vibration and rattling during operation
• Matches the original OEM fit and thread form for correct engagement when verified for your model
• Helps prevent loose parts that can cause noise or interfere with moving components

• Disconnect power and water before servicing the appliance
• Verify screw size, thread direction, and length match the original before installation
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid overtightening to prevent stripping or damaging mating threads

This replacement knob assembly restores reliable control of your appliance's settings so you can select cycles or temperatures with a secure, easy-to-turn control. Designed to match the original fit and finish for straightforward replacement. What it does:

• Replaces a cracked, stripped, faded, or missing control knob so the control shaft can be operated normally
• Provides a tactile grip and clear pointer for precise selection of settings
• Helps stop slipping or intermittent control caused by damaged knobs
• Restores appearance to the control panel for a finished look

• Disconnect power (unplug appliance or switch off circuit) before starting any service
• Pull the old knob straight off the control shaft; inspect the shaft and surrounding bezel for damage
• Align and push the new knob fully onto the control shaft until it seats; verify correct operation before restoring normal use

This control board assembly directs power and communication to key components, interpreting inputs and sensor signals so the appliance runs the correct functions and cycles. Replaces a failed electronics module to restore reliable operation.

• Distributes power and control signals to major components per the unit's programmed logic
• Interfaces with sensors and the user controls to execute selected functions
• Coordinates cycle timing and safety monitoring
• Common signs of failure: no power or won't start, unresponsive controls/display, intermittent operation, error codes, or unexpected shutdowns

• Disconnect power to the appliance before servicing
• Handle the board by the edges; use ESD protection to avoid static damage
• Photograph and label connectors, then transfer them one at a time to the new board
• Secure wiring to avoid pinching; follow the unit's tech sheet or service manual

The Encoder Board is an OEM part for LG ovens. This board is responsible for interpreting the inputs from the control knobs and buttons on the oven's control panel. It sends these signals to the main control board, which then adjusts the oven settings accordingly, such as temperature and cooking mode.

Causes of a bad encoder board can include electrical surges, wear and tear from frequent use, or physical damage to the board's components. A malfunctioning encoder board can disrupt the communication between the user interface and the oven's control system.

Symptoms of a bad encoder board include:

• Unresponsive control knobs or buttons
• Incorrect oven temperature settings
• Oven not starting or turning off unexpectedly
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore.

This customized screw is the exact fastener specified by the manufacturer to secure components in select LG appliances. Replacing a missing or stripped screw restores a tight, rattle-free fit and helps maintain proper alignment over time.

• Secures panels, brackets, and internal assemblies at original mounting points
• Helps reduce vibration and rattling noises from loose hardware
• Replaces missing, rusted, or stripped screws
• Supports stable operation by keeping parts firmly in place

• Disconnect power; shut off water or gas before service
• Match the screw to the exact location using your model's parts diagram
• Start threads by hand; tighten snugly without overtightening to avoid stripping
• Use the correct driver bit for the head style to prevent damage

The Sub PCB Assembly is an OEM component specifically designed for LG electric ranges. Located underneath the control panel, this circuit board helps direct power to key interfaces and safety components. Integrated programs support precision cooking functions.

Causes of a bad sub PCB can include water damage, loose connections over time, or defects preventing communication between main controls. Without a functioning sub-board, the oven and burners receive inconsistent direction.

Symptoms of a bad sub PCB include:

• Erratic or failed temperature/time displays
• Inoperable or intermittent oven/burner control dials
• Physical damage or condensation visible on circuitry
• Error codes appear between main and sub-board communication

This LG OEM replacement ensures all systems interface safely and smoothly. Proper installation maintains full-range operation, convenience, and dependability. Compatible also with Sears/Kenmore electric ranges for seamless replacement and repairs.

Replace a failed logic board with this main control board. It manages power distribution and system logic so your appliance starts, runs, and cycles correctly when the original board is damaged or unresponsive.

• Supplies and directs power to key components such as motors, fans, heaters, valves, and lights
• Interprets inputs from sensors and the user interface to coordinate proper operation and cycles
• Helps resolve symptoms like no power, won't start, components not running or cycling, frequent clicking from the control area
• A failed board may show scorch marks, a burning odor, or cause intermittent shutdowns and error codes

• Disconnect electrical power before servicing; shut off water supply if your appliance has one
• Use anti-static precautions; handle the PCB by the edges only
• Photograph/label all wiring; move connectors to the new board one at a time to avoid miswiring
• Ensure the board is secured in its housing/bracket, reinstall covers, restore power, and test

This door frame replaces the outer trim that surrounds the appliance door, restoring a finished look and helping keep the door seal properly aligned. It's a direct-fit exterior trim piece for compatible LG doors. What it does:

• Replaces damaged, cracked, or warped outer door trim to improve appearance and edge alignment
• Helps maintain proper door closure by supporting the door perimeter
• Prevents drafts and reduces risk of further cosmetic damage at the door edge
• Matches OEM fit and mounting points for a secure install

• Disconnect power to the appliance before beginning any work
• Remove the door or inner trim panels only as required to access mounting screws; keep fasteners organized
• Use appropriate hand tools (screwdriver, nut driver) and avoid over-tightening to prevent cracking the trim
• Handle the part carefully to avoid scratching the finish; verify fit and alignment before final reassembly

This is the clear glass pane in the microwave door that provides a viewing window into the cavity. Replace a cracked or cloudy window to restore visibility and help the door assembly fit and look like new.

• Forms the transparent viewing pane in the microwave door
• Replace when the glass is cracked, chipped, shattered, loose, or rattling
• Helps maintain correct door assembly when reinstalled with the factory frames
• Restores clear visibility if the window has become hazy or scratched

• Disconnect power at the breaker or unplug the appliance before servicing
• Support the door; removal may be required—work on a padded surface
• Wear cut-resistant gloves and eye protection; handle glass carefully
• Reassemble door layers in the original order and verify latch alignment before use

This air guide directs cooled air inside the refrigerator compartment to help maintain even airflow and temperature distribution. Replaces a damaged or missing guide to restore proper venting and help reduce uneven cooling. What it does

• Channels cold air from the evaporator vent into the fresh food compartment for more consistent cooling.
• Helps reduce warm spots or uneven temperatures near shelves and door bins.
• Prevents direct airflow onto stored items, protecting sensitive foods from frost or drying.
• Fits behind vents or above crisper drawers to guide airflow where needed.

• One (1) air guide

• Always unplug the appliance or switch off power at the breaker before servicing.
• Typically installs without specialty tools; you may need to remove shelves or drawers for access.
• Handle plastic parts carefully to avoid cracking; align tabs and snap into place until secure.
• If airflow issues persist after replacement, check vents, damper, and evaporator fan for related faults.

This window glass is the clear viewing pane in the door. Replace it to restore visibility and a clean, finished look when the original panel is cracked, shattered, chipped, or permanently stained.

• Provides the transparent viewing window within the door assembly
• Restores visibility and appearance when the original glass is damaged
• Common symptoms include cracked/shattered or chipped glass, loose/rattling panel
• Addresses an obscured or permanently stained viewing area that won't clean up

• Disconnect power before servicing and remove the door if required
• Place the door on a padded surface; note screw locations and panel order during disassembly
• Handle tempered glass by the edges and wear cut-resistant gloves
• Reassemble carefully; do not overtighten screws to avoid stressing the glass

This handle supporter is the bracket that anchors the door handle to the appliance door, keeping the handle secure and aligned. Replacing a cracked or stripped supporter restores a solid, dependable grip on the door.

• Secures the handle to the door and maintains proper alignment
• Helps fix a loose, wobbly, or detached handle
• Replaces a broken or worn mounting bracket that won't hold screws

• Disconnect power and, if applicable, shut off water before service
• Remove the handle and any trim to access the supporter and mounting screws
• Transfer or replace screws as required; do not overtighten into plastic
• Verify handle alignment and operation before fully reassembling

The inner cover protects internal components and wiring by covering the appliance's cabinet opening, helping prevent debris entry and accidental contact. It restores safe access and maintains the appliance's internal layout and airflow. What it does

• Shields internal electronics, wiring and assemblies from dust and debris
• Helps prevent accidental contact with energized components
• Restores proper internal clearance and part alignment after repair
• Can address symptoms like visible damage, exposed wiring, burning odor or intermittent operation caused by a compromised cover

• Replace with power disconnected and appliance unplugged to avoid shock
• Verify correct orientation and secure all mounting tabs/screws; do not force into place
• Inspect adjacent wiring and components for damage while the cover is removed
• Use only the part number shown for exact fit

This hinge assembly secures and guides a refrigerator/freezer door so it opens, closes and stays properly aligned. Replacing a worn or damaged hinge restores smooth movement and helps maintain a tight door seal. What it does:

• Provides the pivot point and mounting for a refrigerator/freezer door
• Prevents door sag, misalignment, and uneven gaps that can affect sealing
• Restores smooth opening and closing when original hinge is worn or bent
• Helps reduce stress on cabinet and door hardware caused by loose or damaged hinges

• Disconnect power and empty food from the door area before starting; support the door to prevent dropping.
• Basic hand tools typically required; follow OEM instructions for correct fastener torque and alignment.
• Verify left/right and top/bottom orientation before installation; hinges can be location-specific.

The Display Cover is an OEM part for LG ranges. It covers and shields the control panel display located at the top of the range. This protective cover helps prevent damage from spills, splatters, and accumulated grease and grime that could compromise visibility and functionality over time.

Causes of a bad display cover include normal wear and tear from repeated cleaning, exposure to heat and cooking vapors, or accidental damage from impact.

Symptoms of a bad display cover may include:

• Cracks or clouding of the plastic material
• Missing mounting screws or clips
• Grease or grime build-up that cannot be fully cleaned
• A cover that is loose, warped or no longer fully seals the display

This OEM LG part is also compatible with some Kenmore models.

This sub controller assembly controls secondary electronic functions and signals on the appliance to restore responsive controls and proper operation. Replacing a faulty sub controller helps resolve intermittent or non-responsive control behavior. What it does:

• Processes and relays electronic commands between main control and subsystem components
• Manages secondary functions such as sensor interfaces, auxiliary motors, or display signals
• Can stop intermittent errors, freezing controls, or unexpected shutdowns when faulty
• Works as the direct replacement for the appliance's sub control module to restore normal control communication

• One sub controller assembly

• Disconnect power before service to avoid electric shock and board damage
• Handle the circuit board by its edges and avoid static; use an anti-static wrist strap if available
• Verify connector locations and seating; match connector shapes and pin counts before powering on

The Lamp Cover is an OEM part for LG ranges. This part is responsible for covering and protecting the indicator light on the range console. It ensures that the indicator light is properly shielded, allowing for clear visibility and easy identification of the selected settings or functions.

A bad lens cover can occur due to damage, discoloration, or wear over time. If you notice symptoms such as a cracked or missing lens cover, diminished visibility of the indicator light, or difficulty in determining the status of the range, it may be time to replace the lens cover.

Symptoms of a bad lens cover include:

• Cracked or missing lens cover
• Diminished visibility of the indicator light
• Difficulty in determining the status of the range

Restore the function and aesthetic appeal of your LG range by replacing the damaged or worn-out lens cover with this genuine OEM part.

This LG replacement part is also compatible with Sears/Kenmore models.


The Supporter Rail is an OEM component specifically designed for LG ranges. Located inside the oven cavity, the durable steel rail steadies and spaces baking racks during heating. Its precisely drilled ventilation holes allow air circulation around cookware.

Symptoms of a bad supporter rail include:

• Rack instability causes pans to shift or bake unevenly
• Permanent stains or burning beneath rack position
• Warped or misshapen rail inhibiting proper rack fit

Causes involve prolonged exposure to maximum oven temperatures deforming metal over time. Residual spills may corrode protective seasoning.

This authentic LG part restores reliable rack guidance and optimized air circulation for mess-free cooking. Customized for maximized usable space, it facilitates multiple rack baking with confidence. Replace to enjoy stable performance satisfying brand quality and safety expectations for years of cooking enjoyment.

This OEM LG rail also fits select Kenmore and Frigidaire ranges.

This is a single wiring harness that routes power and signals between appliance components to restore reliable electrical connections. It replaces a damaged or worn harness so controls and features can communicate properly. What it does:

• Carries power and control signals between specific components
• Restores interrupted circuits that can cause intermittent operation or component failures
• Helps resolve symptoms like no power to a component, inconsistent function, or error codes tied to open/shorted wiring
• Provides factory-style connectors for a direct fit and reliable connections

• Disconnect power (unplug or turn off breaker) before installing to avoid shock or damage
• Inspect connectors and routing, match connector types and wire colors before connecting
• Avoid pinching or sharply bending wires; secure harness using existing clips or ties

The PCB Supporter is an OEM part for LG ranges and cooktops. It securely mounts and positions the printed circuit board controlling cooking functions.

Causes of a bad PCB Supporter can include cracking or breaking of mounting clips over time due to normal range vibrations and use.

Symptoms of a bad PCB Supporter include:

• The control board detaching during use
• Intermittent power to heating elements or displays
• Error messages regarding electrical component issues

This OEM LG part is also compatible with some Kenmore models.

This neon indicator lamp provides a visible signal when its circuit is energized, restoring a clear status light on the appliance's panel. Replace a failed lamp to regain quick, at-a-glance confirmation that a function is active.

• Illuminates when power is supplied to the associated circuit, serving as a panel/pilot indicator
• Helps provide clear visual status for appliance functions
• Typical symptoms: indicator does not light, is dim or flickers, stays on continuously, or shows visible damage
• Can fail open or intermittently, leading to unreliable status indication

• Disconnect power to the appliance before servicing
• Access the control/panel area to reach the lamp; note wire routing and terminal orientation
• Transfer leads and seat the lamp securely; handle components carefully to avoid damage
• If the original is board-soldered, board-level repair may be required.

This rotary switch sits behind the control knob and selects your appliance's settings. It directs power to the chosen function so the unit responds when you turn the knob, helping restore reliable, precise control. What it does

• Selects operating modes or speeds as you turn the control knob
• Routes electrical power to the correct circuit for the chosen setting
• Common failure signs: no response, only one setting works, intermittent operation, or the knob turns without detents/feels loose

• 1 rotary switch

• Disconnect power before servicing; allow any hot components to cool
• Photograph or tag each wire on the old switch; move wires one at a time to matching terminals
• Reuse mounting hardware as needed and align the shaft with the knob's flat
• Inspect connectors for heat damage; replace any compromised terminals to ensure a secure fit

This rotary switch mounts behind the control knob and reads your selections on the user interface. Replacing a worn switch restores accurate, reliable knob response so the appliance recognizes the chosen setting and relays it to the control board.

• Detects the position of the selector knob and sends the appropriate signals to the main control
• Enables choosing programs/settings using the front knob
• Failure may cause unresponsive or erratic selection, settings not changing when the knob turns, or a no-start if no selection is registered
• Typically located on the back of the control panel behind the knob

• Disconnect power before servicing
• Remove the knob and access the control panel to reach the switch
• Release locking tabs or screws; transfer the wire connector in the same orientation
• Align the shaft correctly with the knob and test operation before reassembly

The Spring is an OEM replacement part for LG ranges. Located within the oven door mechanism, this coiled metal spring helps counterbalance the weight of the door for smooth opening and closing.

Causes of a bad spring can include fatigue from repeated compression cycles over several years, as well as stretching or damage from forced closure of an overloaded door.

Symptoms of a bad spring include:

• Difficulty lifting or closing the oven door
• Sagging or misaligned door that doesn't stay shut
• Loud squeaking or rubbing noises during use
• Broken, loose, or stretched coils losing tension

This OEM LG part is also compatible with Sears Kenmore ranges and select GE models.

The Module Display PCB Assembly is an OEM component specifically designed for LG dishwashers. Housed within the electronic control panel, this printed circuit board routes signals between control buttons and the dishwasher module. Integrated circuits process commands to start cycles and display settings through LED indicators.

Causes of a bad module display PCB can include water damage into circuit paths, voltage fluctuations over time, or loose connections. Without a functioning interface, users are unable to select wash cycles or check cycle status.

Symptoms of a bad module display PCB include:

• Blank or unresponsive control panel
• Inoperable buttons and dials
• Erratic lights and buzzers during cycles
• Diagnostic error codes shown

This LG OEM replacement restores dependable controls. Compatible also with Kenmore Elite dishwasher models, it provides a direct fit and easy restoration of washing functions. Proper installation protects future operations while maintaining convenience.

A circular lug designed to join a stripped wire to a threaded terminal for a secure electrical connection. Helps restore reliable contact at terminals and reduces the chance of intermittent power or arcing at connection points. What it does:

• Provides a strong mechanical and electrical connection between a wire and a screw or bolt terminal.
• Helps prevent loose connections that can cause intermittent operation, sparking, or overheating.
• Commonly used where a ring-style termination is required for safe, stable wiring.
• Works with properly sized wire and fasteners to maintain consistent conductivity.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Use the correct lug size and gauge for the wire and terminal; crimp or solder per manufacturer recommendations.
• Tighten terminal hardware to the appliance manufacturer's specified torque; avoid over-tightening which can damage the lug or terminal.
• If wiring insulation or the terminal is damaged or corroded, replace the affected components rather than reusing them.

This single replacement wiring harness connects appliance components to restore a reliable electrical path and proper control signaling. It replaces a damaged or worn harness to help resolve intermittent power or component communication issues. What it does:

• Provides a dedicated electrical connection between controls and the associated component
• Restores signal and power flow to prevent intermittent operation or loss of function
• Helps address symptoms such as no power to the affected component, erratic behavior, or blown connectors
• Matches the OEM routing and connector types for a direct-fit replacement when the correct part number is used

• One single wiring harness as pictured and specified by part number

• Disconnect power (unplug appliance or switch off breaker) before servicing to avoid shock
• Inspect connectors and routing during replacement; avoid sharp bends or pinched wires

This reflector directs heat and light inside the oven cavity so food browns evenly and the cavity stays properly illuminated. It replaces a damaged or warped reflector to restore cooking consistency and interior lighting function. What it does

• Redirects oven heat and light toward the cooking cavity for even browning and consistent results
• Protects internal components by covering the cavity area and helping maintain proper heat distribution
• Can reduce hot spots caused by a warped or damaged reflector
• Commonly replaced when the reflector is dented, corroded, cracked, or missing

• Disconnect power to the appliance before accessing the oven cavity to avoid shock or injury
• Remove any racks and cooling items first; handle the reflector carefully to avoid sharp edges
• Use basic hand tools; secure fasteners per manufacturer guidance and do not overtighten

The Carbon Heater is an OEM part for LG electric ranges. As an internal heating element, the carbon heater element generates consistent, powerful heat for the range's oven. It radiates even heat throughout the oven cavity to cook and bake foods as intended.

Symptoms of a faulty carbon heater include:

• Inconsistent or improper oven temperatures
• Fluctuating heat levels between baking cycles
• Discoloration, cracking or damage to the heating coil
• Occasional tripping of circuit breakers

Causes can be regular wear over many bake cycles, mineral buildup inhibiting heat transfer or physical damage to fragile coil filaments.

This part is also compatible with select Sears/Kenmore electric ranges.

This heater bracket secures the dryer heater assembly so the heater stays properly positioned during operation, helping prevent noise and alignment issues. It's a direct-fit replacement when the original bracket is broken or worn. What it does:

• Holds the heater element or assembly in place to maintain correct alignment
• Prevents vibration and rattling that can occur with a loose heater
• Helps maintain safe clearance between the heater and surrounding components
• Can be replaced when cracked, bent, or when heater movement is observed

• One heater mounting bracket

• Disconnect power (unplug electric or switch off breaker) before beginning service
• Access typically requires removing the dryer top or rear panel; follow your model's service manual
• Inspect nearby insulation and wiring for heat damage while replacing the bracket

This heater mounting bracket secures the appliance's heating element in the correct position for safe, reliable operation. Replacing a bent or missing bracket helps prevent vibration, contact damage, and uneven heating from a sagging element.

• Holds the heater element firmly and maintains proper alignment/clearance
• Helps restore stable heating when the element has shifted or loosened
• Replaces brackets that are bent, cracked, corroded, or missing
• Can reduce rattling or vibration noises from the heater area

• Disconnect electrical power before servicing; allow hot components to cool
• Access the heater area and document original routing and hardware
• Transfer the heater to the new bracket; reuse original screws/clips if serviceable
• Verify proper clearances from wiring and panels before restoring power

This heater cover protects the dryer heater assembly and helps direct airflow for efficient operation. Replacing a damaged cover restores proper heater protection and reduces the risk of airflow restriction or overheating. What it does:

• Shields the heating element and internal wiring from debris and lint buildup
• Helps channel hot air through the drum and vent path for consistent drying
• Prevents direct contact with the heater, improving safety
• Addresses symptoms like excessive lint accumulation, rattling near the heater area, or minor airflow issues

• One heater cover

• Disconnect power to the appliance before starting any repairs
• Typical install requires removing the dryer cabinet or access panel; follow OEM instructions
• Inspect surrounding components (heater, element housing, mounting clips) and replace any damaged fasteners

This glass refrigerator shelf provides a flat, stable surface for storing food and containers, restoring usable shelf space and helping keep items organized. It replaces a broken, cracked or missing shelf to improve storage layout. What it does:

• Provides a sturdy, flat surface for food, beverages and containers
• Restores lost shelf space when a shelf is cracked, chipped or missing
• Helps contain small spills and makes items easier to organize and access
• Fits into existing shelf supports to recreate proper storage levels

• Remove food and shelves above the installation area before starting
• Wear cut-resistant gloves when removing a broken shelf and handling glass
• Align glass with the fridge's shelf supports and slide into place until seated
• If shelf support clips are damaged, replace them before installing the new shelf

This small, board-mounted tactile push-button switch is used on the control panel. It registers a momentary press so the control board can accept your selection. Replacing a worn switch restores reliable button response and consistent operation.

• Mounts to the user interface board and provides momentary contact when a button is pressed
• Sends a low-voltage signal to the control, enabling cycle or option selection
• Typical failure symptoms: unresponsive or intermittent buttons, needing extra force to register, stuck/always-on input, or unintended beeps/changes
• Helps restore consistent user-interface input when an individual button switch has failed

• Disconnect power to the appliance before servicing; shut off gas/water if applicable
• Access the control panel to reach the user interface board
• This is a board-level repair; note switch orientation. Replacement may require desoldering/soldering per OEM procedure
• Use ESD precautions and avoid overheating PCB pads; test button function before reassembly

The Magnetron Thermostat is an OEM part for LG microwaves and built-in ranges. Its primary function is to monitor the temperature and ensure that it remains within a safe operating range. If the temperature exceeds the preset limit, the thermostat will interrupt the power supply to the magnetron, preventing overheating and potential damage.

Causes of a faulty magnetron thermostat can include electrical malfunctions, component failures, or physical damage. These factors can result in issues such as erratic heating, microwave not heating properly, or the appliance shutting off unexpectedly.

Symptoms of a bad magnetron thermostat may include:

• Microwave not heating food evenly or at all
• Inconsistent or weak heating performance
• Microwave shutting off or displaying error codes related to temperature issues

This OEM LG part can also be used on Kenmore/Sears appliances.

The Thermistor is an OEM replacement part for LG gas ranges. It serves as a highly sensitive temperature sensor mounted inside the oven cavity.

Symptoms of a bad thermistor include:

• Inability to select certain cooking modes like bake or convection that involve temperature control
• Fluctuating or inaccurate temperature readouts on oven displays
• Irregular cooking outcomes like hot/cold spots inside the oven
• Repeated error codes regarding temperature sensing issues

Causes can be attributed to prolonged exposures to heat and intermittent combustion byproducts inside the oven. Over a decade of use, these conditions may degrade the thermal and electrical properties of sensor components.

This genuine LG replacement thermistor installs effortlessly. Installing a new thermistor restores temperature monitoring required for reliable gas oven performance.

The Motor, AC Fan is an OEM part for LG ovens. This fan motor is responsible for circulating air within the oven cavity, ensuring even heat distribution for consistent cooking and baking results. It helps maintain the oven’s temperature by moving hot air around, which is especially important for convection ovens.

Over time, the fan motor can wear out or become faulty due to continuous use, exposure to high temperatures, or electrical issues. When the fan motor fails, it can lead to uneven cooking and potential overheating of the oven.

Symptoms of a bad oven motor, AC fan include:

• Uneven cooking or baking results
• Unusual noises coming from the oven during operation
• The oven taking longer to preheat
• The fan not spinning or running intermittently
• Error codes related to fan or airflow issues

This OEM LG part is also compatible with Sears/Kenmore models.

The Bracket Assembly is an OEM component specifically designed for LG electric ranges utilizing rear-mount control panels. This integral assembly securely attaches the command console within the unit cabinetry.

Causes of a bad bracket can include loosening or stripped screws no longer maintaining a tight interface, impacts warping the steel base compromising flush mounting, or corrosion where dissimilar metals contact deteriorating securing points.

Symptoms of a bad bracket assembly include:

• Loose panel unable to be properly reinstalled
• Scratches or abrasions from rattling components
• Drooping controls suffering misaligned activation zones
• Detached splash guard failing to fully protect surfaces

Replace yours today with this genuine OEM LG assembly to restore a robust interface. Backed mounting flanges deliver long-term stability and compatibility when replacing Samsung, Frigidaire, or GE electric ranges requiring rear console mounting as well.

This temperature sensor monitors internal appliance temperature and relays it to the electronic control so cycles run correctly. Replacing a faulty sensor restores accurate temperature feedback, helping the unit reach and maintain the set temperature.

• Detects temperature changes and sends a signal to the control board for proper operation
• Supports accurate heating/cooling and cycle timing based on real-time readings
• Direct replacement when the original reads open/short or out of range
• Common symptoms: incorrect temperatures, unusually long/short cycles, failure to reach set temperature, or sensor-related error codes

• Disconnect power before servicing and allow any hot components to cool
• Access the sensor, noting wire routing and connector orientation before removal
• Transfer any mounting clip/holder from the original if needed; seat the new sensor fully
• Route wiring away from moving or hot parts; restore power and run a test or cycle check

A replacement motor bracket that secures the motor to the appliance chassis for stable operation and reduced vibration. Restores proper motor alignment to help maintain smooth, quieter cycles and protect drivetrain components. What it does:

• Holds the motor firmly in place to prevent movement during operation
• Maintains correct motor-to-transmission/gear alignment for reliable power transfer
• Reduces vibration and rattling that can occur when mounts fail
• Helps prevent premature wear of motor and connected components
• Addresses symptoms such as excessive noise, shaking, or motor misalignment

• Disconnect power to the appliance before servicing; follow lockout/tagout best practices
• Turn off water supply and relieve any residual pressure for washer models before disassembly
• Basic mechanical skills and common hand tools required; bracket removal may require loosening motor fasteners and supports
• Reuse OEM fasteners if undamaged and torque to manufacturer specs; inspect surrounding mounts and hardware for wear

This replacement ring secures or positions a nearby appliance component to restore proper alignment and stable operation. It's a small but important part that helps reduce excess movement and related wear. What it does:

• Holds or locates a mating component to prevent unwanted movement or misalignment
• Helps reduce vibration and knocking noises caused by loose parts
• Restores correct spacing that maintains smooth mechanical operation
• Can prevent accelerated wear on adjacent parts when functioning properly

• Disconnect power (and water supply if applicable) before beginning any repair
• Access location may require removing panels or trim; keep fasteners organized
• Inspect surrounding parts for wear or damage and replace if needed

The Convection Fan Blade is an OEM replacement part for LG ovens. It works by circulating hot air throughout the oven, reducing cold spots and promoting consistent temperatures.

Causes of a malfunctioning Convection Fan Blade can be wear and tear from regular use, the accumulation of debris hindering the blade’s rotation, or mechanical issues impacting the fan motor or blade alignment.

Symptoms of a bad Convection Fan Blade include:

• Uneven cooking or baking, leading to partially cooked food
• Noises emanating from the oven during operation, indicating possible damage or obstruction
• The fan not rotating or moving irregularly, signaling mechanical issues

This OEM LG part is also compatible with Sears/Kenmore oven models.

This Fan Blade is an OEM part for LG microwaves. It is a critical component designed to circulate air within the microwave, aiding in heat dissipation and ensuring even cooking.

Fan blades in microwaves can suffer from wear, imbalance, or damage due to regular use or accumulation of debris. A malfunctioning fan blade can lead to inadequate ventilation, affecting the microwave's cooking efficiency and potentially causing overheating.

Symptoms of a bad fan blade include:

• Unusual noises during operation, such as rattling or buzzing, indicate a loose or damaged blade.
• The microwave overheating or shutting off prematurely.
• Inconsistent cooking or hot spots in food suggest poor air circulation.
• The fan not starting, or stopping unexpectedly during use.
• Visible signs of damage or wear on the blade.

This OEM LG part is also compatible with some Sears/Kenmore models.


This AC synchronous motor assembly drives the appliance's rotating components to restore proper operation and consistent performance. It replaces a failed motor to stop stalling, humming or lack of rotation in affected units. What it does:

• Converts electrical input into smooth, synchronous rotational motion for the appliance's driven component
• Stops symptoms like no spin, intermittent rotation, or a motor that hums without turning
• Restores stable, timed movement where a synchronous motor is required
• Interfaces with the appliance's original mounting and wiring harness for direct replacement

• Disconnect power before beginning any repair to avoid electrical shock
• Verify wiring harness orientation and connector seating before applying power
• Inspect mounting points and shaft coupling for wear and secure per OEM guidelines

This heater bracket secures the dryer oven heater assembly to the cabinet, keeping the heating element stable for reliable operation and preventing rubbing or misalignment. It's a simple replacement that restores proper heater positioning. What it does

• Mounts and supports the heater assembly to keep the element in the correct position
• Prevents the heater from shifting, vibrating, or contacting other components
• Helps avoid intermittent heating caused by a loose or misaligned heater
• Works with the heater housing and mounting hardware to maintain safe clearances

• Disconnect power (unplug appliance or shut off breaker) before starting any repair
• Allow the appliance and heater to fully cool before handling
• Basic hand tools required; retain original screws and hardware
• Inspect surrounding components (wiring, insulation) while replacing; replace any damaged parts

This incandescent oven lamp provides interior illumination so you can safely check food without opening the door. Direct replacement for a burned or dim oven/range light to restore cooking visibility. What it does

• Replaces a burned-out or flickering oven interior light bulb
• Restores clear visibility of the oven cavity for monitoring cooking progress
• Helps avoid opening the oven door unnecessarily, preserving oven temperature
• Fits the original lamp socket and installs in the oven light housing

• Disconnect power to the appliance before replacing the lamp to prevent electric shock
• Allow the oven and old bulb to cool completely before handling
• Use a cloth or gloves when installing the new lamp to avoid transferring oils from skin

This sheath heater is the protective sleeve that surrounds a dryer's heating element, helping keep the element secured and directing heat where needed for efficient drying. Replaces a worn or damaged sheath to restore proper heater alignment and airflow. What it does:

• Protects and supports the heating element assembly to prevent contact with other components.
• Helps direct heat and airflow through the dryer drum for consistent drying performance.
• Commonly replaced when a cracked or melted sheath is found during heater repairs.
• Installed alongside a heating element or thermal fuse when troubleshooting no-heat conditions.

• Disconnect power before servicing; electric dryers present shock and burn hazards.
• Access may require removing the dryer drum and control panels—follow the factory service manual.
• Inspect the heating element and wiring while replacing the sheath; replace damaged components as needed.

The Heating Element is an OEM part for LG electric ranges. It serves a critical cooking function by using electric current to generate heat energy that cooks food inside the oven cavity. The heating element is constructed from flame-resistant and durable materials precisely designed to withstand high temperatures in a clean efficient manner.

Causes of a bad heating element can include mineral deposits on coils, cracks from overheating, or general wear over extended use.

Replacing a faulty element restores dependable oven performance.

Symptoms of a bad element include:

• Inefficient or uneven cooking temperatures
• Longer baking and cooking times
• Cracking or sagging coils affecting heat output
• Potential safety issues if damage exposes live wires

This element also fits the heating designs used in Jenn-Air and Frigidaire electric ovens.

This foot is a small rubber base pad that supports and stabilizes the appliance on the countertop or cabinet surface. Replacing a worn or missing foot helps keep the unit level and reduces vibration and slipping.

• Provides stable, non-slip support on flat surfaces
• Helps keep the appliance level for proper operation
• Replaces missing, cracked, or flattened feet
• Can reduce vibration, rattling, or shifting during use

• Unplug the appliance before servicing
• Turn the unit on its side/back for access to the base
• Pull off the old foot and press the new one firmly into place (some models may use adhesive or a tab fit)
• Verify the unit sits level; replace additional feet as needed

This door handle mounting anchor creates the fixed attachment point on the appliance door or drawer. Replacing a worn or missing anchor restores a solid, wobble-free handle and a consistent feel when opening and closing.

• Provides the secure mounting point that the handle fastens to
• Helps keep the handle aligned and rigid during use
• Replace if the anchor is cracked, stripped, or missing
• Resolve a loose/wobbly handle, a handle that won't tighten, or misalignment after service

• Disconnect power; turn off the water supply
• Protect the door/drawer finish and support the handle during removal
• Remove the handle per your model's instructions and take out the damaged anchor
• Install the new anchor using the existing mounting location/hardware, seat the handle fully, then tighten set screws evenly without overtightening
