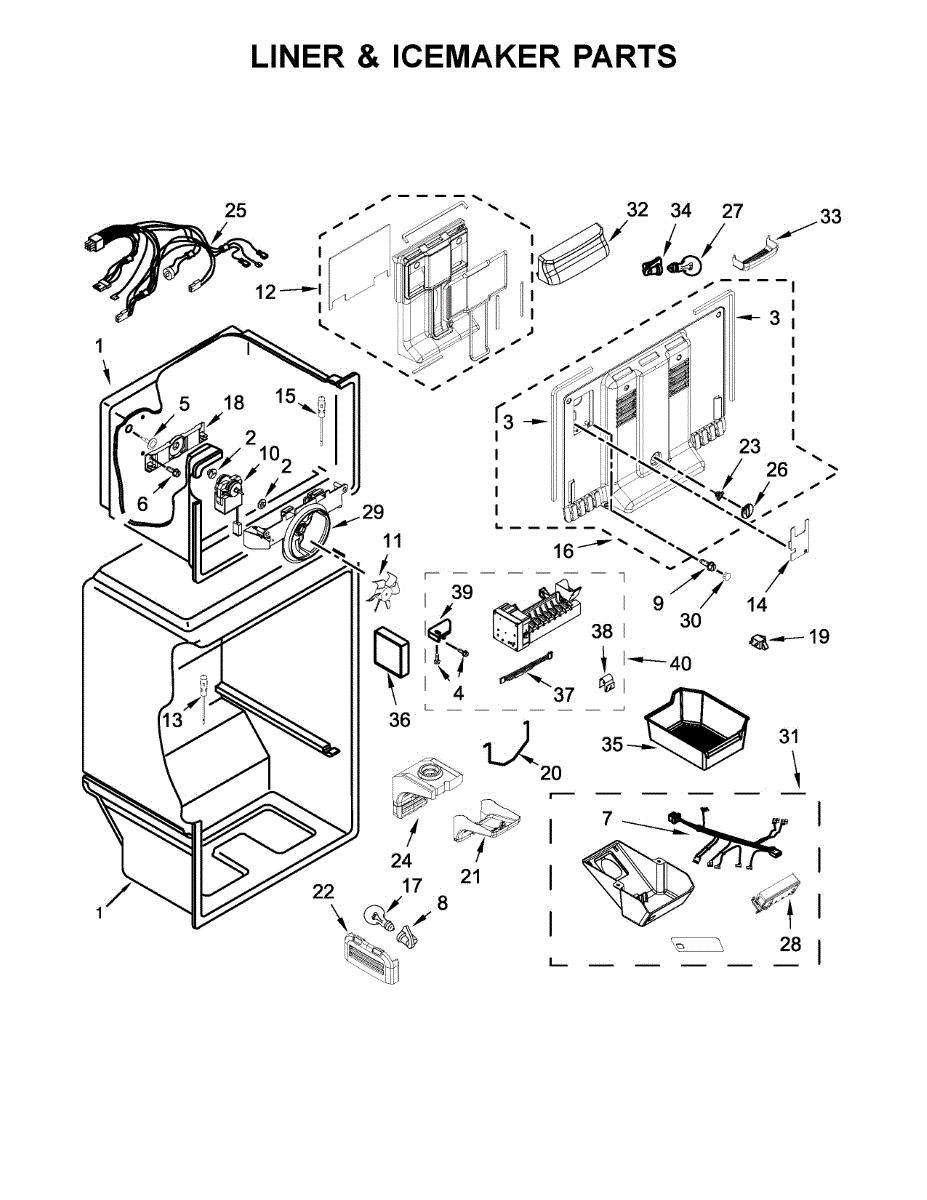

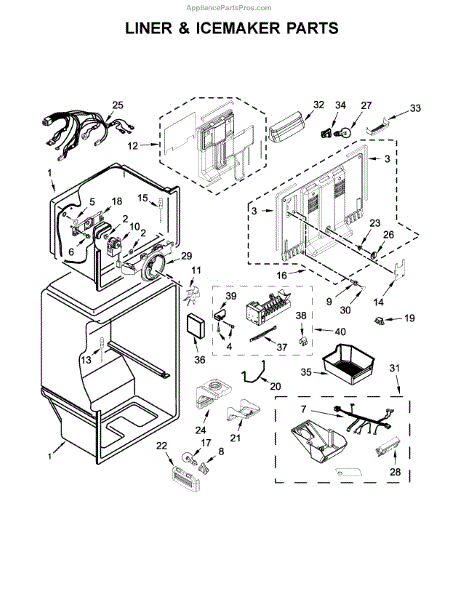

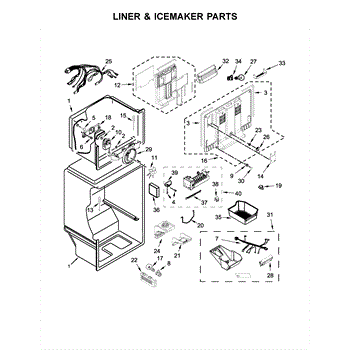

Parts for Ikea IRT138FDM00: Liner & Icemaker Parts

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This replacement gasket creates a tight seal between mating components in your appliance. Restoring a proper seal helps contain air or water where designed, improving performance and helping prevent leaks, moisture intrusion, and energy loss.

• Seals the interface between parts to prevent air or water escaping
• Helps maintain correct temperatures and fluid paths as designed
• Replaces a torn, cracked, flattened, or warped original gasket
• Common symptoms include leaks, visible gaps, or moisture around the sealed area

• Disconnect power and shut off water supply before service
• Note the original gasket's orientation; take photos for reference
• Clean and dry both sealing surfaces; remove old gasket material/residue
• Seat the new gasket fully and evenly; avoid over-tightening fasteners and test for a proper seal

This hole plug covers an unused opening in the appliance cabinet. It restores a clean, finished look and helps keep spills, dust, and moisture out of internal components.

• Seals an unused hole in the cabinet for a tidy, finished appearance
• Helps protect internal parts from liquids, dust, and humidity
• Covers sharp or unfinished edges around open holes
• Common signs it's needed: missing/broken cap, exposed hole, or a plug that won't stay seated

• Disconnect power and, if applicable, shut off gas/water before starting.
• Remove the old plug; access from the front or from behind the panel as needed.
• Align and press the new plug firmly into the opening until fully seated and flush.
• If panel removal is required for access, handle sheet metal carefully and reinstall all fasteners.

The Wire Harness is an OEM part for Whirlpool refrigerators. It is responsible for for transmitting electrical signals and power between various parts of the refrigerator, such as the control board, temperature sensors, and other electrical components.

A bad wire harness can occur due to wear and tear, damage caused by rodents or pests, or loose connections. If you notice issues such as intermittent power loss, malfunctioning controls, or erratic temperature readings, it may indicate a problem with the wire harness.

Symptoms of a bad wire harness include:

• Intermittent power loss or electrical malfunctions
• Unreliable or incorrect temperature readings
• Inconsistent operation of the refrigerator

Replace your faulty wire harness with this genuine OEM part to restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Evaporator Motor is an OEM part for Whirlpool refrigerators. It plays a critical role in circulating air over the refrigerator's evaporator coils to cool the air inside the fridge and freezer compartments. This circulation helps maintain the desired temperature settings, ensuring that food is kept at optimal freshness.

Includes wire harness. If your fan motor does not have an incorporated wire harness, you will need part number- WPW10188389

Causes of a bad Evaporator Motor can include motor burnout due to continuous operation, electrical failures, or mechanical wear from prolonged use.

Symptoms of a bad Evaporator Motor include:

• The refrigerator or freezer not cooling adequately
• Unusual noises coming from the refrigerator indicating motor distress
• The motor running hot or not running at all

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Blade is an OEM part for Whirlpool refrigerators. It is designed to circulate air over the evaporator coils, ensuring efficient cooling throughout the refrigerator and freezer compartments. The fan blade helps maintain an even temperature, contributing to the appliance's overall performance.

Causes of a bad fan blade can include wear and tear over time, ice buildup interfering with the blade, or physical damage from accidental impact or obstruction by debris.

Symptoms of a bad evaporator fan blade include:

• Unusual noises such as rattling or scraping
• Inconsistent or insufficient cooling in the refrigerator or freezer
• The refrigerator running longer than usual
• Visible damage or warping of the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Air Duct is an OEM part for Whirlpool refrigerators. It is a component that directs cool air throughout the appliance. The air duct is designed to channel air from the freezer section to the fresh food section.

Causes of a bad air duct can include cracks or fractures in the ducting material, damage to air vents or directional fins, or blockages that disrupt proper air flow.

Symptoms of a bad air duct include:

• Inconsistent or uneven interior temperatures
• Longer cool down times after door openings
• Frost or condensation issues in problem areas
• Portions of refrigerator not maintaining proper temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This evaporator cover is the plastic shroud that protects the refrigerator evaporator coil and helps direct cold airflow through the freezer compartment for more consistent cooling. It replaces a cracked, warped, or damaged cover to restore proper airflow and reduce frost buildup. What it does:

• Shields the evaporator coil from ice, debris, and accidental contact
• Channels cold air evenly from the evaporator into the freezer and fresh-food sections
• Helps reduce uneven cooling, excess frost, and airflow noise caused by a damaged cover
• Works with the evaporator fan and defrost components to maintain normal operation

• One evaporator cover / airflow shroud

• Disconnect power before beginning work to avoid electrical shock or compressor startup
• Remove interior panels, shelves, and the evaporator fan as needed for access
• Handle carefully—plastic edges and nearby metal parts may be sharp
• Follow OEM service instructions for proper fit and to verify any related parts

The Bulb-Light is an OEM part for Whirlpool refrigerators. It provides lighting within the refrigerator compartments, allowing for easy viewing of contents. The bulb-light joins with compatible sockets or bases designed precisely for its installation within the refrigerator.

Causes of a bad bulb light can include burnout over extended use, accidental damage during cleaning, or faulty wiring that prevents the bulb from receiving power.

Symptoms of a bad Bulb-Light include:

• Dark or no light in refrigerator compartments
• Bulb producing a flickering or intermittent light instead of consistent illumination
• Signs of overheating, melting, or charring around the bulb

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mounting bracket secures internal components in place to keep your appliance stable and operating quietly. It replaces a worn, bent, or broken bracket to restore proper alignment and prevent loose or rattling parts. What it does:

• Provides a stable mounting point for panels, assemblies, or hardware
• Keeps connected components aligned to prevent rubbing or vibration
• Stops noises caused by loose or shifting internal parts
• Restores proper fit when an old bracket is bent, cracked, or missing

• Install with appliance unplugged or power disconnected to avoid shock
• Verify bracket orientation using the appliance's service diagram before fastening
• Use appropriate screws/fasteners and torque to avoid stripping or distortion

This genuine replacement cover protects internal components and gives the appliance a finished appearance. Designed to fit the original mounting points, it helps keep dust and debris away from sensitive parts for reliable operation. What it does

• Shields electronic and mechanical components from dirt and lint buildup
• Restores the appliance's exterior finish where the original cover was damaged or missing
• Helps reduce exposure to moving parts and potential debris
• Maintains proper airflow paths and component spacing when correctly installed

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools; keep track of screws and fasteners for reassembly
• Handle edges carefully to avoid cuts and protect adjacent surfaces from scratches
• Follow the OEM service manual for disassembly/reassembly steps and torque values

The Control is an OEM part for Whirlpool refrigerators. It allows you to adjust temperature settings, control various functions, and monitor the overall performance of your appliance.

A bad refrigerator control can occur due to wear and tear, electrical malfunctions, or accidental damage. If you notice symptoms such as being unresponsive, erratic temperature, or failure to maintain the desired cooling level, it may be time to replace the control.

Symptoms of a bad refrigerator control include:

• Unresponsive control
• Erratic temperature
• Inability to maintain desired cooling level

Repair your refrigerator's control system by replacing the faulty or worn-out refrigerator control with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The air diffuser is an OEM part for Whirlpool refrigerators. This air diffuser is responsible for evenly distributing cool air throughout the refrigerator compartment.

Causes of a bad air diffuser can include cracks or breaks in the plastic that disrupt proper airflow. Over many years of use, the continuous circulation of air can weaken and damage the diffuser.

Symptoms of a bad air diffuser include:

• Warm or hot spots in the refrigerator compartment
• Increased energy usage from the cooling system overworking to maintain temperatures
• Collecting of dust or debris inside the refrigerator

This refrigerator component is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models.

This wire harness connects the appliance's control components to power and sensors, restoring reliable electrical communication and operation. It replaces a damaged or worn harness to help stop intermittent power, no-start, or control errors. What it does

• Routes power and signal between the control board and console, switches, or sensors.
• Replaces frayed, melted, or broken wiring that can cause intermittent operation or failure to start.
• Restores proper connector fit where loose or corroded terminals cause poor electrical contact.
• Helps eliminate control errors and erratic behavior caused by broken or shorted wires.

• One complete wire harness assembly as shown.

• Always disconnect power (unplug or shut off breaker) before accessing internal wiring.
• Compare the new harness to the old one and transfer any mounting clips or tie straps as needed.
• Route wires away from heat sources and sharp edges; secure with original clips or cable ties.
• If terminals or connectors are damaged, replace the entire harness—do not splice or tape high-current wires.

This replacement air damper regulates and directs airflow inside the appliance or through its vent path. Replacing a broken or stuck damper helps restore proper air movement and reduces performance issues caused by a jammed or missing flap. What it does:

• Opens and closes to control airflow in the duct or air channel
• Helps maintain proper ventilation or temperature, depending on the appliance design
• Reduces backflow/drafts or uneven airflow
• Common symptoms: poor air movement, rattling/whistling near the vent, drafts, or performance imbalance due to a stuck or broken flap

• 1 air damper

• Disconnect power before servicing; isolate ducting if applicable
• Access the damper location; note orientation of the flap and any seals/gaskets
• Remove the old damper; install the new one with the flap moving freely in the correct direction
• Reassemble and test airflow; seal any duct joints per manufacturer guidance

The LED Lamp 120V E14 is an OEM part for Whirlpool refrigerators. This lamp provides interior lighting, illuminating the refrigerator compartments to help you easily see and access your food items. The LED technology ensures energy efficiency and long-lasting performance compared to traditional bulbs.

Causes of a bad LED lamp can include electrical issues, power surges, or simply reaching the end of its lifespan. Without proper lighting, the refrigerator can become inconvenient to use, especially in low-light conditions.

Symptoms of a bad LED lamp include:

• Dim or flickering light inside the refrigerator
• Complete failure of the interior light
• Intermittent lighting issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Cntrl-Elec is an OEM component specifically designed for Whirlpool refrigerators. This control electrical board is responsible for operating all critical refrigerator functions such as cooling, defrosting, temperature regulation, and controlling features like the ice maker.

Causes of a bad control electrical board can include damage from power surges or outages, moisture intrusion that causes corrosion to circuitry over time, or failure of electronic components like sensors, relays, or microprocessors.

Symptoms of a bad control electrical board include:

• Inoperative refrigerator functions like cooling or ice-making
• Erratic temperatures or humidity inside refrigerator sections
• Fault codes or error messages appearing on control displays

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner orifice meters the gas delivered to a burner so you get a stable, properly sized flame. Replacing a clogged or damaged orifice helps restore quick ignition, consistent flame quality, and even heating on gas appliances.

• Meters gas flow from the valve to the burner for correct flame size and shape
• Helps maintain efficient, even heating and clean combustion
• Wear or blockage may show as delayed or no ignition, weak/uneven flame, or yellow tipping
• Can reduce popping or flare-ups caused by improper gas metering

• Shut off gas supply and disconnect power before servicing
• Remove the old orifice with the proper wrench/nut driver; install the new one snugly—do not overtighten
• After reassembly, leak-check connections and verify flame; adjust air shutter only if specified by the service manual

The Contrl-box is an OEM replacement part for Whirlpool refrigerators. Housed internally, it contains the digital control board that regulates all cooling and compartment functions.

Causes of a faulty control box can include moisture damage over time to sensitive electronics. Physical impacts during maintenance may also crack solder joints or shorts connections.

Symptoms of failure include:

• Inconsistent interior temperatures or icy coils
• Malfunctions in lighting, drawers or doors
• Temperature display malfunctions or erratic readings
• Random shut-offs or inability to regulate settings

This genuine OEM Whirlpool control box is also compatible with Maytag, KitchenAid, Jenn-Air, and Kenmore refrigerator models.

This lighting housing mounts in the freezer compartment to secure and shield the light assembly. Replacing a cracked or missing housing restores proper light placement, protection, and a clean, finished appearance inside the freezer.

• Secures the freezer light assembly in position
• Shields wiring/components from contact and impacts
• Helps direct illumination for clear interior visibility
• Common signs include broken/missing housing, loose or dangling light, or damaged mounting tabs

• Disconnect electrical power before servicing
• Remove retaining screws/clips and note original orientation
• Transfer any reusable light components to the new housing as designed, then reinstall and secure the housing
• Restore power and verify proper light operation

This light lens covers and protects the appliance's lamp, diffusing illumination in the cavity. Replacing a cracked or missing lens restores safe, even lighting and shields the bulb from splashes, heat, and debris.

• Provides a protective cover over the light and diffuses illumination
• Shields the bulb from grease, moisture, and debris for safer operation
• Restores proper lighting when the original lens is cracked, yellowed, warped, or missing
• Replaces lenses that won't latch or keep falling out

• Disconnect power to the appliance and allow the light area/bulb to cool completely.
• Wear gloves; damaged lenses can have sharp edges.
• Remove retaining screws or release tabs, noting the lens orientation; transfer any reusable clips.
• Seat the new lens fully and secure without overtightening to avoid cracking; restore power and test.

A direct-replacement electrical socket that restores a secure connection for a single appliance component. Replacing a worn or damaged socket helps stop intermittent power, flickering lights, or loss of function in affected circuits. What it does:

• Provides a secure electrical connection between the appliance wiring and the component it serves.
• Holds and aligns the mating connector or bulb so contacts meet reliably.
• Restores consistent power transfer when a brittle, corroded, or loose socket causes intermittent operation.
• Common symptom: component or light works intermittently, only when jostled, or not at all.

• One replacement socket

• Always disconnect power (unplug appliance or shut off breaker) before inspecting or replacing electrical parts.
• Inspect surrounding wiring and connector for heat damage; replace harnesses if insulation is compromised.
• Use basic hand tools to remove and reinstall; ensure contacts are fully seated and fasteners are secure.

This replacement ice cube pan holds and organizes ice in your refrigerator's freezer. Replacing a cracked or warped pan restores clean, contained ice storage and smoother access or dispensing, depending on your model's design. What it does:

• Collects and stores ice produced by the icemaker or manual trays
• Keeps cubes contained and easy to access; fits designated guides in the freezer
• Helps ensure proper ice access or dispensing on applicable models
• Typical symptoms: cracked bin, broken tabs, bin won't seat, ice spilling or clumping

• 1 ice cube pan/bin

• Disconnect power to the refrigerator and turn off the icemaker before starting
• Remove the old pan and empty any remaining ice
• If your model reuses a drive/crusher or other hardware, transfer those parts from the original pan as directed for your unit
• Seat the new pan fully in its tracks/coupler, restore power, and allow normal ice production

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

This wire assembly connects and powers the ice maker so it can cycle and make ice. It replaces a damaged or disconnected ice-maker harness to restore electrical continuity and reliable ice production. What it does

• Provides the electrical connections between the ice maker and the freezer wiring harness
• Restores power to the ice maker when factory wiring is frayed or broken
• Helps stop intermittent or complete ice-maker failure caused by damaged connectors or wiring
• Supports proper communication for fill and harvest cycles when installed correctly

• One wire assembly for the ice maker

• Disconnect power to the refrigerator before starting any repair
• Access may require removing freezer shelves/panels and the ice maker module per OEM instructions
• Match connector shapes and routing; avoid sharp bends or pinched wiring when installing
• After installation, restore power and run an ice-maker test cycle to verify proper operation

The ice maker bracket is an OEM part for Whirlpool refrigerators. This bracket is a structural component that holds and supports the icemaker assembly within the refrigerator. It allows for secure mounting and installation of the icemaker while also maintaining proper alignment.

Causes of a bad bracket can include wear and tear over time, cracks or breaks due to impact or stress, or corrosion issues that compromise the integrity of the mounting structure.

Symptoms of a bad bracket include:

• Loose or unstable icemaker installation
• Improper ice production or dispensing
• Noise or vibrations emanating from the icemaker area
• Moisture leaks or water damage near the bracket mounting points

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Icemaker Kit is an OEM replacement part for Whirlpool refrigerators. It is a comprehensive kit that includes all the necessary components to replace or install a new icemaker in your refrigerator.

Causes of needing a new icemaker kit can include the existing icemaker malfunctioning, producing insufficient or irregular ice, or being damaged due to wear and tear.

Symptoms indicating it's time to replace the icemaker include:

• No ice production or irregular ice cube formation
• Water leaks or excessive condensation around the icemaker area
• Strange noises or grinding sounds during operation
• Error codes or warning lights related to the icemaker

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models. Note: This kit no longer comes with the "shut-off" arms. Order by model if needed.
