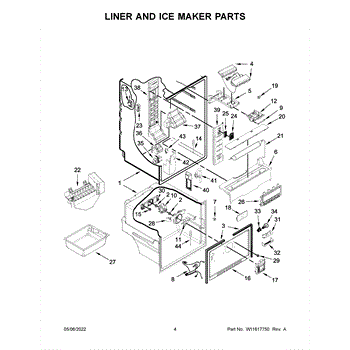

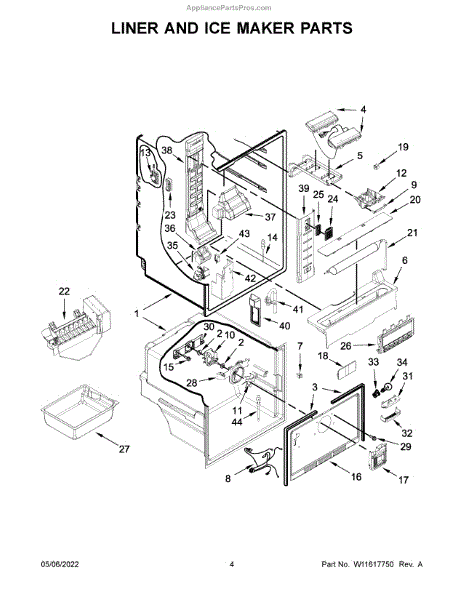

Parts for Kitchenaid KRFF300EBS01: Liner And Ice Maker Parts

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This replacement gasket creates a tight seal between mating components in your appliance. Restoring a proper seal helps contain air or water where designed, improving performance and helping prevent leaks, moisture intrusion, and energy loss.

• Seals the interface between parts to prevent air or water escaping
• Helps maintain correct temperatures and fluid paths as designed
• Replaces a torn, cracked, flattened, or warped original gasket
• Common symptoms include leaks, visible gaps, or moisture around the sealed area

• Disconnect power and shut off water supply before service
• Note the original gasket's orientation; take photos for reference
• Clean and dry both sealing surfaces; remove old gasket material/residue
• Seat the new gasket fully and evenly; avoid over-tightening fasteners and test for a proper seal

A replacement housing that provides the outer cabinet support and protection for internal components. Restores structural integrity and helps keep wiring, controls and mechanisms enclosed and aligned for safe operation. What it does:

• Replaces a damaged or cracked cabinet housing that can expose internal parts
• Secures and aligns controls, wiring harnesses and internal assemblies
• Helps reduce vibration and rattling caused by loose or broken enclosure parts
• Prevents debris and moisture from reaching sensitive components

• One housing

• Disconnect power (and water supply for washers) before starting work
• Handle carefully to avoid scratching or bending mounting tabs
• Use manufacturer-recommended fasteners and follow the service manual for alignment

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Motor is an OEM part for Whirlpool refrigerators. This motor powers the fan that circulates air over the evaporator coils, facilitating efficient cooling within the refrigerator and freezer compartments. Proper air circulation ensures consistent temperatures and helps maintain food freshness.

Causes of a bad evaporator motor can include wear and tear over time, electrical issues, or obstructions that prevent the fan from spinning freely.

Symptoms of a bad Evaporator Motor include:

• The refrigerator not cooling properly
• Unusual noises such as rattling or squealing from the motor area
• Frost buildup in the freezer compartment
• The refrigerator running constantly without reaching the desired temperature

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Evaporator Fan Blade is an OEM part for Whirlpool refrigerators. It is designed to circulate air over the evaporator coils, ensuring efficient cooling throughout the refrigerator and freezer compartments. The fan blade helps maintain an even temperature, contributing to the appliance's overall performance.

Causes of a bad fan blade can include wear and tear over time, ice buildup interfering with the blade, or physical damage from accidental impact or obstruction by debris.

Symptoms of a bad evaporator fan blade include:

• Unusual noises such as rattling or scraping
• Inconsistent or insufficient cooling in the refrigerator or freezer
• The refrigerator running longer than usual
• Visible damage or warping of the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This housing is the outer shell that holds and protects the appliance's user interface and control components, keeping the console secure and helping prevent damage to the electronics. Ideal when the control area is cracked, broken, or cosmetically damaged. What it does:

• Secures the control board and user interface components inside the console
• Protects switches, touchpads, and display electronics from impacts and debris
• Restores a flush, stable mounting surface for buttons and controls
• Helps prevent moisture or contaminants from reaching internal electronics

• Disconnect power to the appliance before starting any repair
• Removing the console may require loosening screws and disconnecting wire harnesses; handle the control board and display with care
• Use appropriate hand tools and avoid bending or flexing the housing during installation

The LED Module is an OEM part for Whirlpool refrigerators. This module plays a role in illuminating the inside of the refrigerator and freezer compartments. Properly functioning LED lights are necessary for visibility when accessing refrigerator contents.

Over time, exposure to temperature fluctuations and general use can cause LED modules to fail or burn out prematurely. Replacing this OEM Whirlpool part will restore full illumination inside your refrigerator.

Symptoms of a bad LED Module can include:

• Dim or flickering lights inside the refrigerator or freezer
• Partial lighting with some LEDs not working
• Lights that will not turn on at all

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Refrigerator Temperature Sensor is an OEM replacement part for Whirlpool refrigerators. It is a crucial component responsible for accurately monitoring and regulating the temperature inside the refrigerator and freezer compartments.

Symptoms of a faulty temperature sensor include:

• Inconsistent or fluctuating temperatures in the refrigerator or freezer
• The refrigerator running continuously or not cooling properly
• Error codes or indicators related to temperature control issues

Causes of a bad temperature sensor can include normal wear and tear over time, electrical malfunctions, sensor failure, or damage from moisture or condensation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This air tower directs cold air from the evaporator into the fresh-food and freezer compartments to help keep temperatures even and maintain food freshness. Replacing a cracked or damaged tower restores proper airflow. What it does:

• Channels chilled air from the evaporator to refrigerator and freezer compartments
• Helps reduce hot spots and uneven cooling when functioning correctly
• Prevents airflow leaks that can cause frost buildup or excessive cycling
• Works with existing evaporator and blower fan to distribute air

• One air tower (air duct assembly)

• Disconnect power before servicing to avoid electrical shock
• Remove interior liners or shelves as needed; handle plastic shrouds gently to avoid cracking
• Verify fit and orientation match the original before final fastening

The Refrigerator Door Switch is an OEM part for Whirlpool refrigerators. This switch monitors the opening and closing of the refrigerator door, activating lights and functions as needed while also keeping track of door activity for diagnostics purposes.

Causes of failure may be from normal wear and tear over time, moisture damage, or impact if the door is accidentally slammed.

Symptoms of a bad door switch include:

• Lights not turning on/off with door movement
• Dispensers or ice/water not working properly
• Cooling and freezing performance affected
• Error codes related to door operation

This OEM replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models as well.

The Reservoir is an OEM part for Whirlpool refrigerators. This partis responsible for storing and dispensing water for your refrigerator's water and ice dispenser. It ensures a steady flow of water to the dispenser, allowing you to enjoy refreshing drinks and ice cubes whenever you need them.

A bad water reservoir and filter outlet tube can occur due to damage, leaks, or blockages. If you notice symptoms such as reduced water flow, water leaks, or inconsistent water dispensing, it may be time to replace the water reservoir and filter outlet tube with this genuine OEM part..

Symptoms of a bad part include:

• Reduced water flow from the dispenser
• Water leaks around the dispenser area
• Inconsistent or intermittent water dispensing

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This thermistor cover shields and positions the refrigerator's temperature sensor so it reads cabinet air accurately. Replacing a cracked or missing cover helps restore stable temperatures and normal cooling performance.

• Holds the thermistor in place and shields it from direct airflow for accurate temperature sensing
• Helps prevent erratic temperatures, overcooling/undercooling, or long run times caused by an exposed sensor
• Commonly replaced when the original cover is cracked, loose, or missing
• Supports consistent temperature control by ensuring proper sensor placement

• Disconnect power before servicing
• Remove shelves/bins as needed to access the sensor location
• Align the thermistor and seat the cover fully; engage tabs or reuse existing hardware per model
• Avoid pinching the sensor or wiring and verify the cover is snug

This grille holds the refrigerator air filter in place behind the toe kick, allowing proper airflow through the filter and helping control odors. It replaces a damaged or missing grille to restore correct filter fit and operation. What it does:

• Secures the air filter housing so the filter seals and functions as intended
• Permits airflow through the filter media for odor control and fresher interior air
• Covers and protects the filter opening from debris and accidental contact
• Restores proper fit and appearance to the fridge front toe-kick area

• Disconnect power to the appliance before beginning any work
• Remove the old grille by gently pulling or releasing retaining clips as required by your model
• Align the grille with the filter opening and press until clips engage; do not force
• If an air filter is separate, verify the filter is seated correctly inside the grille before restoring power

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

This ice storage bin holds the ice made by your refrigerator's icemaker and keeps it contained and easy to access in the freezer. Replace a cracked or warped bin to prevent spills, jams, and poor seating.

• Collects and stores ice cubes produced by the icemaker
• Keeps cubes contained to minimize spills and stray frost
• Slides/seats on the designated rails or shelf area in the freezer
• Common signs of failure: cracks, broken tabs, bin won't seat or slides out, ice falling into the freezer

• Unplug the refrigerator or disconnect power; switch the icemaker off
• Pull the old bin straight out; empty and clean the area
• Slide the new bin in until fully seated; restore power and turn the icemaker back on

This burner orifice meters the gas delivered to a burner so you get a stable, properly sized flame. Replacing a clogged or damaged orifice helps restore quick ignition, consistent flame quality, and even heating on gas appliances.

• Meters gas flow from the valve to the burner for correct flame size and shape
• Helps maintain efficient, even heating and clean combustion
• Wear or blockage may show as delayed or no ignition, weak/uneven flame, or yellow tipping
• Can reduce popping or flare-ups caused by improper gas metering

• Shut off gas supply and disconnect power before servicing
• Remove the old orifice with the proper wrench/nut driver; install the new one snugly—do not overtighten
• After reassembly, leak-check connections and verify flame; adjust air shutter only if specified by the service manual

This mounting bracket secures internal components in place to keep your appliance stable and operating quietly. It replaces a worn, bent, or broken bracket to restore proper alignment and prevent loose or rattling parts. What it does:

• Provides a stable mounting point for panels, assemblies, or hardware
• Keeps connected components aligned to prevent rubbing or vibration
• Stops noises caused by loose or shifting internal parts
• Restores proper fit when an old bracket is bent, cracked, or missing

• Install with appliance unplugged or power disconnected to avoid shock
• Verify bracket orientation using the appliance's service diagram before fastening
• Use appropriate screws/fasteners and torque to avoid stripping or distortion

This lighting housing mounts in the freezer compartment to secure and shield the light assembly. Replacing a cracked or missing housing restores proper light placement, protection, and a clean, finished appearance inside the freezer.

• Secures the freezer light assembly in position
• Shields wiring/components from contact and impacts
• Helps direct illumination for clear interior visibility
• Common signs include broken/missing housing, loose or dangling light, or damaged mounting tabs

• Disconnect electrical power before servicing
• Remove retaining screws/clips and note original orientation
• Transfer any reusable light components to the new housing as designed, then reinstall and secure the housing
• Restore power and verify proper light operation

This light lens covers and protects the appliance's lamp, diffusing illumination in the cavity. Replacing a cracked or missing lens restores safe, even lighting and shields the bulb from splashes, heat, and debris.

• Provides a protective cover over the light and diffuses illumination
• Shields the bulb from grease, moisture, and debris for safer operation
• Restores proper lighting when the original lens is cracked, yellowed, warped, or missing
• Replaces lenses that won't latch or keep falling out

• Disconnect power to the appliance and allow the light area/bulb to cool completely.
• Wear gloves; damaged lenses can have sharp edges.
• Remove retaining screws or release tabs, noting the lens orientation; transfer any reusable clips.
• Seat the new lens fully and secure without overtightening to avoid cracking; restore power and test.

A direct-replacement electrical socket that restores a secure connection for a single appliance component. Replacing a worn or damaged socket helps stop intermittent power, flickering lights, or loss of function in affected circuits. What it does:

• Provides a secure electrical connection between the appliance wiring and the component it serves.
• Holds and aligns the mating connector or bulb so contacts meet reliably.
• Restores consistent power transfer when a brittle, corroded, or loose socket causes intermittent operation.
• Common symptom: component or light works intermittently, only when jostled, or not at all.

• One replacement socket

• Always disconnect power (unplug appliance or shut off breaker) before inspecting or replacing electrical parts.
• Inspect surrounding wiring and connector for heat damage; replace harnesses if insulation is compromised.
• Use basic hand tools to remove and reinstall; ensure contacts are fully seated and fasteners are secure.

The Light Bulb is an OEM replacement part for Whirlpool refrigerators. It is responsible for providing lighting inside the refrigerator, allowing you to easily see and locate stored items.

A bad refrigerator light bulb can occur due to regular usage or electrical issues. If you notice symptoms such as a dim or flickering light, or if the bulb has completely stopped working, it may indicate a faulty light bulb.

Symptoms of a bad refrigerator light bulb include:

• Dim or flickering light
• Complete failure of the bulb

Restore your refrigerator by replacing the faulty or burnt-out light bulb with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This damper is the airflow gate that opens and closes to control air movement through the appliance's vent/duct path. Replacing a worn damper restores proper circulation and helps eliminate drafts and rattling from a loose or broken flap. What it does and common symptoms:

• Opens/closes a baffle to meter airflow through the air channel
• Helps maintain consistent air circulation and appliance performance
• Symptoms can include weak airflow or a constant draft when off
• Clicking, flapping, or rattling noises near the vent/duct area
• Visible damage or a stuck/broken flap at the damper

• One damper assembly

• Disconnect power before servicing; if applicable, shut off gas supply
• Access the damper behind the relevant cover/air duct; note orientation before removal
• Transfer any seals/clips from the old unit and ensure a tight, even seal on install
• After reassembly, restore power and verify the baffle moves freely and airflow is correct

This replacement access cover restores the appliance's exterior finish and helps protect internal components from dirt and accidental contact. Simple, direct-fit design for restoring safety and appearance after damage or removal. What it does

• Shields internal components and wiring from dust, debris, and accidental contact.
• Helps stop rattles and vibrations caused by a missing or loose cover.
• Restores the appliance's finished look after repair or maintenance.
• Provides a mounting surface for screws and attaches flush to the cabinet.

• Disconnect power (and water, if applicable) before starting any work.
• Remove any fasteners or trim pieces holding the old cover in place; lift cover straight out to avoid pinching wires.
• Align new cover and secure with the original screws; do not overtighten to avoid cracking the plastic.
• If any clips or mounting tabs are damaged, replace them before reinstallation to ensure a secure fit.

This damper housing is the plastic mounting and airflow channel that holds the refrigerator air damper assembly, helping direct cold air between compartments for proper temperature balance and efficient cooling performance. What it does:

• Secures the air damper and provides the airflow path between freezer and fresh-food compartments
• Helps regulate interior temperatures by guiding cold air where needed
• Prevents air leaks and misdirected airflow that can cause uneven cooling or frost buildup
• Works with the damper actuator to open and close the airflow passage as commanded by the control board

• One damper housing (air damper housing) as shown

• Disconnect power to the appliance before starting any repair
• Access may require removing interior liners, shelves or control panels—keep track of fasteners
• Handle plastic parts carefully to avoid cracking; align housing and damper components before fastening
• After installation, restore power and verify damper opens/closes and airflow is restored

This replacement cover shields and finishes a designated area of your appliance, protecting internal components from dust, moisture, and accidental contact. Replace a cracked or missing cover to maintain proper operation and a clean, finished look.

• Protects internal parts from debris and moisture intrusion
• Restores intended airflow/containment and component protection
• Helps reduce rattles or vibration from loose or broken trim
• Common signs it's needed: cracks, broken tabs, loose fit, or exposed components

• Disconnect power; also shut off water supply
• Retain and reuse original screws/clips unless your model specifies otherwise
• Align tabs and mounting holes carefully to avoid stress on plastic
• Do not overtighten fasteners; snug by hand to prevent cracking

This rigid water tube delivers water within the refrigerator's water/ice system, restoring proper flow to the dispenser or ice maker after a cracked or clogged tube. Durable replacement designed to match the original fit and function. What it does:

• Directs water from the supply line to internal components like the ice maker or dispenser.
• Replaces cracked, split, or kinked tubing that causes leaks or weak water flow.
• Helps stop visible leaks and intermittent water delivery when the original tube is damaged.
• Preserves correct routing to prevent rubbing or pinching that can cause future leaks.

• Disconnect power and shut off the water supply before beginning any repair.
• Inspect nearby fittings and clips; replace or reseat as needed for a secure, leak-free connection.
• Tighten connections to manufacturer torque recommendations; test for leaks by restoring water and checking all joints.

This replacement switch cover restores a finished surface around control switches and helps keep switches protected from spills and debris. It gives a clean look and supports reliable button or switch operation. What it does

• Covers and protects the switch area on the control panel from food, liquid, and dust.
• Helps maintain correct alignment and spacing for push buttons or selector switches.
• Prevents contaminants from reaching the switch mechanism, reducing intermittent or sticky switch symptoms.
• Restores a uniform appearance to the appliance control area.

• Designed for direct replacement; reinstall screws or clips in their original locations.
• Power off and unplug the appliance before starting any repair to avoid shock or injury.
• Handle plastic trim carefully to avoid scratches; do not overtighten fasteners.
• Replace those parts as needed for full function.
