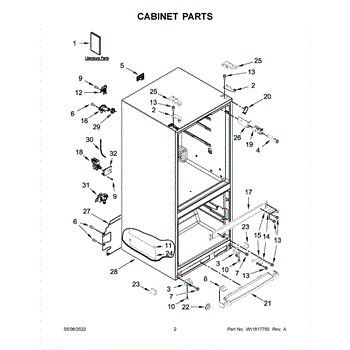

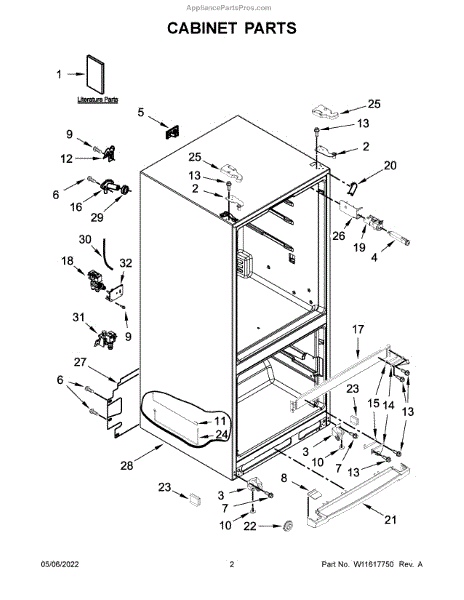

Parts for Kitchenaid KRFF300EBS01: Cabinet Parts

Top hinge assembly restores proper support and a smooth pivot for the refrigerator door, helping maintain alignment and a tight seal. Use this exact replacement when a top hinge is bent, worn, or causing door sag. What it does:

• Provides the upper pivot point that supports the refrigerator door and enables smooth opening and closing.
• Restores proper door alignment to help eliminate sagging, uneven gaps, or rubbing at the top edge.
• Replaces worn, bent, or damaged hinge components that cause wobble or inconsistent door movement.
• Works with factory mounting locations and hardware to return the door to intended operation.

• Disconnect power to the appliance and remove items from the door before beginning work.
• Support the door (have a second person assist) when removing or installing the top hinge to prevent injury or damage.
• Use appropriate hand tools; snug mounting screws securely but avoid over-tightening.

This door hinge supports the appliance door and provides a smooth pivot point so it opens and closes correctly. A worn hinge can cause sagging, rubbing, or poor sealing that affects performance and safety. What it does:

• Supports and guides the door for smooth opening and closing
• Helps maintain correct door alignment and sealing
• Common symptoms include door sagging, rubbing/binding, squeaking, or not closing flush
• Replace if the hinge is bent, cracked, loose, or excessively worn

• One door hinge

• Disconnect power to the appliance before servicing
• Support the door during removal/installation; some hinges are spring-loaded—use caution
• Remove any panels/trim as needed and transfer spacers/bushings from the old hinge if present
• Adjust mounting points as needed per the service manual

This front roller assembly replaces a worn wheel/bracket so the appliance or drawer moves smoothly and stays properly supported. Restore easy glide and alignment to reduce drag, noise, and strain during everyday use.

• Supports the front of the cabinet or drawer and allows smooth rolling
• Helps maintain proper alignment and level during movement
• Reduces scraping, squeaking, or hard-to-move operation
• Common signs of failure: broken/missing wheel, bent bracket, uneven stance, or dragging

• Disconnect power before servicing; shut off water or gas if applicable. Use help when moving heavy appliances
• Support the drawer or appliance and access the front roller mount
• Remove retaining fasteners, noting orientation; transfer any reusable hardware
• Install and secure the new assembly, then check for smooth travel and proper alignment/level

A front roller assembly that supports the dryer's drum edge to help the drum turn smoothly and quietly. Replacing a worn roller restores proper drum alignment and helps reduce rubbing, squeaks, and uneven spinning. What it does:

• Supports the front of the dryer drum so it rotates freely and stays centered.
• Reduces noise and vibration caused by worn or rough rollers.
• Prevents drum wobble that can cause rubbing against the cabinet or seals.
• Helps the drum turn smoothly so airflow and drying performance remain consistent.

• Disconnect power before any service. For gas dryers, turn off gas supply if required by your local codes.
• Remove the dryer front panel or cabinet as required to access the drum; support the drum while removing and installing the roller.
• Inspect related parts (rear roller/glides, drum seals, belt) and replace if worn to avoid repeat failures.
• Use common hand tools; do not force parts. Follow OEM service instructions for torque/fastening details.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This grille enclosure replaces a damaged lower front grille to restore the appliance's appearance and protect internal components. It provides a secure cover that helps direct airflow and prevents debris from entering the cabinet. What it does:

• Covers and protects lower front components from dirt, dust and accidental contact
• Helps direct airflow around vents and intake areas for proper operation
• Restores a finished, gap-free appearance when the original grille is cracked or broken
• Reduces rattling caused by loose or damaged grille pieces

• One lower front grille enclosure

• Disconnect power before starting any repair to avoid electrical shock
• Remove nearby panels or kickplate screws/clips as needed for access
• Align tabs and secure with the factory screws or clips; do not force or bend mounting tabs

Size: 8-18 x 1/2 inch.

This replacement water tube routes water for the refrigerator dispenser/ice system so your appliance can deliver water where it needs to go. Durable molded tubing replaces damaged or restricted lines to restore reliable water flow. What it does:

• Carries water between the supply, valve, dispenser and/or ice components
• Replaces cracked, kinked or leaking tubing that causes visible leaks
• Helps restore normal dispenser flow when the original line is blocked or pinched
• Fits where molded refrigerator water lines are specified by the manufacturer

• Turn off water supply and unplug the appliance before starting work
• Release any retaining clips or fasteners carefully to avoid damage
• Inspect connection fittings and replace worn clamps or seals as needed
• After installation, restore water and power, then check all connections for leaks

This door hinge secures and guides a refrigerator/freezer door so it opens and closes smoothly. Replacing a worn hinge restores proper door alignment and helps prevent gaps that affect cooling performance. What it does:

• Supports the weight of the appliance door and holds it on its track
• Guides door swing so the door opens and closes evenly
• Helps maintain a tight seal to prevent air leaks and cooling loss
• Common symptoms: door sagging, uneven gap, rubbing or scraping at the door edge, or a door that won't stay closed

• Unplug the appliance or turn off power before starting work
• Support the door while removing hinge fasteners to prevent dropping or damage
• Keep all original screws; verify fit and orientation before final tightening
• Consider a second person for assistance if the door is heavy or alignment is difficult

The Door Hinge is an OEM component specifically designed for Whirlpool refrigerators. As an integral part of the refrigerator door, it provides a rotating mechanism that allows for smooth opening and closing access to the fresh food and freezer compartments.

The hinge contains precisely engineered components including springs, brass pins, and roller bearings that ensure quiet, balanced movement. It helps the door hang securely while accommodating a wide range of opening angles.

Symptoms of a bad hinge include:

• Noisy squeaking or grinding noises coming from hinges
• Difficulty in opening or closing refrigerator doors
• Doors that do not stay in desired positions
• Visual cracks, chips, or other exterior damage to hinges

This Whirlpool OEM hinge replacement will restore reliable door operation. It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.


A center hinge spacer that positions and centers the door hinge for proper alignment and smooth operation. Replaces a worn or missing spacer to help restore correct door spacing and reduce sag or rubbing. What it does:

• Keeps the center hinge at the correct distance to maintain door alignment and even gaps.
• Helps the door open and close smoothly by preventing metal-on-metal contact.
• Reduces door sag, uneven closing, and rubbing along the cabinet.
• Protects hinge components from premature wear by maintaining correct spacing.

• Disconnect power to the appliance and remove any contents from the door before starting.
• Support the door while loosening or removing hinge fasteners to prevent injury or damage.
• Install the spacer in the same orientation as the original; replace any damaged screws or hardware.
• Tighten fasteners securely but avoid overtightening; check door alignment and operation after installation.

The Fill Tube is an OEM part for Whirlpool-brand refrigerator ice makers and water dispensers. It facilitates filling of the ice mold tray with water during the freezing process.

Symptoms of a bad fill tube include:

• Ice maker not filling molds properly or producing ice inconsistently
• Water dispenser failing to function or dispensing slowly
• Leaks noticed around the fill tube area
• Buildup of mineral deposits blocking water flow

Over many years of repeated use, mineral deposits inside can clog the tiny fill tube openings. Bends or cracks may also form from the continuous impact of ice during the ejection cycle.

Causes of a bad fill tube are usually just standard wear issues like mineral buildup reducing water flow or plastic material fatigue rendering it brittle.

Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

This water inlet valve assembly controls the flow of water from the home supply into the refrigerator. Replacing a faulty valve restores proper water delivery to the ice maker and/or dispenser for consistent ice production and dispensing.

• Opens and closes to send water to the ice maker and/or dispenser as commanded by the refrigerator
• Common symptoms: no water from dispenser, no ice production, slow/weak dispenser flow
• May also present as continuous dripping into the ice maker/dispenser or leaks around the valve body
• If water lines and filter are clear but filling is inconsistent or absent, the valve may be at fault

• Disconnect power and shut off the water supply before servicing
• Place a towel or shallow pan to catch residual water; note line and wire locations for reassembly
• Ensure tubing is fully seated in fittings; avoid overtightening plastic connections
• Restore water and power, then check all joints for leaks and run the dispenser to purge air/debris

This replacement housing serves as the structural cover/mount for a specific appliance assembly. Replacing a cracked or damaged housing restores secure mounting and protection so components stay aligned and operate as intended. What it does:

• Holds and positions the related components for correct operation
• Shields internal parts and wiring from impact and vibration
• Restores proper fit when the original housing is cracked, warped, or broken
• Common symptoms include loose/misaligned parts, rattling noises, broken tabs, or visible damage in the affected area

• 1 housing

• Disconnect power; if the serviced area ties into water, shut off the water supply
• Wear cut-resistant gloves; edges and surrounding sheet metal can be sharp
• Transfer any sensors, seals, or hardware from the old housing to the new one
• Reuse existing screws/clips; align carefully and do not overtighten, then test operation

This small pin clip secures the roller pin in a refrigerator drawer/track assembly, keeping the roller and pin from sliding apart. Replacing a missing or bent clip restores smooth drawer movement and helps prevent bins from tilting, binding, or dropping.

• Retains the roller on its pin to keep the drawer track assembly together
• Helps resolve drawers that tilt, bind, or fall when a clip is missing or damaged
• Prevents the pin from backing out, reducing scraping or popping noises
• Replaces clips that are missing, bent, or no longer hold securely

• Disconnect power and remove the drawer/bin to access the track and roller
• Support the roller; remove the old clip with small pliers while securing the pin
• Align roller and pin; press the new clip fully into the groove until seated
• Reassemble and verify the drawer glides smoothly without binding

The Reservoir is an OEM part for Whirlpool refrigerators. This partis responsible for storing and dispensing water for your refrigerator's water and ice dispenser. It ensures a steady flow of water to the dispenser, allowing you to enjoy refreshing drinks and ice cubes whenever you need them.

A bad water reservoir and filter outlet tube can occur due to damage, leaks, or blockages. If you notice symptoms such as reduced water flow, water leaks, or inconsistent water dispensing, it may be time to replace the water reservoir and filter outlet tube with this genuine OEM part..

Symptoms of a bad part include:

• Reduced water flow from the dispenser
• Water leaks around the dispenser area
• Inconsistent or intermittent water dispensing

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Color: Black / Right Hand

Color: Black / Left Hand

This filter cover secures the appliance's filter element, keeping debris out of the sump and maintaining proper water flow for efficient cleaning. Replaces a worn or cracked cover to help restore normal filter function and reduce recurring clogs. What it does:

• Secures and protects the filter assembly from food particles and large debris
• Helps maintain correct water circulation through the filter area
• Prevents loose debris from entering the pump or spray system
• Can resolve symptoms like visible cover damage, persistent clogs, or debris in the sump

• One filter cover

• Turn off power to the appliance before accessing internal components
• Remove the old cover, clean the filter area, and snap or fasten the new cover into place per manufacturer guidance
• Do not force the cover; verify proper seating to avoid leaks or damage

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

This replacement water tube routes incoming water to the appliance's inlet assembly, restoring a sealed path for water flow and helping stop leaks or loss of water supply at the inlet. Install when tubing is cracked, split, or leaking. What it does:

• Replaces the damaged or cracked inlet tubing that delivers water to the appliance
• Restores a proper sealed connection to prevent water leaks at the inlet area
• Helps recover normal water supply when symptoms include visible leaks or reduced/absent water flow to the inlet
• Matches OEM routing and connection points for correct fit and function

• Recommended for users familiar with appliance water connections; shut off the water supply before starting
• Turn off power to the appliance and relieve any system pressure before disconnecting lines
• Inspect and replace any worn clamps or fittings; use proper-size connectors and tighten to avoid leaks

This OEM Replacement Part is a single water inlet valve designed for use in Whirlpool refrigerators. Its key function is to supply water to the refrigerator's ice maker and water dispenser. When energized, this valve releases water from the supply line into the ice mold. If the water valve develops a crack, it will need replacement. The valve accommodates two different sizes of tubing: the smaller inlet measures 1/4", and the larger inlet measures 5/16".

By maintaining the integrity of this component, users can ensure the proper functioning of the refrigerator's ice maker and water dispenser. Always consult your appliance manual for accurate installation and replacement guidelines. This part is compatible
with select brands including Whirlpool, KitchenAid, Kenmore, and Maytag.
