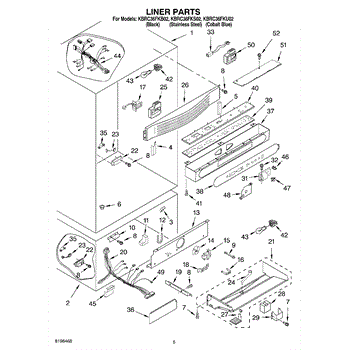

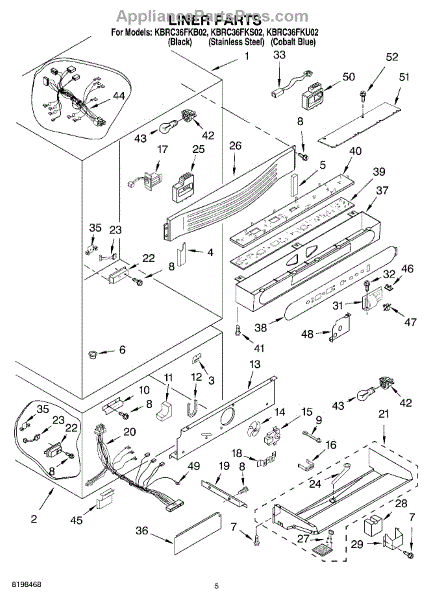

Parts for Kitchenaid KBRC36FKB02: 04 - Liner Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Instruction sheet included.

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Instruction sheet included.

This fan motor retainer secures the refrigerator's fan motor to its mounting bracket or shroud, reducing vibration and keeping the fan aligned so air circulates properly for consistent cooling.

• Secures the fan motor to its bracket or shroud
• Maintains proper fan alignment and clearance for consistent airflow
• Helps reduce vibration, buzzing, or rattling from a loose motor
• A worn or missing retainer may present as scraping fan noises or uneven airflow

• Disconnect power to the refrigerator before servicing; allow moving parts to stop and wear cut-resistant gloves
• Access the fan area per your model
• Transfer the motor into the new retainer and reinstall using existing hardware as required
• Ensure the fan blade spins freely and clears the shroud before restoring power

This air baffle assembly regulates and directs cold airflow inside the refrigerator, typically between the freezer and fresh food sections. Replacing a damaged baffle helps restore balanced air distribution for more even cooling and stable temperatures throughout. What it does:

• Controls the amount and direction of airflow to maintain set temperatures
• Helps reduce warm spots or over-cooling in the fresh food compartment
• A cracked, missing, or misaligned baffle may lead to a warm refrigerator while the freezer stays cold
• Air leaks or obstruction at the baffle can cause frost or unusual air noise near the vent

• 1 air baffle assembly

• Disconnect power to the refrigerator before servicing
• Remove shelves and the interior vent/diffuser cover to access the baffle
• Retain and transfer any screws, clips, or seals from the original part as required
• Seat the new baffle fully so the seal engages evenly; reassemble and verify airflow

The Thermistor is an OEM replacement part for Whirlpool refrigerators. This temperature-sensitive sensor monitors conditions inside refrigerator and freezer compartments. It provides critical feedback to the electronic control module, regulating cool air temperature in both sections.

Symptoms of a faulty thermistor include:

• Fluctuating temperatures where sections become too warm or cold
• Frequent cycling of evaporator fans and cooling components
• Defrost issues or Er/Ed error codes shown on displays

Causes can involve regular exposure to changing interior environments over many years. Mineral deposits accumulating may lead to sensor surfaces becoming insulated. Physical stress from overloading could potentially crack the thermistor over time as well.

This OEM replacement part is compatible with some Kenmore Elite models too.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This thermistor clip secures the refrigerator/freezer temperature sensor in the correct position for accurate temperature readings and consistent cooling. It helps keep the sensor stable so the control can properly monitor and adjust appliance temperature. What it does:

• Holds the thermistor/sensor in place on evaporator or cabinet surfaces to ensure reliable contact
• Helps prevent sensor movement that can cause incorrect temperature readings or erratic cooling cycles
• Supports proper airflow around the sensor for accurate thermostat feedback
• Simple, passive mounting solution that maintains sensor location after service

• Includes: 1 thermistor clip

• Designed for a direct replacement; remove power to the appliance before servicing
• Handle the sensor and wiring gently to avoid damage to the probe or connector
• Confirm sensor location per manufacturer guidance before clipping to ensure correct placement

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement light bulb restores clear, reliable illumination so you can see contents and monitor appliance operation. Replace a burned-out, dim, or flickering bulb to bring visibility back to the area it lights. What it does:

• Provides illumination in the appliance's interior or designated lighting location
• Makes it easier to see contents and check status at a glance
• Common symptoms: light won't turn on, intermittent/flickering light, dim or blackened bulb

• 1 light bulb

• Disconnect power before servicing; allow hot surfaces and the old bulb to cool completely
• Remove any lens/cover, then remove the old bulb
• Install the new bulb securely without overtightening; reinstall the lens/cover if present
• Restore power and test operation

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A replacement support control bracket that secures the appliance control/console to the cabinet, restoring stable button alignment and preventing the control panel from sagging or shifting during use. Durable stamped metal design for reliable mounting. What it does:

• Secures the control console to the appliance cabinet so the control assembly stays properly positioned
• Prevents the control panel or console from sagging, rocking, or coming loose
• Helps maintain proper alignment of switches, knobs, and electronic controls
• Resolves intermittent button contact or usability issues caused by a loose console

• Disconnect power before beginning any service to avoid shock or injury
• Basic hand tools (screwdriver, nut driver) are typically required; keep original fasteners if present
• Align bracket with factory mounting points and tighten hardware securely but avoid overtightening

This sheet-metal screw secures appliance panels, brackets, and components to the cabinet. Replacing a missing or stripped fastener restores a tight, rattle-free fit and helps keep assemblies aligned for reliable operation.

• Fastens sheet-metal parts to the chassis or support brackets
• Replaces stripped, corroded, or lost screws to restore proper hold
• Helps reduce vibration and noise from loose panels
• Maintains alignment of covers, ducts, or trim

• Disconnect power to the appliance; shut off water or gas if applicable.
• Match this screw to the original location and length.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• If the original hole is damaged, repair or replace the mounting point before installing.
