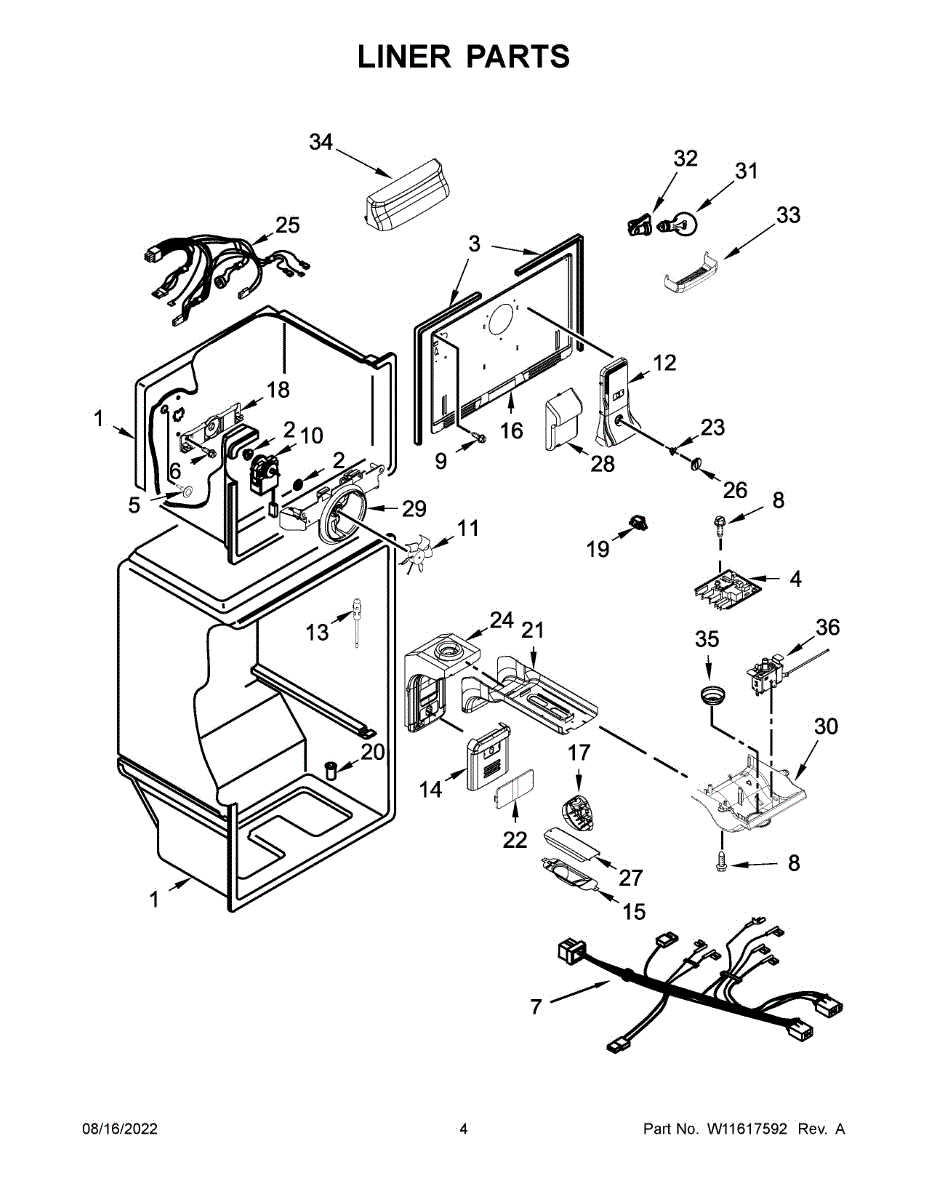

Parts for Whirlpool WRT511SZDB02: Liner Parts

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This evaporator cover gasket seals the evaporator housing to help maintain proper airflow and reduce moisture at the evaporator. Replacing a worn gasket helps restore consistent cooling and prevents frost buildup around the evaporator. What it does:

• Seals the evaporator cover to the cabinet to minimize air leaks and moisture intrusion
• Helps maintain proper airflow across the evaporator for efficient cooling
• Reduces frost and ice buildup on or around the evaporator cover
• Can alleviate symptoms such as uneven cooling, excessive frost near the evaporator, or longer compressor run times

• One evaporator cover gasket

• Disconnect power before starting any repair to avoid electrical shock
• Remove the evaporator cover per your model's service instructions to access the gasket
• Inspect mating surfaces and clean away ice or debris before installing the new gasket for a proper seal
• Reassemble components in reverse order, verifying the gasket seats evenly around the cover

This hole plug covers an unused opening in the appliance cabinet. It restores a clean, finished look and helps keep spills, dust, and moisture out of internal components.

• Seals an unused hole in the cabinet for a tidy, finished appearance
• Helps protect internal parts from liquids, dust, and humidity
• Covers sharp or unfinished edges around open holes
• Common signs it's needed: missing/broken cap, exposed hole, or a plug that won't stay seated

• Disconnect power and, if applicable, shut off gas/water before starting.
• Remove the old plug; access from the front or from behind the panel as needed.
• Align and press the new plug firmly into the opening until fully seated and flush.
• If panel removal is required for access, handle sheet metal carefully and reinstall all fasteners.

This is a 8-15 x 2.00 in. hex washer head, self-locking screw used to secure appliance panels and components. It provides a durable, vibration-resistant fastener that helps keep parts aligned and stable. What it does:

• Fastens and secures panels, brackets, or assemblies to the appliance frame
• Self-locking design helps resist loosening from vibration or thermal cycling
• Hex washer head gives a larger bearing surface to prevent pull-through on thin materials
• Commonly replaced when screws are missing, stripped, or causing loose/rattling parts

• Use the correct driver/socket to avoid rounding the hex head
• Tighten until snug; avoid over-torquing which can strip threads or damage components
• Disconnect power and follow appliance safety procedures before working inside the unit
• Replace any stripped or damaged mating hardware for secure fastening

This replacement screw fastens panels, brackets, and internal components so they stay secure during operation. Replace worn, rusted, or missing screws to restore a solid fit and help reduce vibration, rattles, and misalignment.

• Secures appliance parts to maintain proper fit and alignment
• Helps reduce noise and vibration from loose panels or trim
• Replaces stripped, corroded, or missing fasteners
• Can resolve issues like rattling, gaps, or shifting components

• Disconnect power; turn off gas/water if applicable before servicing
• Match to the original screw and start threads by hand to avoid cross-threading
• Use the correct driver and tighten snugly; do not overtighten into plastic or thin sheet metal
• Replace additional worn fasteners in the same location if needed for even clamping

The Evaporator Motor is an OEM part for Whirlpool refrigerators. It plays a critical role in circulating air over the refrigerator's evaporator coils to cool the air inside the fridge and freezer compartments. This circulation helps maintain the desired temperature settings, ensuring that food is kept at optimal freshness.

Includes wire harness. If your fan motor does not have an incorporated wire harness, you will need part number- WPW10188389

Causes of a bad Evaporator Motor can include motor burnout due to continuous operation, electrical failures, or mechanical wear from prolonged use.

Symptoms of a bad Evaporator Motor include:

• The refrigerator or freezer not cooling adequately
• Unusual noises coming from the refrigerator indicating motor distress
• The motor running hot or not running at all

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Blade is an OEM part for Whirlpool refrigerators. It is designed to circulate air over the evaporator coils, ensuring efficient cooling throughout the refrigerator and freezer compartments. The fan blade helps maintain an even temperature, contributing to the appliance's overall performance.

Causes of a bad fan blade can include wear and tear over time, ice buildup interfering with the blade, or physical damage from accidental impact or obstruction by debris.

Symptoms of a bad evaporator fan blade include:

• Unusual noises such as rattling or scraping
• Inconsistent or insufficient cooling in the refrigerator or freezer
• The refrigerator running longer than usual
• Visible damage or warping of the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Air Tower is an OEM replacement part for Whirlpool refrigerators. It is responsible for distributing cold air throughout the refrigerator compartment, ensuring cooling and temperature control. This air tower directs and regulates the flow of air, maintaining consistent temperatures and preventing hot spots or uneven cooling.

A bad diverter air tower can occur due to wear and tear, damage, or blockages. If you notice symptoms such as inconsistent cooling, warm spots in the refrigerator, or poor temperature control, it may be time to replace the diverter air tower.

Symptoms of a bad diverter air tower include:

• Inconsistent cooling
• Warm spots in the refrigerator
• Poor temperature control

Restore your refrigerator by replacing the faulty or damaged diverter air tower with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This mounting bracket secures internal components in place to keep your appliance stable and operating quietly. It replaces a worn, bent, or broken bracket to restore proper alignment and prevent loose or rattling parts. What it does:

• Provides a stable mounting point for panels, assemblies, or hardware
• Keeps connected components aligned to prevent rubbing or vibration
• Stops noises caused by loose or shifting internal parts
• Restores proper fit when an old bracket is bent, cracked, or missing

• Install with appliance unplugged or power disconnected to avoid shock
• Verify bracket orientation using the appliance's service diagram before fastening
• Use appropriate screws/fasteners and torque to avoid stripping or distortion

The Refrigerator Door Switch is an OEM part for Whirlpool refrigerators. This switch monitors the opening and closing of the refrigerator door, activating lights and functions as needed while also keeping track of door activity for diagnostics purposes.

Causes of failure may be from normal wear and tear over time, moisture damage, or impact if the door is accidentally slammed.

Symptoms of a bad door switch include:

• Lights not turning on/off with door movement
• Dispensers or ice/water not working properly
• Cooling and freezing performance affected
• Error codes related to door operation

This OEM replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models as well.

This replacement valve tube-body helps route water within the appliance's valve assembly so the dispenser and ice maker get water when called. Restores proper water flow paths and replaces a worn or damaged tube-body. What it does:

• Directs water from the main valve to the dispenser and/or ice maker in the valve assembly
• Replaces cracked, corroded, or blocked tube passages that can cause reduced flow
• Commonly used when water leaks or irregular dispensing occur near the valve area
• Works as part of the valve manifold to maintain correct internal water routing

• One valve tube-body component

• Disconnect power and shut off the water supply before servicing
• Handle small fittings and seals carefully; inspect and replace O-rings or gaskets if damaged
• Some disassembly of panels or the valve assembly is required; wiring/piping diagrams
• After installation, restore water and power and check thoroughly for leaks and proper function

This air diffuser light cover protects and finishes the refrigerator interior light and diffuser assembly, keeping the bulb shielded and helping direct light for even illumination. It restores the factory appearance and protective function. What it does:

• Covers and protects the interior light/diffuser assembly from debris and contact
• Helps direct and diffuse the light for more even interior illumination
• Replaces cracked, broken, or discolored covers that let the bulb show or look unsightly
• Restores the proper fit and appearance of the light assembly

• Disconnect power before servicing the appliance to avoid shock
• Handle the cover carefully to avoid scratching or cracking during installation
• Usually installs by snapping or securing into the light/diffuser housing—no modifications required
• If fasteners are present, retain and reuse the original screws or clips

This electronic control board regulates the appliance's cycles, timing and user commands to keep functions running correctly. Replacing a failing control restores reliable cycle selection and operation. What it does:

• Manages cycle selection, timers and power to major components
• Processes user inputs from the console and relays commands to motors, valves and heaters
• Helps maintain proper sequencing of wash/dry/spin operations
• Failsafe symptom language: may cause no power to the unit, unresponsive controls, incorrect cycles, or error codes

• Disconnect power before starting any repair to avoid electrical shock
• Handle the board by its edges and avoid static discharge; use an anti-static strap if available
• Reuse existing mounting hardware and connectors unless damaged; confirm connector orientation at reinstall

The Diffuser is an OEM part for Whirlpool refrigerators. It is responsible for distributing cool air evenly throughout the refrigerator compartment, ensuring temperature regulation and freshness for food.

A bad air diverter diffuser can occur due to wear and tear, blockage, or damage to the diffuser blades. If you notice symptoms such as inconsistent temperature, warm spots, or poor cooling performance in your refrigerator, it may be time to replace the air diverter diffuser.

Symptoms of a bad air diverter diffuser include:

• Inconsistent temperature throughout the refrigerator
• Warm spots or areas not cooling properly
• Poor cooling performance or food spoilage

Restore your refrigerator by replacing the faulty or damaged air diverter diffuser with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This replacement air damper regulates and directs airflow inside the appliance or through its vent path. Replacing a broken or stuck damper helps restore proper air movement and reduces performance issues caused by a jammed or missing flap. What it does:

• Opens and closes to control airflow in the duct or air channel
• Helps maintain proper ventilation or temperature, depending on the appliance design
• Reduces backflow/drafts or uneven airflow
• Common symptoms: poor air movement, rattling/whistling near the vent, drafts, or performance imbalance due to a stuck or broken flap

• 1 air damper

• Disconnect power before servicing; isolate ducting if applicable
• Access the damper location; note orientation of the flap and any seals/gaskets
• Remove the old damper; install the new one with the flap moving freely in the correct direction
• Reassemble and test airflow; seal any duct joints per manufacturer guidance

This clear outer control cover protects and finishes the appliance's user control area while keeping buttons and displays visible. It restores a clean, finished look and shields controls from spills, dust, and everyday wear. What it does:

• Protects the appliance control panel from spills, dust, and light impact
• Keeps buttons and display readable while preventing direct contact and grime buildup
• Replaces cracked, fogged, or missing covers that can trap debris or expose internal components
• Helps maintain a finished appearance and smooth button operation

• One clear outer control cover

• Disconnect power before starting any repair to avoid shock or injury
• Typically removed/replaced from the front/control panel—may require removing a trim or screws
• Handle carefully to avoid scratching or cracking the clear plastic during installation

This burner orifice meters the gas delivered to a burner so you get a stable, properly sized flame. Replacing a clogged or damaged orifice helps restore quick ignition, consistent flame quality, and even heating on gas appliances.

• Meters gas flow from the valve to the burner for correct flame size and shape
• Helps maintain efficient, even heating and clean combustion
• Wear or blockage may show as delayed or no ignition, weak/uneven flame, or yellow tipping
• Can reduce popping or flare-ups caused by improper gas metering

• Shut off gas supply and disconnect power before servicing
• Remove the old orifice with the proper wrench/nut driver; install the new one snugly—do not overtighten
• After reassembly, leak-check connections and verify flame; adjust air shutter only if specified by the service manual

A direct-replacement electrical socket that restores a secure connection for a single appliance component. Replacing a worn or damaged socket helps stop intermittent power, flickering lights, or loss of function in affected circuits. What it does:

• Provides a secure electrical connection between the appliance wiring and the component it serves.
• Holds and aligns the mating connector or bulb so contacts meet reliably.
• Restores consistent power transfer when a brittle, corroded, or loose socket causes intermittent operation.
• Common symptom: component or light works intermittently, only when jostled, or not at all.

• One replacement socket

• Always disconnect power (unplug appliance or shut off breaker) before inspecting or replacing electrical parts.
• Inspect surrounding wiring and connector for heat damage; replace harnesses if insulation is compromised.
• Use basic hand tools to remove and reinstall; ensure contacts are fully seated and fasteners are secure.

This lighting housing mounts in the freezer compartment to secure and shield the light assembly. Replacing a cracked or missing housing restores proper light placement, protection, and a clean, finished appearance inside the freezer.

• Secures the freezer light assembly in position
• Shields wiring/components from contact and impacts
• Helps direct illumination for clear interior visibility
• Common signs include broken/missing housing, loose or dangling light, or damaged mounting tabs

• Disconnect electrical power before servicing
• Remove retaining screws/clips and note original orientation
• Transfer any reusable light components to the new housing as designed, then reinstall and secure the housing
• Restore power and verify proper light operation

This light lens covers and protects the appliance's lamp, diffusing illumination in the cavity. Replacing a cracked or missing lens restores safe, even lighting and shields the bulb from splashes, heat, and debris.

• Provides a protective cover over the light and diffuses illumination
• Shields the bulb from grease, moisture, and debris for safer operation
• Restores proper lighting when the original lens is cracked, yellowed, warped, or missing
• Replaces lenses that won't latch or keep falling out

• Disconnect power to the appliance and allow the light area/bulb to cool completely.
• Wear gloves; damaged lenses can have sharp edges.
• Remove retaining screws or release tabs, noting the lens orientation; transfer any reusable clips.
• Seat the new lens fully and secure without overtightening to avoid cracking; restore power and test.
